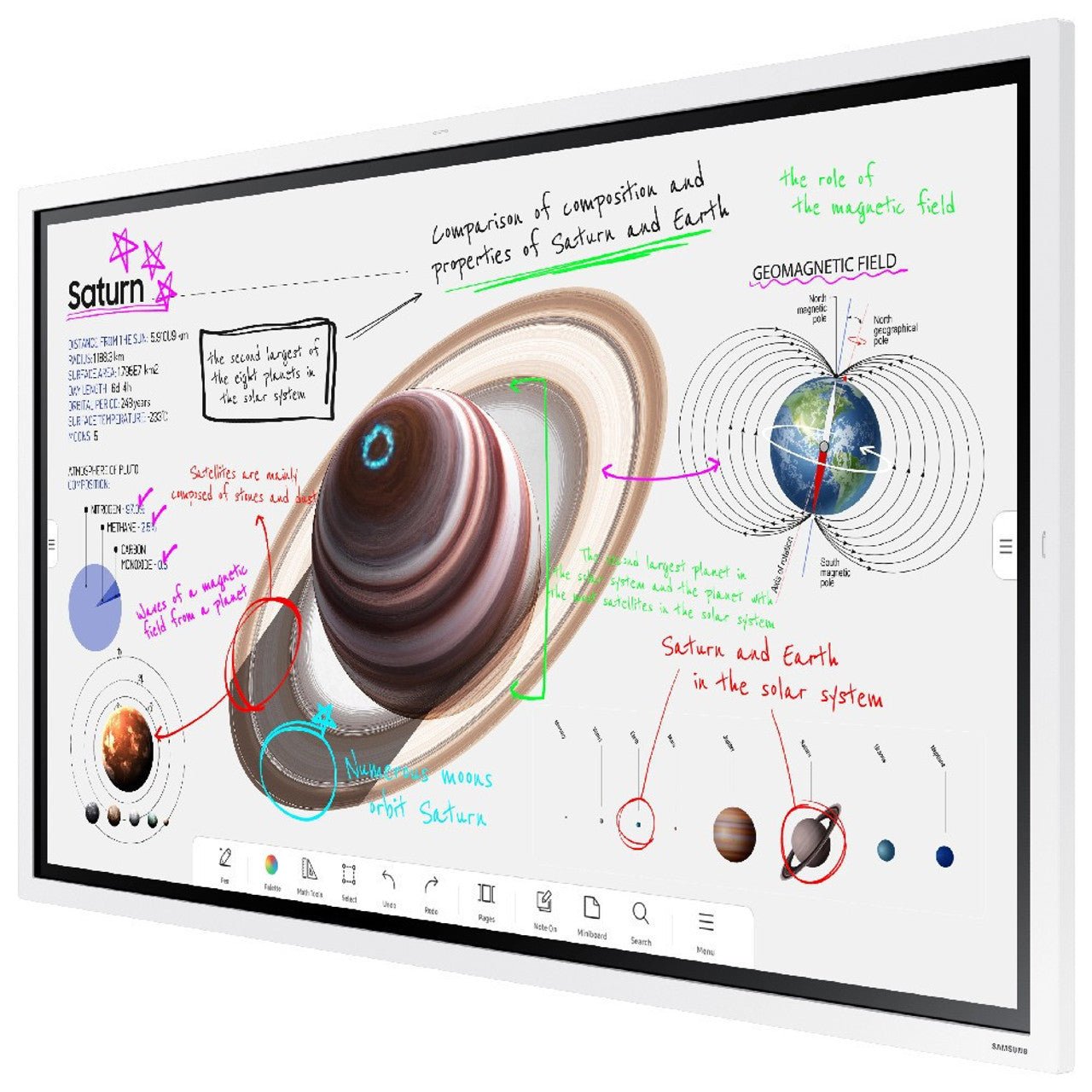

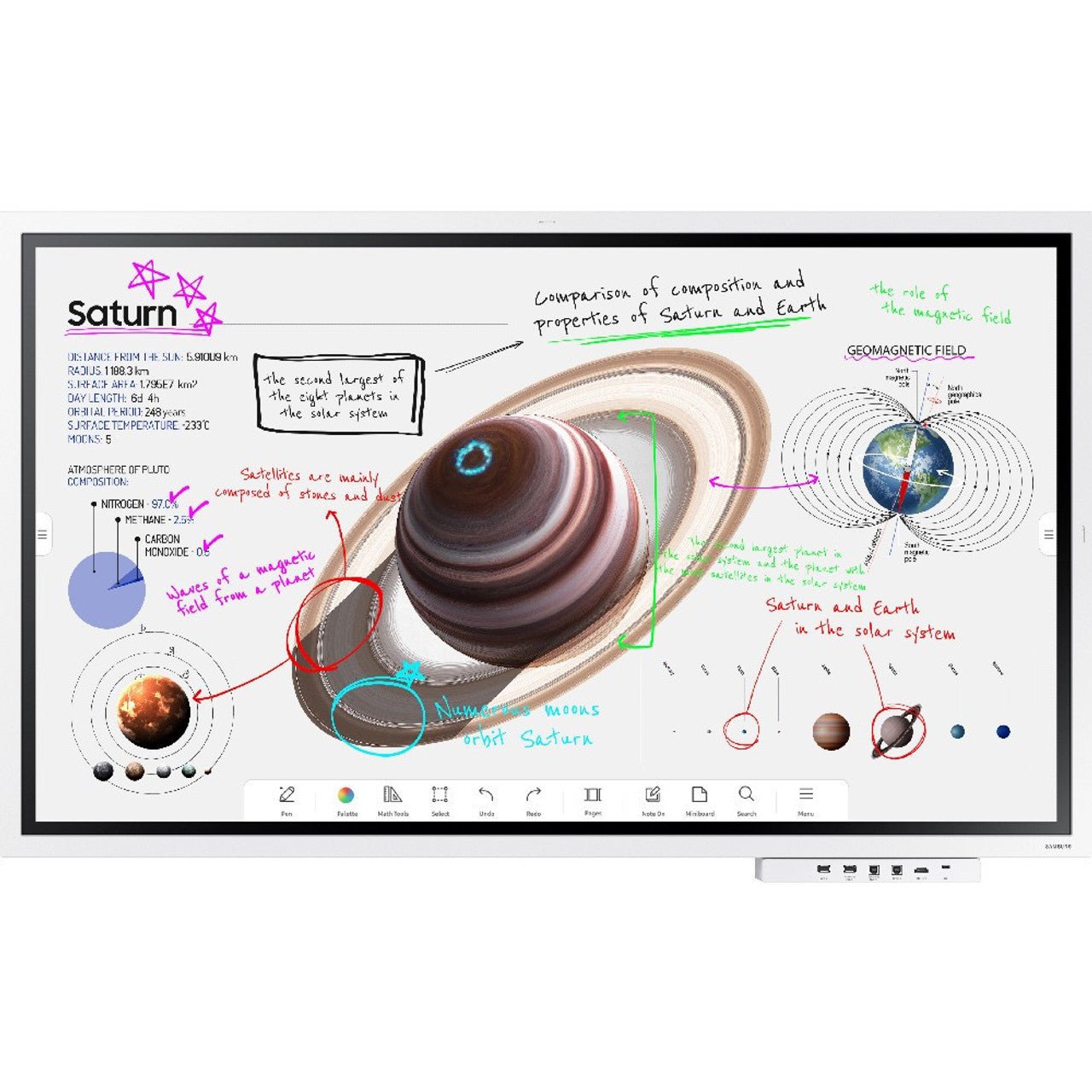

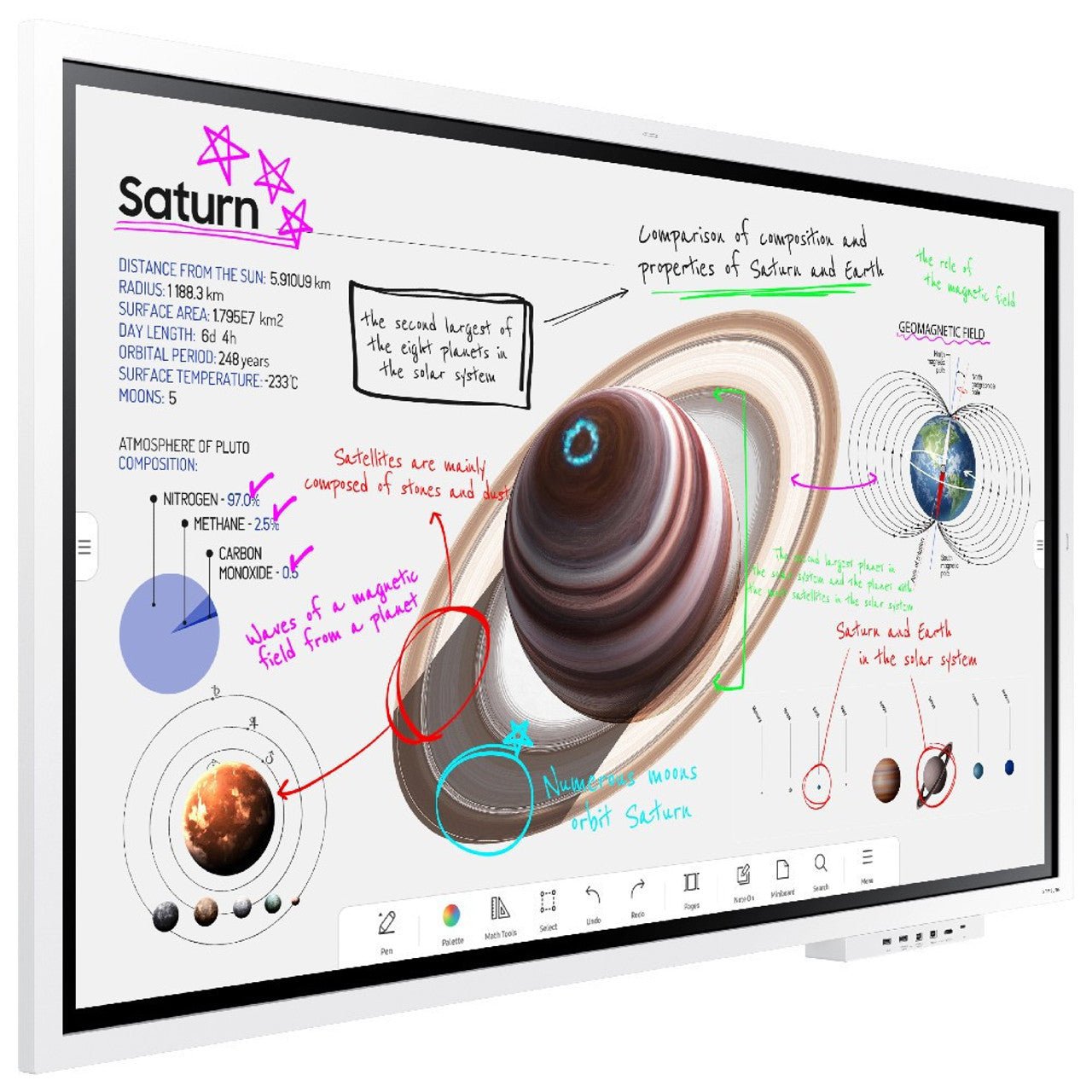

Samsung WM75B Flip Pro 75" 4K Interactive Display
PRODUCT DESCRIPTION
Samsung WM75B Flip Pro 75" 4K Interactive Display (LH75WMBWLGCXXS) - Local Warranty
Flip Pro: The B Generation, and What the Letter Tells You
The WM75B is a Samsung Flip Pro. Samsung codes the generation into the model letter: R is Flip 2, A is Flip 3, B is Flip Pro, and F is the current WMFX generation running Tizen 9.0. This listing is the 75-inch Flip Pro, part number LH75WMBWLGCXXS, running Tizen 6.5 with 32GB of on-board storage. The letter matters when you specify accessories, because connectivity trays and brackets are generation-specific rather than universal. Supplied locally by SourceIT with Singapore warranty and a GST invoice on every unit.
A 75-Inch Canvas Sized for Boardrooms and Lecture Theatres
Seventy-five inches of 4K UHD gives you a board that reads from the back of a full boardroom or a lecture room, not just from the first two rows. Infrared touch with 2,048 levels of stroke thickness keeps handwriting legible at scale, and the 8ms panel response keeps ink under the pen rather than trailing it. Palm-swipe erasing means nobody hunts for a duster halfway through a session. For architectural drawings, financial models and large process diagrams, the extra area is what makes the detail readable to everyone in the room at once.
USB-C Docking and Front-Edge Ports for Hot-Desked Rooms
Flip Pro brings a front-mounted USB-C port alongside two front USB-A ports and a rear USB-A, so a presenter plugs in at the edge of the display instead of reaching behind a 59kg screen. Two HDMI 2.0 inputs and a DisplayPort 1.2 input take laptops, a room video-conferencing codec or a media player, wired RJ45 and Wi-Fi cover the network, and RS232 is there when the room runs on a control system. In a shared boardroom that is the difference between a meeting that starts on time and five minutes of adapter hunting.
Tizen 6.5 On Board, So There Is No Room PC to Maintain
The WM75B runs its whiteboard, annotation and file handling on the display itself under Tizen 6.5, with 32GB of flash on board. There is no small-form-factor PC bolted behind the screen for IT to image, licence and patch, and no inconsistent room build to support across a floor. Files arrive over HDMI, DisplayPort, USB or the network, annotations sit over the source without altering it, and the finished board leaves by email, network drive or USB. Rated for 16/7 operation, it is specified for a full corporate or campus day.
Samsung WM75B Datasheet — Technical Specifications
General
| Product | Samsung Flip Pro WM75B 75" 4K Interactive Display |
| Part Number (SKU) | LH75WMBWLGCXXS |
| Generation | Flip Pro (B series) |
| Display Type | 75" 4K UHD interactive display, infrared touch |
| Operating Time | 16/7 |
| Platform | Tizen 6.5 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 75" |
| Resolution | 3,840 x 2,160 (4K UHD) |
| Panel Type | VA |
| Brightness | 350 cd/m² (without glass), 220 cd/m² (with glass) |
| Contrast Ratio | 4,000:1 (without glass) |
| Viewing Angle | 178° / 178° (H/V) |
| Response Time | 8ms |
| Touch Technology | Infrared (IR) |
| Touch Points | Up to 20 simultaneous users |
Smart Platform & Management
| Operating System | Tizen 6.5 |
| Flash Memory | 32GB |
| Built-in Tools | Digital whiteboard, annotation over imported content, palm-swipe eraser |
| Screen Mirroring | Yes |
| Export & Share | Email, network drive, USB |
Connectivity
| HDMI In | 2 (HDMI 2.0) |
| DisplayPort In | 1 (DisplayPort 1.2) |
| USB | 4 total — USB-A: 2 front, 1 rear; USB-C: 1 front |
| RJ45 (LAN) | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| RS232 | Yes |
| Audio Out | Stereo mini jack |
Physical & Environmental
| Dimensions (W x H x D) | 1724 x 1026.3 x 89mm |
| Weight | 59.3kg |
| VESA Mount Pattern | 400 x 400mm |
Power
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption (On) | 473W (100-240V) |
| Power Consumption (Sleep) | 0.5W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation

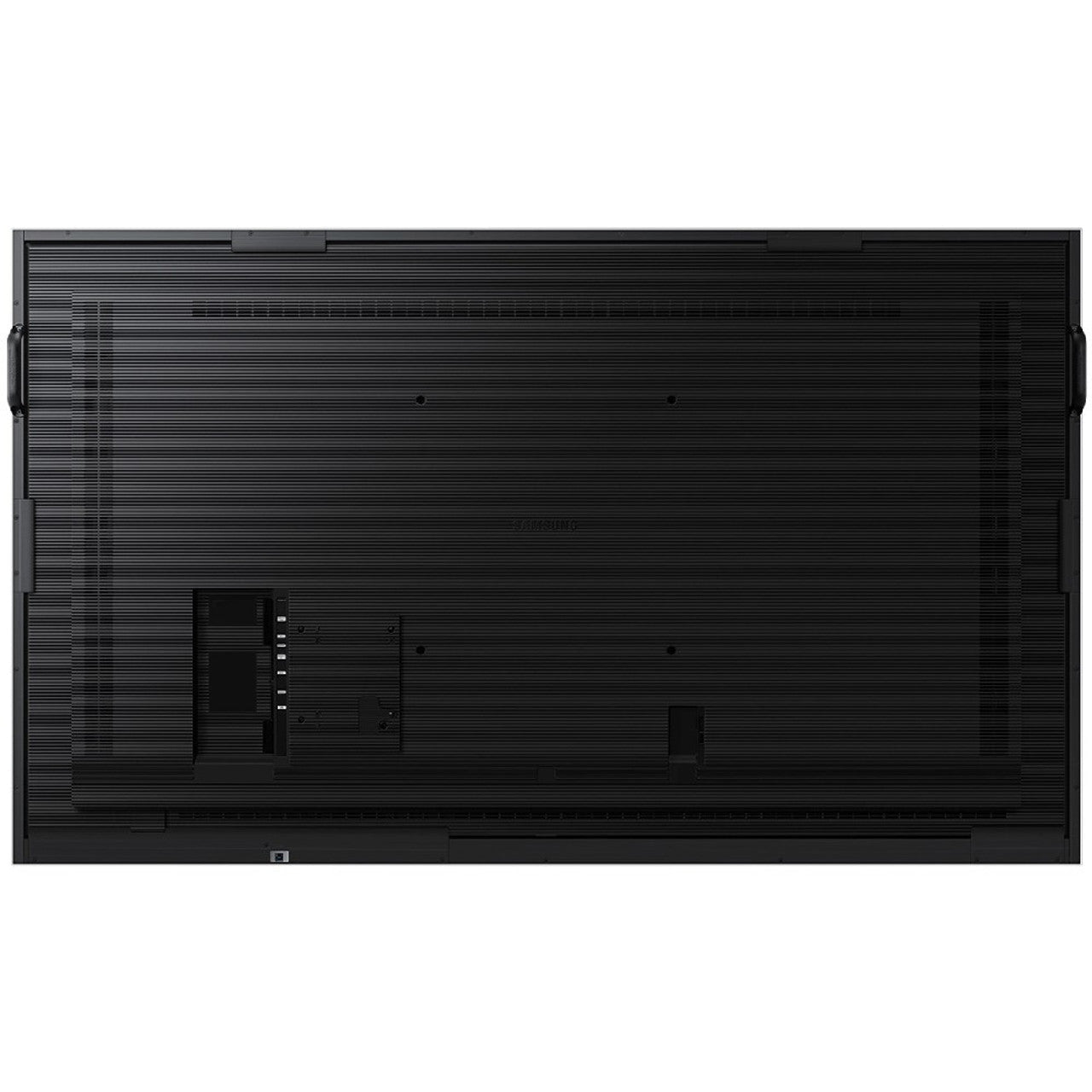

The WM75B uses a 400 x 400mm VESA pattern and weighs 59.3kg, so specify a bracket rated well above that at 400 x 400 and fix into structural wall rather than plasterboard. Two installers are needed to lift it safely. Samsung supplies and documents the Flip Pro as a landscape display, so plan the room for landscape whether it is wall-mounted or on a heavy-duty floor stand. Bring mains power and a network point to the mount position during fit-out, and allow clear floor space in front for a group to stand and write.
What it connects to
Two HDMI 2.0 inputs and a DisplayPort 1.2 input take laptops, a room video-conferencing codec or a media player. Four USB ports are split between the front edge and the rear — two USB-A and one USB-C at the front, one USB-A at the rear — so presenters connect without reaching behind the display. RJ45 gives wired network, Wi-Fi and Bluetooth are built in, RS232 is available for control-system integration with Crestron, Extron or similar, and audio out on a stereo mini jack feeds a soundbar or ceiling speakers for video playback.
Network and content management
Flip Pro runs Tizen 6.5 with 32GB of on-board flash and operates standalone — no external player and no room PC. Sessions export to email, a network drive or USB at the close of a meeting, and wireless screen mirroring puts a laptop, tablet or phone on the board without running a cable to the table.
Matching Samsung accessories
Accessories for the Flip range are generation-specific and sized to the panel. The B-generation front connectivity tray, CY-TF65BBCXXS, is specified for the 55-inch and 65-inch Flip Pro models rather than this 75-inch unit — the WM75B already carries its USB-C and two USB-A ports on the front edge. For mounting, use a heavy-duty 400 x 400mm bracket rated above 59.3kg, or ask SourceIT for the current Samsung stand option for the 75-inch Flip Pro.
Package Contents & Samsung Flip Range
In the box
- Samsung Flip Pro WM75B display unit
- Touch pen
- Power cable
- Quick setup guide
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung Flip range
| Model | Size |
| WM55R — Flip 2 | 55" |
| WM65R — Flip 2 | 65" |
| WM55B — Flip Pro | 55" |
| WM65B — Flip Pro | 65" |
| WM75B — Flip Pro (this listing) | 75" |
| WM85B — Flip Pro | 85" |
| WM75A — Flip 3 | 75" |
| WM85A — Flip 3 | 85" |
| WM55F — Flip (WMFX) | 55" |
| WM65F — Flip (WMFX) | 65" |
| WM75F — Flip (WMFX) | 75" |
| WM85F — Flip (WMFX) | 85" |
Datasheet & Downloads
- Samsung Singapore — Flip Pro WMB Interactive Display WM75B (LH75WMBWLGCXXS)
- Samsung Singapore Support — WM75B manuals and firmware
SourceIT can email the current data sheet revision for the WM75B together with a quotation. If you need the mechanical drawing for a bracket survey, ask for it with your enquiry and we will include it.
Frequently Asked Questions — Samsung WM75B
What do the letters in the Samsung Flip model numbers mean?
They identify the generation. R is Flip 2, A is Flip 3, B is Flip Pro, and F is the current WMFX generation, which runs Tizen 9.0. So a WM75B is a 75-inch Flip Pro, a WM75A is a 75-inch Flip 3, a WM55R is a 55-inch Flip 2, and a WM75F is a 75-inch current-generation Flip. The letter also decides which tray and bracket fit, so quote the full part number when ordering accessories.
Which generation is the WM75B, and what does Flip Pro add over Flip 3?
The WM75B is Flip Pro, the B generation. Against the 75-inch Flip 3 (WM75A) it moves from Tizen 6.0 to Tizen 6.5 with 32GB of on-board flash, and carries a front-mounted USB-C port with two front USB-A ports for easier presenter access. The Flip 3 keeps an OPS slot for an optional PC module, which Flip Pro at this size does not list.
Do I need a separate PC or media player?
No. Flip Pro is an all-in-one display. Tizen 6.5 runs the whiteboard, annotation tools and file handling on board, so there is no small-form-factor PC to buy, image or patch. Mains power is enough to start; add a network connection if you want sessions saved to a network drive.
How many people can write on it at once?
Up to 20 simultaneous users, using infrared touch. On a 75-inch board that comfortably supports a full workshop group working at the screen together.
Can I mount it in portrait, and what bracket do I need?
Samsung supplies and documents Flip Pro as a landscape display, so plan for landscape. The VESA pattern is 400 x 400mm and the unit weighs 59.3kg, so specify a heavy-duty bracket rated well above that, fixed into structural wall. Two installers are needed for the lift.
How does it compare with the 55-inch and 65-inch Flip Pro?
Panel specification, touch technology and the Tizen 6.5 platform are the same across the Flip Pro sizes. The WM75B is the larger canvas at 1724 x 1026.3 x 89mm and 59.3kg, drawing 473W in use against 154W for the 55-inch WM55B. The smaller models take the CY-TF65BBCXXS front connectivity tray; the WM75B already has front USB-C and USB-A ports built in.
Is it rated for all-day use?
Yes. The WM75B is rated for 16/7 operation, which covers a full corporate or campus day with margin. For a display that must stay on around the clock, look at Samsung's 24/7-rated signage range instead.
What warranty and invoice do I get from SourceIT?
Every WM75B sold by SourceIT comes with local Singapore warranty and a GST invoice on the unit. Support and any warranty claim go through a Singapore supplier rather than an overseas RMA.
