Samsung QM55C 55" 4K UHD Smart Signage Display
PRODUCT DESCRIPTION
Samsung QM55C 55" 4K UHD Smart Signage Display - 3 Years Local Warranty
55-Inch 4K UHD Signage Rated for 24/7 Operation
The Samsung QM55C is a 55-inch Crystal UHD smart signage display from Samsung's QMC family. Its VA panel delivers 3,840 x 2,160 resolution at 500 nit typical brightness with 178-degree viewing angles, and it is rated for 24/7 operation for retail, F&B, corporate lobbies and transport hubs in Singapore.
Slim, Even-Bezel Design

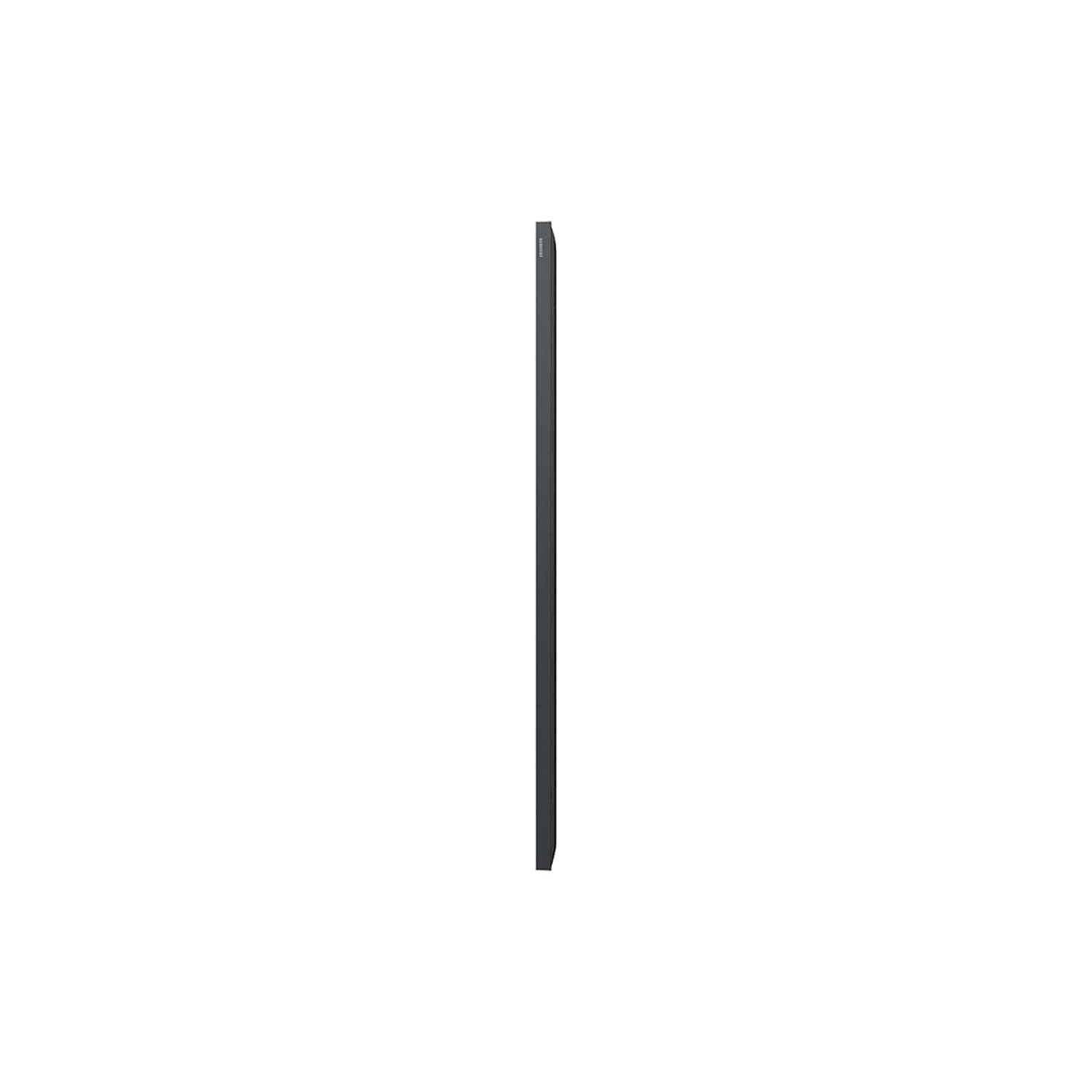

Samsung lists a set depth of 28.5 mm and an even bezel of 11.5 mm on all sides, so the QM55C looks consistent in landscape or portrait orientation and sits close to the wall. A 200 x 200 mm VESA pattern accepts standard wall mounts, and Samsung offers matching optional mounts and stands.
Built-In Tizen 7.0 Player - No External Media Player Needed
Tizen 7.0 with 16 GB of flash memory plays content directly on the display. Wi-Fi, Bluetooth and an RJ-45 LAN port handle network connection, while 3 x HDMI 2.0 (HDCP 2.2) and 1 x DisplayPort 1.2 accept a PC, set-top box or other source when required.
Remote Management With Samsung VXT
Samsung VXT, Samsung's cloud-based content and remote device management solution (sold separately), lets your team schedule playlists, push updates and monitor screens across multiple sites from one console. RS-232 in/out and IR in support integration with existing control systems.
Samsung QM55C Datasheet — Technical Specifications
General
| Product | Samsung QM55C 55" 4K UHD Smart Signage Display |
| Model | QM55C |
| Part Number (SKU) | LH55QMCEBGCXXS |
| Series | Samsung QMC (Crystal UHD Signage) |
| Operation Time | 24/7 |
| Local Warranty (Singapore) | 3 years local warranty |
Display
| Screen Size | 55" |
| Panel Type | VA |
| Resolution | 3,840 x 2,160 (4K UHD) |
| Pixel Pitch (H x V) | 0.315 x 0.315 mm |
| Brightness | 500 nit (typical) |
| Contrast Ratio | 4,000:1 (dynamic: Mega) |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Colour Gamut | 72% (NTSC) |
| Glass Haze | 25% |
| H / V Scanning Frequency | 30-81 kHz / 48-75 Hz |
| Maximum Pixel Frequency | 594 MHz |
Smart Platform
| Operating System | Tizen 7.0 |
| Flash Memory | 16 GB |
| Content Management | Samsung VXT (cloud CMS, sold separately) |
Connectivity
| HDMI In | 3 x HDMI 2.0 (HDCP 2.2) |
| DisplayPort In | 1 x DisplayPort 1.2 |
| USB | 2 x USB |
| LAN | RJ-45 in |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| RS-232 | In / Out |
| IR In | Yes |
| Audio In | No |
| Audio Out | Stereo mini jack |
Power
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption | 154 W (on mode) |
| Power Consumption (Sleep) | 0.5 W |
Physical & Environmental
| Set Dimensions (W x H x D) | 1237.9 x 708.8 x 28.5 mm |
| Package Dimensions (W x H x D) | 1403 x 835 x 148 mm |
| Set Weight | 15.7 kg |
| Package Weight | 19.9 kg |
| VESA Mount | 200 x 200 mm |
| Bezel Width | 11.5 mm (even, all sides) |
| Frame | Non-glossy |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80%, non-condensing |
| Certifications | EMC Class B; Safety 60950-1, 62368-1; ENERGY STAR 8.0; EPEAT |
Specifications are taken from Samsung's published product page for this model. Figures Samsung does not publish for this model are omitted.
Compatibility & Installation
Mounting and Orientation
The QM55C uses a 200 x 200 mm VESA pattern and can be installed in landscape or portrait orientation. Samsung lists the following optional accessories: wall mount WMN-B50SC, stand STN-L4355C.
Content and Device Management
Tizen 7.0 plays content directly from the display, so an external media player is optional. Samsung VXT (sold separately) provides cloud-based content scheduling and remote device management across sites. RS-232 and RJ-45 support integration with control systems.
Typical Use
Retail promotions, F&B menu boards, corporate lobby and lift displays, campus notices and transport information that must run continuously.
Package Contents & Samsung QMC Ordering Information
In the Box
Refer to Samsung's packing list for this model; Samsung's product page does not itemise box contents.
Optional Accessories (sold separately)
| Wall mount | WMN-B50SC |
| Stand | STN-L4355C |
| Cloud CMS | Samsung VXT |
Samsung QMC Smart Signage Family
| Model | Key feature |
| QM32C | 32", Full HD, 400 nit, 24/7 |
| QM43C | 43", 4K UHD, 500 nit, 24/7 |
| QM50C | 50", 4K UHD, 500 nit, 24/7 |
| QM55C (this listing) | 55", 4K UHD, 500 nit, 24/7 |
| QM65C | 65", 4K UHD, 500 nit, 24/7 |
| QM75C | 75", 4K UHD, 500 nit, 24/7 |
| QM85C | 85", 4K UHD, 500 nit, 24/7 |
| QM98C | 98", 4K UHD, 500 nit, 24/7, 92% DCI-P3 |
| QM32C-T | 32", Full HD, 10-point capacitive touch, 16/7 |
Datasheet & Downloads
| Samsung product page | Samsung Singapore — 55" Crystal UHD Signage QMC (LH55QMCEBGCXXS) |
| Samsung Singapore support | LH55QMCEBGCXXS support, manuals and firmware |
Frequently Asked Questions — Samsung QM55C
Is the QM55C rated for 24/7 operation?
Yes. Samsung specifies 24/7 operation time support for the QM55C.
Do I need an external media player?
No. The built-in Tizen 7.0 platform with 16 GB of flash memory plays content directly on the display. An external player or PC can still be connected via HDMI or DisplayPort if preferred.
Can it be mounted in portrait orientation?
Yes. Samsung states the QMC can be used in landscape or portrait mode, and the even bezel keeps the look consistent in either orientation. It uses a 200 x 200 mm VESA pattern.
How do I manage content across several screens or sites?
Samsung VXT, Samsung's cloud CMS and remote device management solution, is sold separately and lets you schedule and monitor content across all your displays.
What warranty applies?
3 years local warranty; supplied by SourceIT with a GST invoice.
