Samsung QM32C 32" FHD Commercial Display
PRODUCT DESCRIPTION
Samsung QM32C 32" FHD Commercial Display (LH32QMCEPGCXXS) - Local Warranty
Full Commercial Signage Sized for Counters, Lift Lobbies and Tight Walls

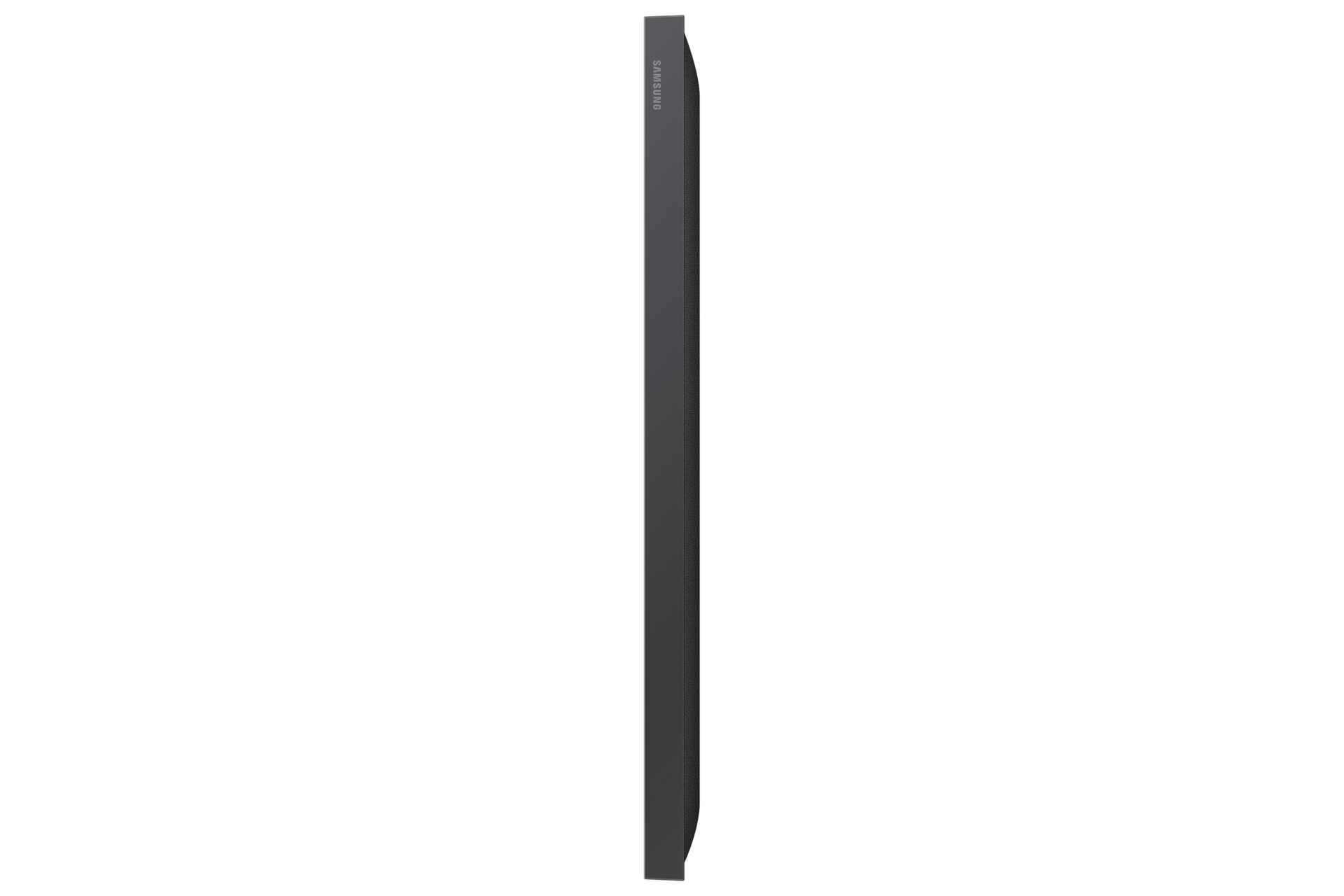

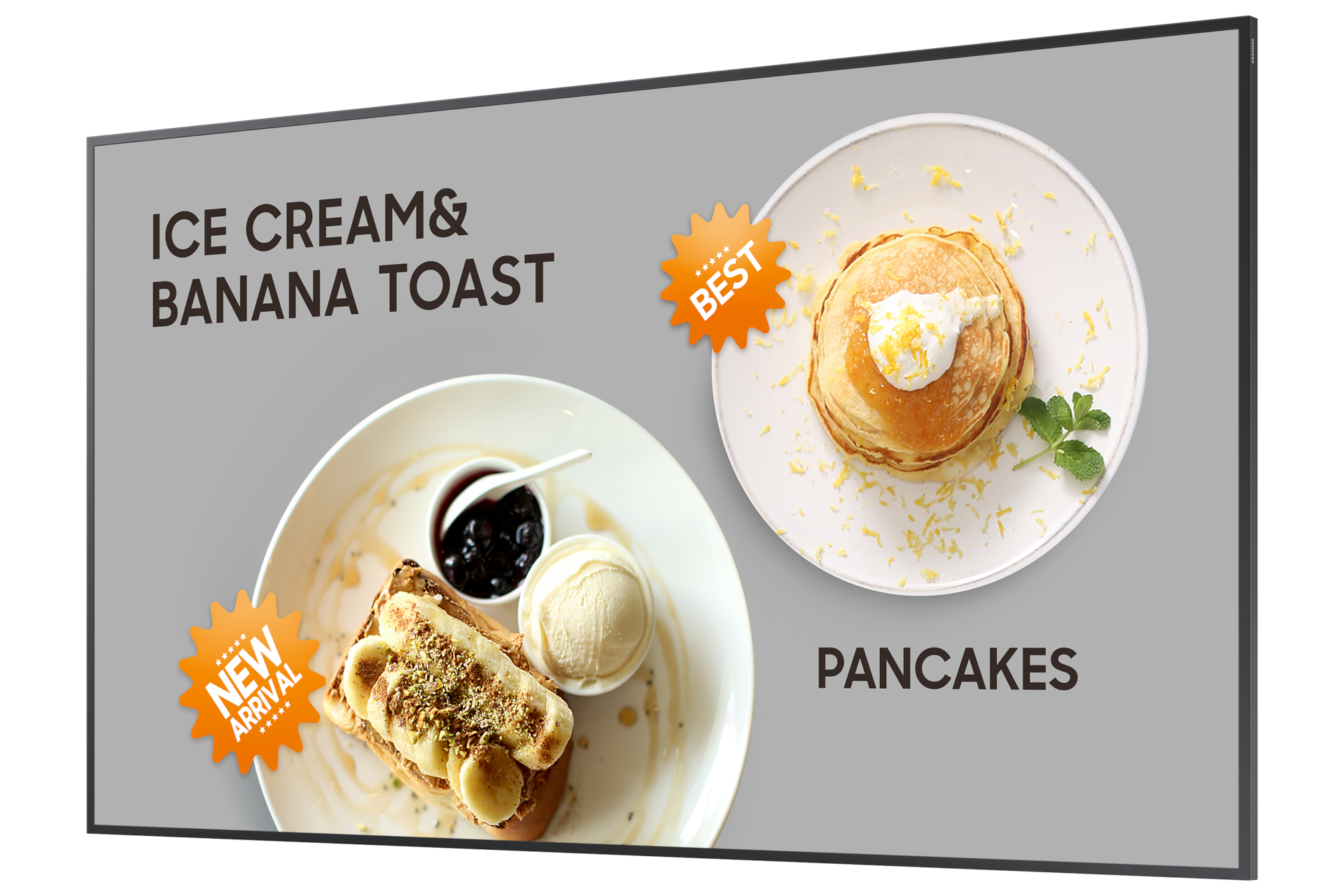

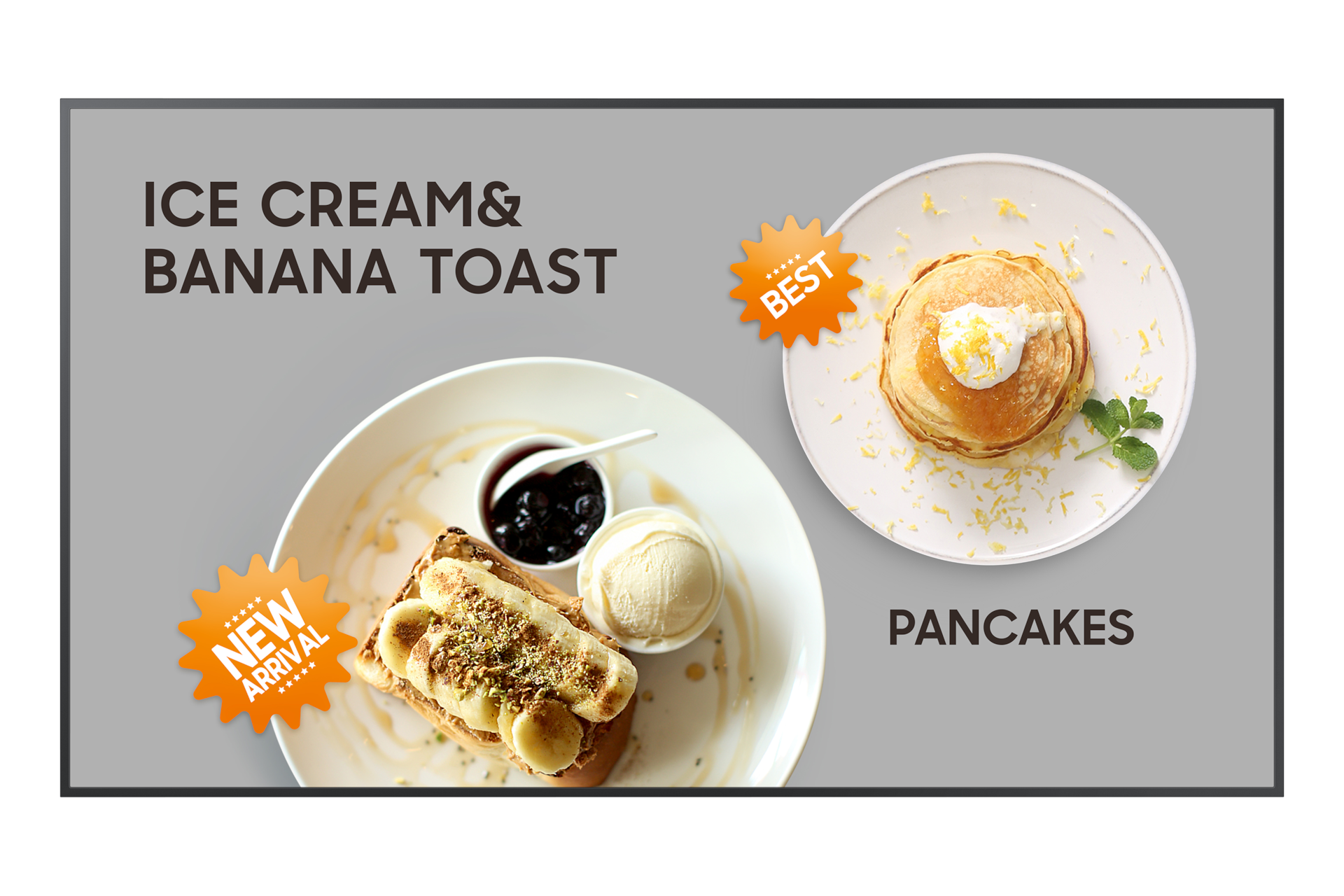

The Samsung QM32C brings the full commercial signage feature set to a 32-inch footprint, for the many positions where a 43-inch panel would overwhelm the space. Its 1920 x 1080 IPS panel holds detail at close viewing distances, which suits menu boards, reception walls, service counters and lift lobbies where people read from a metre or two away. At 28.5 mm deep and 5.2 kg it sits close to the wall and is light enough for slim mounts, bracket arms and fitted joinery without reinforcing the substrate.
400-Nit IPS Panel Rated for 24/7 Commercial Operation
A 400-nit IPS panel with 178-degree horizontal and vertical viewing angles keeps content readable from off-axis positions and under the bright lighting of Singapore retail floors and open-plan offices. The QM32C is rated for 24 hours a day, seven days a week of continuous operation, so it can be left running through extended trading hours, overnight wayfinding or a 24-hour clinic without duty-cycle concerns. A 1200:1 contrast ratio and 8 ms response time keep motion graphics, live feeds and video content clean rather than smeared.
Even 11.5 mm Bezels on All Four Sides
The QM32C uses an even 11.5 mm bezel on all four sides, so the panel looks identical whichever way it is mounted and multiple units line up consistently side by side or stacked. Landscape and portrait installations share the same visual weight, which matters when a bank of screens sits behind a service counter. A standard 100 x 100 mm VESA pattern means it works with common commercial wall plates, floor stands and enclosure kits without custom adapters or machining.
Tizen 7.0 Playback With Full Network and Serial Control
Tizen 7.0 with 8 GB of internal storage plays content directly on the panel, removing the cost and the failure point of an external media player at every screen. Three HDMI 1.4 inputs, two USB ports, RJ45 Ethernet and built-in Wi-Fi with Bluetooth cover source connection and content delivery. RS-232 in and out allows daisy-chained serial control from a room controller or a building management system, which is what most integrators need for scheduled power and input switching.
Samsung QM32C Datasheet — Technical Specifications
General
| Product | Samsung QM32C 32" FHD Commercial Display |
| Part Number (SKU) | LH32QMCEPGCXXS |
| Display Type | Commercial signage display |
| Operating Time | 24/7 commercial operation |
| Platform | Tizen 7.0 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 32 inch |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 400 nits |
| Panel Type | IPS |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° / 178° |
| Response Time | 8 ms |
Video & Audio
| Built-in Speakers | Not fitted |
| Audio Output | Stereo mini-jack out |
Smart Platform & Management
| Operating System | Tizen 7.0 |
| Internal Storage | 8 GB |
| External Player | Not required — content plays on the panel |
| Serial Control | RS-232 in and out for daisy-chained control |
Connectivity
| HDMI | 3 x HDMI 1.4 |
| USB | 2 x USB |
| LAN | 1 x Ethernet (RJ45) |
| Serial | RS-232 in and out |
| Wi-Fi | Built-in |
| Bluetooth | Supported |
Physical & Environmental
| Depth | 28.5 mm |
| Bezel | 11.5 mm, even on all four sides |
| Weight | 5.2 kg |
| VESA Mount | 100 x 100 mm |
| Colour | Black |
Power
| Typical Power Consumption | Approximately 55 W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation

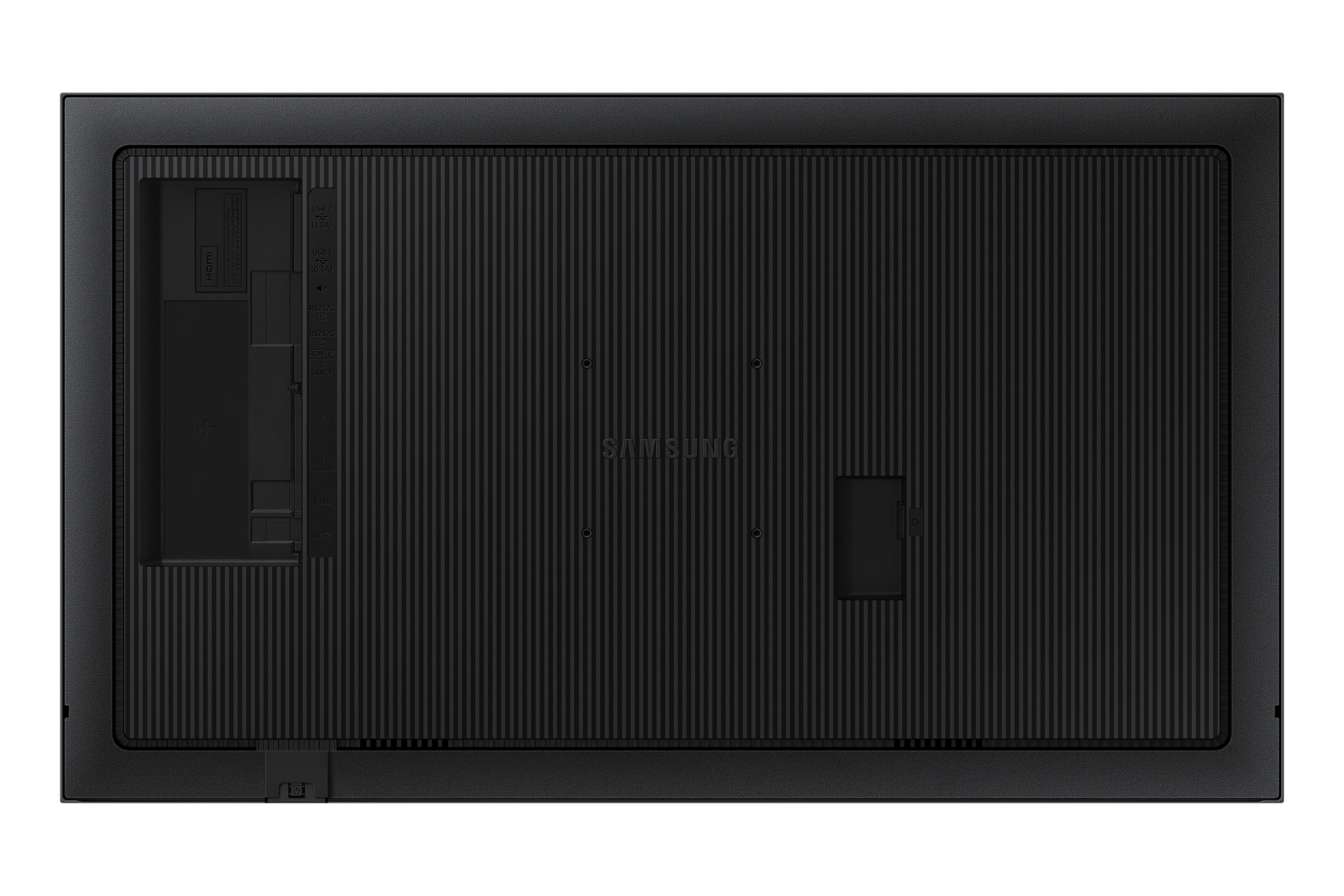

The QM32C uses a standard 100 x 100 mm VESA pattern and fits common commercial wall plates, tilt mounts, ceiling drops, floor stands and enclosure kits. Landscape and portrait installation are both supported, and the even 11.5 mm bezel means the panel reads the same in either orientation and aligns cleanly when units are mounted in a row. At 28.5 mm deep and 5.2 kg it suits slim mounts and joinery recesses without reinforcing the wall.
What it connects to
Three HDMI 1.4 inputs accept laptops, room controllers, set-top and streaming sources, media players and camera feeds, so a meeting room or a counter position rarely needs a switcher. Two USB ports cover content drives and peripherals. Audio leaves the display over a stereo mini-jack output to a local amplifier or soundbar, as no speakers are fitted to this model.
Network and content management
Tizen 7.0 with 8 GB of internal storage runs scheduled content on the display itself, so no external media player is required. RJ45 Ethernet and built-in Wi-Fi with Bluetooth cover network delivery. For integrated rooms, RS-232 in and out allows serial control from a room controller or building management system and lets several displays be daisy-chained on one control run for scheduled power and input switching.
Related models
Where the same 32-inch position needs an interactive surface, the Samsung QM32C-T adds a 10-point capacitive multi-touch layer with an anti-glare optimised surface.
Package Contents & Samsung QMC Range
In the box
- Samsung QM32C 32" FHD commercial display
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung QMC range
| Model | Size |
| QM32C (this listing) | 32 inch |
| QM43C | 43 inch |
| QM50C | 50 inch |
| QM55C | 55 inch |
| QM65C | 65 inch |
| QM75C | 75 inch |
| QM85C | 85 inch |
| QM98C | 98 inch |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the QM32C together with a quotation. Ask for it when you enquire and we will send the latest published version along with pricing and lead time.
Frequently Asked Questions — Samsung QM32C
Can the QM32C run 24 hours a day?
Yes. It is rated for 24 hours a day, seven days a week of continuous commercial operation, so overnight wayfinding, 24-hour clinics and always-on lobby displays are within its duty rating.
Does it need an external media player?
No. Tizen 7.0 with 8 GB of internal storage plays scheduled content on the panel itself. An external player is only needed if your content workflow specifically requires one.
Does it have built-in speakers?
No speakers are fitted to this model. A stereo mini-jack audio output is provided, so sound can be taken to a local amplifier, soundbar or the room's audio system.
Can it be mounted in portrait?
Yes. Landscape and portrait are both supported on a standard 100 x 100 mm VESA pattern. The even 11.5 mm bezel on all four sides means the display looks the same in either orientation.
How does it differ from the 43-inch QM43C?
Size and resolution. The QM32C is a 32-inch Full HD panel; the QMC models from 43 inches upwards are UHD 4K. Choose the QM32C where the viewing distance is short and the space is tight, and step up to the QM43C where the screen must be read from further away.
What does the "QM" in the model name indicate?
QM is Samsung's mid-tier commercial signage line, positioned above the QB series and below the high-brightness QH series. The number is the diagonal size in inches and the trailing letter is the generation, so QM32C is the 32-inch model in the C generation.
Can it be controlled from a room controller or BMS?
Yes. RS-232 in and out allows serial control from a room controller or building management system, and several displays can be daisy-chained on one control run. RJ45 Ethernet gives a network control path as an alternative.
What warranty applies and will I get a GST invoice?
Every unit sold by SourceIT carries local Singapore warranty and is supplied with a GST invoice. Warranty is handled locally rather than through a parallel-import channel.
