Samsung QM32C-T 32" FHD Touch Commercial Display
PRODUCT DESCRIPTION
Samsung QM32C-T 32" Touch Commercial Display (LH32QMCTBGCXXS) - Local Warranty

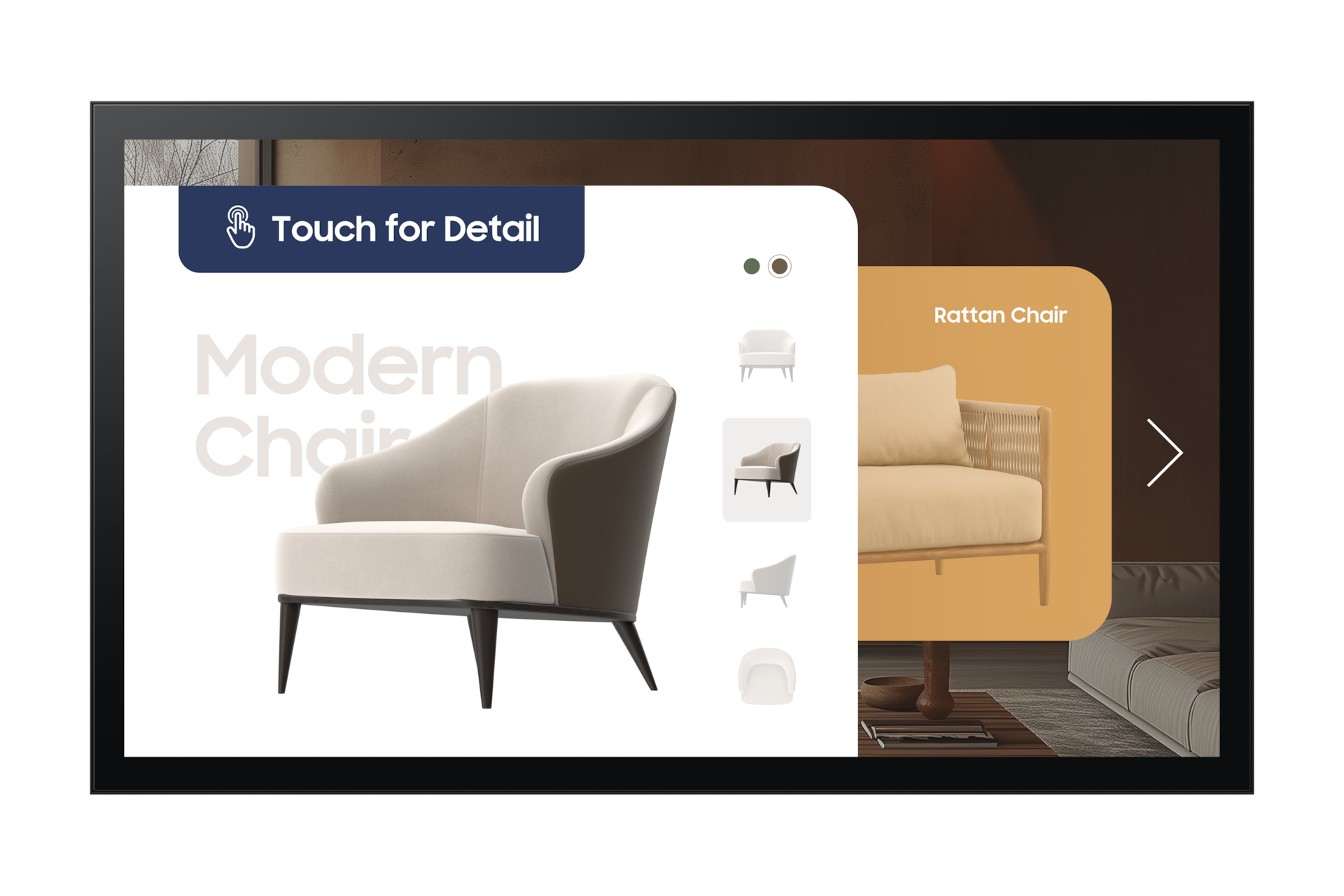

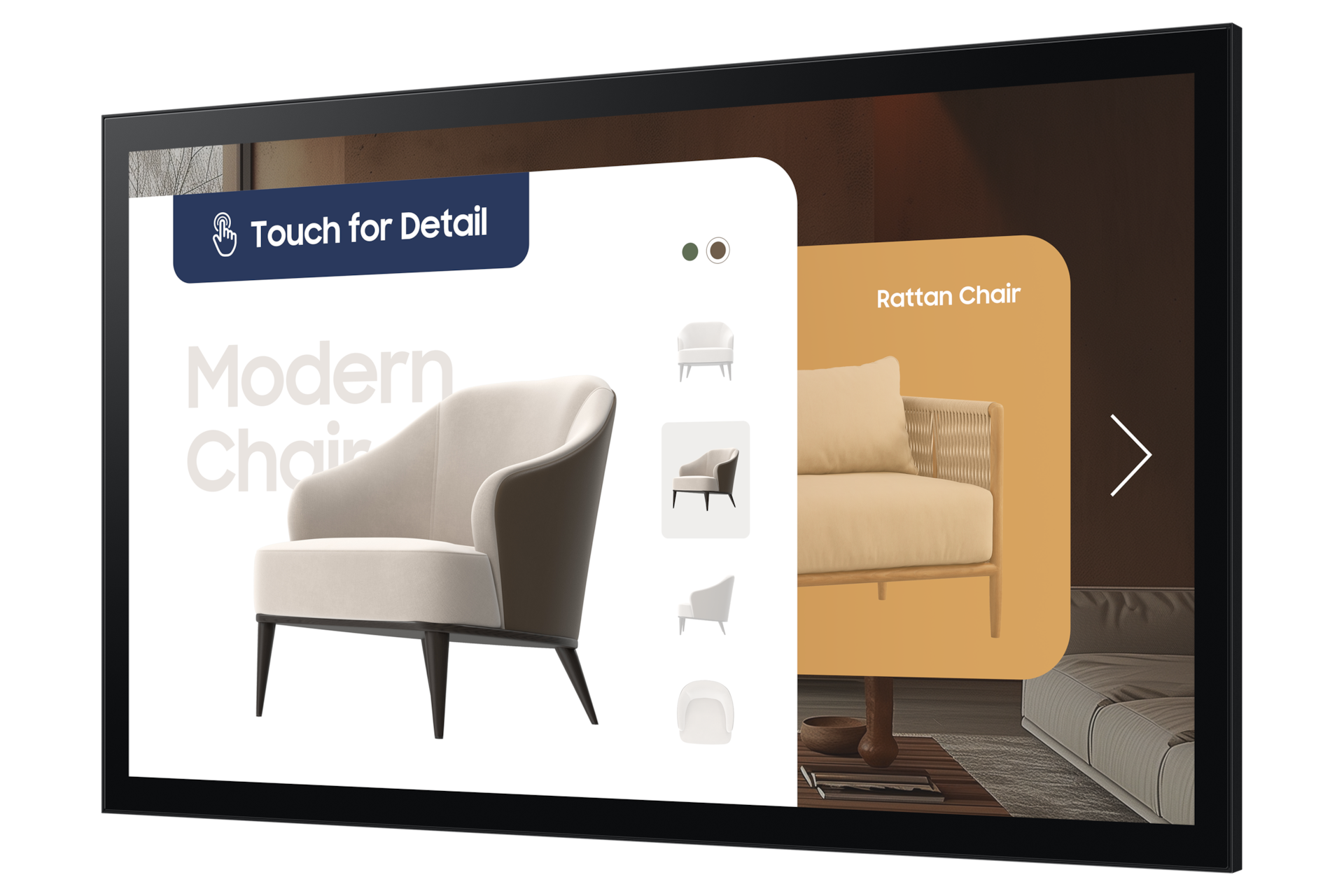

A 32-Inch Interactive Display for High-Traffic Public Spaces
The Samsung QM32C-T brings a 32-inch Full HD interactive surface to reception areas, self-service points and information walls where people walk up, tap and move on. At 744.4 x 444.6 x 48.2 mm and 8.3 kg it mounts cleanly on a 200 x 200 mm VESA pattern in landscape or portrait, giving you a display large enough to read from across a lobby and close enough to touch comfortably at the fixture. That dual role — readable at distance, usable at arm's length — is exactly what a building directory or a queue kiosk needs.
400-Nit VA Panel With 4000:1 Contrast and Anti-Glare Optimised Haze
The VA panel delivers a 4000:1 contrast ratio for deep blacks and legible text, rated at 400 nit without protective glass and 300 nit with glass fitted, so you can specify the right figure for your enclosure rather than discovering the shortfall after installation. Anti-glare optimised haze on the surface cuts the reflections that otherwise wash out an interactive screen positioned under bright lobby lighting or near a glazed frontage — a common problem in Singapore commercial buildings.
10-Point Capacitive Touch and a Centre IR Receiver

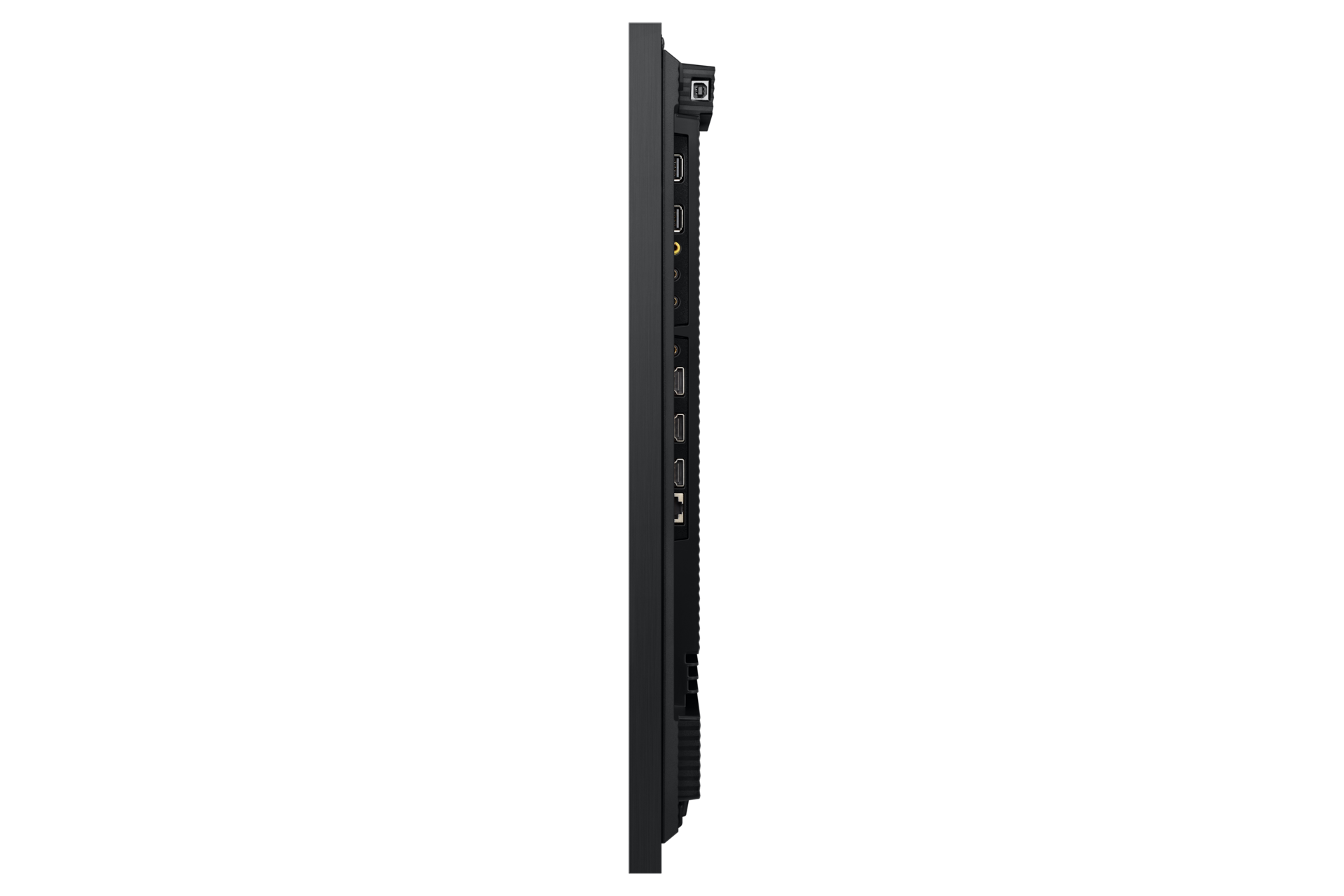

A 10-point capacitive touch layer handles the pinch, swipe and multi-finger gestures people bring from their phones, which is what makes a self-service flow feel quick rather than instructional. The infrared receiver sits at the centre of the panel, so the QM32C-T responds to a remote without an external IR extender cable hanging off the bezel, keeping a wall-mounted public installation tidy. Three HDMI 1.4 inputs and two USB ports cover local sources and peripherals such as scanners or card readers.
Tizen 7.0, SmartThings Pro and Samsung VXT Remote Management
Tizen 7.0 with 8 GB of flash runs content directly on the display, so no external media player is needed at each site. SmartThings Pro and the Samsung VXT cloud CMS let your team schedule content, push updates, monitor status and power screens on or off across every location from one console. ENERGY STAR 8.0 certification and EPEAT Silver registration help the QM32C-T fit within corporate sustainability and green procurement requirements, and RS232 in and out gives integrators a serial control path.
Samsung QM32C-T Datasheet — Technical Specifications
General
| Product | Samsung QM32C-T 32" Touch Commercial Display |
| Part Number (SKU) | LH32QMCTBGCXXS |
| Display Type | Interactive commercial display |
| Operating Time | 16/7 commercial operation |
| Platform | Tizen 7.0 |
| IR Receiver | Centre IR built into the panel |
| Certifications | ENERGY STAR 8.0, EPEAT Silver |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 32 inch |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 400 nit without protective glass / 300 nit with glass |
| Contrast Ratio | 4000:1 |
| Panel Type | VA |
| Surface | Anti-glare optimised haze |
| Touch | 10-point capacitive multi-touch |
Video & Audio
| Audio Output | Stereo mini-jack out |
Smart Platform & Management
| Operating System | Tizen 7.0 |
| Internal Storage | 8 GB flash |
| Remote Management | SmartThings Pro |
| Content Management | Samsung VXT cloud CMS |
| External Player | Not required — content plays on the panel |
| Serial Control | RS232 in and out |
Connectivity
| HDMI | 3 x HDMI 1.4 |
| USB | 2 x USB |
| LAN | 1 x Ethernet (RJ-45) |
| Serial | RS232 in and out |
| IR | IR input |
| Wi-Fi | Built-in |
| Bluetooth | Supported |
Physical & Environmental
| Dimensions (W x H x D) | 744.4 x 444.6 x 48.2 mm |
| Weight | 8.3 kg |
| VESA Mount | 200 x 200 mm |
| Orientation | Landscape and portrait |
| Colour | Black |
Power
| Sleep Mode Power | 0.5 W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation

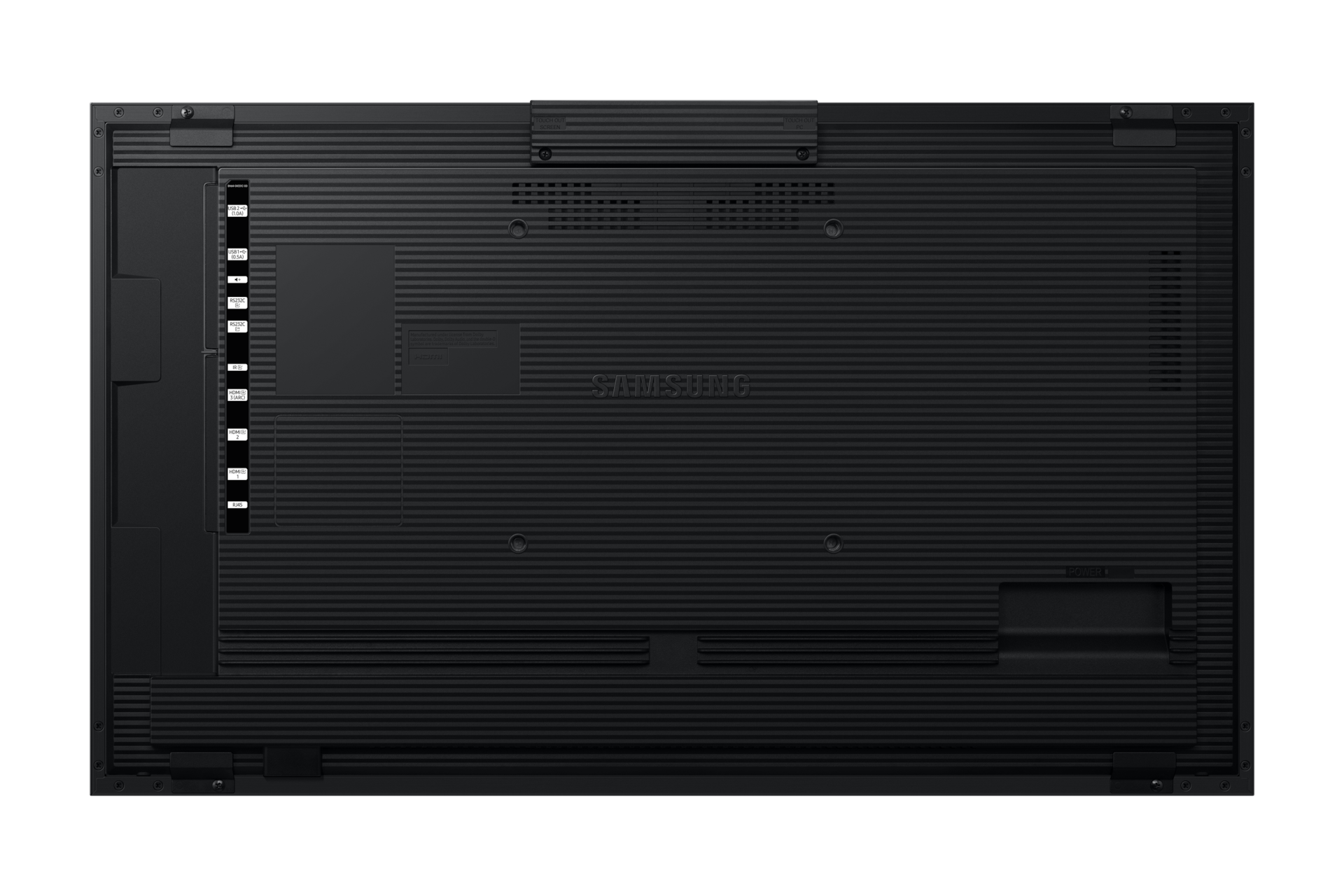

The QM32C-T mounts on a standard 200 x 200 mm VESA pattern in landscape or portrait, so it fits common commercial wall plates, kiosk enclosures, floor stands and counter arms. Portrait suits building directories and wayfinding pillars; landscape suits reception check-in and queue displays. At 8.3 kg it is light enough for a standard wall plate on a sound substrate. Samsung lists the WMN4070SG wall mount and the STN-L3240F stand as matching accessories for this size.
What it connects to
Three HDMI 1.4 inputs accept laptops, room controllers, signage players and camera feeds, so a kiosk position rarely needs an external switcher. Two USB ports cover content drives and peripherals such as barcode scanners, card readers or receipt printers used in a self-service flow. RJ-45 Ethernet and built-in Wi-Fi with Bluetooth cover network delivery, and audio leaves over a stereo mini-jack output to a local amplifier or soundbar.
Network and content management
Tizen 7.0 with 8 GB of flash runs scheduled content and interactive layouts on the display itself, so no external media player is required at each site. Samsung VXT is the cloud CMS for playlists, scheduling by site and daypart, and content delivery. SmartThings Pro adds device management — status monitoring, firmware updates and remote power on and off — across every location from one console. RS232 in and out allows serial control and daisy-chaining from a room controller or building management system.
Related models
For a smaller interactive surface at counter level, see the Samsung QB24C-T at 24 inches or the Samsung QB13C-T at 13 inches. Where the same 32-inch position only needs to be read, the display-only Samsung QM32C covers it.
Package Contents & Samsung Touch Commercial Display Range
In the box
- Samsung QM32C-T 32" touch commercial display
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung touch commercial display range
| Model | Size |
| QB13C-T | 13 inch |
| QB13R-T | 13 inch |
| QB24C-T | 24 inch |
| QB24R-T | 24 inch |
| QM32C-T (this listing) | 32 inch |
| QM32R-T | 32 inch |
| QM43B-T | 43 inch |
| QM55B-T | 55 inch |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the QM32C-T together with a quotation. Ask for it when you enquire and we will send the latest published version along with pricing and lead time.
Frequently Asked Questions — Samsung QM32C-T
What does the "-T" suffix mean?
It marks a touch variant. The QM32C is the display-only panel; the QM32C-T is the same 32-inch size with a 10-point capacitive multi-touch layer and an anti-glare optimised surface fitted for interactive use.
Why are two brightness figures quoted?
Because an interactive display is often fitted behind protective glass in a kiosk or an enclosure, and the glass costs some output. The panel is rated at 400 nit without protective glass and 300 nit with glass fitted, so you can specify against the figure that matches your enclosure design.
Can it be mounted in portrait?
Yes. Landscape and portrait are both supported on a 200 x 200 mm VESA pattern. Portrait suits building directories and wayfinding pillars; landscape suits reception check-in and queue displays.
Can it run 24 hours a day?
It is rated for 16 hours a day, seven days a week, which covers extended trading hours and full building operating days. A position that must never power down calls for a 24/7-rated model.
Does it need an external media player?
No. Tizen 7.0 with 8 GB of flash runs content and interactive layouts on the display itself. Three HDMI inputs remain available where a PC or player is already part of the design.
Can I connect a scanner or card reader for self-service?
Two USB ports are provided, which covers the peripherals most self-service flows use — barcode scanners, card readers and similar devices. Confirm driver support for your specific peripheral with your integrator before committing.
How does it differ from the 24-inch QB24C-T?
Size, brightness and panel type. The QM32C-T is a 32-inch VA panel at 400 nit with anti-glare optimised haze and three HDMI inputs; the QB24C-T is a 24-inch ADS panel at 250 nit with one HDMI input. Choose the QM32C-T where the screen also has to be read from across a lobby.
What warranty applies and will I get a GST invoice?
Every unit sold by SourceIT carries local Singapore warranty and is supplied with a GST invoice. Warranty is handled locally rather than through a parallel-import channel.
