Samsung QM98C 98" UHD 4K Commercial Display
PRODUCT DESCRIPTION
Samsung QM98C 98" UHD 4K Commercial Display (LH98QMCEBGCXXS) - Local Warranty
A 98-Inch 4K Canvas That Replaces a Seamed Video Wall
The Samsung QM98C puts a 3840 x 2160 UHD image across 98 inches, giving atriums, showrooms, auditoriums and flagship retail spaces one unbroken display instead of a video wall with seams running through the content. For a brand installation that matters: a logo or a face crossing a bezel line is the detail visitors notice. The 4K resolution holds fine detail at close range, so text-heavy content such as schedules, pricing tables and corporate information stays sharp even when people stand directly in front of the panel.
500-Nit Direct-Lit VA Panel Rated for 24/7 Operation
A direct-lit VA panel delivers 500 nits with a 5500:1 contrast ratio, producing deep blacks and strong separation in dim auditorium lighting as well as bright daytime foyers. Coverage of 92% DCI-P3 and Dynamic Crystal Color widen the colour range for brand and video work, so corporate palettes reproduce faithfully rather than approximately. The QM98C is rated for 24 hours a day, seven days a week of continuous commercial operation with an 8 ms response time, which keeps live feeds and motion graphics clean across a screen of this scale.
Quantum Processor Lite Upscaling and a Non-Glare Finish
Quantum Processor Lite upscales lower-resolution sources towards 4K, so existing HD content, camera feeds and older corporate video still look considered when stretched across 98 inches rather than soft and blocky. A non-glare panel surface disperses reflections from skylights, spotlights and glazed frontages, which is exactly the condition found in the tall, brightly lit spaces where 98-inch displays usually go. An even 14.8 mm bezel keeps the frame discreet on all four sides, and ENERGY STAR 8.0 and EPEAT registration support corporate procurement requirements.
SmartView+ Wireless Sharing and Tizen 7.0 Playback
SmartView+ lets staff and presenters share content wirelessly from a phone, tablet or laptop without cabling to the panel, and supports viewing several sources at once — useful in a briefing centre or a showroom where visitors bring their own devices. Tizen 7.0 with 16 GB of internal storage runs scheduled content directly on the display with no external player. Three HDMI 2.0 inputs and DisplayPort 1.2 cover fixed sources, while RS232 and RJ45 give integrators both serial and network control paths.
Samsung QM98C Datasheet — Technical Specifications
General
| Product | Samsung QM98C 98" UHD 4K Commercial Display |
| Part Number (SKU) | LH98QMCEBGCXXS |
| Display Type | Large-format commercial signage display |
| Operating Time | 24/7 commercial operation |
| Platform | Tizen 7.0 |
| Certifications | ENERGY STAR 8.0, EPEAT |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 98 inch |
| Resolution | 3840 x 2160 (UHD 4K) |
| Brightness | 500 nits |
| Panel Type | VA, direct-lit |
| Contrast Ratio | 5500:1 |
| Colour Gamut | 92% DCI-P3 |
| Response Time | 8 ms |
| Picture Enhancement | Dynamic Crystal Color, Quantum Processor Lite 4K upscaling |
| Panel Finish | Non-glare |
Video & Audio
| Audio Output | Stereo mini-jack out |
| Audio Input | Not fitted |
Smart Platform & Management
| Operating System | Tizen 7.0 |
| Internal Storage | 16 GB flash |
| Wireless Sharing | SmartView+ |
| External Player | Not required — content plays on the panel |
| Serial Control | RS232 in and out |
Connectivity
| HDMI | 3 x HDMI 2.0 |
| DisplayPort | 1 x DP 1.2 |
| USB | 2 x USB |
| LAN | 1 x Ethernet (RJ45) |
| Serial | RS232 in and out |
| IR | IR input |
| Wi-Fi | Built-in |
| Bluetooth | Supported |
Physical & Environmental
| Depth | 48.1 mm |
| Bezel | 14.8 mm, even on all four sides |
| Weight | 56.3 kg |
| VESA Mount | 600 x 400 mm |
| Colour | Black |
Power
| Power Supply | AC 100-240 V, 50/60 Hz |
| Typical Power Consumption | 363 W |
| Sleep Mode Power | 0.5 W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation

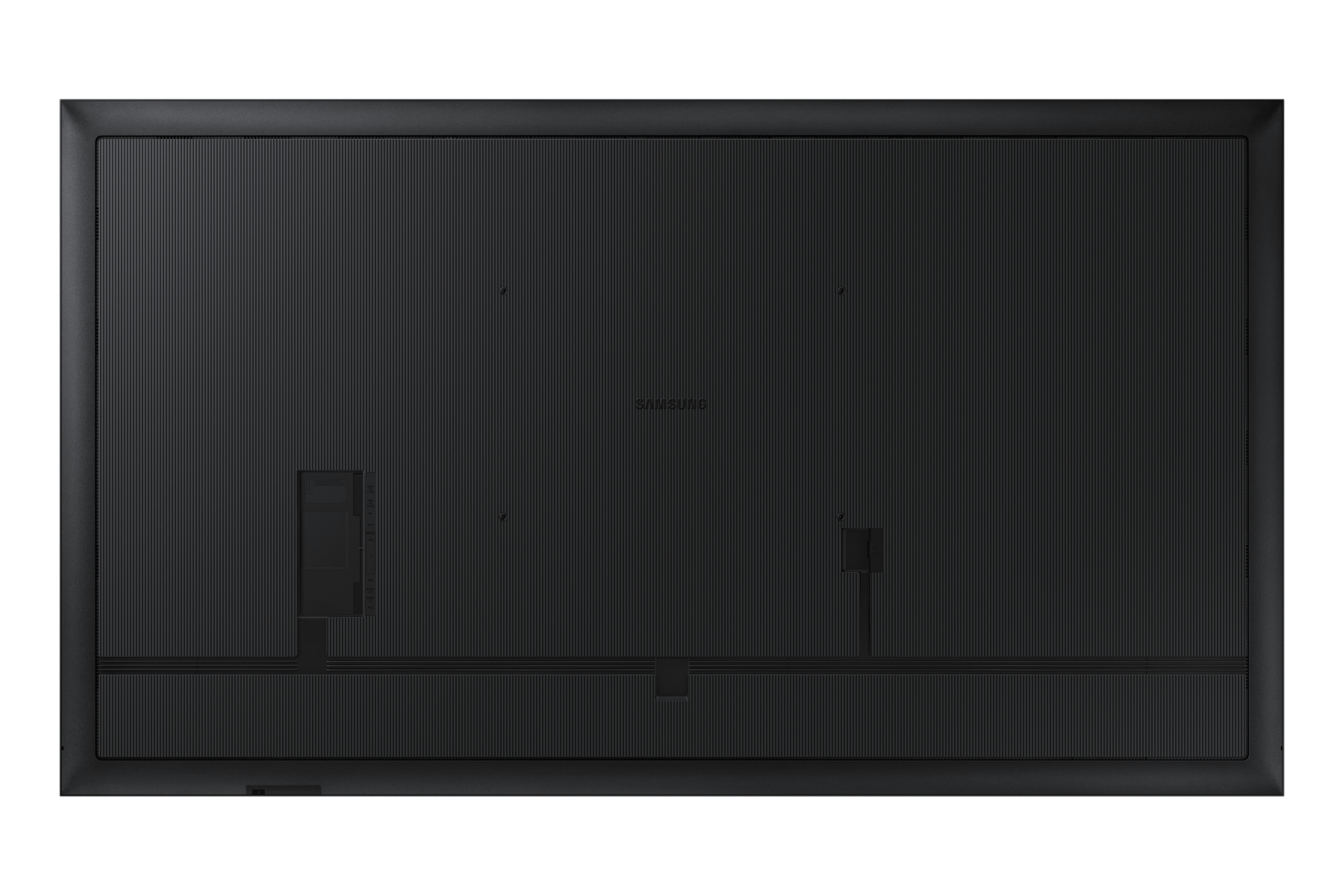

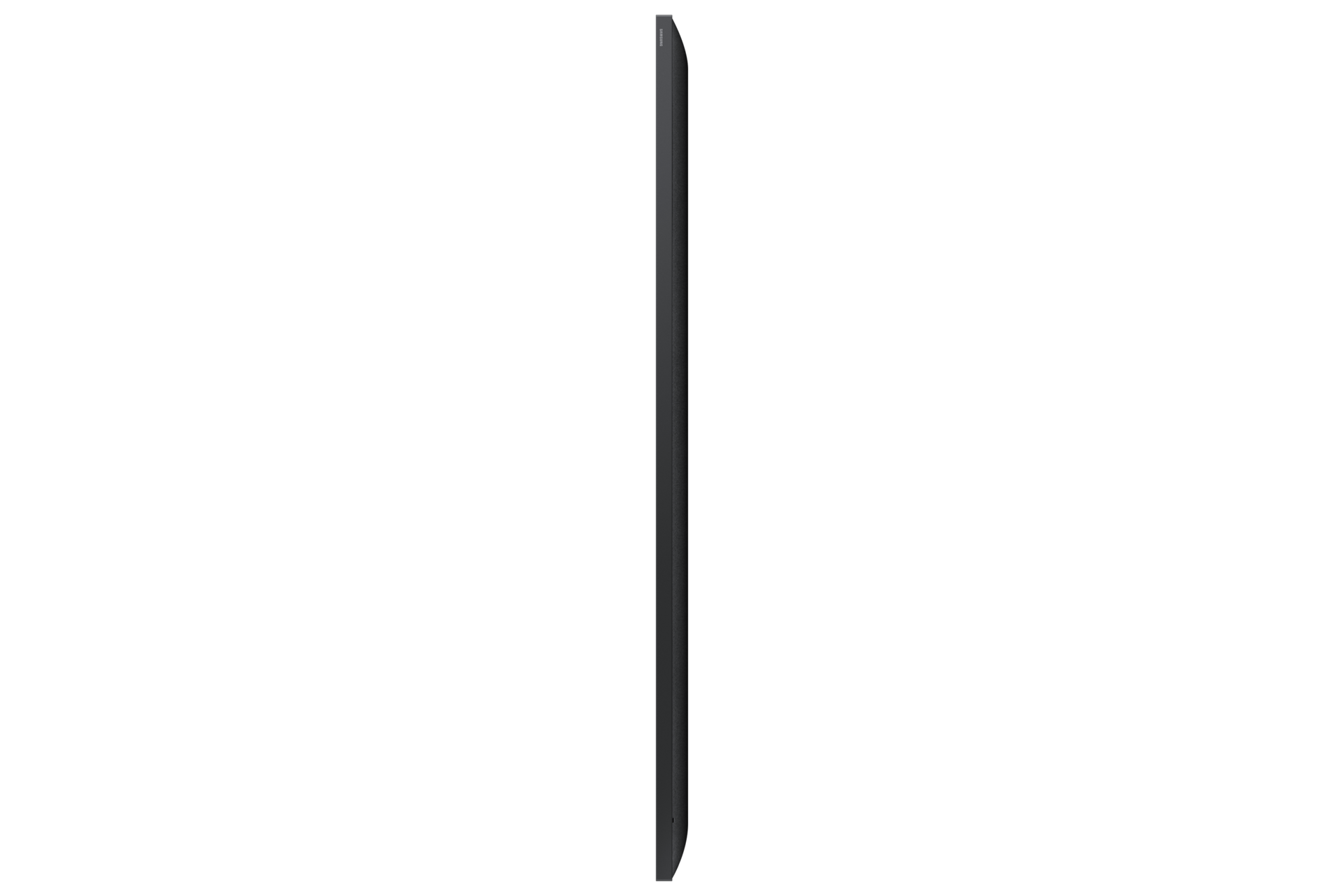

The QM98C mounts on a 600 x 400 mm VESA pattern. At 56.3 kg the wall structure and bracket rating need checking before install, and a two-person lift is the practical minimum for a panel of this diagonal. Samsung lists the WMN-8200SC wall mount as the matching accessory for this size. The 48.1 mm depth keeps the panel close to the wall once mounted, and the even 14.8 mm bezel means adjacent units line up cleanly if more than one is fitted.
What it connects to
Three HDMI 2.0 inputs and one DisplayPort 1.2 input cover media players, laptops, room controllers, camera feeds and 4K sources. Two USB ports handle content drives and peripherals. Audio leaves the display over a stereo mini-jack output to a room amplifier or soundbar; there is no audio input on this model, so sound arrives embedded with the video signal.
Network and content management
Tizen 7.0 with 16 GB of internal flash runs scheduled content on the display itself, so no external media player needs specifying. RJ45 Ethernet and built-in Wi-Fi with Bluetooth cover network delivery and device management. SmartView+ adds wireless sharing from phones, tablets and laptops with multiple sources viewable at once. For integrated spaces, RS232 in and out gives a serial control path from a room controller or building management system.
Related models
Where a 98-inch position faces direct daylight, the higher-brightness Samsung QH98C covers the same size at 700 nits. For a supersized brand wall, the Samsung QH115FX extends the format to 115 inches.
Package Contents & Samsung QMC Range
In the box
- Samsung QM98C 98" UHD 4K commercial display
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung QMC range
| Model | Size |
| QM32C | 32 inch |
| QM43C | 43 inch |
| QM50C | 50 inch |
| QM55C | 55 inch |
| QM65C | 65 inch |
| QM75C | 75 inch |
| QM85C | 85 inch |
| QM98C (this listing) | 98 inch |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the QM98C together with a quotation. Ask for it when you enquire and we will send the latest published version along with pricing, lead time and delivery or installation options.
Frequently Asked Questions — Samsung QM98C
Is a 98-inch display better than a video wall of the same area?
For brand and content work, usually yes, because there are no bezel seams crossing the image. A video wall still wins where the final shape is non-standard or where the installation must pass through doorways in sections. The QM98C ships as one panel, so access routes and lift dimensions need checking first.
Can it run continuously?
Yes. The QM98C is rated for 24 hours a day, seven days a week of continuous commercial operation.
Does it need an external media player?
No. Tizen 7.0 with 16 GB of internal flash plays scheduled content on the panel. HDMI and DisplayPort inputs are there for fixed sources where a player or PC is already part of the design.
How does it differ from the QH98C at the same size?
Brightness. The QM98C is a 500-nit panel suited to controlled indoor lighting; the QH98C is a 700-nit panel for positions that face direct daylight, such as glazed atriums and window-facing showroom walls. Both are 98-inch UHD 4K.
What do I need for the wall?
A 600 x 400 mm VESA bracket rated for the panel's 56.3 kg, fixed to a structurally sound wall. Samsung lists the WMN-8200SC as the matching mount. Confirm the substrate and the bracket rating with your installer before ordering.
Can presenters share to it wirelessly?
Yes. SmartView+ allows sharing from a phone, tablet or laptop without cabling to the panel, and supports viewing several sources on screen at once.
What does the "QM" in the model name indicate?
QM is Samsung's mid-tier commercial signage line, above the QB series and below the high-brightness QH series. The number is the diagonal in inches and the trailing letter is the generation, so QM98C is the 98-inch model in the C generation.
What warranty applies and will I get a GST invoice?
Every unit sold by SourceIT carries local Singapore warranty and is supplied with a GST invoice. Warranty is handled locally rather than through a parallel-import channel.
