Poly Studio G62 Conference System + Mount Plate Kit
PRODUCT DESCRIPTION
Poly Studio G62 Conference System with Mount Plate Kit (A01KCAA) - Local Warranty
Poly Studio G62 with Mount Plate Kit — Install-Ready Modular Room Codec

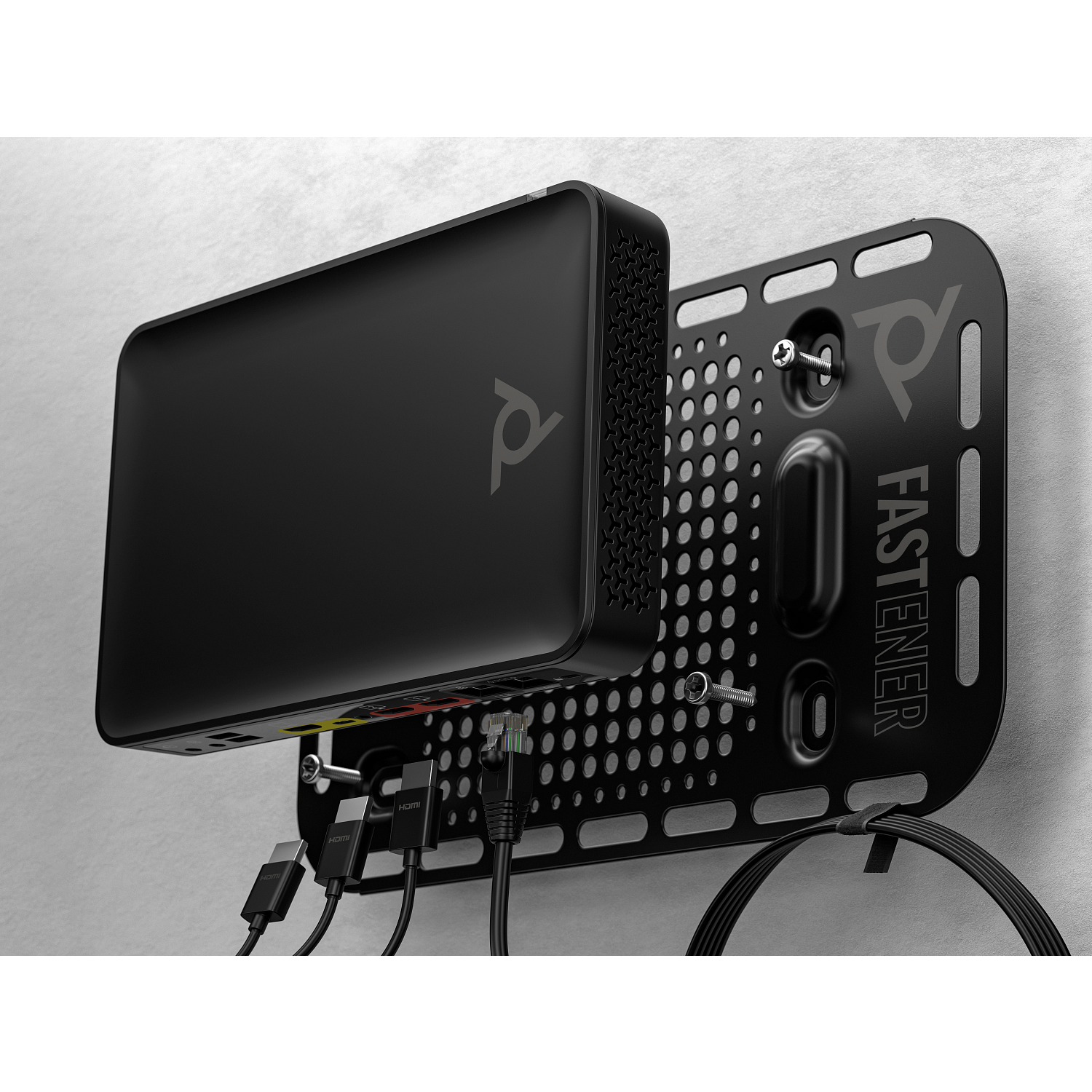

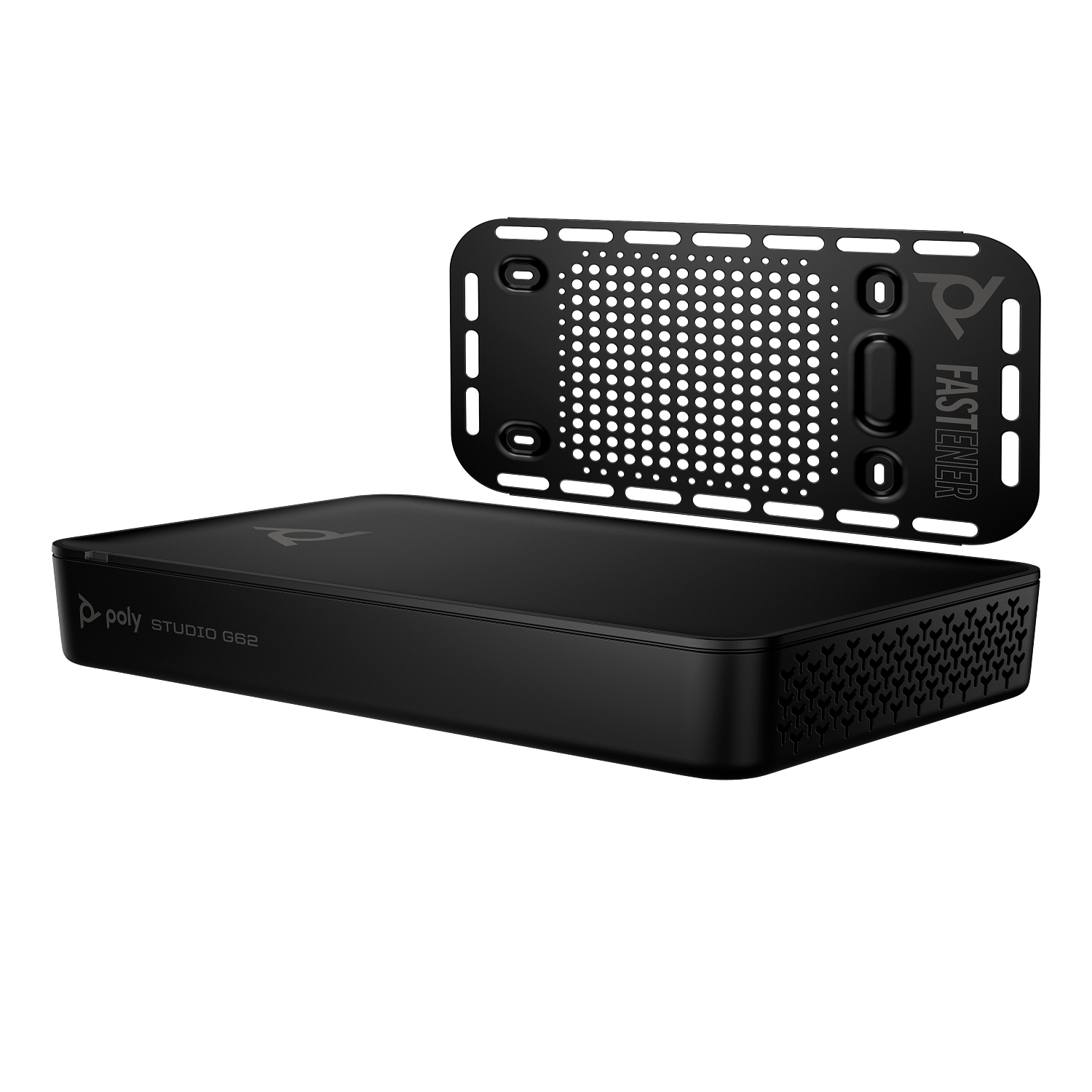

A01KCAA is the Poly Studio G62 modular room codec supplied together with its mount plate kit, so the appliance can be fixed cleanly behind a display, above a ceiling tile or inside a credenza at installation time. The codec itself is identical to the standalone 99T09AA: Android 13 built-in compute, certified for Microsoft Teams Rooms on Android and for Zoom, powered over PoE+. For Singapore integrators handing over a finished room, buying the mount with the codec removes a separate line item and a separate lead time.
Built-In Compute: Teams Rooms and Zoom Rooms Run Natively
The Studio G62 runs the meeting platform on the device itself — Microsoft lists it as a certified Teams Rooms on Android device with certification valid to 15 August 2028, and HP certifies it for Zoom. Poly Video mode and standards-based H.323 and SIP calling are also supported, with room control from a Poly TC8 or TC10 touch panel. One appliance replaces a room PC plus its peripherals.
Modular by Design: Camera and Microphones Sized to the Room
HP lists the Poly Studio E70 and E60 cameras, the Studio E360 companion camera, the Studio R30 USB video bar and Poly IP table and ceiling microphones as compatible peripherals. The E70 attaches as an IP camera over the codec’s LLN port with PoE, and up to three Poly IP microphone arrays share the same port. That is how you cover a long boardroom table that no single video bar can reach.
DirectorAI Framing and Poly Audio Processing
With a Poly camera attached, DirectorAI Perimeter, people framing, group framing, speaker framing and presenter tracking follow the conversation automatically. Poly NoiseBlockAI, Acoustic Fence, keyboard noise reduction, Sound Reflection Reduction and instant-adaptation echo cancellation clean up the audio. DirectorAI framing requires a paired Poly camera and is not available with third-party USB cameras.
Ideal For
AV integrators and facilities teams in Singapore fitting out medium-to-large boardrooms, training rooms and custom spaces who want the codec and its mount plate delivered as one install-ready order.
Poly Studio G62 Datasheet — Technical Specifications
General
| Model | Poly Studio G62 with Mount Plate Kit |
| Part Number | A01KCAA |
| UPC | 198122558865 |
| Regulatory model | PBJ-STG-62R / PBJ-STG-62N |
| Type | Modular video conferencing codec supplied with mount plate kit |
| Built-in compute | Yes — Android 13 |
| Certifications | Certified for Microsoft Teams (Teams Rooms on Android); Certified for Zoom; Google Meet compatible |
| Room size | Medium to large conference spaces (Microsoft certification records 4.5 m x 8.5 m) |
| Management | Poly Lens |
| Package dimensions | 406.4 x 254 x 133.4 mm; 1,390 g |
| Country of manufacture | Laos |
| Manufacturer | Poly (HP) |
Camera Input & Video
| Camera | None included — pair with a Poly Studio camera (sold separately) |
| People video | 4K at 30 fps (from 2048 Kbps); 1080p at 60 fps (from 1740 Kbps); 720p at 60 fps |
| Content in | UHD, HD, WSXGA+, SXGA, XGA |
| Content out | UHD 3840 x 2160; HD 1920 x 1080; 1280 x 720 |
| Video codecs | H.264 AVC, H.265, H.263, RTV |
| Displays supported | Up to 2 |
| Poly DirectorAI | DirectorAI Perimeter, people framing, group framing, speaker framing, presenter tracking (requires a paired Poly camera; not available with third-party USB cameras) |
| Content sharing | Apple AirPlay, Miracast, digital whiteboarding, HDMI in, USB-C |
Audio
| Built-in audio | None — no integrated microphones or speakers; audio peripherals sold separately |
| Microphone support | Up to three Poly IP microphone arrays over the LLN port with PoE |
| Audio processing | Poly NoiseBlockAI, Poly Acoustic Fence, automatic gain control, automatic noise suppression, keyboard noise reduction, Sound Reflection Reduction, instant-adaptation echo cancellation, active lip sync |
| Audio codecs | Siren 22 (22 kHz), G.719, Siren 14, G.722, G.722.1, G.711, G.728, G.729A |
| Analogue audio | 1 x 3.5 mm line in; 1 x 3.5 mm line out |
Connectivity
| HDMI | 1 x HDMI 2.0 in; 2 x HDMI 2.0 out (4K) |
| USB | 2 x USB Type-A (5 Gbps); 1 x USB Type-C (5 Gbps, DisplayPort Alt Mode) |
| Ethernet | 1 x PoE+ LAN RJ-45 (IEEE 802.3at class 4); 1 x LLN RJ-45 for Poly IP camera and microphones |
| Wi-Fi | 802.11a/b/g/n/ac/ax, MIMO |
| Bluetooth | Bluetooth 5.1 |
| Security | Kensington lock slot |
Design & Power
| Dimensions | 247.7 x 152.4 x 34.9 mm (9.75 x 6 x 1.38 in) |
| Weight | 798 g (1.76 lb) |
| Colour | Black |
| Power | Powered over PoE+ — IEEE 802.3at/bt class 4, 5 or 6 switch or PoE injector (30 W / 45 W / 60 W by class), 50–57 V |
| Mounting | Magnetic mounts; optional plate mount accessory |
| Sustainability | 80% post-consumer recycled plastic; at least 20% recycled metal; recyclable packaging |
| Operating environment | 0–40 °C, 15–80% RH; altitude to 10,000 ft |
| Regulatory | CB, FCC, IC, RCM, VCCI, UL/CSA, CE, WEEE, UKCA, MIC |
| Warranty | Local Warranty (Singapore) |
Compatibility & Software Support
The Poly Studio G62 is an Android-based room codec with its own built-in compute, so it runs the meeting platform natively on the device — no separate room PC is required for the certified platforms below.
| Built-in compute | Yes — Android 13; Poly Video mode plus partner application modes |
| Microsoft Teams | Certified — listed by Microsoft as Teams Rooms on Android (device name “Poly G62”), certification valid to 15 August 2028 |
| Zoom | Certified for Zoom |
| Google Meet | Google Meet compatible (HP states compatibility, not certification) |
| Standards-based calling | H.323 and SIP |
| Interoperability | Zoom, Microsoft Teams, Dialpad, GoToRoom, RingCentral, Tencent |
| Room control | Poly TC8 or Poly TC10 touch panel |
| Compatible peripherals | Poly Studio E60 camera, Poly Studio E360 companion camera, Poly Studio E70 camera, Poly Studio R30 USB video bar, Poly IP table and ceiling microphones |
| Camera connection | USB cameras via USB Type-A; Poly Studio E70 as an IP camera over the LLN port with PoE |
| Device management | Poly Lens cloud device management and Poly Lens Cloud onboarding |
Poly Studio G62 Peripherals at SourceIT
| Peripheral | Part Number | Role |
| Poly Studio E70 Smart Conference Camera | 842F8AA | Primary room camera |
| Poly Studio E60 Smart Camera | 9W1A6AA | Primary room camera |
| Poly Studio R30 USB Video Bar | 842D2AA | USB camera and audio |
| Poly Studio TC8 Touch Controller | 2200-30760-001 / 875J0AA | Room touch panel |
| Poly TC10 Touch Controller | 875K5AA | Room touch panel |
Package Contents & Poly Studio G62 Ordering Information
What’s in the Box (A01KCAA)
Poly Studio G62 unit; mount plate kit; Ethernet cable; HDMI cable; warranty card. No camera, microphone, speaker or mains power adapter is included — the codec is powered over PoE+.
Poly Studio G62 Ordering Information
| Model | Part Number | Notes |
| Poly Studio G62 Video Conferencing System | 99T09AA | Codec only |
| Poly Studio G62 Conference System + Mount Plate Kit (this listing) | A01KCAA | Codec with mount plate kit |
Studio G62 Mounting and Power Accessories
| Accessory | Part Number |
| Poly Studio G62 PoE+ Adapter and Cable Kit | A02F9AA |
| Poly Studio G62 Plate Mount | A02FDAA |
Datasheet & Downloads
Frequently Asked Questions — Poly Studio G62
What is the difference between the Poly Studio G62 99T09AA and A01KCAA?
Both part numbers are the same Poly Studio G62 codec. 99T09AA ships as the codec on its own with an Ethernet cable, an HDMI cable and a warranty card. A01KCAA is the Poly Studio G62 Conference System + Mount Plate Kit bundle, which adds a dedicated mount plate for a tidy in-room installation. This listing is the A01KCAA bundle with the Mount Plate Kit; the codec-only 99T09AA is also available at SourceIT.
Does the Poly Studio G62 include a camera or microphones?
No. The Studio G62 is a modular codec: HP ships it with an Ethernet cable, an HDMI cable and a warranty card only. Cameras and microphones are ordered separately — HP lists the Poly Studio E70, the Poly Studio E60, the Poly Studio E360 companion camera, the Poly Studio R30 USB video bar, and Poly IP table and ceiling microphones as compatible peripherals.
What room size is the Poly Studio G62 designed for?
HP positions the Studio G62 for medium to large and custom conference spaces. Microsoft’s Teams Rooms certification listing records the tested room size as a large meeting room of 4.5 m x 8.5 m.
Do I need a separate room PC or a compute appliance with the Studio G62?
No. The Studio G62 has built-in Android 13 compute and runs Microsoft Teams Rooms on Android and Zoom Rooms natively, alongside Poly Video mode. You pair it with a Poly TC8 or Poly TC10 touch controller for in-room control.
How is the Poly Studio G62 powered, and does it power the camera too?
The Studio G62 is powered over PoE+ from an IEEE 802.3at/bt class 4, 5 or 6 switch or injector — there is no separate mains adapter in the box. Its second RJ-45 (the LLN port) carries the Poly IP camera and up to three Poly IP microphone arrays. A Poly Studio G62 PoE+ Adapter and Cable Kit (A02F9AA) is available where the room switch does not supply PoE+.
How does the Studio G62 compare with an all-in-one bar such as the Studio X52 or X70?
An all-in-one bar such as the Poly Studio X52 or Poly Studio X70 puts camera, speakers, microphones and compute in one device and is the faster deployment. The Studio G62 separates the compute from the AV so integrators can choose the camera, microphone layout and speaker placement that a large or irregular room actually needs.
Is DirectorAI available with any camera?
HP states that DirectorAI framing on the Studio G62 depends on a paired Poly camera. It is not available when a third-party USB camera is connected.
Does the Poly Studio G62 come with warranty in Singapore?
Yes. Every Poly Studio G62 sold by SourceIT comes with local Singapore warranty and a GST invoice.
