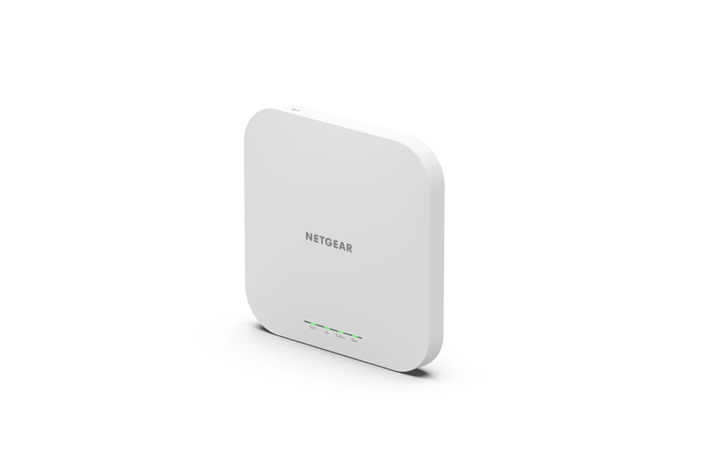

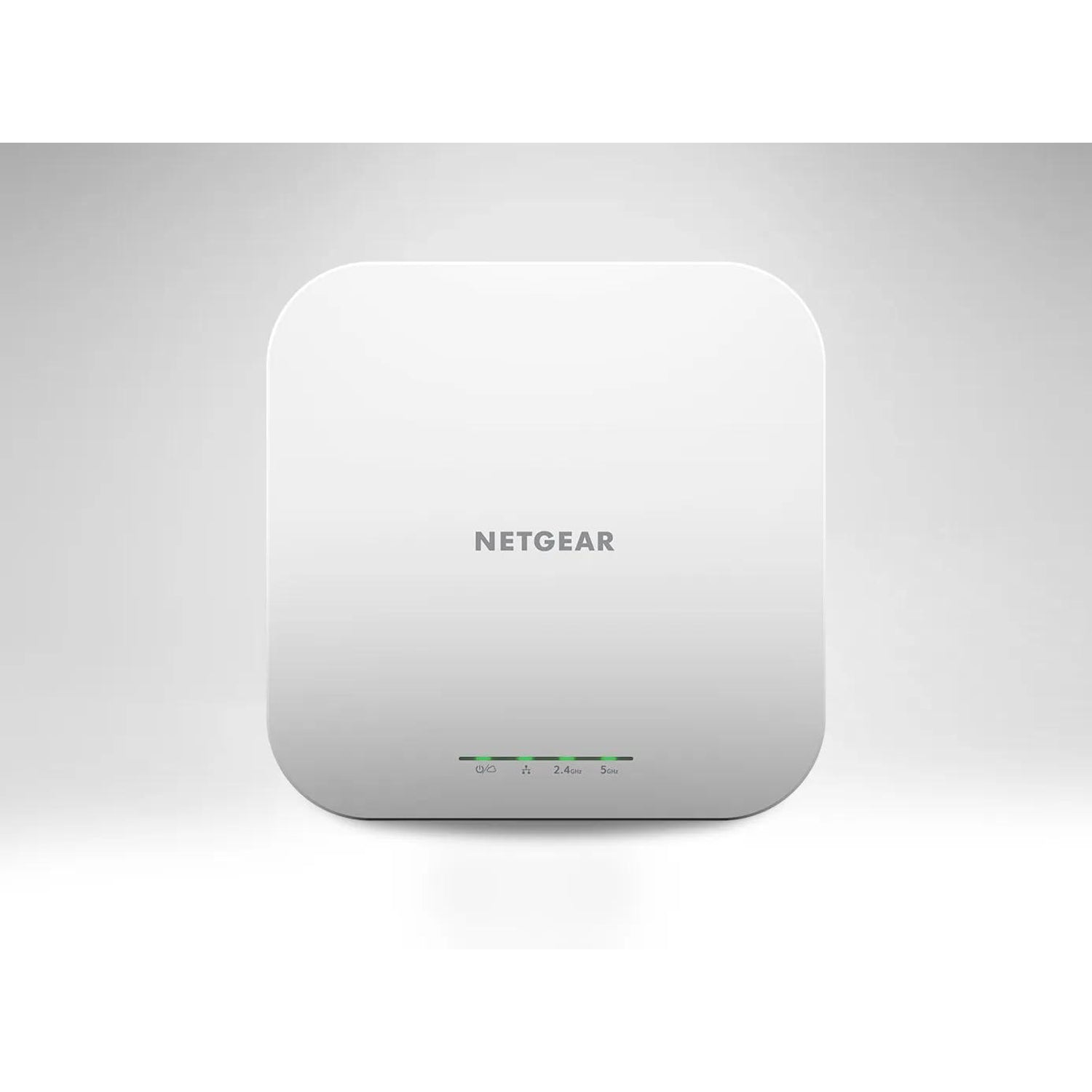

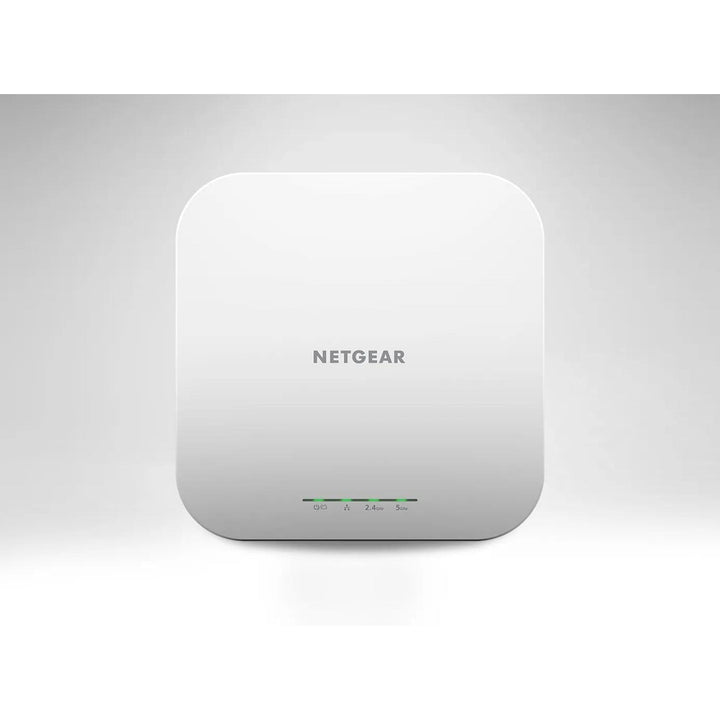

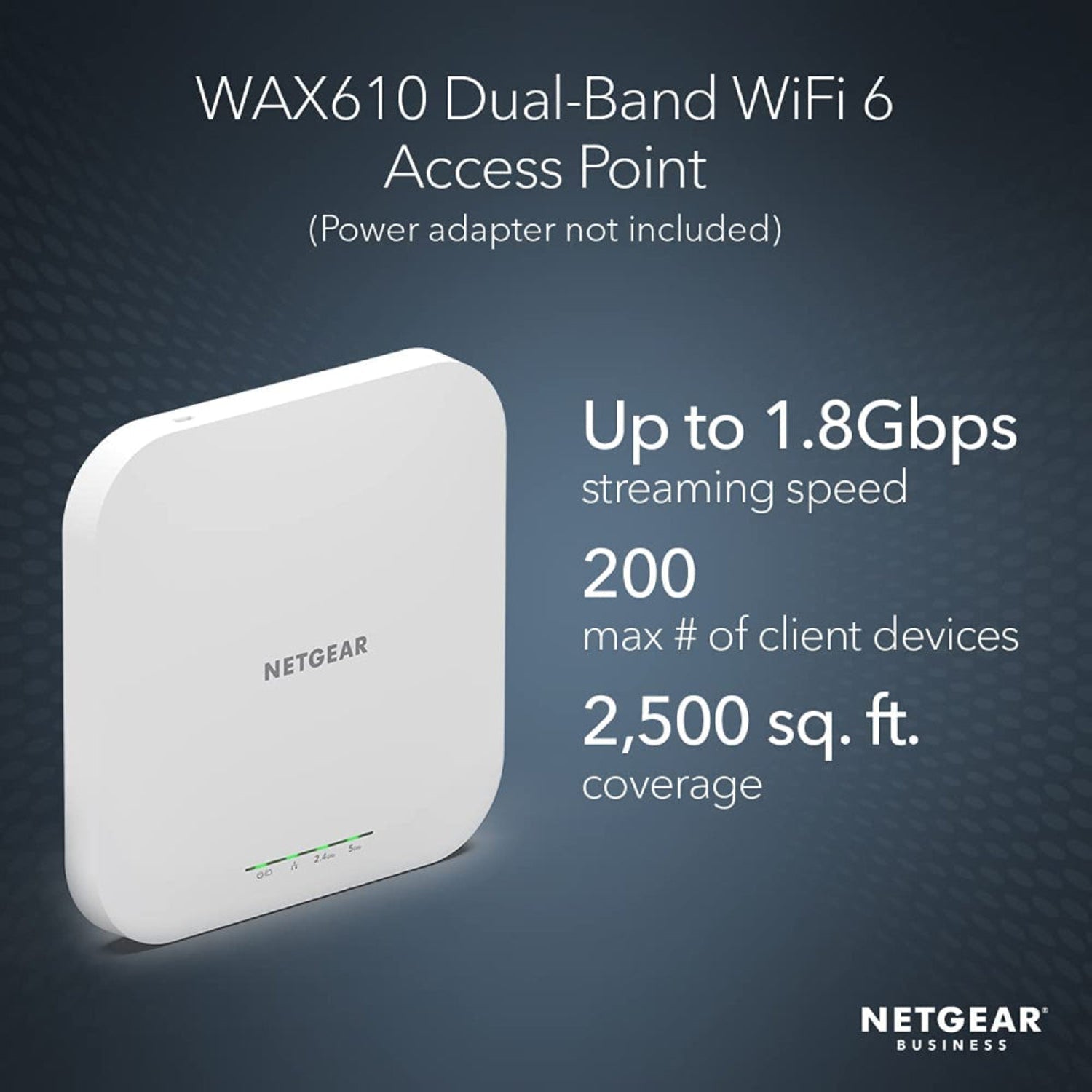

NETGEAR WAX610 Insight Managed WiFi 6 AX1800 Dual Band PoE 2.5G Access Point
PRODUCT DESCRIPTION
NETGEAR WAX610 Insight Managed WiFi 6 AX1800 Dual Band PoE Multi-Gig Access Point (WAX610-100EUS) - 5 Years Local Warranty
Powerful WiFi 6 for Busy Offices
The NETGEAR WAX610 delivers AX1800 dual-band WiFi 6 — up to 1200 Mbps on 5 GHz plus 600 Mbps on 2.4 GHz — with OFDMA, MU-MIMO, BSS Coloring and Target Wake Time to keep performance up in high-density environments.
2.5G Multi-Gig Port with PoE+
A single 2.5GBASE-T port carries both data and power: run it from an 802.3at PoE+ switch (15.3 W) or an optional 12V DC adapter, so the WiFi is never held back by a 1G uplink.
Enterprise-Grade Security, Made Simple
WPA3, WPA2/WPA3 Enterprise with RADIUS, up to 8 SSIDs mapped to VLANs and a guest captive portal let you separate staff, guests and IoT devices cleanly.

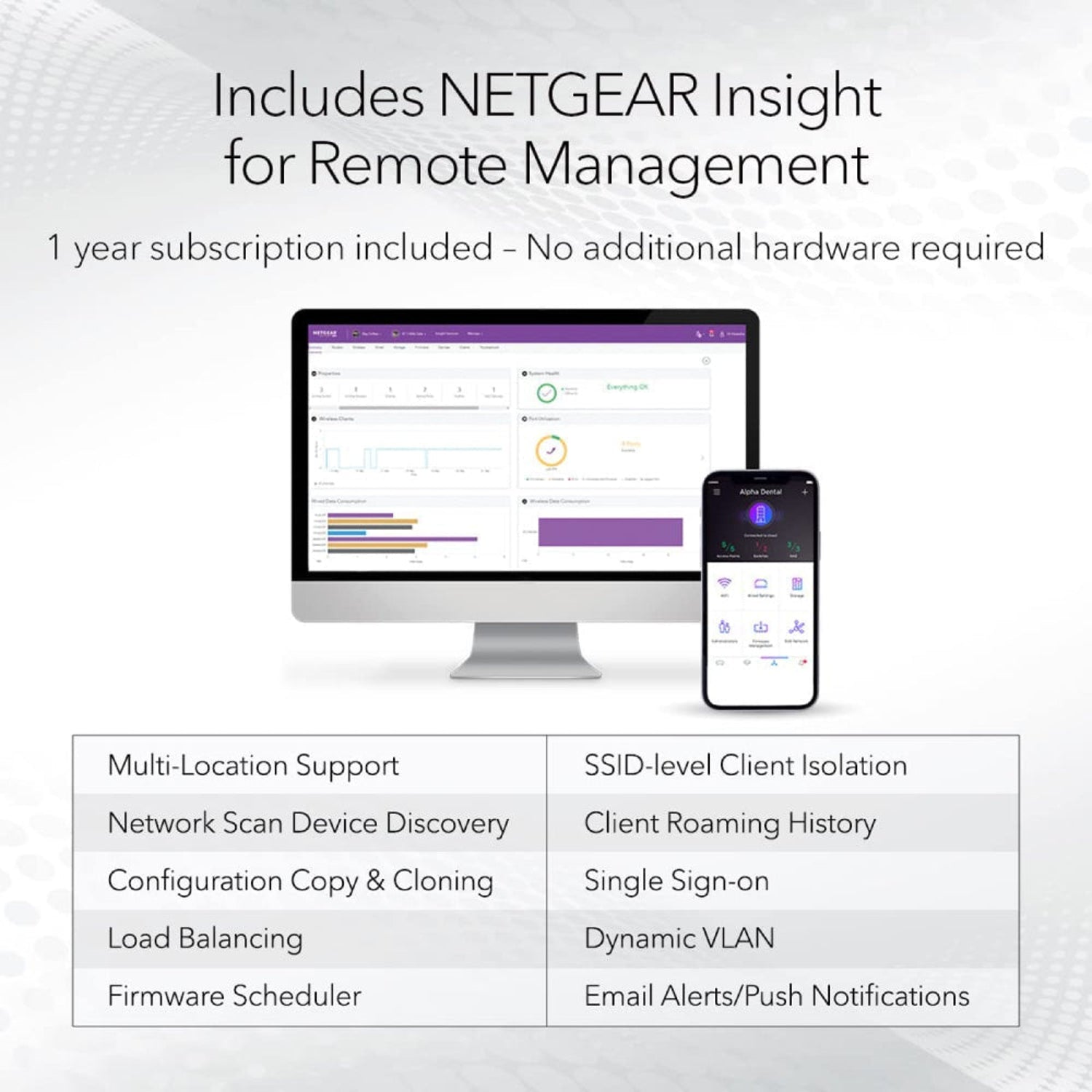

Managed from Anywhere with NETGEAR Insight
Set up, monitor and manage the access point from the NETGEAR Insight app or Cloud Portal, or run it standalone from the local web UI. Insight Instant Mesh extends coverage with wireless backhaul.
Need help choosing? Email sales@sourceit.com.sg with your coverage area, client count and indoor/outdoor needs and we will size it for you.
NETGEAR WAX610 Datasheet — Technical Specifications
General
| Product Name | NETGEAR WAX610 Insight Managed WiFi 6 AX1800 Dual Band PoE Multi-Gig Access Point |
| Part Number (SKU) | WAX610-100EUS |
| Series | NETGEAR Insight Managed WiFi 6 Access Points |
| Local Warranty (Singapore) | 5 Years, supplied by SourceIT with a GST invoice |
Wireless
| WiFi Standard | IEEE 802.11ax (WiFi 6); 5 GHz: 802.11a/n/ac/ax; 2.4 GHz: 802.11b/g/n/ax |
| WiFi Class | AX1800 dual-band concurrent (up to 1.8 Gbps) |
| Data Rates | 5 GHz: up to 1200 Mbps; 2.4 GHz: up to 600 Mbps |
| MIMO | 2x2 in 5 GHz, 2x2 in 2.4 GHz (4 streams total); bidirectional MU-MIMO |
| WiFi 6 Technologies | OFDM/OFDMA, BSS Coloring, Target Wake Time (TWT), Beamforming+ |
| Other Wireless | WMM, WDS, band steering, Adjustable Transmit Power Control (TPC) |
| Antennas | Internal, 3.8 / 4.5 dBi (2.4 GHz / 5 GHz) |
| Users (netgear.com) | Up to 250 max users; 50 concurrent users |
Interfaces
| Ethernet | 1 x 100/1000/2.5GBASE-T RJ-45 with Auto Uplink (Auto MDI-X) |
| LEDs | 4: Power & Cloud; LAN speed; 2.4 GHz status; 5 GHz status |
| Buttons | Reset button |
Software Features
| SSIDs / VLANs | 8 SSIDs with VLAN (802.1Q) support |
| Security | WPA, WPA2, WPA3 Personal; WPA2 and WPA3 Enterprise; 802.1X RADIUS; MAC address authentication; wireless access control |
| Guest Access | Guest network / captive portal |
| Mesh | Insight Instant WiFi Mesh (wireless backhaul) |
| Traffic Management | Bandwidth management |
| Management | NETGEAR Insight app and Insight Cloud Portal, or local web browser UI (standalone) |
Power
| PoE Input | IEEE 802.3at PoE+ (full performance); IEEE 802.3af supported at approx. 60% of full throughput |
| PoE Power Consumption | 15.3 W (802.3at); 9 W (802.3af) |
| Power Adapter | 12V DC, 2.5A — optional, not included |
Physical & Environmental
| Dimensions (W x D x H) | 160.9 x 160.9 x 33.25 mm |
| Weight | 412 g |

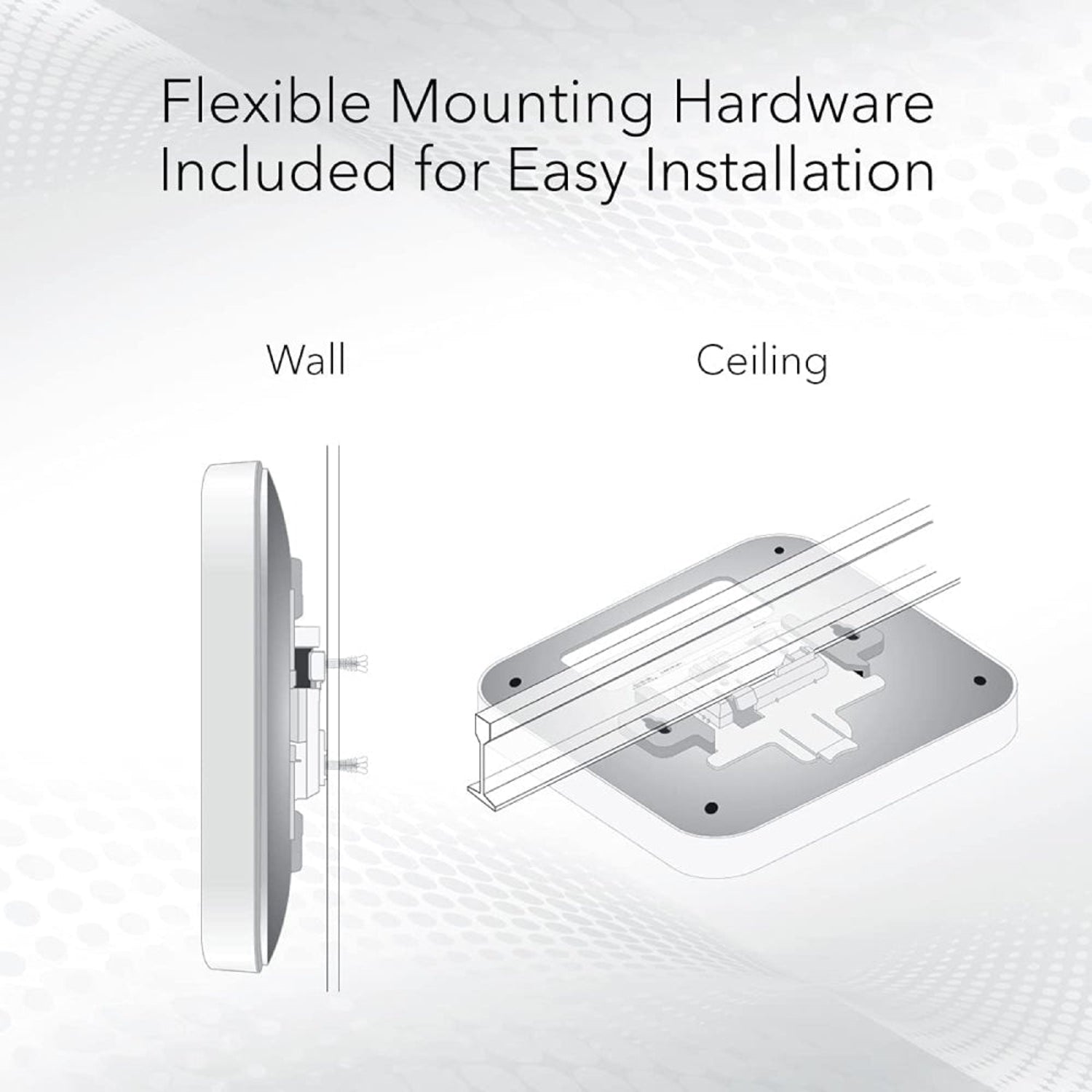

| Mounting | Wall or ceiling (screws and anchors), 15/16 in. (23.8 mm) or 9/16 in. (14.3 mm) T-bar, or flat surface |
| Operating Temperature | 0 to 40 °C |
Compatibility & Software Support
Management
NETGEAR Insight app (iOS/Android) and Insight Cloud Portal for remote setup, monitoring and management, or local browser-based UI in standalone mode. NETGEAR lists Domotz as third-party support.
Client Compatibility
WiFi 6 (802.11ax) with backwards compatibility for 802.11a/b/g/n/ac clients on 2.4 GHz and 5 GHz.
Typical Use
Indoor ceiling or wall coverage for offices, retail, clinics and classrooms, powered from a PoE+ switch — ideally one with 2.5G ports to use the full multi-gig uplink.
Package Contents & Insight WiFi 6 Access Point Ordering Information
In the Box
WAX610 Insight managed wireless access point, wall/ceiling mount kit (screws and anchors), installation guide / documentation flyer. Power adapter is NOT included (PoE+ powered; the optional adapter is 12V DC, 2.5A).
NETGEAR Insight WiFi 6 Access Point Models
| Model | Key Spec | Part No. |
| WAX610 (this listing) | Indoor, WiFi 6 AX1800 dual-band, 1 x 2.5G PoE+ | WAX610-100EUS |
| WAX610Y | Outdoor IP55, WiFi 6 AX1800 dual-band, 1 x 2.5G PoE+ | WAX610Y-100EUS |
| WAX615 | Indoor, WiFi 6 AX3000 dual-band | WAX615-100APS |
| WAX620 | Indoor, WiFi 6 AX3600 dual-band | WAX620 |
| WAX628 | Indoor, WiFi 6 AX5400 dual-band | WAX628-111APS |
Other NETGEAR Insight WiFi 6 access point models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | WAX610 / WAX610Y Datasheet (PDF) |
| Installation guide | WAX610 Installation Guide (PDF) |
| User manual | WAX610 / WAX610Y User Manual (PDF) |
| NETGEAR product page | WAX610 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting WAX610-100EUS.
Frequently Asked Questions — NETGEAR WAX610
Is a power adapter included with the WAX610?
No. The WAX610 is designed to be powered by PoE+ (802.3at). An optional 12V DC, 2.5A adapter can be used instead but is sold separately.
Will it work on a standard 802.3af PoE switch?
Yes, but NETGEAR rates 802.3af operation at approximately 60% of full throughput. Use 802.3at PoE+ for full performance.
Do I need a 2.5G switch?
No. The port auto-negotiates at 100M, 1G or 2.5G; a 2.5G PoE+ switch port lets the AP use its full WiFi 6 throughput.
Can I use it without the Insight cloud?
Yes. It can be managed locally through its web browser UI in standalone mode, or via the NETGEAR Insight app and Cloud Portal.
What warranty do I get?
5 Years local warranty in Singapore, supplied by SourceIT with a GST invoice.
