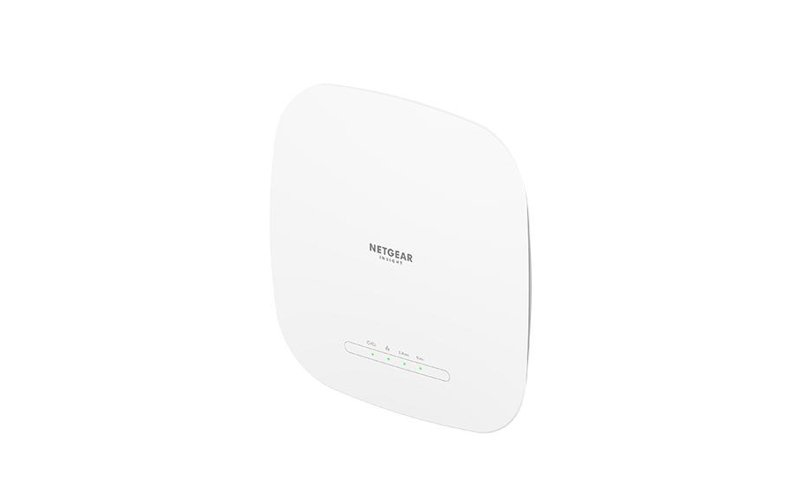

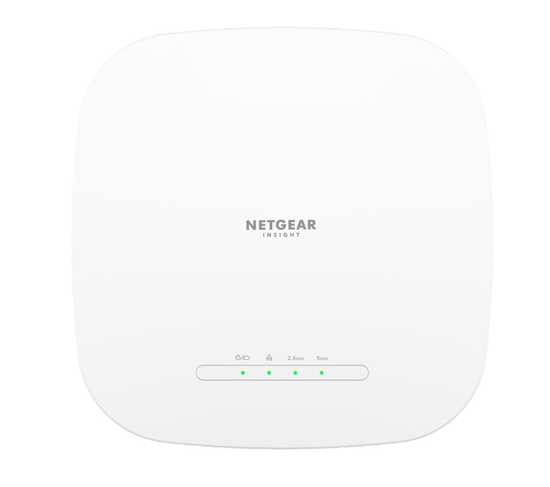

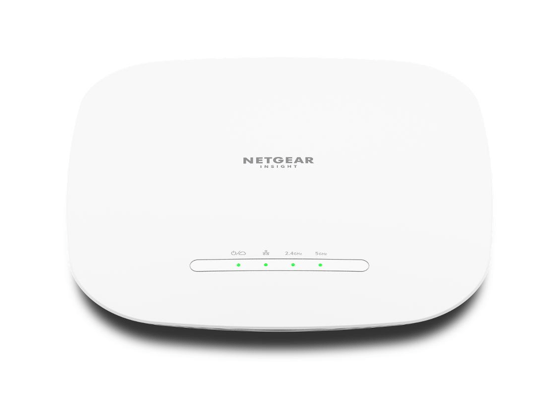

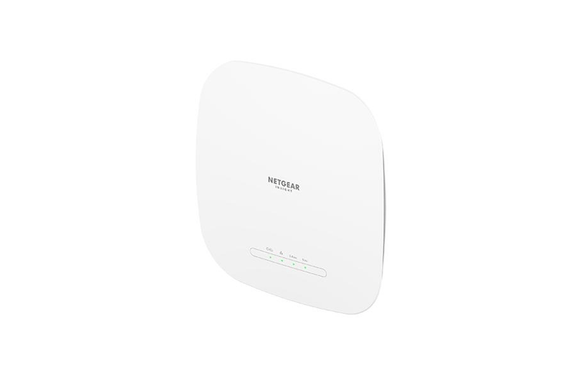

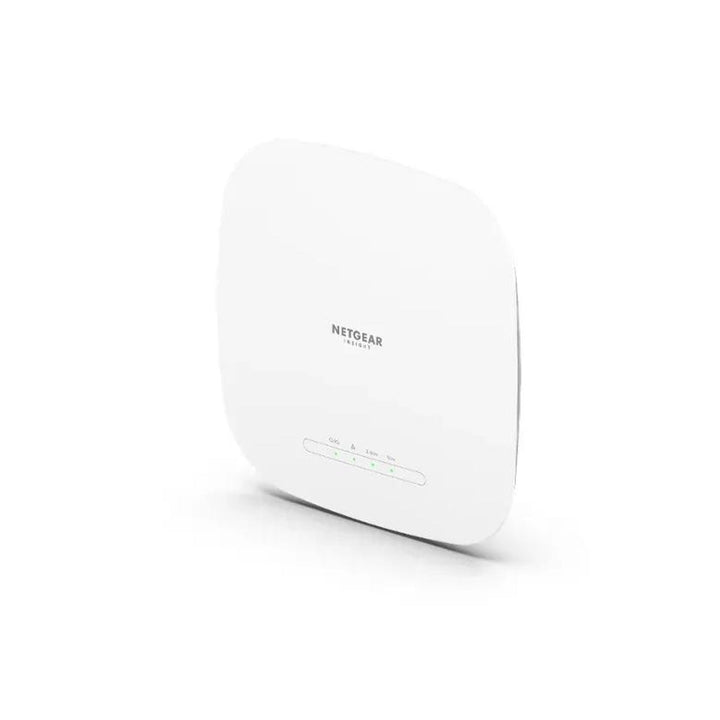

NETGEAR WAX615 WiFi 6 AX3000 Dual-Band Multi-Gig PoE Access Point, Insight Managed
PRODUCT DESCRIPTION
NETGEAR WAX615 Insight Managed WiFi 6 AX3000 Dual-Band Multi-Gig PoE Access Point (WAX615-100APS) - 5 Years Local Warranty
WiFi 6 AX3000 for Busy Business Networks
The NETGEAR WAX615 is a dual-band WiFi 6 (802.11ax) access point rated AX3000, delivering up to 2400 Mbps on 5 GHz and 600 Mbps on 2.4 GHz. Dual-band 2x2 radios with four spatial streams, bidirectional MU-MIMO and OFDMA serve many devices at once, while 160 MHz channels on 5 GHz and Target Wake Time help client devices get faster speeds and longer battery life.
2.5GbE Multi-Gig Uplink with PoE
A single 100/1000/2.5GBASE-T port carries both data and power, so the WAX615 can run from an 802.3at PoE switch or injector with one cable. The Multi-Gig uplink avoids the 1 Gbps bottleneck of a standard Gigabit port, and the access point draws 21.2 W maximum.
Secure, Segmented WiFi
Create up to 8 SSIDs, each mapped to its own VLAN, for staff, guest and IoT networks. Security options include WPA, WPA2 and WPA3 (Personal and Enterprise), Enhanced Open, 802.1X RADIUS with EAP-TLS, TTLS and PEAP, MAC authentication and filtering, plus a guest network with captive portal.
Insight Cloud or Standalone Management
Set up and monitor the WAX615 remotely with the NETGEAR Insight app or cloud portal, or run it in standalone mode. Instant WiFi Mesh forms a wireless backhaul with other compatible NETGEAR access points, and band steering and bandwidth management help balance clients across the network. The flat 241.5 x 241.5 mm unit ships with a wall/ceiling mount kit.
Need help choosing? Email sales@sourceit.com.sg with your floor area, user count and switch details and we will recommend the right access points and PoE switch for you.
NETGEAR WAX615 Datasheet — Technical Specifications
General
| Product Name | NETGEAR WAX615 Insight Managed WiFi 6 AX3000 Dual-Band Multi-Gig PoE Wireless Access Point |
| Part Number | WAX615-100APS (Asia Pacific) |
| Series | NETGEAR Insight Managed WiFi 6 Access Points |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| WiFi Standard | WiFi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Speed Class | AX3000 — up to 3 Gbps aggregate |
| 5 GHz | Up to 2400 Mbps; 20/40/80/160 MHz channels |
| 2.4 GHz | Up to 600 Mbps; 20/40 MHz channels |
| Radios / Streams | Dual-band 2x2 (2.4 GHz and 5 GHz), 4 streams total |
| MIMO | Bidirectional MU-MIMO (upstream and downstream) |
| WiFi 6 Features | OFDMA, Target Wake Time (TWT), BSS Coloring |
| Antennas | Internal, 2.9 dBi (2.4 GHz) / 2.8 dBi (5 GHz) |
| Max Users | 256 (per netgear.com) |
Network Features & Security
| SSIDs / VLANs | 8 SSIDs with VLAN mapping |
| Wireless Security | WPA, WPA2, WPA3; WPA2/WPA3 Enterprise; Enhanced Open |
| Authentication | 802.1X RADIUS (EAP-TLS, TTLS, PEAP); MAC address authentication; MAC address filtering with access control |
| Guest Access | Guest network / captive portal |
| Traffic Management | Band steering; bandwidth management |
| Mesh | Instant WiFi Mesh wireless backhaul with WAC540, WAC564, WAX610, WAX610Y, WAX620, WAX630 or WAX630E |
| Operating Modes | Access point; WDS repeater; bridge (point-to-point / point-to-multipoint) |
Interfaces & Power
| Ethernet Port | 1 x 100/1000/2.5GBASE-T RJ-45 with Auto Uplink |
| PoE Input | IEEE 802.3at (PoE+) |
| Power Consumption | 21.2 W max |
| Optional DC Power | 12 V DC, 2.5 A adapter (not included) |
| LEDs | 4: Power & Cloud connection; LAN speed; 2.4 GHz status; 5 GHz status |
Physical & Environmental
| Dimensions (W x D x H) | 241.5 x 241.5 x 40.2 mm (9.5 x 9.5 x 1.58 in) |
| Weight | 727 g (1.6 lb) |
| Mounting | Wall or ceiling (mount kit included) |
| Operating Temperature | 0 to 40 °C |
Compatibility & Software Support
Management
Remote setup, management and monitoring through the NETGEAR Insight app or Insight cloud portal, or standalone operation. Insight subscription terms vary by region and SKU — please check with us before ordering if you plan to use Insight cloud management.
Client Devices
Works with WiFi 6 devices and older 802.11a/b/g/n/ac WiFi clients on both 2.4 GHz and 5 GHz.
Power & Switching
Power the WAX615 from any IEEE 802.3at (PoE+) switch port or injector. To use the full 2.5 Gbps uplink, connect it to a Multi-Gig (2.5GbE-capable) switch port; it also runs on 100 Mbps and 1 Gbps ports.
Mesh Compatibility
Instant WiFi Mesh with NETGEAR WAC540, WAC564, WAX610, WAX610Y, WAX620, WAX630 and WAX630E access points.
Package Contents & WiFi 6 Access Point Ordering Information
In the Box
WAX615 Insight managed wireless access point, wall/ceiling mount kit, installation guide. A power adapter is not included — power via PoE (802.3at) or an optional 12 V DC, 2.5 A adapter.

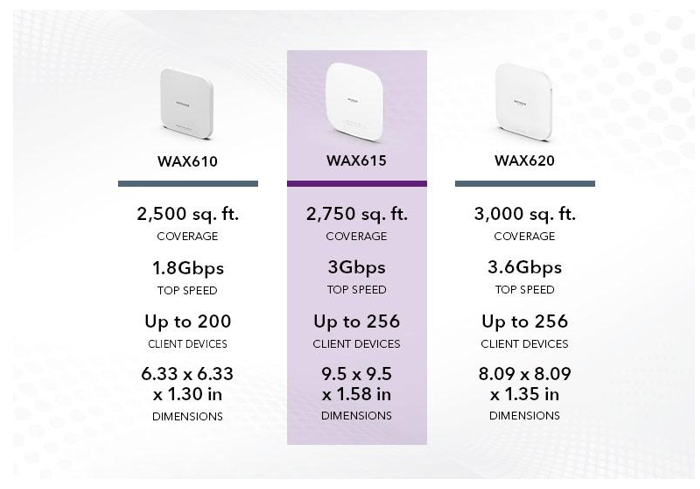

NETGEAR WiFi 6 Access Point Models
| Model | Description | Part No. |
| WAX610 | WiFi 6 AX1800 dual-band, indoor | WAX610-100EUS |
| WAX610Y | WiFi 6 AX1800 dual-band, outdoor | WAX610Y-100EUS |
| WAX615 (this listing) | WiFi 6 AX3000 dual-band, 2.5GbE PoE, indoor | WAX615-100APS |
| WAX628 | WiFi 6 AX5400 dual-band, cloud managed, indoor | WAX628-111APS |
Datasheet & Downloads
| NETGEAR datasheet | WAX615 Datasheet (PDF) |
| Installation guide | WAX615 Installation Guide (PDF) |
| User manual | WAX615 User Manual (PDF) |
| NETGEAR product page | WAX615 on netgear.com |
| Firmware & support | WAX615 support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting WAX615-100APS.
Frequently Asked Questions — NETGEAR WAX615
Does the WAX615 come with a power adapter?
No. It is powered over Ethernet from an IEEE 802.3at (PoE+) switch or injector. An optional 12 V DC, 2.5 A adapter can be used instead and is sold separately.
Do I need a 2.5GbE switch?
No. The port supports 100 Mbps, 1 Gbps and 2.5 Gbps. A Multi-Gig switch port lets you use the full 2.5 Gbps uplink.
Can I manage it without the cloud?
Yes. NETGEAR lists Insight (app or cloud portal) or standalone as the management options.
How many networks can I create?
Up to 8 SSIDs, each of which can be mapped to its own VLAN — for example staff, guest and IoT.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
