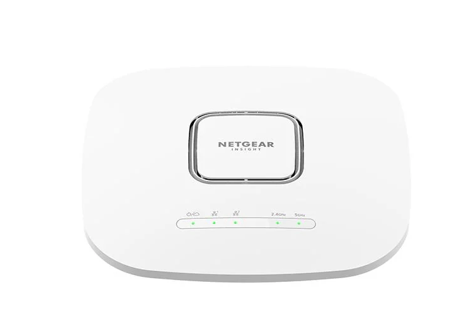

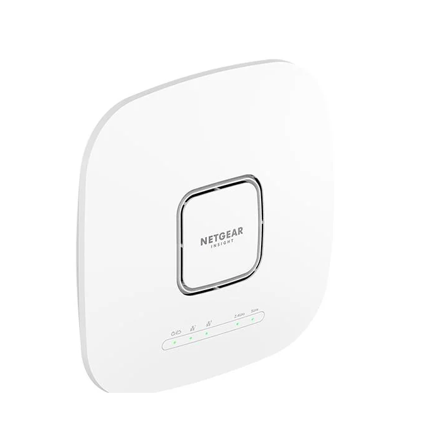

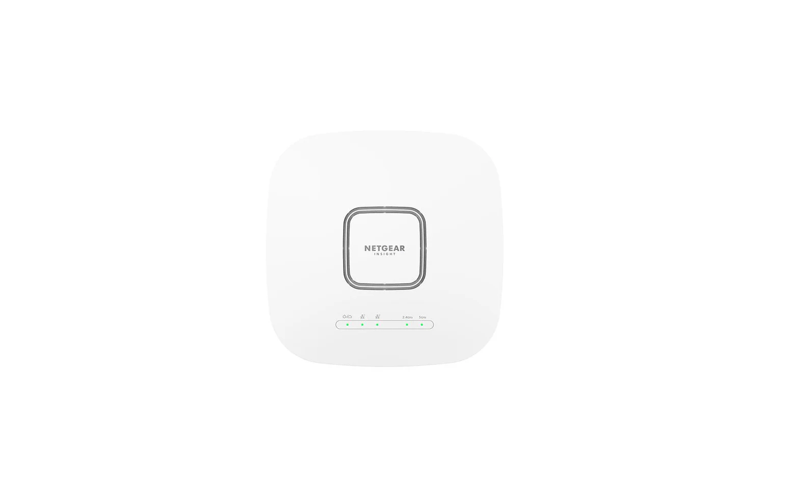

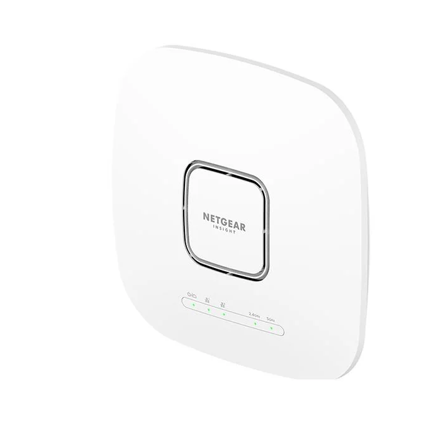

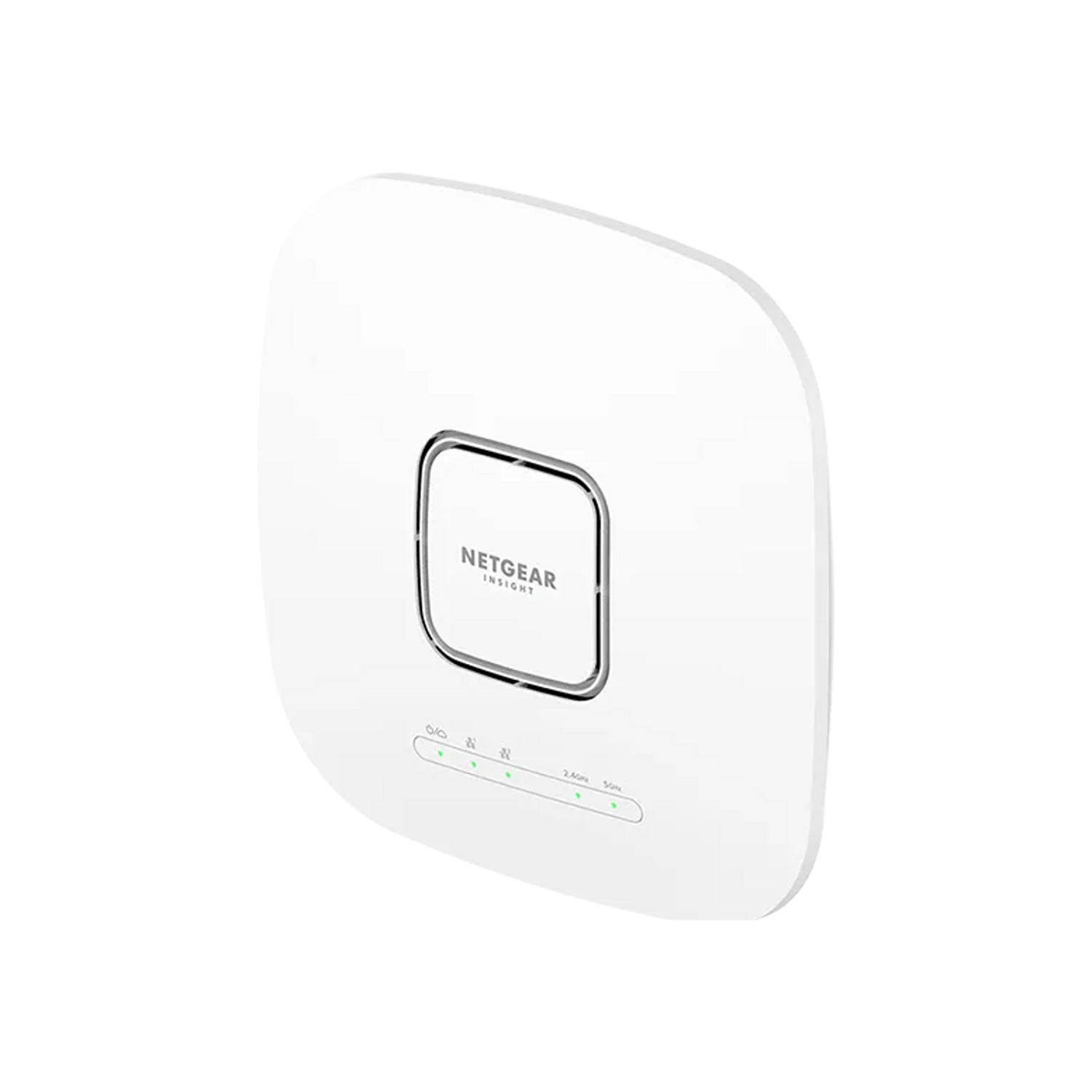

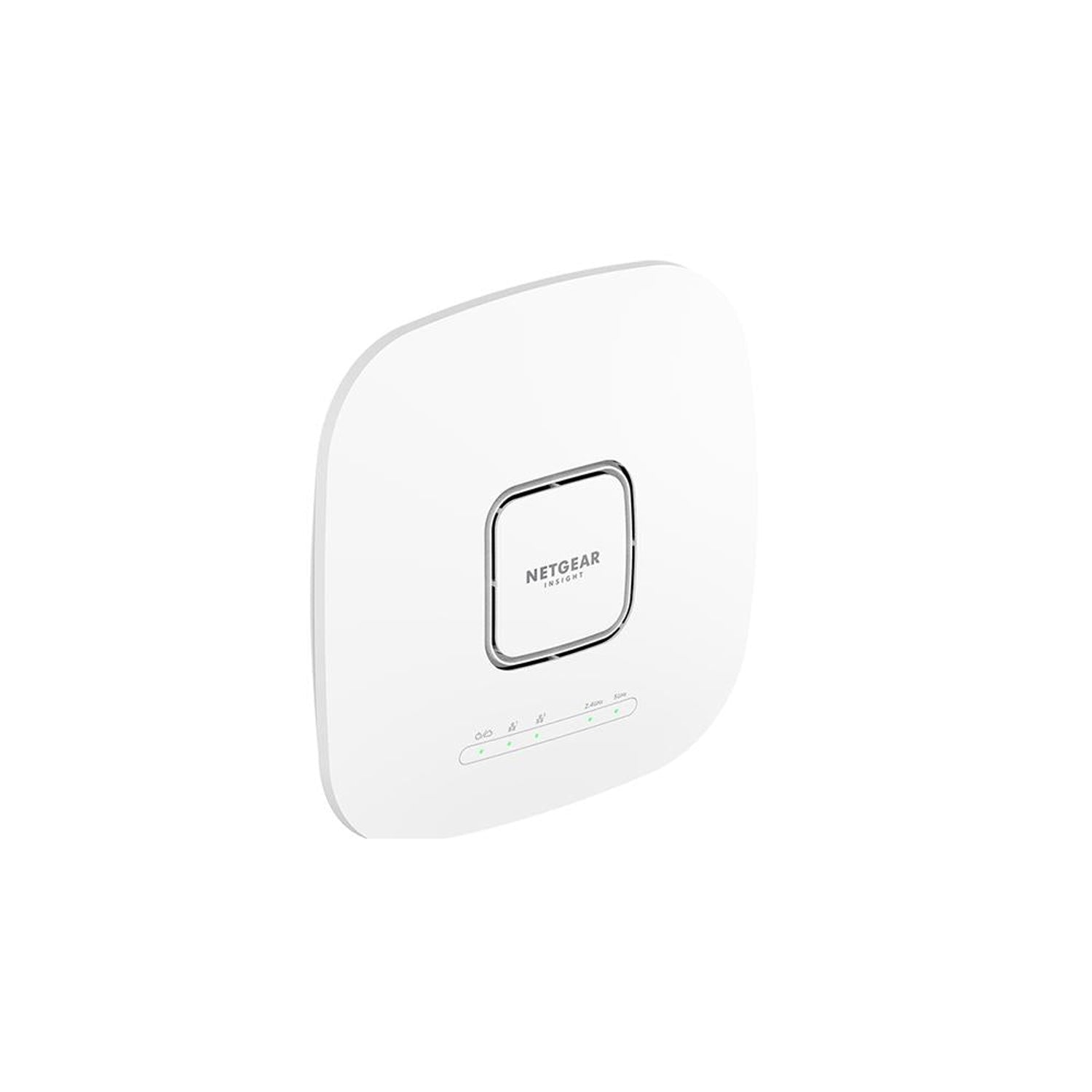

NETGEAR WAX628 Insight WiFi 6 AX5400 Dual-Band 2.5G PoE Access Point
PRODUCT DESCRIPTION
NETGEAR WAX628 Insight Managed WiFi 6 AX5400 Dual-band Multi-Gig PoE Access Point (WAX628-111APS) - 5 Years Local Warranty
WiFi 6 AX5400 for Busy Spaces
The NETGEAR WAX628 delivers up to 5.4 Gbps of aggregate WiFi 6 throughput across 6 streams: 4x4 on 5 GHz (up to 4.8 Gbps, 160 MHz channels) and 2x2 on 2.4 GHz (up to 600 Mbps). OFDMA, MU-MIMO, BSS Coloring, Target Wake Time and Beamforming+ keep performance high as devices multiply.
2.5G Multi-Gig PoE Uplink
A 2.5GBASE-T PoE port lets the WAX628 pass its full WiFi 6 speed to the network over existing cabling, powered by an 802.3at PoE+ switch. A second Gigabit port connects a wired device such as a printer or IP phone.
Managed with NETGEAR Insight
Set up, monitor and manage the WAX628 from the NETGEAR Insight app or cloud portal, with up to 8 SSIDs mapped to VLANs, band steering, guest networks with captive portal, bandwidth management and Instant Mesh with other NETGEAR Insight Pro WiFi access points.
Business-Grade Security
WPA, WPA2 and WPA3 Personal, WPA2 and WPA3 Enterprise, Enhanced Open, 802.1x RADIUS and MAC filtering protect staff and guest networks alike.
Need help choosing? Email sales@sourceit.com.sg with your floor area, user count and PoE switch details and we will size it for you.
NETGEAR WAX628 Datasheet — Technical Specifications
General
| Product Name | NETGEAR WAX628 Insight Managed WiFi 6 AX5400 Dual-band Multi-Gig PoE Access Point |
| Part Number (SKU) | WAX628-111APS |
| Series | NETGEAR Insight Managed WiFi 6 Access Points |
| Local Warranty (Singapore) | 5 Years, supplied by SourceIT with a GST invoice |
Wireless
| Standard | IEEE 802.11ax (WiFi 6), backward compatible with 802.11a/b/g/n/ac |
| Bands | Dual-band concurrent 2.4 GHz and 5 GHz |
| Aggregate Throughput | Up to 5.4 Gbps (AX5400), 6 streams |
| 5 GHz | 4x4, up to 4800 Mbps; 20/40/80/160 MHz channels |
| 2.4 GHz | 2x2, up to 600 Mbps; 20/40 MHz channels |
| Antennas | Internal, 2.4 / 2.9 dBi (2.4 GHz / 5 GHz) |
| WiFi 6 Technologies | OFDMA, MU-MIMO, BSS Coloring, Target Wake Time (TWT), Beamforming+ |
| SSIDs | Up to 8 SSIDs with VLAN mapping |
| Clients | Up to 275 users, 75 concurrent (per NETGEAR product page) |
Interfaces

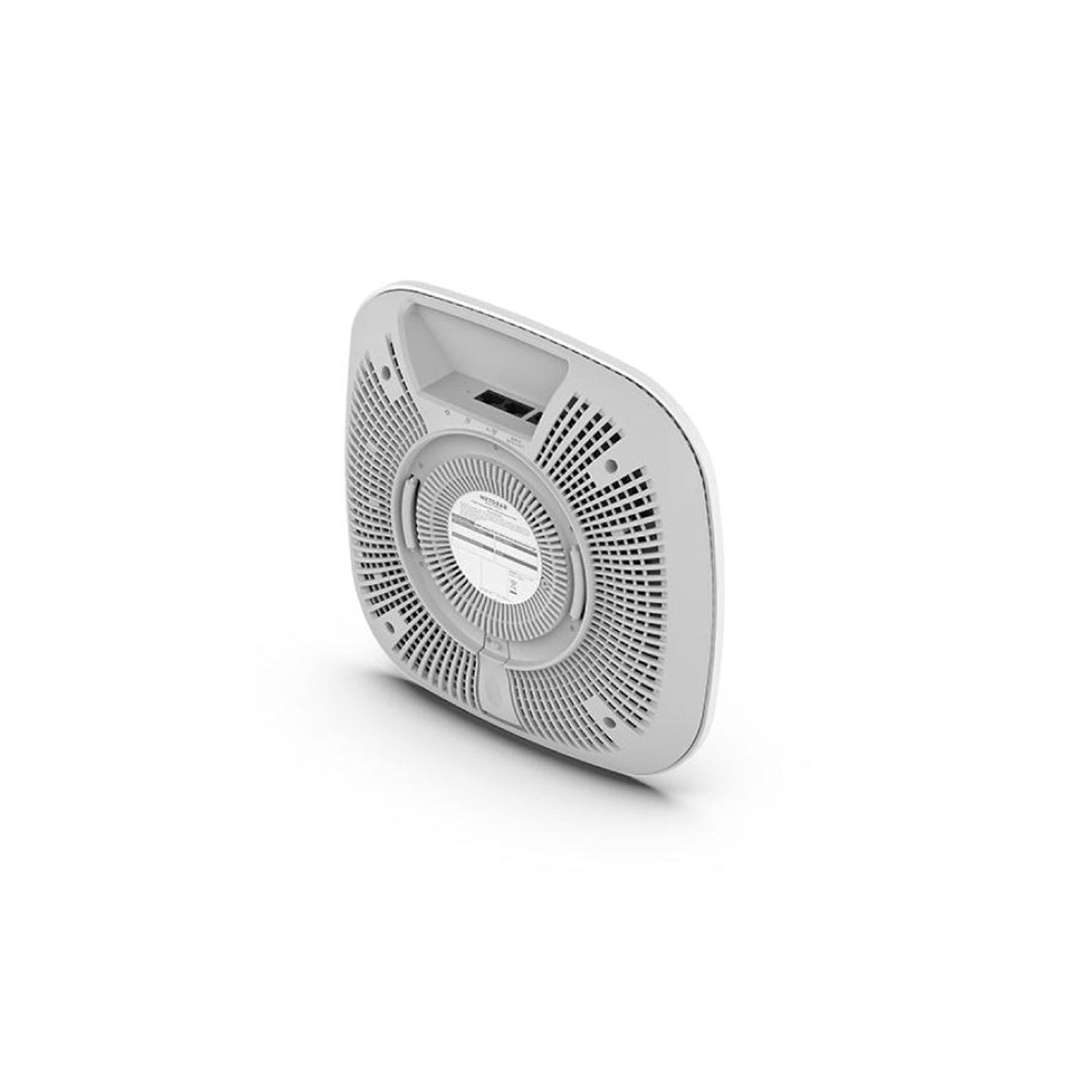

| LAN 1 (PoE) | 1 x 100/1000/2.5GBASE-T RJ-45, PoE powered |
| LAN 2 | 1 x 100/1000BASE-T RJ-45 |
| Auto MDI-X | Yes |

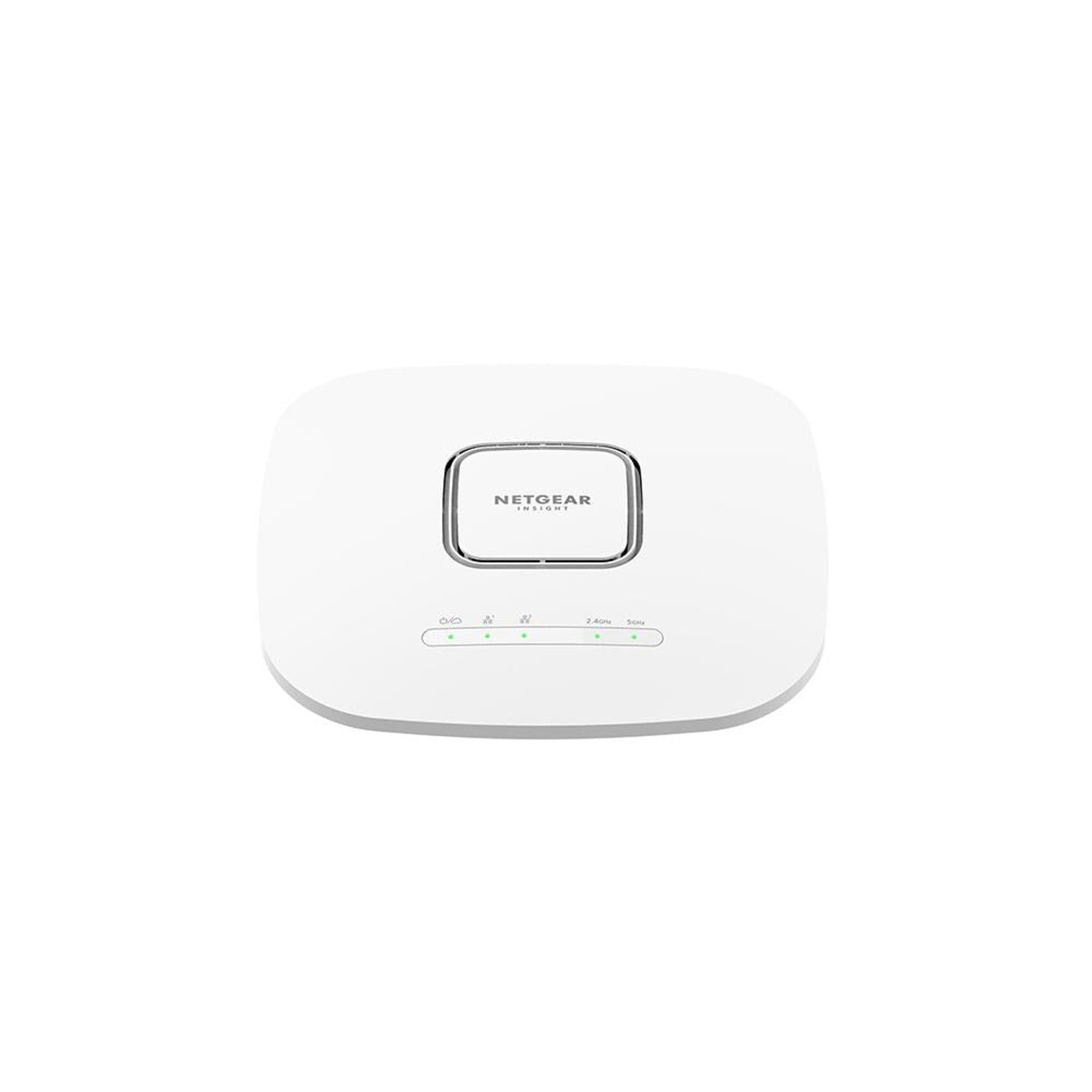

| LEDs | 5: Power and Cloud connection; 2 x LAN ports; 2.4 GHz status; 5 GHz status |
Security
| Encryption | WPA, WPA2, WPA3 Personal; WPA2 and WPA3 Enterprise; Enhanced Open |
| Access Control | 802.1x RADIUS; MAC filtering; guest network with captive portal |
Management
| Platform | NETGEAR Insight app and Insight cloud portal |
| Features | Band steering, bandwidth management, guest network / captive portal, Instant Mesh, multi-SSID and VLAN |
Power
| PoE Input | IEEE 802.3at / 802.3af (802.3af gives approximately 60% of full throughput performance) |
| Power Consumption | 21.2 W (PoE) |
| DC Power Adapter | Not included; 12V DC, 2.5A (NETGEAR PAV12V25-10000S) |
Physical & Environmental
| Dimensions | 241.15 x 239.6 x 51.38 mm |
| Weight | 819 g |
| Mounting | Wall/ceiling mount kit included |
| Operating Temperature | 0 to 40 °C |
| Environment | Indoor use only |
Compatibility & Software Support
Management
Managed with the NETGEAR Insight app (iOS / Android) and Insight cloud portal for setup, monitoring and remote management.
Powering the Access Point
Power the WAX628 from an IEEE 802.3at (PoE+) switch or injector for full performance; 802.3af PoE runs at approximately 60% of full throughput. Use a 2.5G-capable switch port to get the most from its Multi-Gig uplink. A 12V DC 2.5A adapter (PAV12V25-10000S) can be used instead but is not included.
Mesh Compatibility
Instant Mesh with other NETGEAR Insight Pro WiFi access points such as the WAX615, WAX630 and WAX630E.
Typical Use
Offices, classrooms, retail and hospitality spaces that need high-density WiFi 6 coverage, indoors.
Package Contents & Insight WiFi Access Point Ordering Information
In the Box
WAX628 Insight managed wireless access point, wall/ceiling mount kit, installation guide. Power adapter not included (PoE powered).
NETGEAR Insight WiFi Access Point Models
| Model | Key Spec | Part No. |
| WAX610 | WiFi 6 AX1800 dual-band, indoor | WAX610 |
| WAX610Y | WiFi 6 AX1800 dual-band, outdoor | WAX610Y |
| WAX615 | WiFi 6 AX3000 dual-band, Multi-Gig PoE | WAX615 |
| WAX620 | WiFi 6 AX3600 dual-band, Multi-Gig PoE | WAX620 |
| WAX628 (this listing) | WiFi 6 AX5400 dual-band, 2.5G PoE + 1G | WAX628-111APS |
| WAX630 | WiFi 6 AX6000 tri-band, Multi-Gig PoE | WAX630 |
| WAX630E | WiFi 6E AXE7800 tri-band, Multi-Gig PoE | WAX630E |
Other Insight WiFi access point models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | WAX628 Datasheet (PDF) |
| Installation guide | WAX628 Installation Guide (PDF) |
| User manual | WAX628 User Manual (PDF) |
| NETGEAR product page | WAX628 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting WAX628-111APS.
Frequently Asked Questions — NETGEAR WAX628
Is a power adapter included with the WAX628?
No. The WAX628 is designed to be powered by PoE. For full performance use an IEEE 802.3at (PoE+) port; an optional 12V DC 2.5A adapter (PAV12V25-10000S) is sold separately.
How fast is the WAX628?
Up to 5.4 Gbps combined: up to 4.8 Gbps on 5 GHz (4x4, 160 MHz) and up to 600 Mbps on 2.4 GHz (2x2).
What uplink does it have?
One 2.5GBASE-T PoE port for the uplink plus one additional Gigabit port.
How is it managed?
Through the NETGEAR Insight app and cloud portal, supporting up to 8 SSIDs with VLANs, guest captive portal, band steering and Instant Mesh.
Can it be installed outdoors?
No, the WAX628 is for indoor use only (0 to 40 °C). It includes a wall/ceiling mount kit.
What warranty do I get?
5 Years local warranty in Singapore, supplied by SourceIT with a GST invoice.
