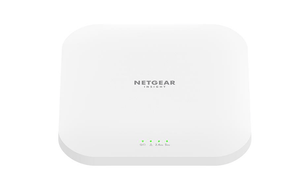

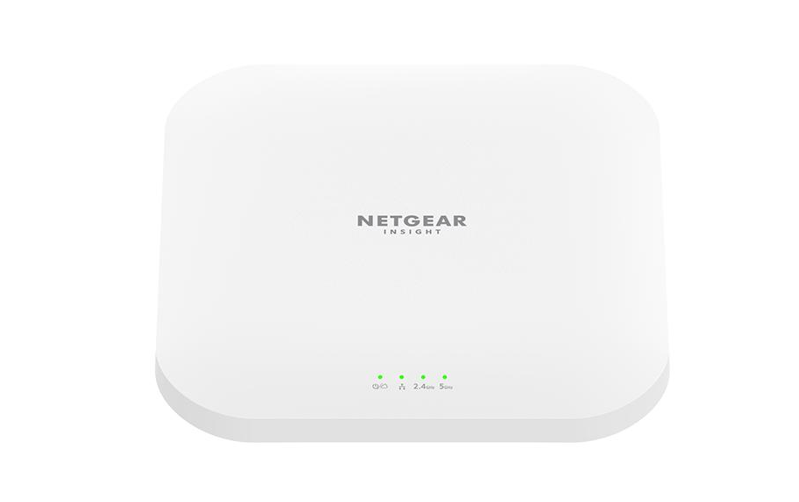

NETGEAR WAX620 Insight Managed WiFi 6 AX3600 Dual-Band 4x4 Access Point, 2.5G PoE+
Currently out of stock. Request a quote and
our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR WAX620 Insight Managed WiFi 6 AX3600 Dual-Band Multi-Gig PoE+ Access Point (WAX620-100EUS) - 5 Years Local Warranty
WiFi 6 AX3600 with 4x4 on Both Bands
The NETGEAR WAX620 is a dual-band WiFi 6 business access point with a 4x4 radio on 5 GHz and on 2.4 GHz — eight spatial streams in total — delivering up to 2.4 Gbps on 5 GHz and 1.2 Gbps on 2.4 GHz (up to 3.6 Gbps combined). OFDMA, MU-MIMO, BSS Coloring and Target Wake Time help it serve many clients efficiently.
2.5G Multi-Gig PoE+ Uplink
A single 100M/1G/2.5G RJ-45 port carries both data and power from an 802.3at PoE+ switch or injector (25.5 W), so the uplink is not limited to 1 Gbps and no local power outlet is needed at the mounting point.
NETGEAR Insight Cloud Management
Set up and manage the WAX620 remotely with the NETGEAR Insight app or Insight Cloud Portal: up to 8 SSIDs, VLANs, WPA3 security, captive-portal guest access, band steering and Instant WiFi Mesh, alongside the rest of your Insight-managed network.
Built for Small and Medium Business
Wall or suspended-ceiling mounting hardware is included, and a slim 205.7 x 205.7 x 34.3 mm housing blends into offices, classrooms, clinics and retail spaces.
NETGEAR WAX620 Datasheet — Technical Specifications
General
| Product Name | NETGEAR WAX620 Insight Managed WiFi 6 AX3600 Dual Band Multi-Gig PoE Access Point |
| Part Number | WAX620-100EUS |
| Series | NETGEAR Insight Managed WiFi 6 Access Points |
| Local Warranty (Singapore) | 5 Years, supplied by SourceIT with a GST invoice |
Wireless
| Standards | 5 GHz: IEEE 802.11a/n/ac/ax; 2.4 GHz: IEEE 802.11b/g/n/ax |
| Radio Configuration | 4x4 on 5 GHz and 4x4 on 2.4 GHz (8 streams in total) |
| Maximum Data Rate | 5 GHz: 2,400 Mbps; 2.4 GHz: 1,200 Mbps; up to 3.6 Gbps combined |
| WiFi 6 Technologies | OFDM and OFDMA, MU-MIMO, BSS Coloring, Target Wake Time (TWT) |
| Antennas | Internal, 3.1 dBi (2.4 GHz) / 4.3 dBi (5 GHz) |
| SSIDs | 8 |
| Users | Up to 256 users; 75 concurrent users recommended (NETGEAR product page) |
Interfaces & Power
| Ethernet | 1 x 100/1000/2.5GBASE-T RJ-45 with Auto MDI-X |
| PoE Input | IEEE 802.3at PoE+ (802.3af or 802.3at) |
| Power Consumption | 25.5 W |
| DC Power Input | 12 V DC, 2.5 A (power adapter not included with WAX620-100EUS; optional NETGEAR PAV12V adapter) |
| LEDs | Power/cloud connection, LAN speed, 2.4 GHz, 5 GHz |
Security
| Encryption & Authentication | WPA, WPA2 and WPA3 (Personal); WPA2/WPA3 Enterprise; 802.11i; 802.1X RADIUS with EAP-TLS, TTLS and PEAP |
| Access Control | MAC address filtering and authentication, SSID broadcast blocking, VLAN support, neighbour AP detection, guest network with captive portal |
Physical & Environmental
| Dimensions (W x D x H) | 205.7 x 205.7 x 34.3 mm (8.09 x 8.09 x 1.35 in) |
| Weight | 783 g (1.72 lb) |

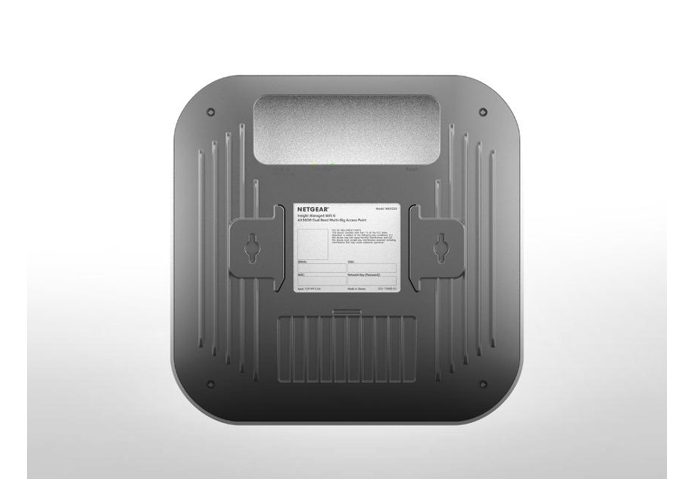

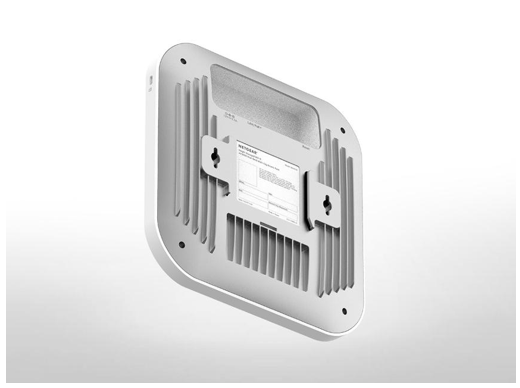

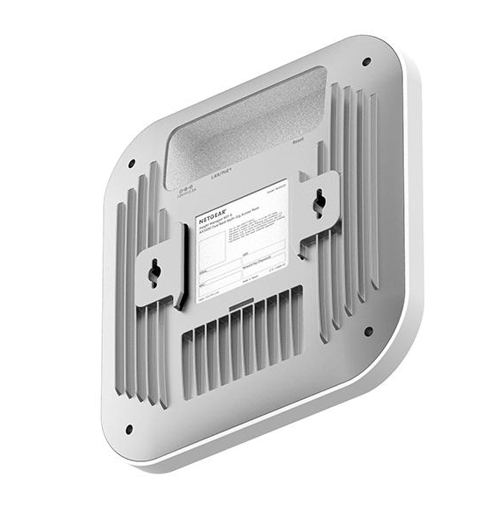

| Mounting | Wall or suspended ceiling (mount kit included) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Environment | Indoor use only |
Compatibility & Software Support
Management
NETGEAR Insight Managed: set up and manage through the NETGEAR Insight app or the Insight Cloud Portal. NETGEAR also lists a standalone (local) management option on the product page.
Wireless Modes
Instant WiFi Mesh (wireless backhaul), WDS repeater mode and bridge mode (point-to-point and point-to-multipoint), simultaneous bridge and client association, adjustable transmit power, bandwidth management, band steering and LLDP.
Mesh Compatibility
Per NETGEAR, the WAX620 meshes with other WAX620 units and with the WAX610, WAX610Y, WAC540 and WAC564.
Client Compatibility
Backward compatible with 802.11a/b/g/n/ac devices, so existing laptops, phones and IoT devices connect alongside WiFi 6 clients.
Power Sourcing
Use any IEEE 802.3at PoE+ switch port or injector; a 2.5G Multi-Gig PoE+ switch port lets the uplink run above 1 Gbps.
Package Contents & Insight WiFi 6 Access Point Ordering Information
In the Box
WAX620 access point, wall/ceiling mount kit, installation guide. Power adapter not included (PoE powered).
NETGEAR Insight Managed WiFi 6 Access Points
| Model | WiFi Class / Type | Part No. |
| WAX610 | WiFi 6 AX1800 dual-band, 2.5G PoE, indoor | WAX610-100EUS |
| WAX610Y | WiFi 6 AX1800 dual-band, 2.5G PoE, outdoor IP55 | WAX610Y-100EUS |
| WAX615 | WiFi 6 AX3000 dual-band, Multi-Gig PoE | WAX615-100APS |
| WAX620 (this listing) | WiFi 6 AX3600 dual-band 4x4, 2.5G PoE+ | WAX620-100EUS |
| WAX628 | WiFi 6 AX5400 dual-band, 2.5G PoE | WAX628-111APS |
Datasheet & Downloads
| NETGEAR datasheet | WAX620 Datasheet (PDF) |
| NETGEAR product page | WAX620 on netgear.com |
Frequently Asked Questions — NETGEAR WAX620
Is a power adapter included?
No. The WAX620-100EUS is powered by PoE+ (IEEE 802.3at) from a switch or injector. A 12 V DC, 2.5 A NETGEAR PAV12V adapter is available separately for non-PoE installs.
How fast is the WAX620?
Up to 2.4 Gbps on 5 GHz and 1.2 Gbps on 2.4 GHz (up to 3.6 Gbps combined), with a 2.5G Multi-Gig Ethernet uplink.
How is it managed?
Through NETGEAR Insight — the Insight app or Insight Cloud Portal — for remote setup, SSIDs, VLANs, security, mesh and firmware updates.
How many networks can I create?
Up to 8 SSIDs, each of which can be mapped to its own VLAN (for example staff, guest and IoT).
What warranty do I get?
5 Years local warranty in Singapore, supplied by SourceIT with a GST invoice.
