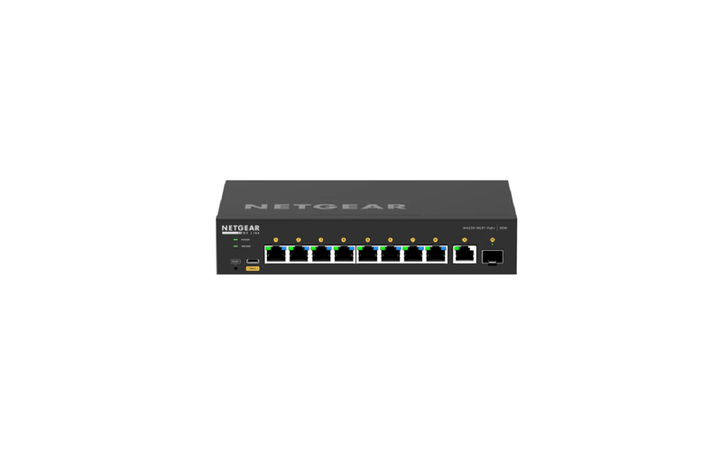

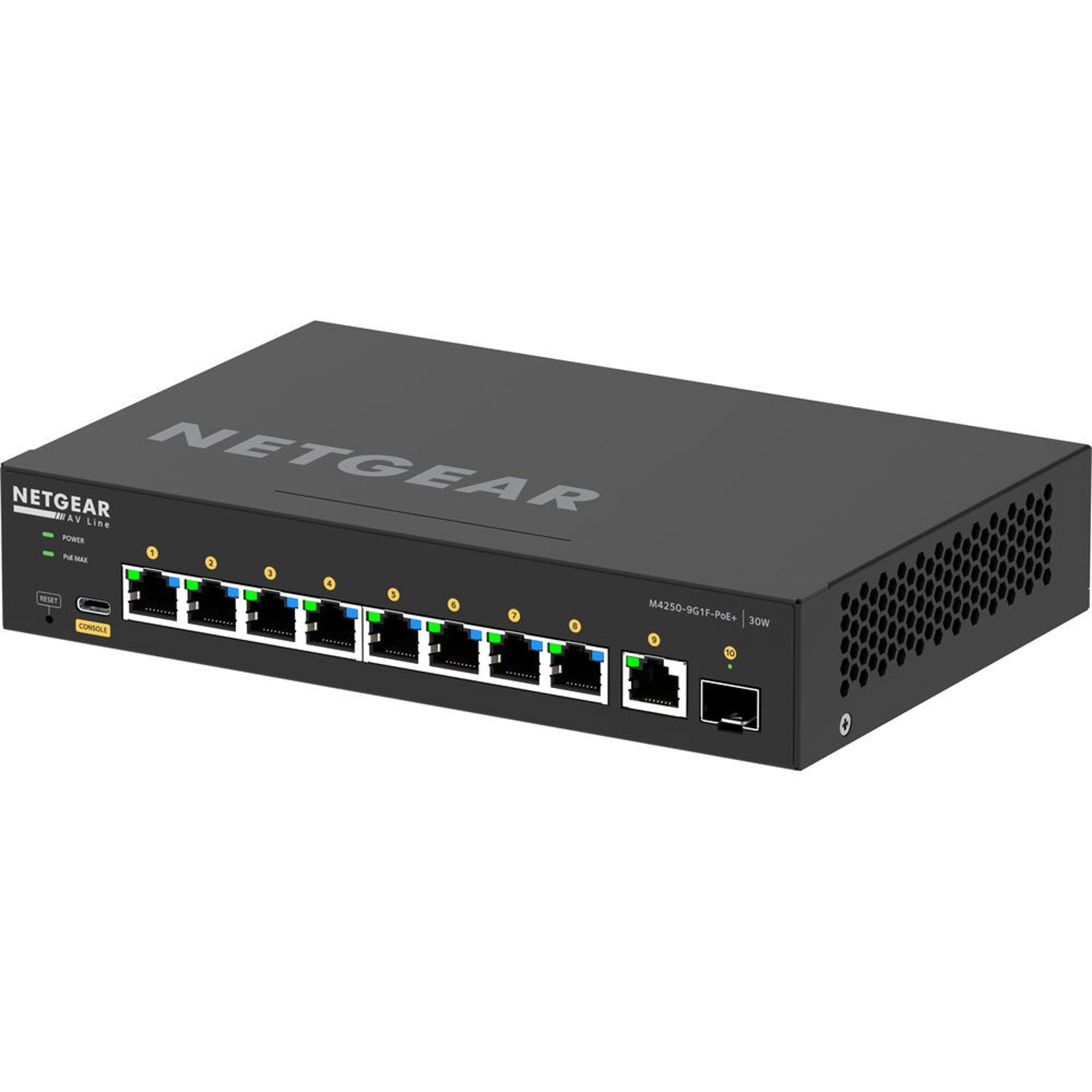

NETGEAR GSM4210PD M4250-9G1F-PoE+ 8-Port Gigabit PoE+ AV Line Managed Switch, 110W, Fanless
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4250-9G1F-PoE+ 8-Port Gigabit PoE+ AV Line Managed Switch (GSM4210PD-100UKS) - Limited Lifetime Local Warranty
Compact AV-over-IP Switch, Ready Out of the Box
The NETGEAR GSM4210PD (M4250-9G1F-PoE+) is a 10-port desktop member of the M4250 AV Line. It ships pre-configured for AV over IP, with an AV user interface and profiles for Dante, Q-SYS, AES67, AVB, NDI, NVX and SVSI, so audio and video endpoints can be brought up quickly.
8 PoE+ Ports with a 110W Budget
Eight 10/100/1000BASE-T PoE+ ports (802.3at, up to 30W per port) share a 110W PoE budget to power speakers, microphones, encoders, decoders and cameras, with one extra Gigabit copper port and one 1G SFP port for uplink.
Fanless, Mount It Where the AV Lives
The fanless design is silent in meeting rooms, classrooms and studios. At 210 x 140 x 40 mm and 0.965 kg, it sits on a desk or fixes under a table or on a wall using the supplied mounting brackets.
Need help choosing? Email sales@sourceit.com.sg with your endpoint count, PoE and uplink needs and we will size it for you.
NETGEAR GSM4210PD Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4250-9G1F-PoE+ 8-Port Gigabit PoE+ AV Line Managed Switch |
| Part Number | GSM4210PD-100UKS |
| Series | NETGEAR M4250 Series (AV Line) Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces

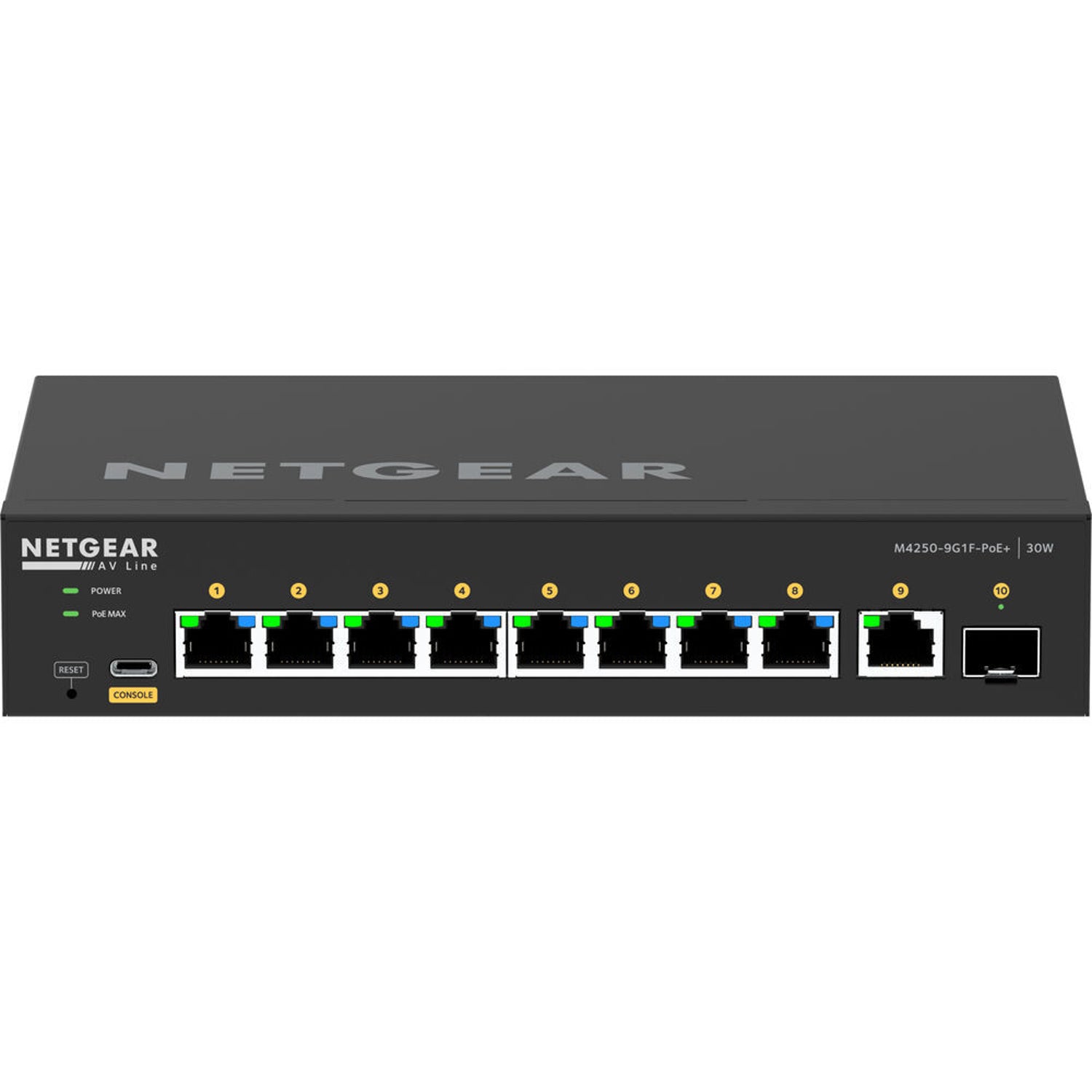

| PoE+ Ports | 8 x 10/100/1000BASE-T RJ-45 PoE+ |
| Other Copper Ports | 1 x 10/100/1000BASE-T RJ-45 |
| Fibre Ports | 1 x 1000BASE-X SFP |
| Console | USB Type-C console |
Performance
| Switching Fabric | 20 Gbps |
| Throughput | 14.80 Mpps (64-byte packets) |
| Latency | 2.133 µs 1G copper; 2.271 µs 1G fibre (64-byte packets) |
| MAC Address Table | 16K |
| ARP/NDP Entries | 4K |
| Packet Buffer | 16 Mb |
| Jumbo Frames | Up to 12K |
| CPU / Memory | Integrated ARM A9 1.25 GHz (32-bit); 2 GB RAM; 256 MB flash, dual firmware image |
PoE
| PoE Standard | IEEE 802.3at PoE+ (up to 30W per port) |
| PoE Budget | 110W shared across 8 PoE+ ports |
Power & Environmental

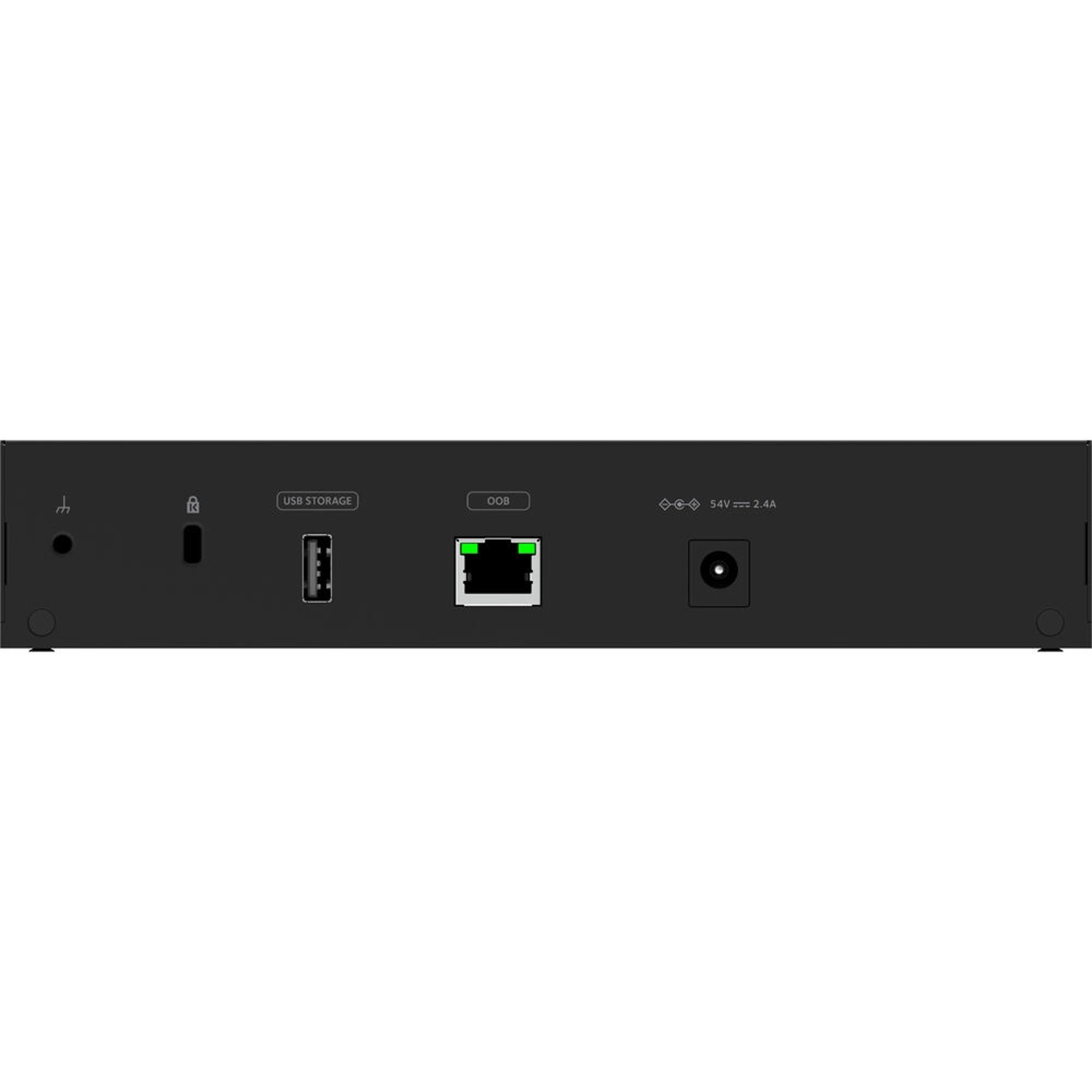

| Power Supply | 1 x external power adapter (130W), 54V 2.4A input |
| Power Consumption | 132.25W with PoE; 9.88W without PoE; 6.4W standby |
| Cooling | Fanless (37.4 °C case temperature at 25 °C ambient) |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max, non-condensing |
Physical
| Dimensions (W x D x H) | 210 x 140 x 40 mm |
| Weight | 0.965 kg (2.13 lb) |

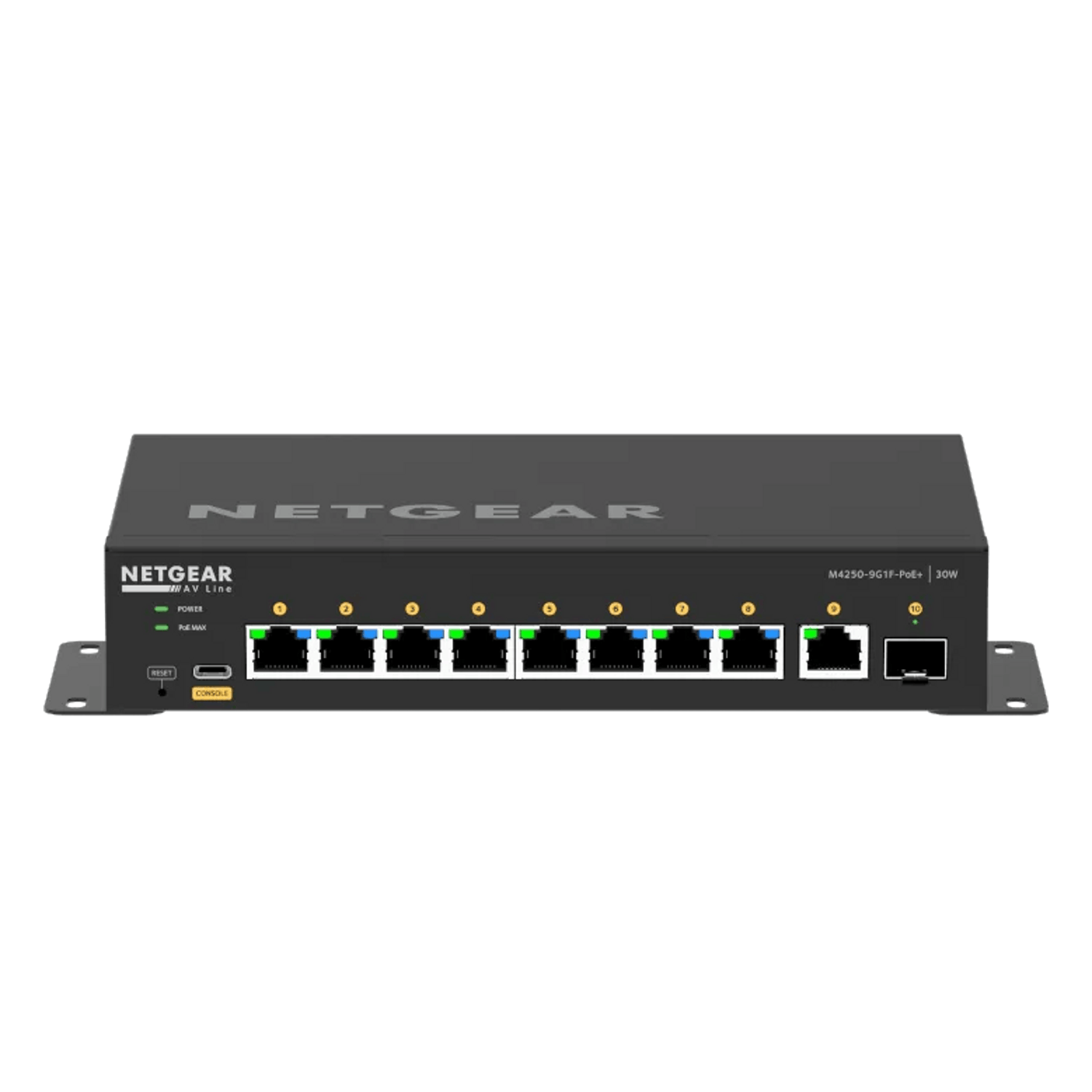

| Mounting | Desktop, under-table or wall (mounting brackets supplied) |
Compatibility & Software Support
AV User Interface
Includes NETGEAR's web-based AV user interface designed for AV installers, alongside the full out-of-band IT web GUI (HTTPS). The switch ships pre-configured for out-of-the-box AV-over-IP operation.
Pre-Configured AV Profiles
Audio: Dante, Q-SYS, AES67 and AVB. Video: NVX, SVSI, Q-SYS, NDI and Dante (as listed in the M4250 datasheet).
Management
IT web GUI (HTTPS), AV web GUI, CLI via console, Telnet and SSH, SNMP/MIBs and RSPAN.
Multicast & AV Features
NETGEAR IGMP Plus for multicast AV traffic, auto-trunk and auto-LAG, IEEE 802.1BA Audio Video Bridging (AVB — licence required, per NETGEAR's product page) and IEEE 1588 PTPv2 Transparent Clock.
Package Contents & M4250 Ordering Information
In the Box
GSM4210PD switch, external power adapter, AC power cord (varies by region), USB Type-C console cable, mounting brackets with screws, rubber feet, installation guide. SFP modules and cables are sold separately.
NETGEAR M4250 Models
| Model | Ports | Part No. |
| GSM4210PD M4250-9G1F-PoE+ (this listing) | 8 x 1G PoE+, 1 x 1G, 1 x SFP | GSM4210PD-100UKS |
| GSM4210PX M4250-8G2XF-PoE+ | 8 x 1G PoE+, 2 x SFP+ | GSM4210PX-100UKS |
| GSM4212P M4250-10G2F-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP | GSM4212P-100EUS |
| GSM4212PX M4250-10G2XF-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP+ | GSM4212PX-100EUS |
| GSM4212UX M4250-10G2XF-PoE++ | 8 x 1G PoE++, 2 x 1G, 2 x SFP+ | GSM4212UX-100EUS |
| GSM4230P M4250-26G4F-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP | GSM4230P-100EUS |
| GSM4230PX M4250-26G4XF-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP+ | GSM4230PX-100EUS |
| GSM4230UP M4250-26G4F-PoE++ | 24 x 1G PoE++, 2 x 1G, 4 x SFP | GSM4230UP-100EUS |
| GSM4248P M4250-40G8F-PoE+ | 40 x 1G PoE+, 8 x SFP | GSM4248P-100EUS |
| GSM4248PX M4250-40G8XF-PoE+ | 40 x 1G PoE+, 8 x SFP+ | GSM4248PX-100EUS |
| GSM4248UX M4250-40G8XF-PoE++ | 40 x 1G PoE++, 8 x SFP+ | GSM4248UX-100EUS |
| MSM4214X M4250-12M2XF | 12 x 2.5G, 2 x SFP+ | MSM4214X-100EUS |
| XSM4216F M4250-16XF | 16 x SFP+ | XSM4216F-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | M4250 Series Datasheet (PDF) |
| Installation guide | M4250 Installation Guide (PDF) |
| AV user manual | M4250 AV User Manual (PDF) |
| NETGEAR product page | GSM4210PD on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GSM4210PD-100UKS.
Frequently Asked Questions — NETGEAR GSM4210PD
How much PoE power does the GSM4210PD provide?
A 110W PoE budget shared across 8 PoE+ ports, with up to 30W per port (IEEE 802.3at).
Is the GSM4210PD silent?
Yes. It is fanless, so it suits meeting rooms, classrooms and other quiet spaces.
Which AV protocols are pre-configured?
NETGEAR lists profiles for Dante, Q-SYS, AES67 and AVB audio, and NVX, SVSI, Q-SYS, NDI and Dante video.
Does it support AVB?
Yes, IEEE 802.1BA AVB is supported; NETGEAR's product page notes a licence is required.
What uplink options does it have?
One 1G SFP port and one additional 10/100/1000 copper port. For 10G SFP+ uplinks see the GSM4210PX.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
