NETGEAR GSM4212PX M4250-10G2XF-PoE+ 8-Port Gigabit PoE+ AV Line Managed Switch, 2x1G + 2x10G SFP+, 240W
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4250-10G2XF-PoE+ 8-Port Gigabit PoE+ AV Line Managed Switch with 2 x 1G and 2 x 10G SFP+ (GSM4212PX-100EUS) - Limited Lifetime Local Warranty
Built for AV over IP Racks

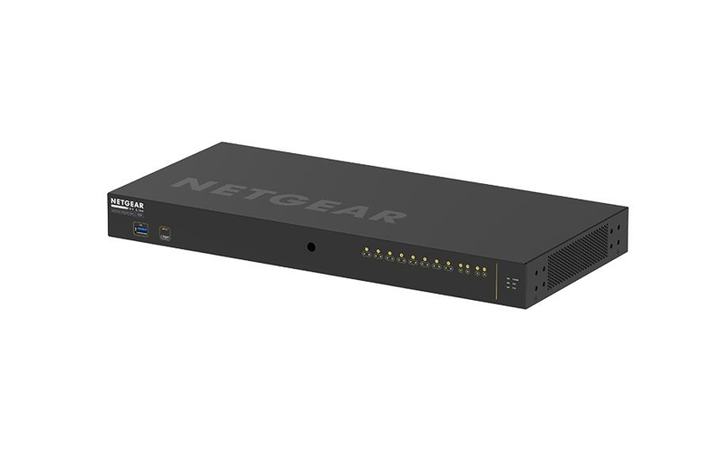

The NETGEAR M4250-10G2XF-PoE+ (GSM4212PX) is a member of NETGEAR's M4250 AV Line, engineered from the ground up for audio/video professionals and the AV over IP market. It combines 8 x 1G PoE+ ports, 2 additional 1G copper ports and 2 x 1G/10GBASE-X SFP+ fibre uplinks for 10G links to the core or between racks in a 1U chassis with a front display panel and all ports at the rear, for clean integration in AV racks — reversed mounting with ports at the front is also possible.
Pre-Configured AV Profiles
A dedicated, colour-coded AV web interface ships with built-in profiles: Dante, Q-SYS, AES67 and AVB for audio, and NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE for video. NETGEAR IGMP Plus, Auto-Trunk and Auto-LAG automate multicast, VLAN trunking and link aggregation as soon as M4250 switches are connected together.
PoE+ for Endpoints, Quiet in the Room
All 8 PoE+ ports deliver IEEE 802.3at power at up to 30 W per port from a 240 W PoE budget — enough for encoders, decoders, cameras, speakers and touch panels. Fan behaviour is selectable between fanless, quiet and cool modes, so the switch can sit in or near a meeting room without being heard.
Enterprise-Grade Switching
NETGEAR rates the GSM4212PX at 60 Gbps switching capacity and 44.64 Mpps throughput, with 16K MAC entries, a 16 Mb packet buffer, PTPv2 transparent clock and a common Layer 2 / Layer 3 switching engine with static and RIP routing and PIM multicast routing.
Need help choosing? Email sales@sourceit.com.sg with your endpoint count, PoE and uplink needs and we will size it for you.
NETGEAR GSM4212PX Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4250-10G2XF-PoE+ 8-Port Gigabit PoE+ AV Line Managed Switch with 2 x 1G and 2 x 10G SFP+ |
| Part Number | GSM4212PX-100EUS |
| Series | NETGEAR M4250 Series (AV Line) Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| PoE+ Ports | 8 x 10/100/1000BASE-T RJ-45 PoE+ |
| Additional Copper Ports | 2 x 10/100/1000BASE-T RJ-45 (non-PoE) |
| Fibre Ports | 2 x 1G/10GBASE-X SFP+ (1G or 10G) |
| Management Ports | 1 x 1G Ethernet out-of-band service port; RJ-45 RS232 console; USB-C console (rear); USB-A storage (front) |

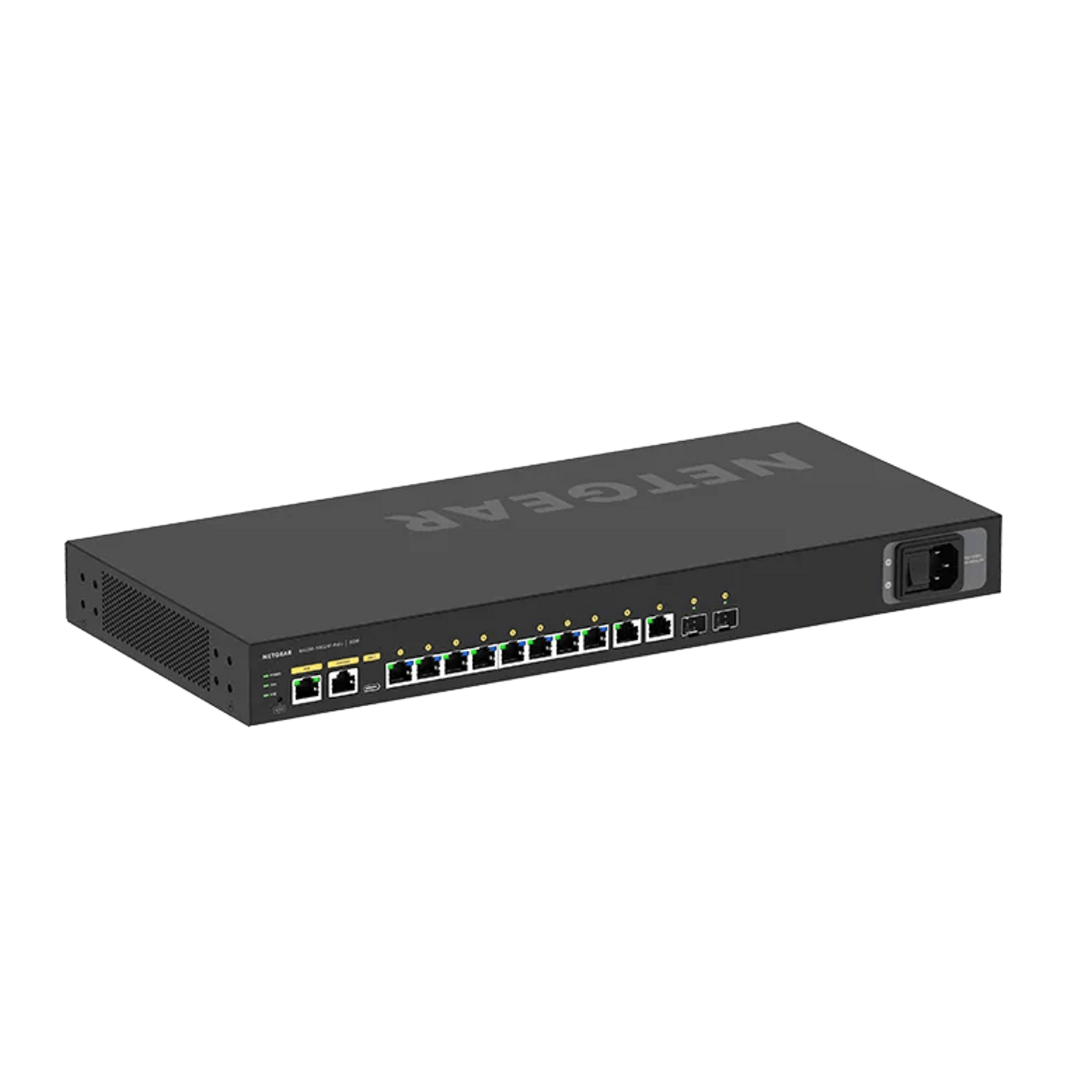

| Port Location | All ports at the rear, front display panel (reversible mounting possible) |
Performance
| Switching Capacity | 60 Gbps |
| Throughput | 44.64 Mpps (64-byte packets) |
| Latency | 2.140–2.144 µs (1G copper); 0.819–0.838 µs (10G fibre), 64–1518-byte frames |
| MAC Address Table | 16K |
| ARP/NDP Entries | 4K |
| Packet Buffer | 16 Mb |
| VLANs | 4K |
| Multicast (IGMP) Groups | 2K IPv4 / 2K IPv6 |
| Jumbo Frames | Up to 12K |
| System Memory | 2 GB RAM; 256 MB flash (dual firmware image) |
PoE
| PoE Standard | IEEE 802.3at PoE+ (up to 30 W per port); backward compatible with 802.3af |
| PoE Ports | 8 |
| Total PoE Budget | 240 W |
Power & Environmental
| Power Supply | 1 x fixed internal PSU, C14 inlet, with on/off switch |
| Power Consumption | 306.4 W max with PoE; 25 W without PoE; 12.96 W standby (no port connections) |
| Heat Dissipation | 1,046.050 BTU/hr with PoE; 85.35 BTU/hr without PoE; 44.245 BTU/hr standby |
| Cooling / Acoustics | Selectable fanless, quiet and cool modes; 27.4 dBA in quiet mode, 56 dBA in cool mode (25 °C ambient, 240 W PoE load) |
| Airflow | Side-to-side |
Physical
| Form Factor | 1U rackmount |
| Dimensions (W x D x H) | 440 x 200 x 43.2 mm |
| Weight | 2.9 kg (6.39 lb) |
| Mounting | 19-inch rack (standard brackets and longer 2-inch / 5 cm brackets for recessed mounting included), tabletop with rubber footpads; 1 x M10 threaded hole (front) and 4 x M5 threaded holes (bottom, 50 x 100 mm VESA pattern) |
Other
| NETGEAR Warranty | NETGEAR Enterprise Lifetime Warranty (limited lifetime hardware warranty) |
Compatibility & Software Support
AV User Interface & Profiles
Dedicated AV web GUI (at the switch IP address on port 8080) with colour-based AV profiles. Built-in audio profiles: Dante, Q-SYS, AES67 and AVB. Built-in video profiles: NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE. Mixed audio/video/control profiles are also supported.
AV Protocols
NETGEAR IGMP Plus for automatic multicast across an M4250 / M4300 / M4350 / M4500 Layer 2 network; Auto-Trunk and Auto-LAG between M4250 switches; IEEE 1588 PTPv2 1-step end-to-end transparent clock; AVB (IEEE 802.1BA) — electronic licence required (NETGEAR activation key AVB4212PX-10000S), up to 256 streams per switch.
Management
Industry-standard CLI, NETGEAR IT web interface, SNMP, sFlow and RSPAN, with RADIUS and TACACS+ authentication. All M4250 switches can be managed from the NETGEAR Engage Controller. Layer 3 features include static and RIP routing, PIM-SM/DM/SSM multicast routing and a DHCP server; Energy Efficient Ethernet (802.3az) is supported (disabled by default).
Package Contents & M4250 Ordering Information
In the Box
M4250-10G2XF-PoE+ (GSM4212PX) switch, power cord(s), console USB Type-C and RJ45-DB9 cables, standard rack-mounting brackets, longer brackets for recessed mounting, rubber footpads for tabletop installation, installation guide. SFP modules and cables are sold separately.
NETGEAR M4250 Models
| Model | Ports | Part No. |
| GSM4210PD M4250-9G1F-PoE+ | 8 x 1G PoE+, 1 x 1G, 1 x SFP | GSM4210PD-100UKS |
| GSM4210PX M4250-8G2XF-PoE+ | 8 x 1G PoE+, 2 x SFP+ | GSM4210PX-100UKS |
| GSM4212P M4250-10G2F-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP | GSM4212P-100EUS |
| GSM4212PX M4250-10G2XF-PoE+ (this listing) | 8 x 1G PoE+, 2 x 1G, 2 x SFP+ | GSM4212PX-100EUS |
| GSM4212UX M4250-10G2XF-PoE++ | 8 x 1G PoE++, 2 x 1G, 2 x SFP+ | GSM4212UX-100EUS |
| GSM4230P M4250-26G4F-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP | GSM4230P-100EUS |
| GSM4230PX M4250-26G4XF-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP+ | GSM4230PX-100EUS |
| GSM4230UP M4250-26G4F-PoE++ | 24 x 1G PoE++, 2 x 1G, 4 x SFP | GSM4230UP-100EUS |
| GSM4248P M4250-40G8F-PoE+ | 40 x 1G PoE+, 8 x SFP | GSM4248P-100EUS |
| GSM4248PX M4250-40G8XF-PoE+ | 40 x 1G PoE+, 8 x SFP+ | GSM4248PX-100EUS |
| GSM4248UX M4250-40G8XF-PoE++ | 40 x 1G PoE++, 8 x SFP+ | GSM4248UX-100EUS |
| MSM4214X M4250-12M2XF | 12 x 2.5G, 2 x SFP+ | MSM4214X-100EUS |
| XSM4216F M4250-16XF | 16 x 10G SFP+ | XSM4216F-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | M4250 AV Line Managed Switches Datasheet (PDF) |
| Installation guide | M4250 Installation Guide (PDF) |
| AV user manual | M4250 AV User Manual (PDF) |
| NETGEAR product page | GSM4212PX on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GSM4212PX-100EUS.
Frequently Asked Questions — NETGEAR GSM4212PX
How much PoE power does the GSM4212PX provide?
8 PoE+ ports at up to 30 W each (IEEE 802.3at), sharing a total PoE budget of 240 W.
Which AV systems is the GSM4212PX pre-configured for?
The AV web interface includes built-in profiles for Dante, Q-SYS, AES67 and AVB audio, and NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE video.
Is it quiet enough for a meeting room?
Yes. Fan modes are selectable between fanless, quiet and cool; NETGEAR's datasheet lists 27.4 dBA in quiet mode at 25 °C.
Does it support AVB?
Yes, AVB is supported (up to 256 streams per switch), but NETGEAR states an electronic AVB licence is required, sold separately. The activation key part number is AVB4212PX-10000S.
What speed are the uplink ports?
The 2 SFP+ ports accept 1G or 10G modules (sold separately), for 10G links to the core or between AV racks.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
