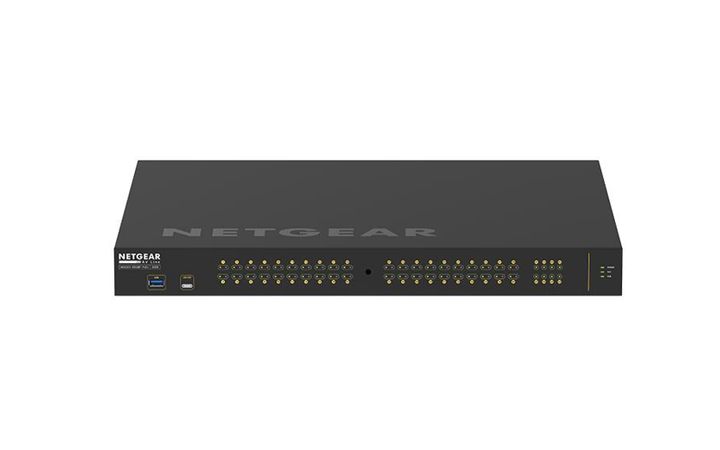

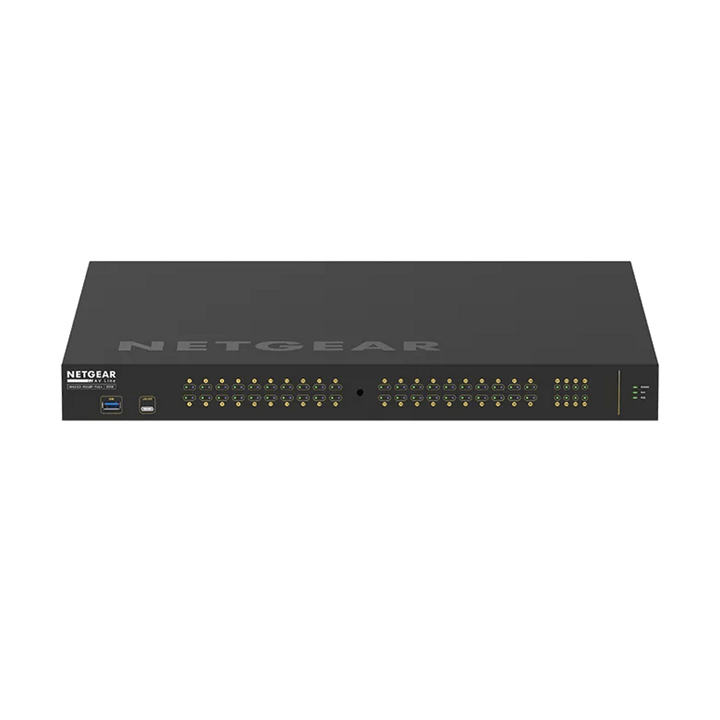

NETGEAR GSM4248P M4250-40G8F-PoE+ 40-Port Gigabit PoE+ AV Line Managed Switch, 8x SFP, 480W
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4250-40G8F-PoE+ 40-Port Gigabit PoE+ AV Line Managed Switch with 8 x SFP (GSM4248P-100EUS) - Limited Lifetime Local Warranty
40 PoE+ Ports, 480W, 8 SFP Uplinks
The NETGEAR GSM4248P (M4250-40G8F-PoE+) is a 48-port AV Line managed switch: 40 x 1G PoE+ ports and 8 x 1G SFP fibre ports. The 40 PoE+ ports deliver up to 30W each from a 480W PoE budget — ideal for large rooms and venues with many cameras, encoders/decoders, speakers and touch panels.
Pre-Configured for AV over IP
Out of the box the M4250 is set up for AV over IP. The AV user interface applies ready-made profiles for Dante, AES67, AVB, NDI, Q-SYS and more, while NETGEAR IGMP Plus handles multicast automatically with little-to-no setup, and auto-trunk and auto-LAG link switches together.
Fanless or Quiet Operation
The GSM4248P supports a fanless mode (0 dBA, quoted by NETGEAR at a 30W PoE load) and a quiet mode rated from 30 dBA at PoE loads up to 150W to 47 dBA at 340–480W (at 25°C) — suited to classrooms, meeting rooms, houses of worship and live venues.
Designed for Racks, Walls and Desks
The 1U chassis keeps the display panel on the front and all ports at the back. It ships with standard rack brackets, longer brackets for recessed (2-inch offset) mounting and rubber feet for tabletop use.
Need help choosing? Email sales@sourceit.com.sg with your endpoint count, PoE and fibre uplink needs and we will size it for you.
NETGEAR GSM4248P Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4250-40G8F-PoE+ AV Line Managed Switch |
| Part Number | GSM4248P-100EUS |
| Series | NETGEAR M4250 Series (AV Line) Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| PoE+ Ports | 40 x 10/100/1000BASE-T RJ-45 PoE+ |
| Fibre Ports | 8 x 1000BASE-X SFP |
| Management Ports | Out-of-band RJ45 Ethernet, USB-C console, RJ45 RS232 console, USB-A storage |
Performance
| Switching Capacity | 96 Gbps |
| Throughput | 71.42 Mpps (64-byte packets) |
| Latency | 2.027 µs (1G copper, 64-byte) |
| MAC Address Table | 16K |
| Packet Buffer | 32 Mb |
| Jumbo Frames | Up to 12K |
| VLANs | 4K |
| CPU / Memory | Quad-core Cortex-A57 ARMv8 1.8 GHz; 2 GB RAM, 256 MB flash (dual firmware) |
PoE
| PoE Standard | IEEE 802.3at PoE+ (up to 30W per port) |
| PoE Ports | 40 |
| PoE Budget | 480W |
Power & Environmental
| Power Supply | 1 x fixed internal PSU (C14 inlet) with on/off switch |
| Power Consumption | 624.8W / 2,133.07 BTU/hr with PoE; 59.5W / 203.13 BTU/hr without PoE; 46.4W / 158.41 BTU/hr standby |
| Cooling | Side-to-side airflow; selectable fanless, quiet and cool fan modes |
| Acoustic Noise (25°C) | Fanless: 0 dBA (30W PoE load); Quiet: 30 dBA (0–150W PoE), 36 dBA (150–200W), 40 dBA (200–340W), 47 dBA (340–480W); Cool: 68 dBA |
Physical
| Form Factor | 1U rack-mount |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Weight | 5.85 kg (12.90 lb) |
| Mounting | 19-inch rack (standard or recessed brackets), tabletop |
Compatibility & Software Support
AV User Interface
A dedicated AV user interface (AV UI), reachable over a network port or the out-of-band port, lets AV integrators apply ready-made profiles per port. The AV user manual lists pre-configured templates including Audio Dante, Audio AES67, Audio Video AVB, Audio Video AVB MILAN, Video NDI4, Video NDI5 / NDI6 with Dante, Q-SYS or AES67 audio, and Video with Dante, AES67 or Q-SYS audio. The datasheet names Dante, Q-SYS, AES67 and AVB audio profiles, and NVX, SVSI, Q-SYS, NDI and Dante video profiles.
Management Options
AV UI, the main web UI, CLI and SNMP, plus cloud management via the NETGEAR Insight Cloud Portal or Insight app (per the AV user manual). Out-of-band Ethernet management port, USB-C and RJ45 console ports, and a USB-A port for storage.
Multicast, AVB & Timing
NETGEAR IGMP Plus provides automatic multicast across an M4250/M4300/M4350/M4500 Layer 2 network. IEEE 802.1BA-2011 Audio Video Bridging (802.1AS, 802.1Qav, 802.1Qat, MSRP) is supported, as is a PTPv2 end-to-end transparent clock. AVB licensing: NETGEAR's product page lists an electronic AVB licence (AVB4248P-10000S); the AV user manual states that from firmware 13.0.4.17 a licence is no longer required for AVB.
Layer 2 / Layer 3 Features
4K VLANs, static routing, RIP, PIM-SM/DM, DHCP server, 802.1X, MAC authentication bypass, DHCP snooping, dynamic ARP inspection, L2/L3/L4 ACLs, private VLANs and 8 QoS priority queues.
Package Contents & M4250 Ordering Information
In the Box
M4250 switch, power cord(s), USB Type-C and RJ45-DB9 console cables, standard rack-mount brackets, longer brackets for recessed mounting, rubber footpads for tabletop installation, installation guide.
NETGEAR M4250 Models
| Model | Ports | Part No. |
| GSM4210PD M4250-9G1F-PoE+ | 8 x 1G PoE+, 1 x 1G, 1 x SFP | GSM4210PD-100UKS |
| GSM4210PX M4250-8G2XF-PoE+ | 8 x 1G PoE+, 2 x SFP+ | GSM4210PX-100UKS |
| GSM4212P M4250-10G2F-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP | GSM4212P-100EUS |
| GSM4212PX M4250-10G2XF-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP+ | GSM4212PX-100EUS |
| GSM4212UX M4250-10G2XF-PoE++ | 8 x 1G PoE++, 2 x 1G, 2 x SFP+ | GSM4212UX-100EUS |
| GSM4230P M4250-26G4F-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP | GSM4230P-100EUS |
| GSM4230PX M4250-26G4XF-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP+ | GSM4230PX-100EUS |
| GSM4230UP M4250-26G4F-PoE++ | 24 x 1G PoE++, 2 x 1G, 4 x SFP | GSM4230UP-100EUS |
| GSM4248P M4250-40G8F-PoE+ (this listing) | 40 x 1G PoE+, 8 x SFP | GSM4248P-100EUS |
| GSM4248PX M4250-40G8XF-PoE+ | 40 x 1G PoE+, 8 x SFP+ | GSM4248PX-100EUS |
| GSM4248UX M4250-40G8XF-PoE++ | 40 x 1G PoE++, 8 x SFP+ | GSM4248UX-100EUS |
| MSM4214X M4250-12M2XF | 12 x 2.5G, 2 x SFP+ | MSM4214X-100EUS |
| XSM4216F M4250-16XF | 16 x SFP+ | XSM4216F-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | M4250 Series Datasheet (PDF) |
| Installation guide | M4250 Series Installation Guide (PDF) |
| AV user manual | M4250 Series AV User Manual (PDF) |
| NETGEAR product page | GSM4248P on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GSM4248P-100EUS.
Frequently Asked Questions — NETGEAR GSM4248P
How much PoE does the GSM4248P provide?
40 PoE+ ports at up to 30W each, with a total PoE budget of 480W.
What uplinks does it have?
8 x SFP ports for 1G fibre. If you need 10G uplinks, see the GSM4248PX (8 x SFP+).
Can it run silently?
Yes. NETGEAR lists a fanless mode (0 dBA, quoted at a 30W PoE load) as well as quiet and cool fan modes.
Which AV protocols are pre-configured?
The AV UI includes profiles for Dante, AES67, AVB (including MILAN), NDI and Q-SYS, among others, with IGMP Plus for automatic multicast.
Does AVB need a licence?
NETGEAR's product page lists an electronic AVB licence (AVB4248P-10000S); the AV user manual states that from firmware 13.0.4.17 a licence is no longer required.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
