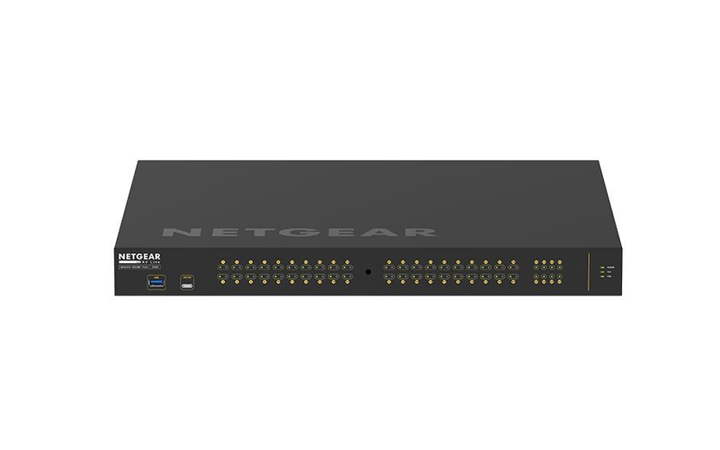

NETGEAR GSM4248PX M4250-40G8XF-PoE+ 40-Port Gigabit PoE+ AV Line Managed Switch, 8x SFP+ 10G, 960W
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4250-40G8XF-PoE+ 40-Port Gigabit PoE+ AV Line Managed Switch with 8 x SFP+ (GSM4248PX-100EUS) - Limited Lifetime Local Warranty
40 PoE+ Ports, 960W, 10G Uplinks
The NETGEAR GSM4248PX (M4250-40G8XF-PoE+) is a 48-port AV Line managed switch: 40 x 1G PoE+ ports and 8 x 1G/10G SFP+ ports. With a 960W PoE budget, all 40 ports can deliver up to 30W each at the same time — enough for fully loaded PTZ cameras, encoders/decoders, speakers and touch panels.
Pre-Configured for AV over IP
Out of the box the M4250 is set up for AV over IP. The AV user interface applies ready-made profiles for Dante, AES67, AVB, NDI, Q-SYS and more, while NETGEAR IGMP Plus handles multicast automatically with little-to-no setup, and auto-trunk and auto-LAG link switches together.
Quiet Mode for AV Spaces
NETGEAR rates the GSM4248PX at 29 dBA in quiet mode at PoE loads up to 400W, rising in steps to 59 dBA at 880–960W (at 25°C). Fanless mode is not supported on this model.
240 Gbps in a 1U Chassis
A 240 Gbps switching fabric and 178.56 Mpps throughput handle 40 gigabit ports plus 8 x 10G uplinks at wire speed. The 1U chassis keeps the display panel on the front and all ports at the back, and ships with standard and recessed rack brackets plus rubber feet.
Need help choosing? Email sales@sourceit.com.sg with your endpoint count, PoE draw and 10G uplink needs and we will size it for you.
NETGEAR GSM4248PX Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4250-40G8XF-PoE+ AV Line Managed Switch |
| Part Number | GSM4248PX-100EUS |
| Series | NETGEAR M4250 Series (AV Line) Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| PoE+ Ports | 40 x 10/100/1000BASE-T RJ-45 PoE+ |
| Fibre Ports | 8 x 1000/10GBASE-X SFP+ |
| Management Ports | Out-of-band RJ45 Ethernet, USB-C console, RJ45 RS232 console, USB-A storage |
Performance
| Switching Capacity | 240 Gbps |
| Throughput | 178.56 Mpps (64-byte packets) |
| Latency | 2.220 µs (1G copper, 64-byte); 0.709 µs (10G fibre, 64-byte) |
| MAC Address Table | 16K |
| Packet Buffer | 32 Mb |
| Jumbo Frames | Up to 12K |
| VLANs | 4K |
| CPU / Memory | Quad-core Cortex-A57 ARMv8 1.8 GHz; 2 GB RAM, 256 MB flash (dual firmware) |
PoE
| PoE Standard | IEEE 802.3at PoE+ (up to 30W per port) |
| PoE Ports | 40 |
| PoE Budget | 960W |
Power & Environmental
| Power Supply | 1 x fixed internal PSU (C14 inlet) with on/off switch |
| Power Consumption | 1,197W / 4,086.56 BTU/hr with PoE; 89.2W / 304.53 BTU/hr without PoE; 74.5W / 254.34 BTU/hr standby |
| Cooling | Side-to-side airflow; quiet and cool fan modes (fanless mode not supported) |
| Acoustic Noise (25°C) | Quiet: 29 dBA (0–400W PoE), 35 dBA (400–480W), 41 dBA (480–560W), 48 dBA (560–640W), 51 dBA (640–720W), 54 dBA (720–800W), 57 dBA (800–880W), 59 dBA (880–960W); Cool: 69 dBA |
Physical
| Form Factor | 1U rack-mount |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Weight | 6.31 kg (13.91 lb) |
| Mounting | 19-inch rack (standard or recessed brackets), tabletop |
Compatibility & Software Support
AV User Interface
A dedicated AV user interface (AV UI), reachable over a network port or the out-of-band port, lets AV integrators apply ready-made profiles per port. The AV user manual lists pre-configured templates including Audio Dante, Audio AES67, Audio Video AVB, Audio Video AVB MILAN, Video NDI4, Video NDI5 / NDI6 with Dante, Q-SYS or AES67 audio, and Video with Dante, AES67 or Q-SYS audio. The datasheet names Dante, Q-SYS, AES67 and AVB audio profiles, and NVX, SVSI, Q-SYS, NDI and Dante video profiles.
Management Options
AV UI, the main web UI, CLI and SNMP, plus cloud management via the NETGEAR Insight Cloud Portal or Insight app (per the AV user manual). Out-of-band Ethernet management port, USB-C and RJ45 console ports, and a USB-A port for storage.
Multicast, AVB & Timing
NETGEAR IGMP Plus provides automatic multicast across an M4250/M4300/M4350/M4500 Layer 2 network. IEEE 802.1BA-2011 Audio Video Bridging (802.1AS, 802.1Qav, 802.1Qat, MSRP) is supported, as is a PTPv2 end-to-end transparent clock. AVB licensing: NETGEAR's product page lists an electronic AVB licence (AVB4248PX-10000S); the AV user manual states that from firmware 13.0.4.17 a licence is no longer required for AVB.
Layer 2 / Layer 3 Features
4K VLANs, static routing, RIP, PIM-SM/DM, DHCP server, 802.1X, MAC authentication bypass, DHCP snooping, dynamic ARP inspection, L2/L3/L4 ACLs, private VLANs and 8 QoS priority queues.
Package Contents & M4250 Ordering Information
In the Box
M4250 switch, power cord(s), USB Type-C and RJ45-DB9 console cables, standard rack-mount brackets, longer brackets for recessed mounting, rubber footpads for tabletop installation, installation guide.
NETGEAR M4250 Models
| Model | Ports | Part No. |
| GSM4210PD M4250-9G1F-PoE+ | 8 x 1G PoE+, 1 x 1G, 1 x SFP | GSM4210PD-100UKS |
| GSM4210PX M4250-8G2XF-PoE+ | 8 x 1G PoE+, 2 x SFP+ | GSM4210PX-100UKS |
| GSM4212P M4250-10G2F-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP | GSM4212P-100EUS |
| GSM4212PX M4250-10G2XF-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP+ | GSM4212PX-100EUS |
| GSM4212UX M4250-10G2XF-PoE++ | 8 x 1G PoE++, 2 x 1G, 2 x SFP+ | GSM4212UX-100EUS |
| GSM4230P M4250-26G4F-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP | GSM4230P-100EUS |
| GSM4230PX M4250-26G4XF-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP+ | GSM4230PX-100EUS |
| GSM4230UP M4250-26G4F-PoE++ | 24 x 1G PoE++, 2 x 1G, 4 x SFP | GSM4230UP-100EUS |
| GSM4248P M4250-40G8F-PoE+ | 40 x 1G PoE+, 8 x SFP | GSM4248P-100EUS |
| GSM4248PX M4250-40G8XF-PoE+ (this listing) | 40 x 1G PoE+, 8 x SFP+ | GSM4248PX-100EUS |
| GSM4248UX M4250-40G8XF-PoE++ | 40 x 1G PoE++, 8 x SFP+ | GSM4248UX-100EUS |
| MSM4214X M4250-12M2XF | 12 x 2.5G, 2 x SFP+ | MSM4214X-100EUS |
| XSM4216F M4250-16XF | 16 x SFP+ | XSM4216F-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | M4250 Series Datasheet (PDF) |
| Installation guide | M4250 Series Installation Guide (PDF) |
| AV user manual | M4250 Series AV User Manual (PDF) |
| NETGEAR product page | GSM4248PX on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GSM4248PX-100EUS.
Frequently Asked Questions — NETGEAR GSM4248PX
How much PoE does the GSM4248PX provide?
40 PoE+ ports at up to 30W each, with a total PoE budget of 960W — enough for all 40 ports at 30W simultaneously.
What uplinks does it have?
8 x SFP+ ports supporting 1G or 10G.
Can it run fanless?
No. NETGEAR lists fanless mode as not supported on the GSM4248PX; quiet mode starts at 29 dBA for PoE loads up to 400W.
Which AV protocols are pre-configured?
The AV UI includes profiles for Dante, AES67, AVB (including MILAN), NDI and Q-SYS, among others, with IGMP Plus for automatic multicast.
Does AVB need a licence?
NETGEAR's product page lists an electronic AVB licence (AVB4248PX-10000S); the AV user manual states that from firmware 13.0.4.17 a licence is no longer required.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
