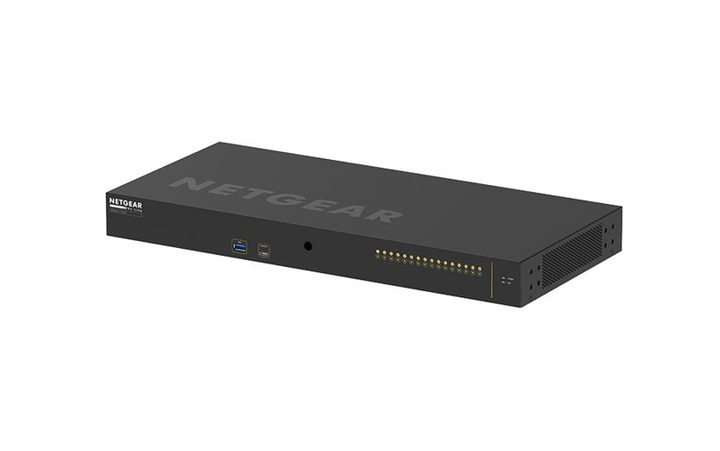

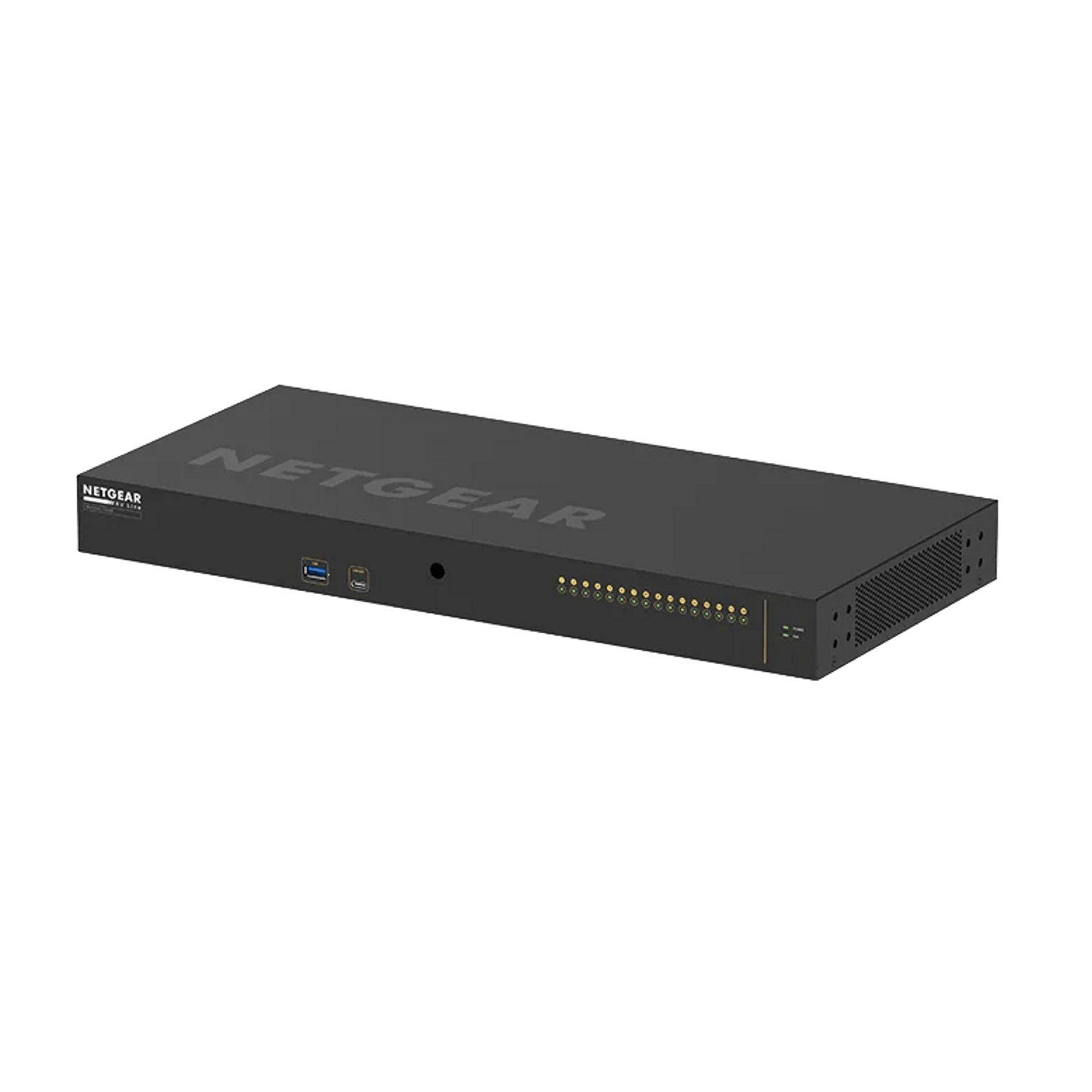

NETGEAR XSM4216F M4250-16XF 16-Port 10G SFP+ Fibre AV Line Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4250-16XF 16-Port 10G SFP+ Fibre AV Line Managed Switch (XSM4216F-100EUS) - Limited Lifetime Local Warranty
16 x 10G SFP+ Fibre Ports
The NETGEAR XSM4216F (M4250-16XF) is a 16-port all-fibre AV Line managed switch with 16 x 10GBASE-X SFP+ ports, the first 12 of which also accept 1G (1000BASE-X) SFP modules. With 320 Gbps of switching capacity, it is built to aggregate M4250 edge switches over 10G fibre or to connect 10G AV endpoints and servers directly.
Pre-Configured for AV over IP
Out of the box the M4250 is set up for AV over IP. The AV user interface applies ready-made profiles for Dante, AES67, AVB, NDI, Q-SYS and more, while NETGEAR IGMP Plus handles multicast automatically with little-to-no setup, and auto-trunk and auto-LAG link switches together.
Fanless or Quiet Operation
NETGEAR rates the XSM4216F at 0 dBA in fanless mode and 27.44 dBA in quiet mode (at 25°C), with a cool mode for hotter racks — suited to control rooms, classrooms, houses of worship and live venues.
Compact 1U, 200 mm Deep

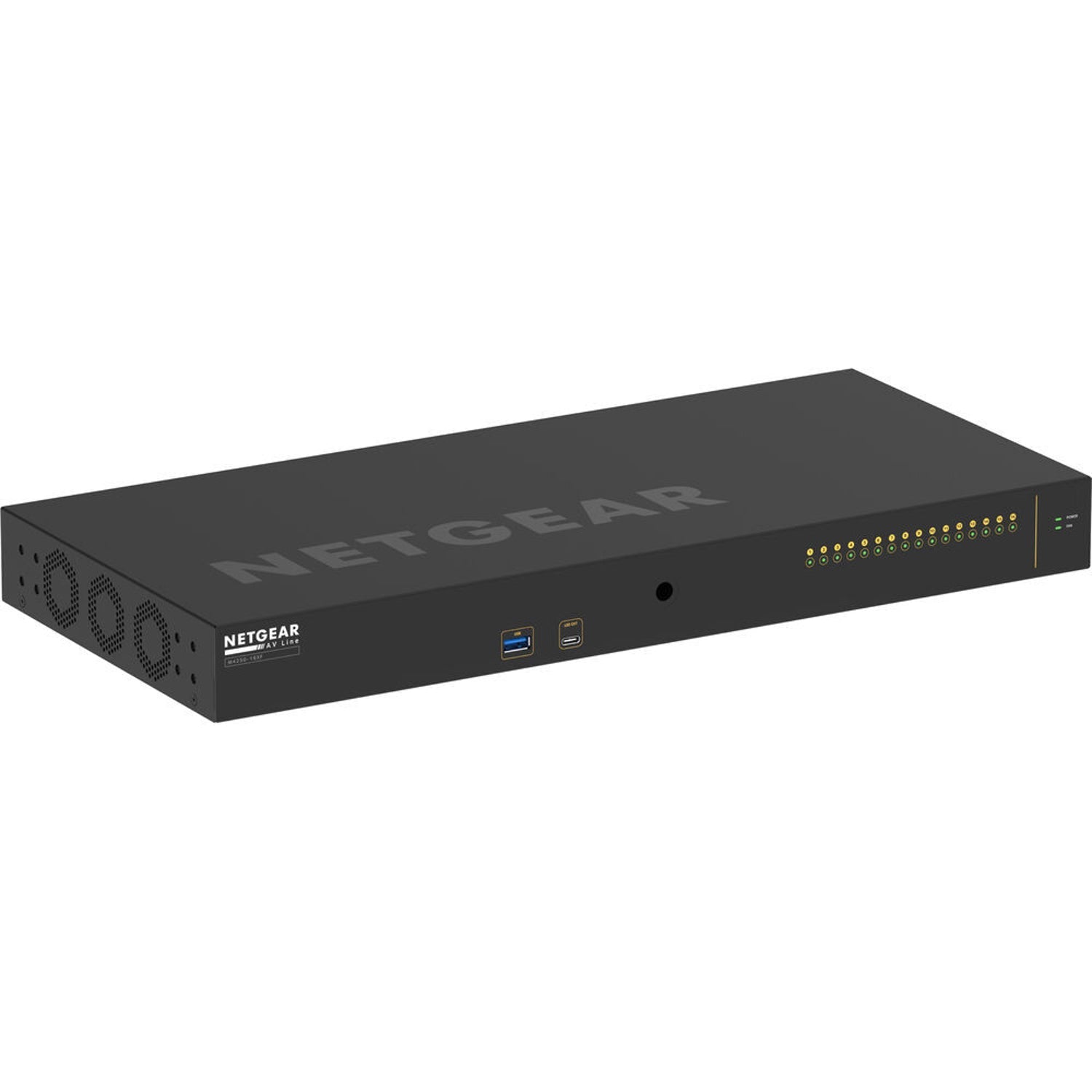

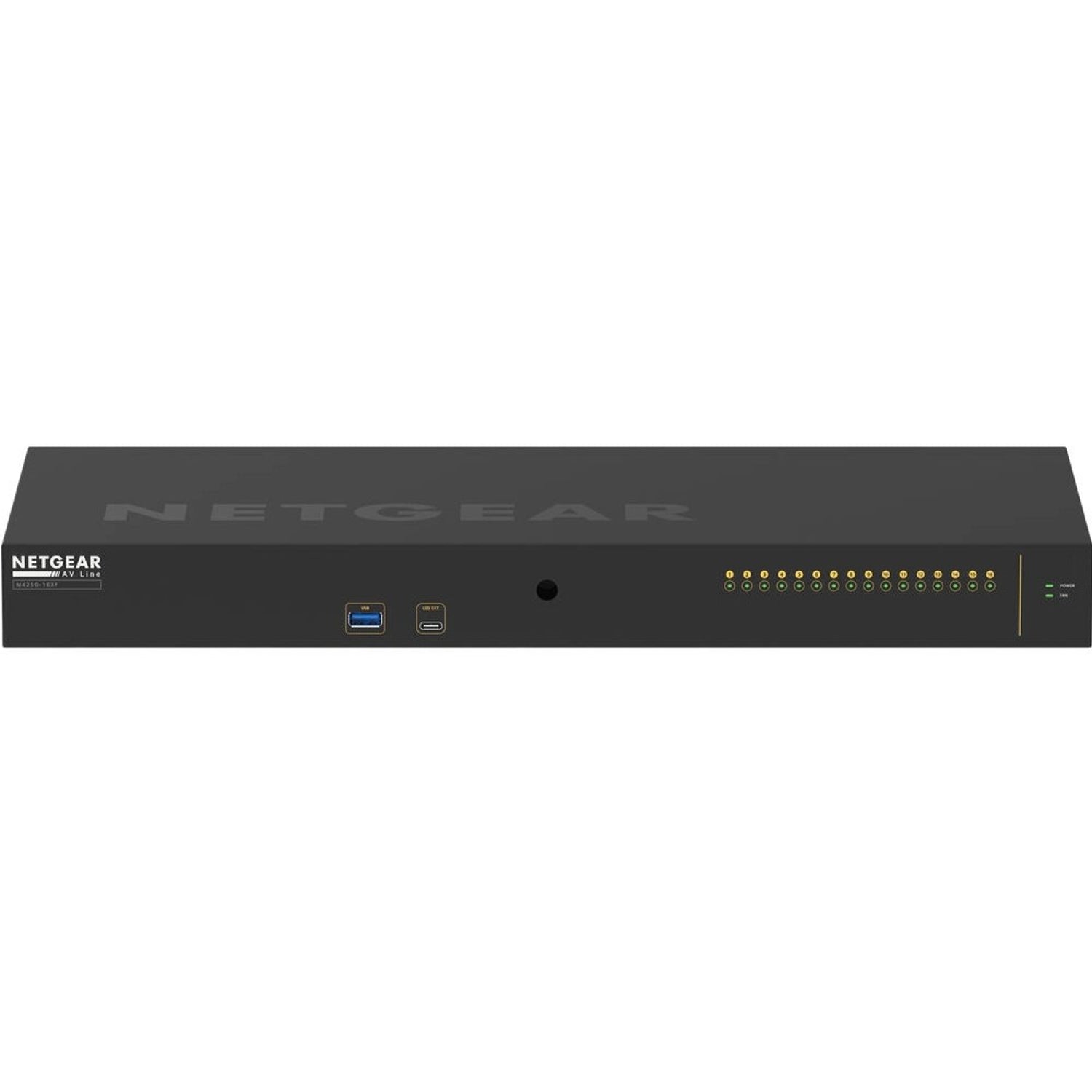

The 1U chassis is 200 mm deep, keeps the status display on the front and all ports at the back. It ships with standard rack brackets, longer brackets for recessed (2-inch / 5 cm) mounting and rubber feet for tabletop use.
Need help choosing? Email sales@sourceit.com.sg with the number of edge switches and 10G links you need to aggregate and we will size it for you.
NETGEAR XSM4216F Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4250-16XF AV Line Managed Switch |
| Part Number | XSM4216F-100EUS |
| Series | NETGEAR M4250 Series (AV Line) Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Fibre Ports | 16 x 10GBASE-X SFP+ (ports 1–12 also support 1000BASE-X SFP) |
| PoE | None |
| Management Ports | Out-of-band 1G Ethernet (rear), USB-C console, RJ45 RS232 console, USB-A storage (front) |
Performance
| Switching Capacity | 320 Gbps |
| Throughput | 238.08 Mpps (64-byte packets) |
| Latency | 0.811 µs (10G fibre, 64-byte) |
| MAC Address Table | 16K |
| Packet Buffer | 16 Mb |
| Jumbo Frames | Up to 12K |
| VLANs | 4K |
| IGMP Groups | 2K IPv4, 2K IPv6 |
| CPU / Memory | ARM A9 1.25 GHz (32-bit); 2 GB RAM, 256 MB flash (dual firmware) |
Power & Environmental
| Power Supply | 1 x fixed internal PSU (C14 inlet) with on/off switch |
| Power Consumption | 47.84W / 163.33 BTU/hr full load; 19.269W / 65.78 BTU/hr standby |
| Cooling | Selectable fanless, quiet and cool fan modes |
| Acoustic Noise (25°C) | Fanless: 0 dBA; Quiet: 27.44 dBA; Cool: 57 dBA |
Physical
| Form Factor | 1U rack-mount |
| Dimensions (W x H x D) | 440 x 43.2 x 200 mm |
| Mounting | 19-inch rack (standard or recessed brackets), tabletop |
Compatibility & Software Support
AV User Interface
A dedicated AV user interface (AV UI), reachable over a network port or the out-of-band port, lets AV integrators apply ready-made profiles per port. The AV user manual lists pre-configured templates including Audio Dante, Audio AES67, Audio Video AVB, Audio Video AVB MILAN, Video NDI4, Video NDI5 / NDI6 with Dante, Q-SYS or AES67 audio, and Video with Dante, AES67 or Q-SYS audio. The datasheet names Dante, Q-SYS, AES67 and AVB audio profiles, and NVX, SVSI, Q-SYS, NDI and Dante video profiles.
Management Options
AV UI, the main web UI, CLI and SNMP, plus cloud management via the NETGEAR Insight Cloud Portal or Insight app (per the AV user manual). Out-of-band 1G Ethernet management port, USB-C and RJ45 console ports, and a USB-A port for storage.
Multicast, AVB & Timing
NETGEAR IGMP Plus provides automatic multicast across an M4250/M4300/M4350/M4500 Layer 2 network. IEEE 802.1BA-2011 Audio Video Bridging (802.1AS, 802.1Qav, 802.1Qat, MSRP) is supported, as is a PTPv2 end-to-end transparent clock. AVB licensing: NETGEAR's product page lists an electronic AVB licence (AVB4216F-10000S); the AV user manual states that from firmware 13.0.4.17 a licence is no longer required for AVB.
Layer 2 / Layer 3 Features
4K VLANs, static routing, RIP, PIM-SM/DM, DHCP server, 802.1X, MAC authentication bypass, DHCP snooping, dynamic ARP inspection, L2/L3/L4 ACLs, private VLANs and 8 QoS priority queues.
Package Contents & M4250 Ordering Information
In the Box
M4250-16XF (XSM4216F) switch, power cord, USB Type-C and RJ45-DB9 console cables, standard rack-mount brackets, longer brackets for recessed mounting, rubber footpads for tabletop installation, installation guide.
NETGEAR M4250 Models
| Model | Ports | Part No. |
| GSM4210PD M4250-9G1F-PoE+ | 8 x 1G PoE+, 1 x 1G, 1 x SFP | GSM4210PD-100UKS |
| GSM4210PX M4250-8G2XF-PoE+ | 8 x 1G PoE+, 2 x SFP+ | GSM4210PX-100UKS |
| GSM4212P M4250-10G2F-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP | GSM4212P-100EUS |
| GSM4212PX M4250-10G2XF-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP+ | GSM4212PX-100EUS |
| GSM4212UX M4250-10G2XF-PoE++ | 8 x 1G PoE++, 2 x 1G, 2 x SFP+ | GSM4212UX-100EUS |
| GSM4230P M4250-26G4F-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP | GSM4230P-100EUS |
| GSM4230PX M4250-26G4XF-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP+ | GSM4230PX-100EUS |
| GSM4230UP M4250-26G4F-PoE++ | 24 x 1G PoE++, 2 x 1G, 4 x SFP | GSM4230UP-100EUS |
| GSM4248P M4250-40G8F-PoE+ | 40 x 1G PoE+, 8 x SFP | GSM4248P-100EUS |
| GSM4248PX M4250-40G8XF-PoE+ | 40 x 1G PoE+, 8 x SFP+ | GSM4248PX-100EUS |
| GSM4248UX M4250-40G8XF-PoE++ | 40 x 1G PoE++, 8 x SFP+ | GSM4248UX-100EUS |
| MSM4214X M4250-12M2XF | 12 x 2.5G, 2 x SFP+ | MSM4214X-100EUS |
| XSM4216F M4250-16XF (this listing) | 16 x SFP+ | XSM4216F-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | M4250 Series Datasheet (PDF) |
| Installation guide | M4250 Series Installation Guide (PDF) |
| AV user manual | M4250 Series AV User Manual (PDF) |
| NETGEAR product page | XSM4216F on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4216F-100EUS.
Frequently Asked Questions — NETGEAR XSM4216F
Does the XSM4216F have copper or PoE ports?
No. All 16 data ports are SFP+ cages and there is no PoE; the only RJ45 port is the out-of-band management port.
Can I use 1G SFP modules?
Yes, on ports 1–12. NETGEAR's datasheet states that all 16 ports run at 10G and the first 12 also support 1000BASE-X (1G) SFP modules.
What is it typically used for?
As a 10G fibre aggregation or core switch for M4250 edge switches (each with SFP+ uplinks), or to connect 10G AV endpoints and servers directly, with 320 Gbps of switching capacity.
Can it run silently?
Yes. NETGEAR lists a fanless mode (0 dBA) as well as quiet (27.44 dBA) and cool fan modes.
Which AV protocols are pre-configured?
The AV UI includes profiles for Dante, AES67, AVB (including MILAN), NDI and Q-SYS, among others, with IGMP Plus for automatic multicast.
Does AVB need a licence?
NETGEAR's product page lists an electronic AVB licence (AVB4216F-10000S); the AV user manual states that from firmware 13.0.4.17 a licence is no longer required.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
