NETGEAR GSM4212UX M4250-10G2XF-PoE++ 8-Port Gigabit PoE++ AV Line Managed Switch, 720W, 90W/Port, 2x SFP+ 10G
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4250-10G2XF-PoE++ 8-Port Gigabit PoE++ AV Line Managed Switch (GSM4212UX-100EUS) - Limited Lifetime Local Warranty
90 W Ultra90 PoE++ for Demanding AV Endpoints

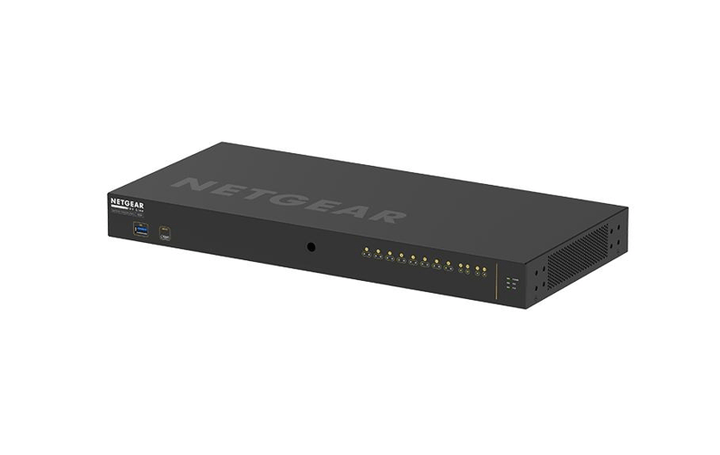

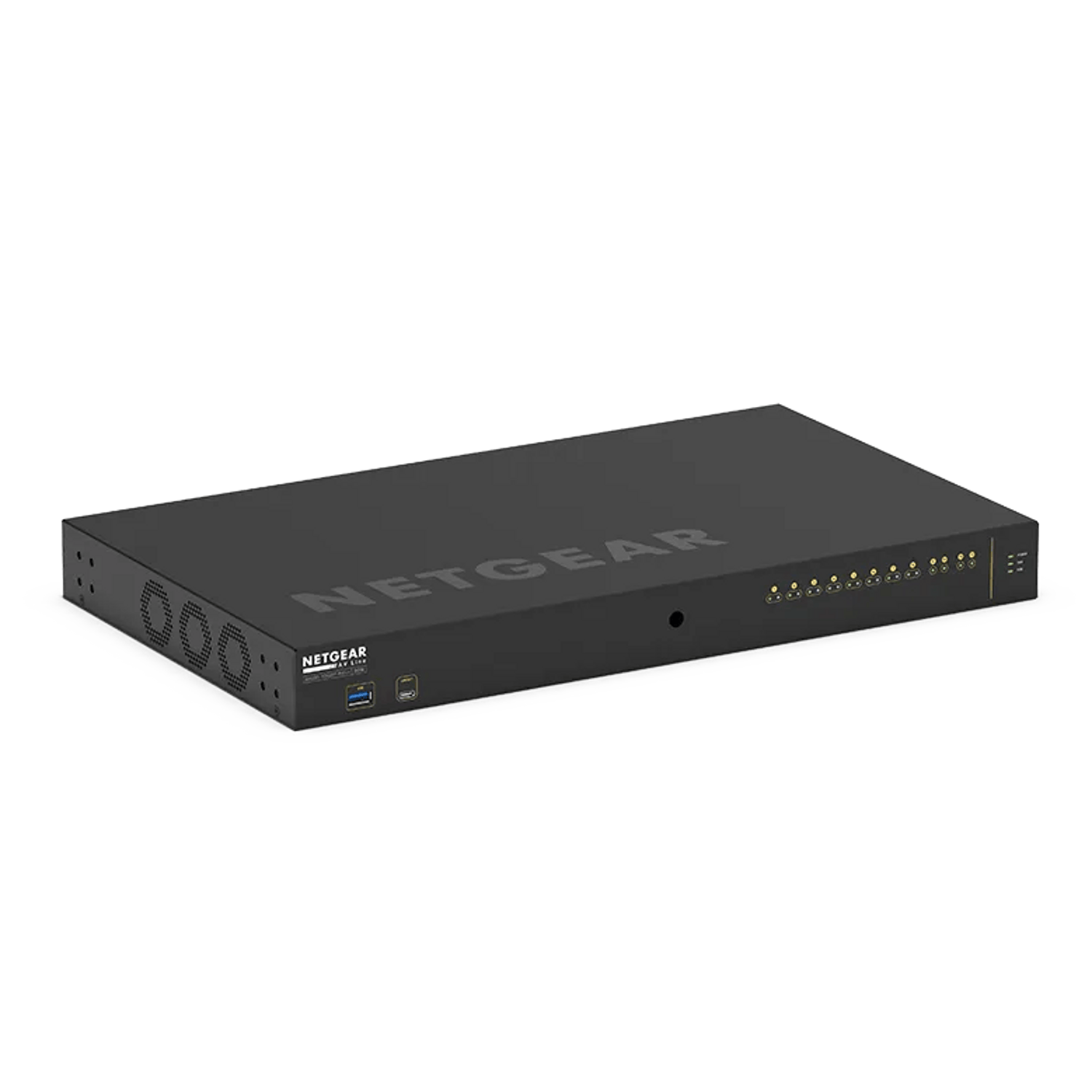

The NETGEAR GSM4212UX (M4250-10G2XF-PoE++) is a compact AV-over-IP switch with 8 x 10/100/1000BASE-T PoE++ ports, 2 additional Gigabit copper ports and 2 x 1G/10G SFP+ uplinks. Each PoE++ port delivers up to 90 W (802.3bt Ultra90, backward compatible with 802.3af/at) from a 720 W PoE budget — enough for PTZ cameras, displays, LED lighting and other high-draw AV devices.
Built for 1G AV over IP

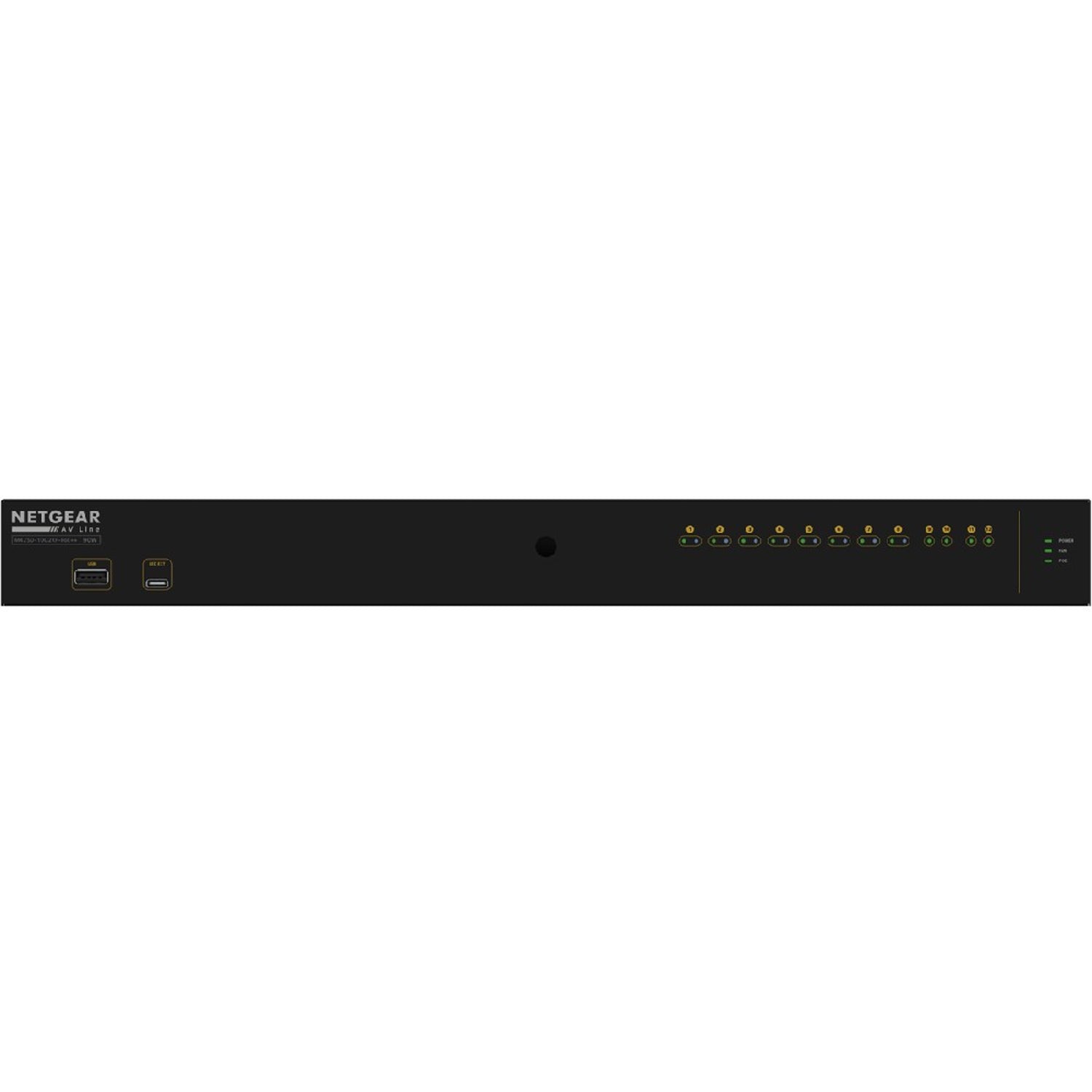

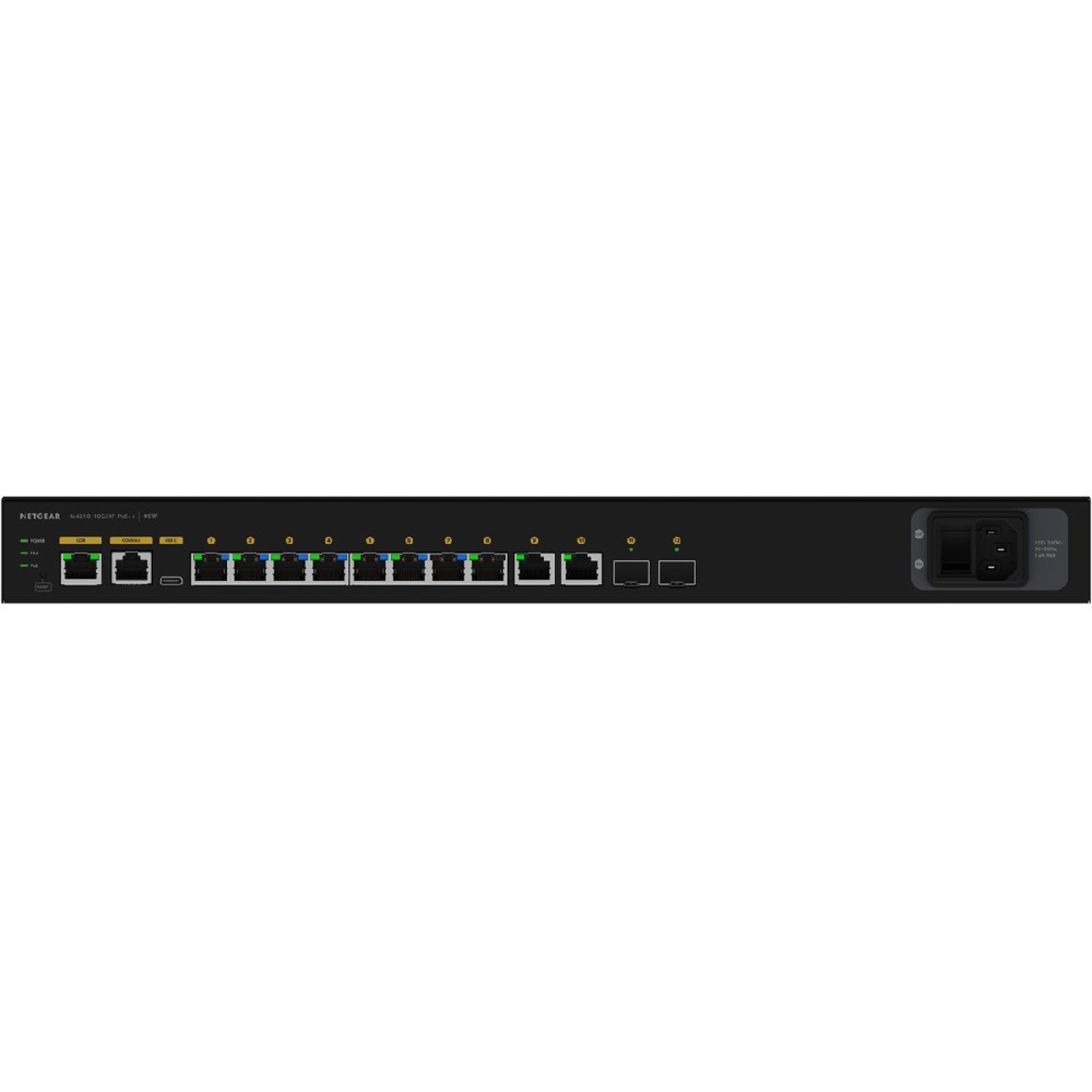

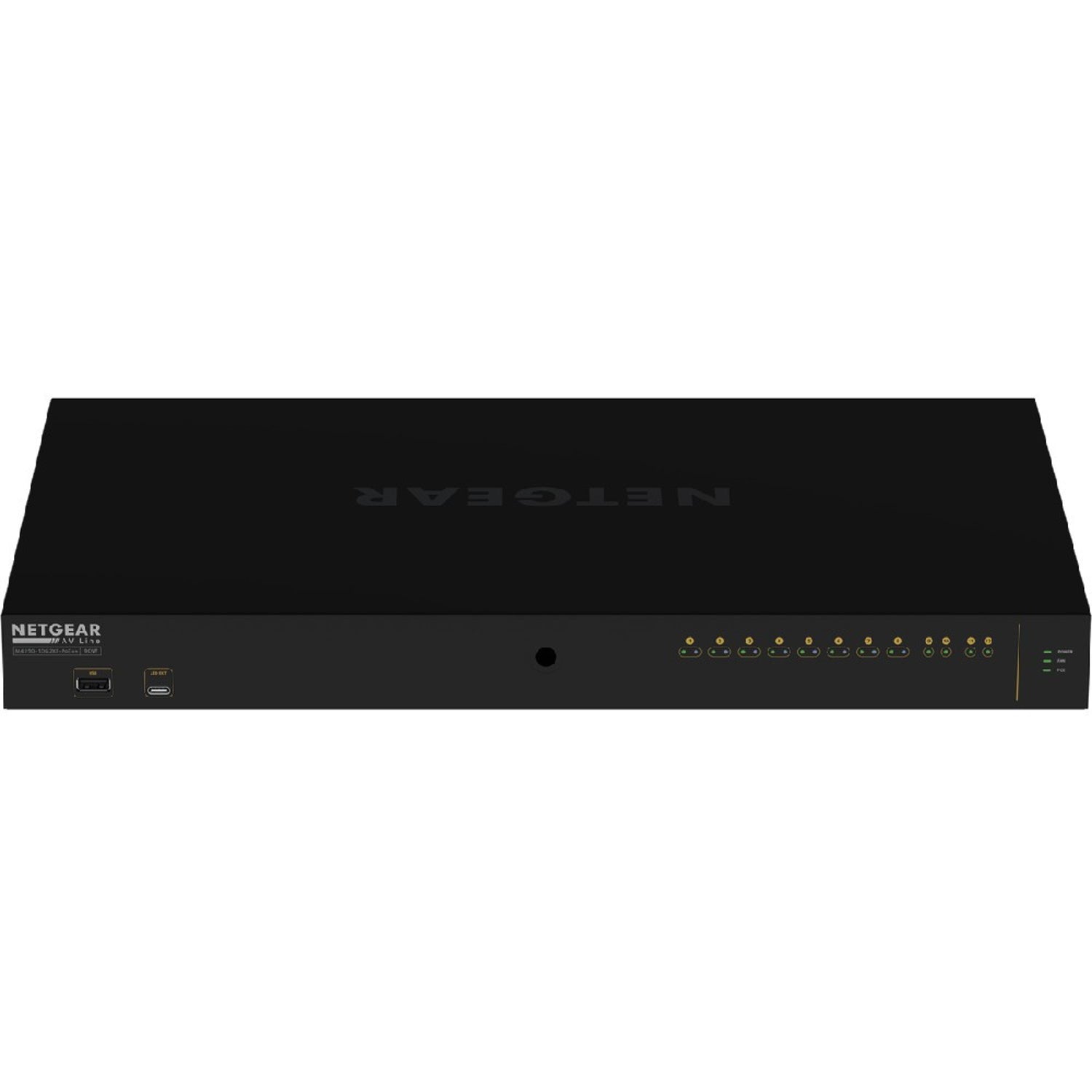

NETGEAR engineered the M4250 for 1G AV over IP: rear-facing ports for clean rack cabling, front-facing port activity LEDs, and a 60 Gbps switching fabric with 44.64 Mpps throughput. It comes pre-configured to work out of the box, with NETGEAR IGMP Plus handling multicast between switches automatically.
AV GUI with Ready-Made Profiles
The dedicated AV web interface offers pre-configured profiles for Dante, Q-SYS, AES67, AVB, NVX, SVSI and NDI, so integrators can assign ports by colour-coded profile instead of writing configuration. AVB is supported with an electronic licence (licence required).
Quiet, Flexible Installation
Selectable fan modes (fanless, quiet or cool) let you balance acoustics against PoE load, and the 1U chassis mounts in a standard or recessed 19-inch rack or on VESA mounting points.
Need help choosing? Email sales@sourceit.com.sg with your endpoint count, PoE and uplink needs and we will size it for you.
NETGEAR GSM4212UX Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4250-10G2XF-PoE++ AV Line Managed Switch |
| Part Number | GSM4212UX-100EUS |
| Series | NETGEAR M4250 Series (AV Line) Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| PoE++ Ports | 8 x 10/100/1000BASE-T RJ-45, 802.3bt Ultra90 PoE++ (compatible with 802.3af/at/bt) |
| Additional Copper Ports | 2 x 10/100/1000BASE-T RJ-45 |
| Fibre Uplinks | 2 x SFP+ (1G/10G) |
| Total Ports | 12 |
Performance
| Switching Fabric | 60 Gbps |
| Throughput | 44.64 Mpps (64-byte frames) |
| Latency (1G copper) | 1.837 µs (64-byte frames) |
| Latency (10G) | 0.807 µs (64-byte frames) |
| MAC Address Table | 16K |
| ARP/NDP Entries | 4K |
| VLANs | 4K |
| Packet Buffer | 16 Mb |
| Jumbo Frames | Up to 12K |
PoE
| PoE Budget | 720 W (at 110 V AC) |
| Max Power per Port | 90 W (802.3bt Ultra90); 15.4/30/60/75/90 W classes supported |
| PoE Ports | 8 |
Power & Environmental
| Power Supply | 1 x internal fixed PSU (C14 inlet), on/off switch |
| Power Consumption | 837.7 W with PoE; 26.3 W without PoE; 18 W standby |
| Heat Dissipation | 2,859.91 BTU/hr with PoE; 89.79 BTU/hr without PoE; 61.45 BTU/hr standby |
| Cooling | Side-to-side airflow, selectable fan modes (fanless, quiet, cool) |
| Acoustic Noise | 34.57 dBA (quiet mode, 25 °C, low PoE load) up to 66.23 dBA (cool mode, 100% fan) |
Physical
| Dimensions (W x D x H) | 440 x 257 x 43.2 mm (1U) |
| Weight | 3.83 kg |
| Mounting | 19-inch rack (standard and recessed brackets included), VESA mounting points, desktop |
Other
| AVB | Supported — electronic licence required (activation key AVB4212UX-10000S, sent by email) |
| IGMP | Enhanced (NETGEAR IGMP Plus) |
| Regional Part Numbers | GSM4212UX-100NAS (Americas), GSM4212UX-100EUS (Europe), GSM4212UX-100AJS (Asia Pacific), GSM4212UX-100PRS (China) |
Compatibility & Software Support
AV User Interface
The M4250 ships with NETGEAR's AV web-based GUI, which uses colour-coded profile assignments so AV integrators can configure ports without deep IT knowledge. The standard IT web GUI (HTTPS), CLI (Telnet/SSH), SNMP/MIBs and sFlow are also available, and M4250 switches can be managed across installations with the NETGEAR Engage Controller.
Pre-Configured AV Profiles
NETGEAR publishes pre-configured Dante, Q-SYS, AES67 and AVB audio profiles; NVX, SVSI, Q-SYS, NDI and Dante video profiles; plus mixed audio/video/control profiles.
IGMP Plus, Auto-Trunk and Auto-LAG
NETGEAR IGMP Plus automates IGMP between switches so AV-over-IP multicast works out of the box without flooding the network. Auto-Trunk and Auto-LAG interconnect M4250 switches automatically in L2 topologies.
Typical Use
Small AV racks, meeting rooms, classrooms and live-event setups that need a few high-power PoE++ endpoints — PTZ cameras, displays, encoders/decoders — plus 10G uplinks to a larger M4250 or core switch.
Package Contents & M4250 Ordering Information
In the Box
GSM4212UX switch, power cord(s), console USB Type-C and RJ45-DB9 cables, rack-mounting brackets, rubber footpads, installation guide.
NETGEAR M4250 Models
| Model | Ports | Part No. |
| GSM4210PD M4250-9G1F-PoE+ | 8 x 1G PoE+, 1 x 1G, 1 x SFP | GSM4210PD-100UKS |
| GSM4210PX M4250-8G2XF-PoE+ | 8 x 1G PoE+, 2 x SFP+ | GSM4210PX-100UKS |
| GSM4212P M4250-10G2F-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP | GSM4212P-100EUS |
| GSM4212PX M4250-10G2XF-PoE+ | 8 x 1G PoE+, 2 x 1G, 2 x SFP+ | GSM4212PX-100EUS |
| GSM4212UX M4250-10G2XF-PoE++ (this listing) | 8 x 1G PoE++, 2 x 1G, 2 x SFP+ | GSM4212UX-100EUS |
| GSM4230P M4250-26G4F-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP | GSM4230P-100EUS |
| GSM4230PX M4250-26G4XF-PoE+ | 24 x 1G PoE+, 2 x 1G, 4 x SFP+ | GSM4230PX-100EUS |
| GSM4230UP M4250-26G4F-PoE++ | 24 x 1G PoE++, 2 x 1G, 4 x SFP | GSM4230UP-100EUS |
| GSM4248P M4250-40G8F-PoE+ | 40 x 1G PoE+, 8 x SFP | GSM4248P-100EUS |
| GSM4248PX M4250-40G8XF-PoE+ | 40 x 1G PoE+, 8 x SFP+ | GSM4248PX-100EUS |
| GSM4248UX M4250-40G8XF-PoE++ | 40 x 1G PoE++, 8 x SFP+ | GSM4248UX-100EUS |
| MSM4214X M4250-12M2XF | 12 x 2.5G, 2 x SFP+ | MSM4214X-100EUS |
| XSM4216F M4250-16XF | 16 x 10G SFP+ | XSM4216F-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | M4250 Series Datasheet (PDF) |
| Installation guide | M4250 Installation Guide (PDF) |
| AV user manual | M4250 AV User Interface User Manual (PDF) |
| NETGEAR product page | GSM4212UX on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GSM4212UX-100EUS.
Frequently Asked Questions — NETGEAR GSM4212UX
How much PoE does the GSM4212UX provide?
A 720 W PoE budget across 8 PoE++ ports, with up to 90 W per port (802.3bt Ultra90).
What uplinks does it have?
2 x SFP+ ports supporting 1G or 10G, plus 2 additional Gigabit copper ports. SFP modules are sold separately.
Does it support Dante, NDI and AES67?
Yes — the AV GUI includes pre-configured Dante, Q-SYS, AES67 and AVB audio profiles and NVX, SVSI, Q-SYS, NDI and Dante video profiles.
Is AVB included?
AVB is supported but requires an electronic licence (activation key AVB4212UX-10000S), purchased separately.
Is it fanless?
It has selectable fan modes including fanless; whether it can run fanless depends on ambient temperature and PoE load.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
