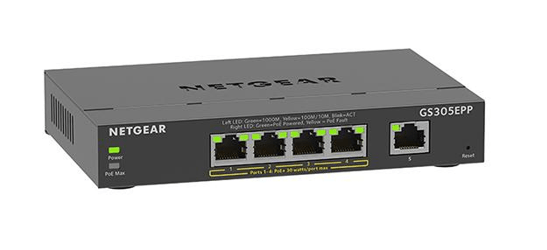

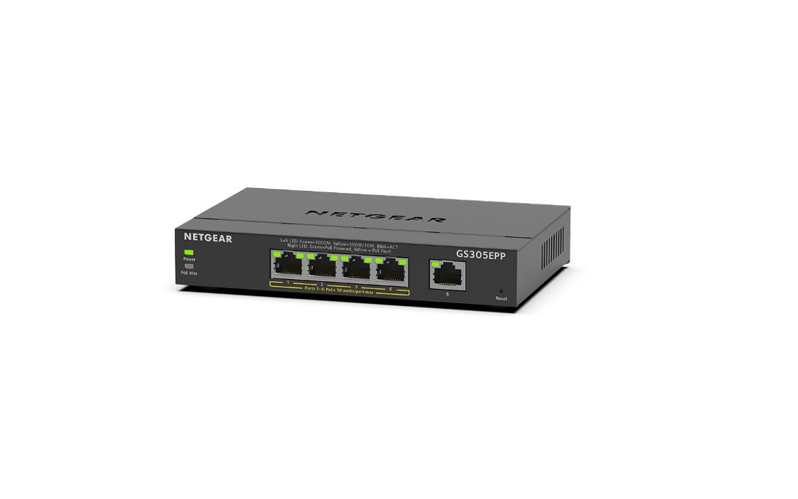

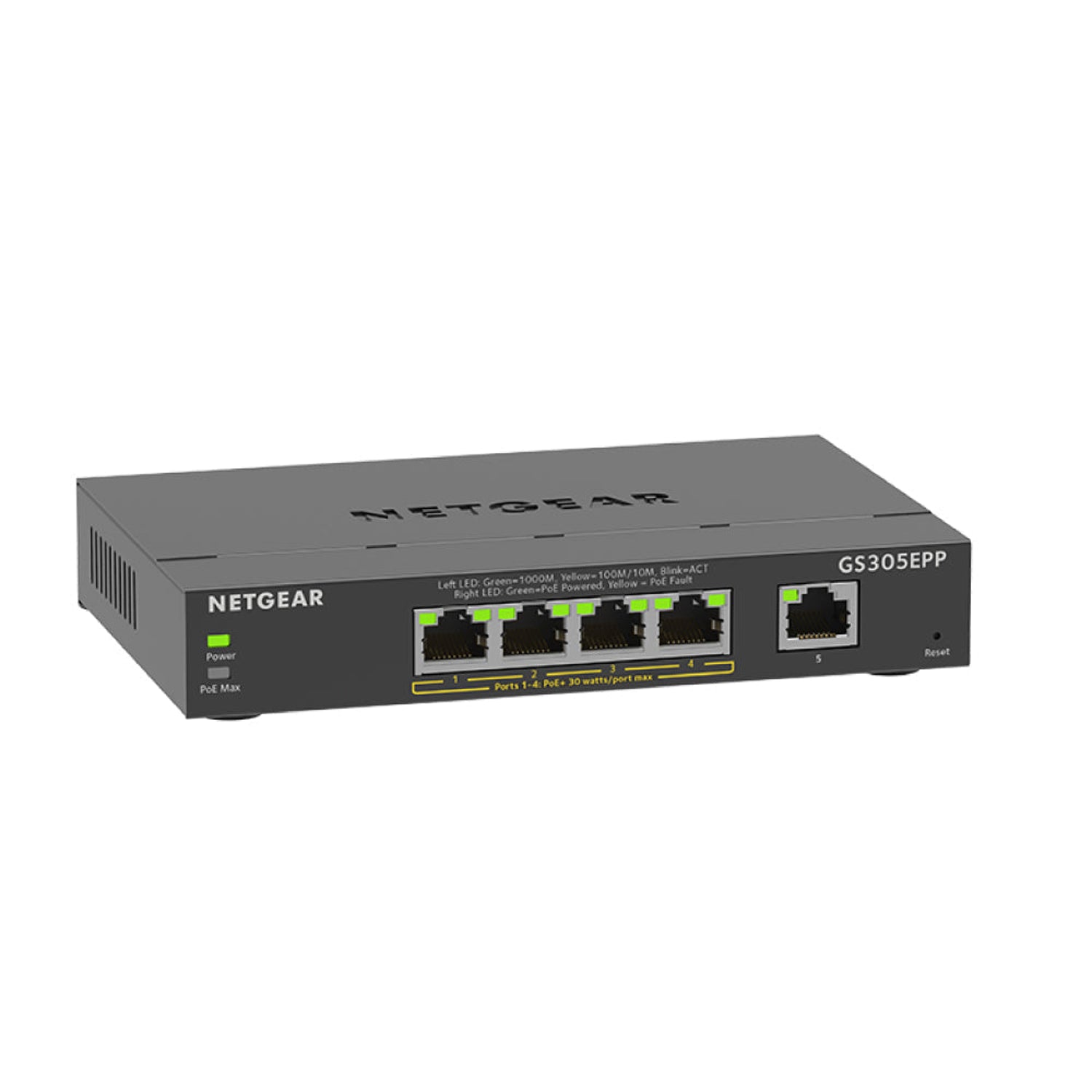

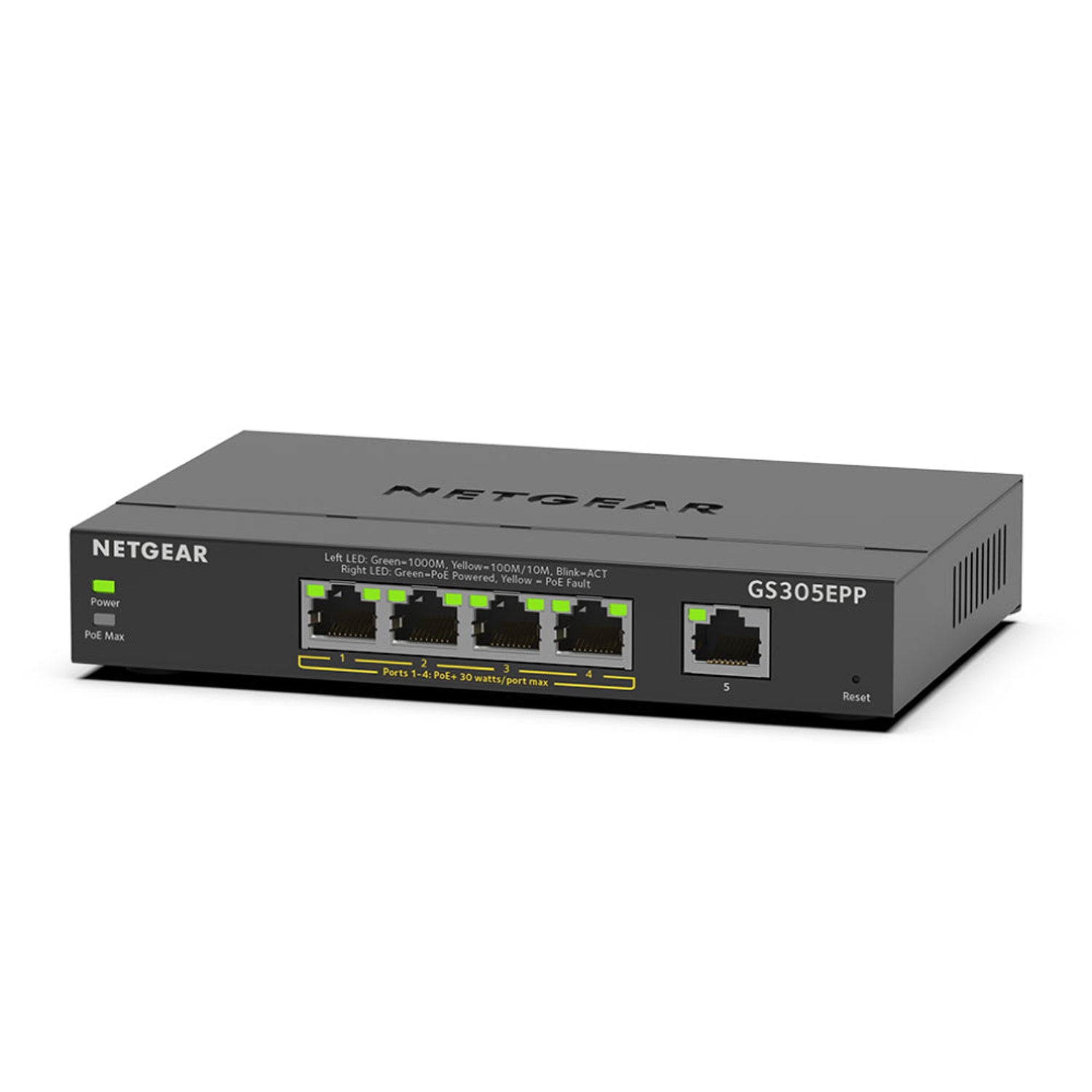

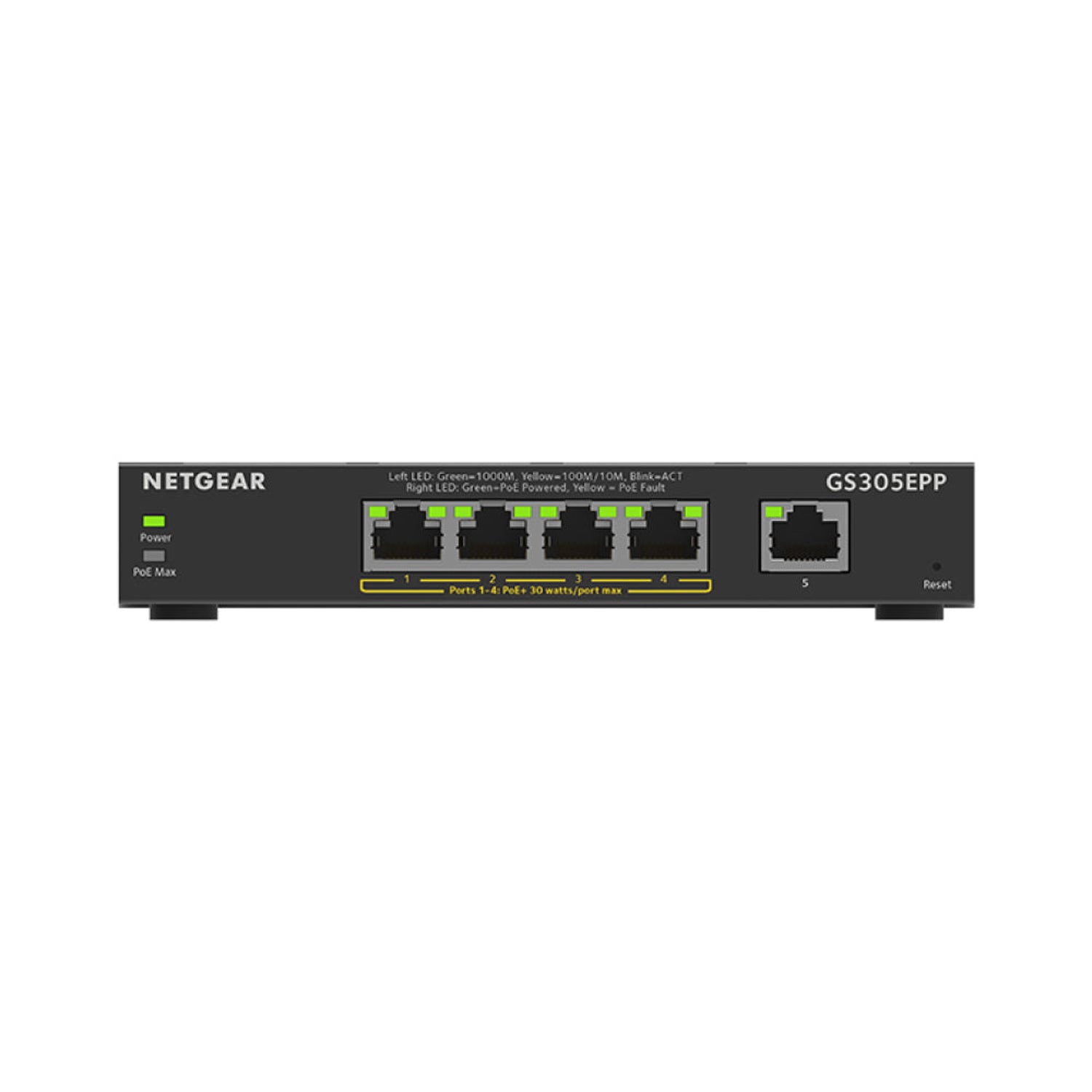

NETGEAR GS305EPP 5-Port Gigabit PoE+ Easy Smart Managed Switch (4 x PoE+, 120W)
PRODUCT DESCRIPTION
NETGEAR GS305EPP 5-Port Gigabit Ethernet PoE+ Easy Smart Managed Essentials Switch (120W) (GS305EPP-100UKS) - 5 Years Local Warranty
Beyond Plug-and-Play
The NETGEAR GS305EPP is a 5-port Gigabit Ethernet Easy Smart (Plus) switch that works straight out of the box, then lets you add essential management — VLANs, QoS and IGMP snooping — through a simple web interface when your network outgrows an unmanaged switch.
4 PoE+ Ports, 120W Budget
4 ports deliver IEEE 802.3at PoE+ with a total power budget of 120W, enough to power IP phones, IP cameras and wireless access points over a single cable. NETGEAR lists uninterrupted PoE support.
Silent and Compact
The fanless design runs silently (0 dB) in offices, shops and homes, and the compact chassis sits on a desk or mounts on a wall.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR GS305EPP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS305EPP 5-Port Gigabit Ethernet PoE+ Easy Smart Managed Essentials Switch (120W) |
| Part Number | GS305EPP-100UKS |
| Series | NETGEAR Plus (Easy Smart Managed Essentials) PoE+ Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces

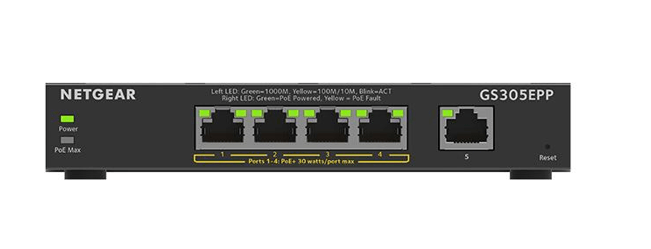

| Ethernet Ports | 5 x 10/100/1000BASE-T RJ-45 with Auto Uplink |
| PoE | 4 x IEEE 802.3at PoE+ ports, 120W total budget |
Performance
| Switching Bandwidth | 10 Gbps |
| MAC Address Table | 4K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 9,216 bytes |
| VLANs | Up to 64 |
Software Features
| VLANs | IEEE 802.1Q VLAN tagging, port-based VLANs |
| QoS | Rate limiting, DSCP, 802.1p CoS, ToS, WRR priority queuing |
| Multicast | IGMP snooping v1/v2/v3 |
| Other | Link aggregation, broadcast storm control, cable test, port mirroring, configuration backup/restore |
| Management | Web browser-based GUI |
Power & Environmental

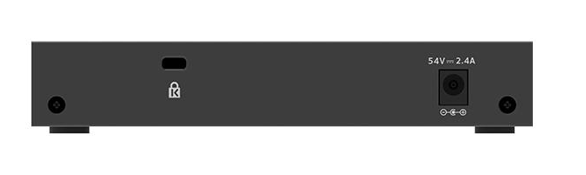

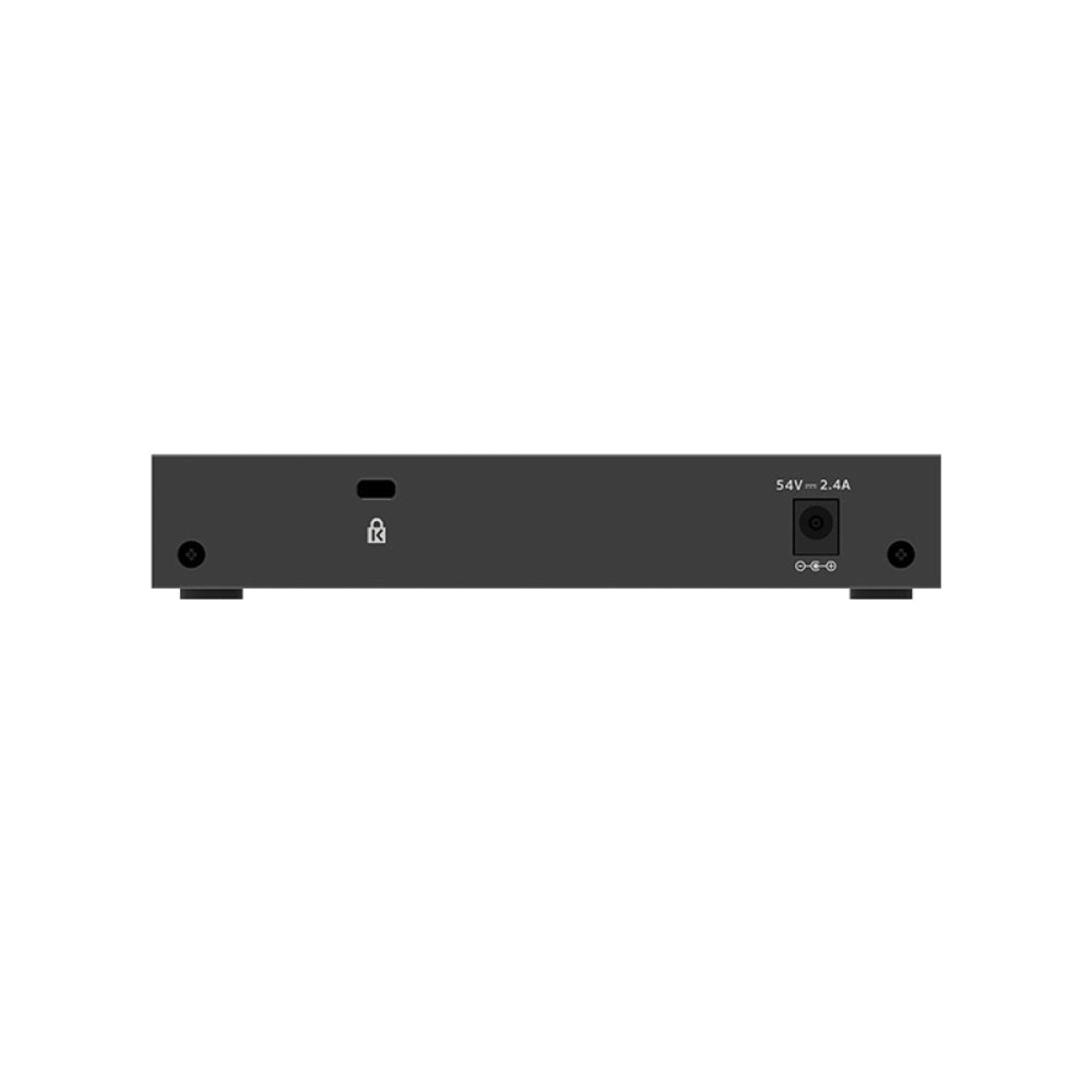

| Power Supply | External power adapter |
| Cooling | Fanless (0 dB) |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 158 x 101 x 27 mm |
| Weight | 0.40 kg |
| Mounting | Desktop or wall mount |
Certifications
| EMC | Class B: CE, UKCA, FCC, ISED, VCCI, RCM, KC, BSMI |
Compatibility & Software Support
Management
Plug-and-play out of the box; optional configuration through the web browser GUI. No PC utility is required.
Typical Use
Small offices, retail, clinics and homes that need to power up to 4 PoE devices — IP phones, IP cameras, access points — with basic VLAN and QoS control.
Package Contents & Plus PoE+ Switch Ordering Information
In the Box
GS305EPP switch with external power adapter (see the NETGEAR user manual for full package contents).
NETGEAR Plus PoE+ Switch Models
| Model | Ports | Part No. |
| GS305EP | 5 x GE (4 x PoE+, 63 W) | GS305EP-100UKS |
| GS305EPP (this listing) | 5 x GE (4 x PoE+, 120 W) | GS305EPP-100UKS |
| GS308EP | 8 x GE (8 x PoE+, 62 W) | GS308EP-100UKS |
| GS308EPP | 8 x GE (8 x PoE+, 123 W) | GS308EPP-100UKS |
| GS316EP | 16 x GE + 1 x SFP (15 x PoE+, 180 W) | GS316EP-100UKS |
| GS316EPP | 16 x GE + 1 x SFP (15 x PoE+, 231 W) | GS316EPP-100UKS |
Datasheet & Downloads
| NETGEAR datasheet | PoE+ Gigabit Ethernet Plus Switches Datasheet (PDF) |
| User manual | GS305EP / GS305EPP / GS308EP / GS308EPP User Manual (PDF) |
| NETGEAR product page | GS305EPP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS305EPP-100UKS.
Frequently Asked Questions — NETGEAR GS305EPP
How much PoE power does the GS305EPP provide?
120W total across 4 PoE+ (802.3at) ports.
Is it a managed switch?
It is an Easy Smart (Plus) switch: plug-and-play, with optional web-based VLAN, QoS and IGMP snooping configuration.
Is it fanless?
Yes. NETGEAR specifies a fanless design with 0 dB acoustic noise.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
