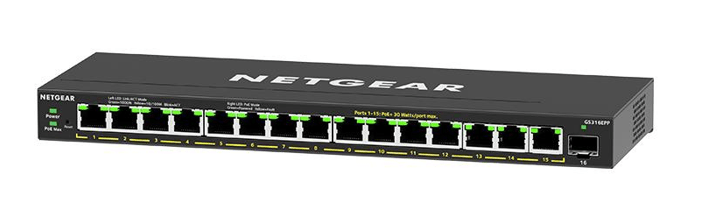

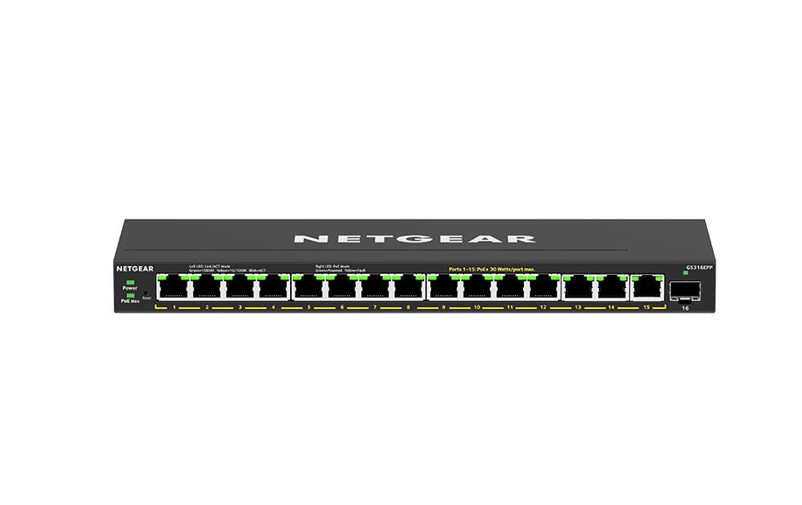

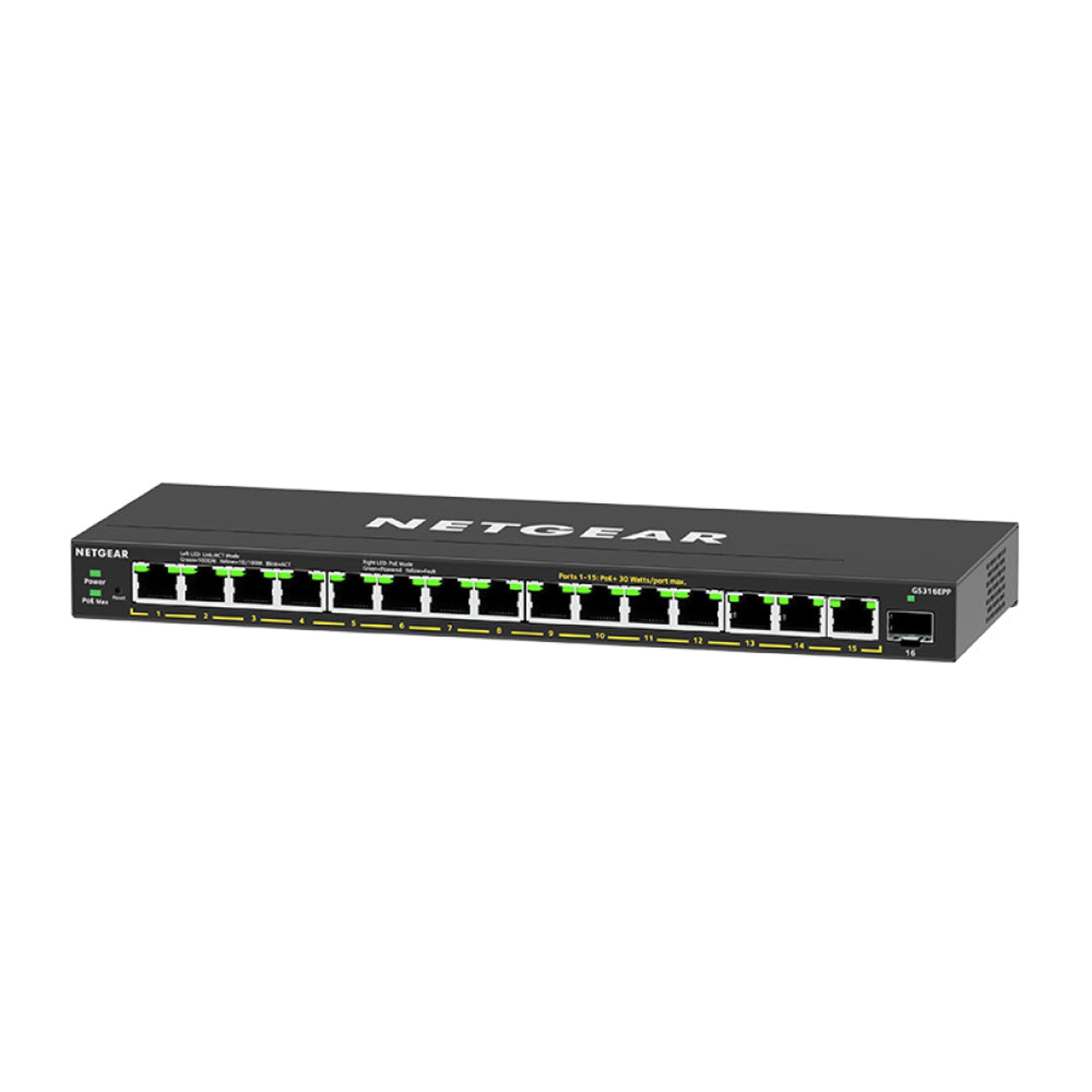

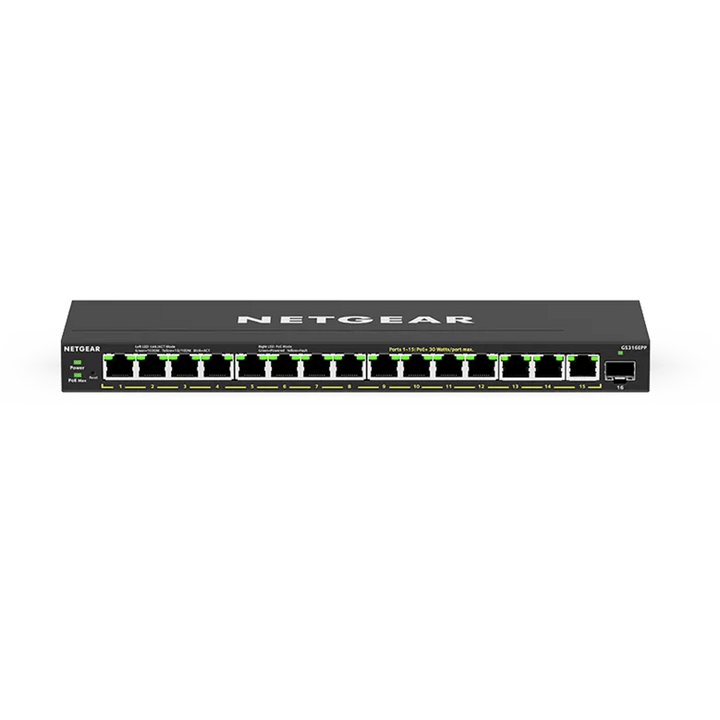

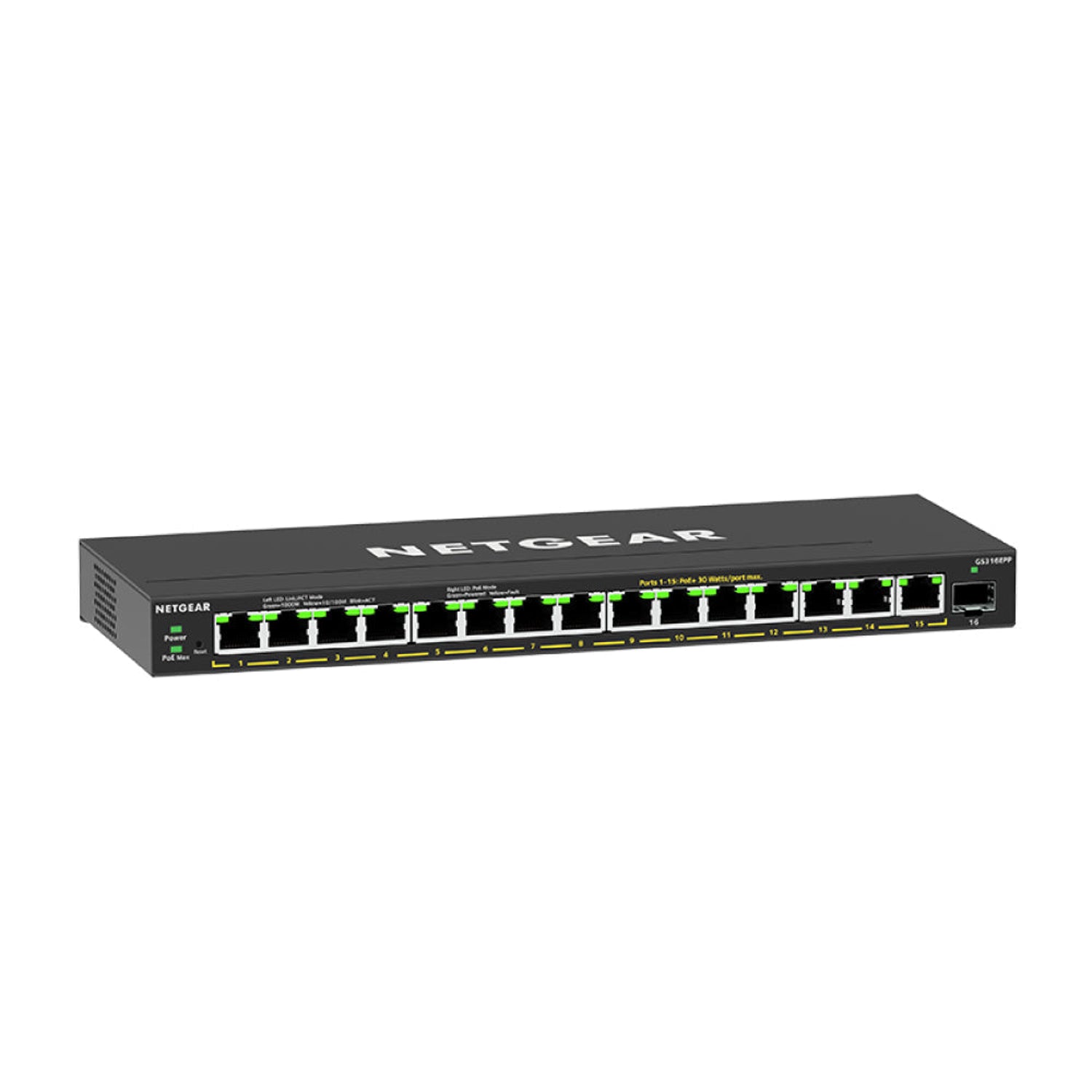

NETGEAR GS316EPP 16-Port Gigabit PoE+ Easy Smart Managed Switch with SFP (15 x PoE+, 231W)
PRODUCT DESCRIPTION
NETGEAR GS316EPP 16-Port High-Power PoE+ Gigabit Ethernet Easy Smart Managed Essentials Switch (231W) with 1 SFP Port (GS316EPP-100UKS) - 5 Years Local Warranty
Easy Smart Management
The NETGEAR GS316EPP is a 16-port Gigabit Ethernet Easy Smart (Plus) switch that works plug-and-play out of the box, then adds essential management — VLANs, QoS, IGMP snooping and link aggregation — through a simple web browser interface.
15 PoE+ Ports, 231W Budget
15 IEEE 802.3at PoE+ ports share a 231W power budget — the high-power model of the GS316 range — to run IP cameras, access points and IP phones over a single cable. Advanced PoE controls add per-port power limits, prioritisation and PoE scheduling, and Uninterrupted PoE keeps devices powered during a firmware update.
Silent, Compact, Fiber-Ready
The fanless metal chassis runs silently (0 dBA) on a desk or wall, and a dedicated 1G SFP port adds a fiber uplink option.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR GS316EPP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS316EPP 16-Port High-Power PoE+ Gigabit Ethernet Easy Smart Managed Essentials Switch (231W) with 1 SFP Port |
| Part Number | GS316EPP-100UKS |
| Series | NETGEAR Easy Smart (Plus) PoE+ Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 16 x 10/100/1000BASE-T RJ-45 (Auto Uplink) |
| PoE | 15 x IEEE 802.3at PoE+ ports, 231W total budget |
| Fiber Ports | 1 x 1G SFP |
Performance
| Switching Bandwidth | 32 Gbps |
| MAC Address Table | 4K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 10,000 bytes |
| VLANs | Up to 64 |
Software Features
| VLANs | IEEE 802.1Q VLAN tagging |
| QoS | Rate limiting, DSCP, WRR priority queuing |
| Multicast | IGMP snooping v1/v2/v3 (128 groups) |
| PoE Management | Per-port power limit, PoE prioritisation, PoE scheduling, Uninterrupted PoE |
| Other | Static link aggregation (8 LAGs, 8 members each), loop prevention, port mirroring, cable test |
| Management | Web browser-based GUI |
Power & Environmental
| Power Supply | External power adapter (254W adapter per NETGEAR installation guide) |
| Cooling | Fanless (0 dBA) |
| MTBF | 570,435 hours at 25 °C |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 286 x 102 x 27 mm |
| Weight | 0.883 kg |
| Mounting | Desktop or wall mount |
Certifications
| Compliance | CE, FCC Part 15 Class B, VCCI, ACMA, CSA safety, KC, BSMI |
Compatibility & Software Support
Management
Plug-and-play out of the box; optional configuration through the web browser GUI.
Typical Use
Small offices, retail, clinics and homes that need to power up to 15 higher-draw PoE devices — IP cameras, access points, IP phones — with basic VLAN, QoS and PoE control.
Package Contents & Easy Smart (Plus) PoE+ Switch Ordering Information
In the Box
GS316EPP switch, power adapter (power cable varies by region), wall installation kit, rubber feet, installation guide.
NETGEAR Easy Smart (Plus) PoE+ Switch Models
| Model | Ports | Part No. |
| GS305EP | 5 x GE (4 x PoE+, 63 W) | GS305EP-100UKS |
| GS305EPP | 5 x GE (4 x PoE+, 120 W) | GS305EPP-100UKS |
| GS308EP | 8 x GE (8 x PoE+, 62 W) | GS308EP-100UKS |
| GS308EPP | 8 x GE (8 x PoE+, 123 W) | GS308EPP-100UKS |
| GS316EP | 16 x GE + 1 x SFP (15 x PoE+, 180 W) | GS316EP-100UKS |
| GS316EPP (this listing) | 16 x GE + 1 x SFP (15 x PoE+, 231 W) | GS316EPP-100UKS |
Datasheet & Downloads
| NETGEAR datasheet | PoE+ Gigabit Ethernet Plus Switches Datasheet (PDF) |
| Installation guide | GS316EP / GS316EPP Installation Guide (PDF) |
| User manual | GS316EP / GS316EPP User Manual (PDF) |
| NETGEAR product page | GS316EPP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS316EPP-100UKS.
Frequently Asked Questions — NETGEAR GS316EPP
How much PoE power does the GS316EPP provide?
231W total across 15 PoE+ (802.3at) ports.
What is the difference between the GS316EP and GS316EPP?
Both have 16 Gigabit ports (15 PoE+) and 1 SFP; the GS316EPP raises the PoE budget from 180W to 231W.
Does it have a fiber uplink?
Yes, 1 x 1G SFP port (SFP module sold separately, e.g. NETGEAR AGM731F or AGM732F).
Is it fanless?
Yes. NETGEAR specifies a fanless design with 0 dBA acoustic noise.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
