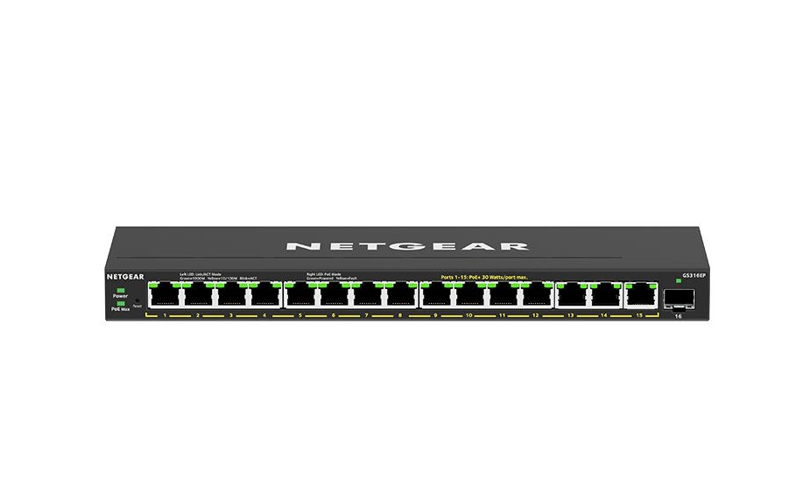

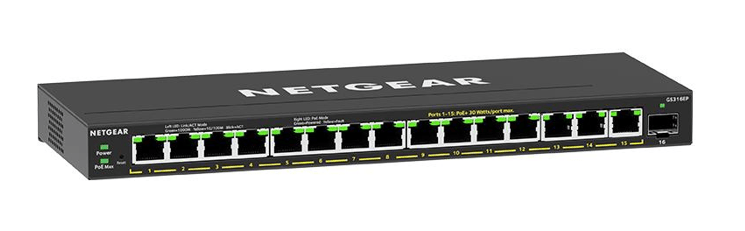

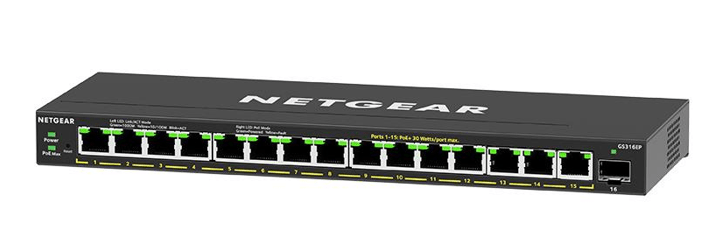

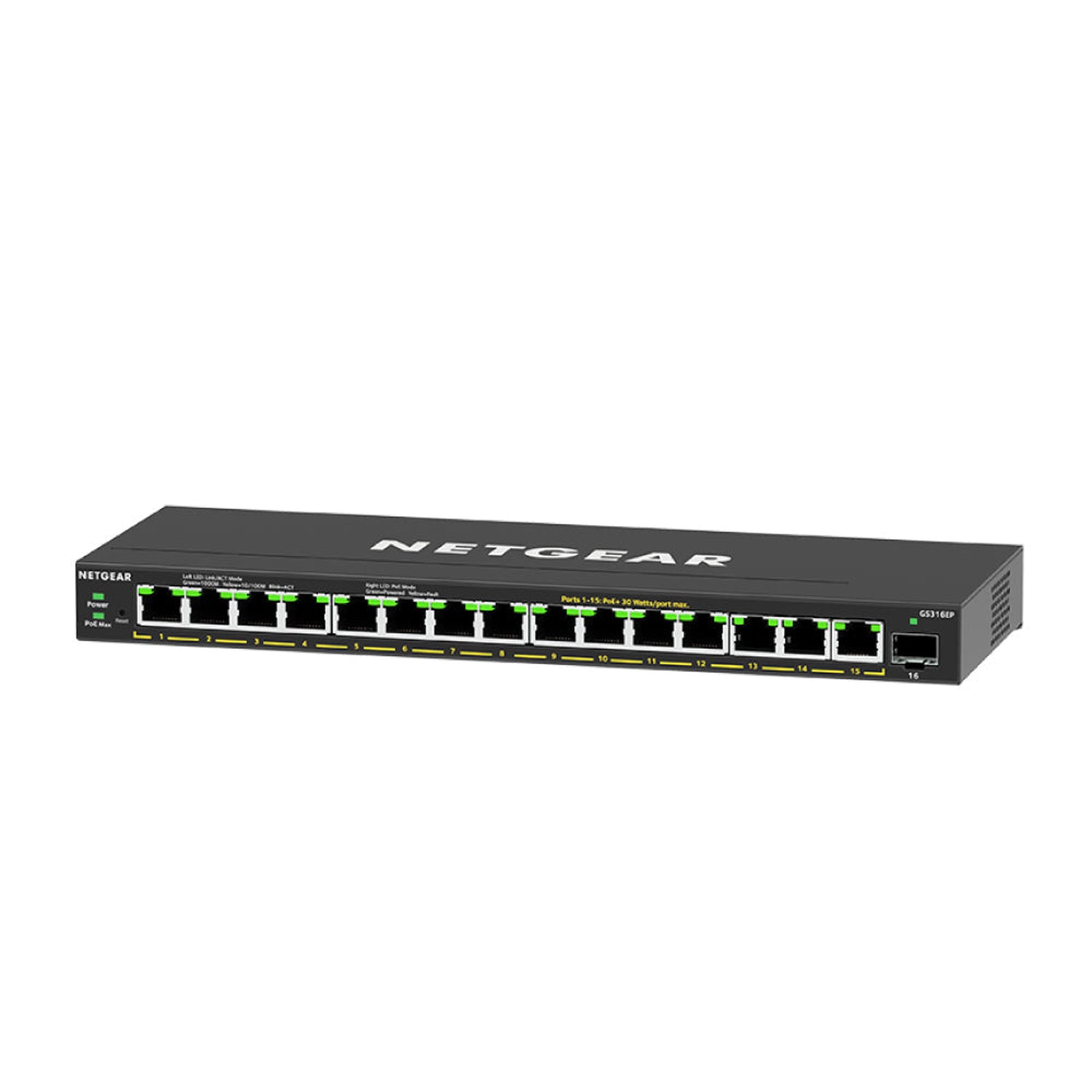

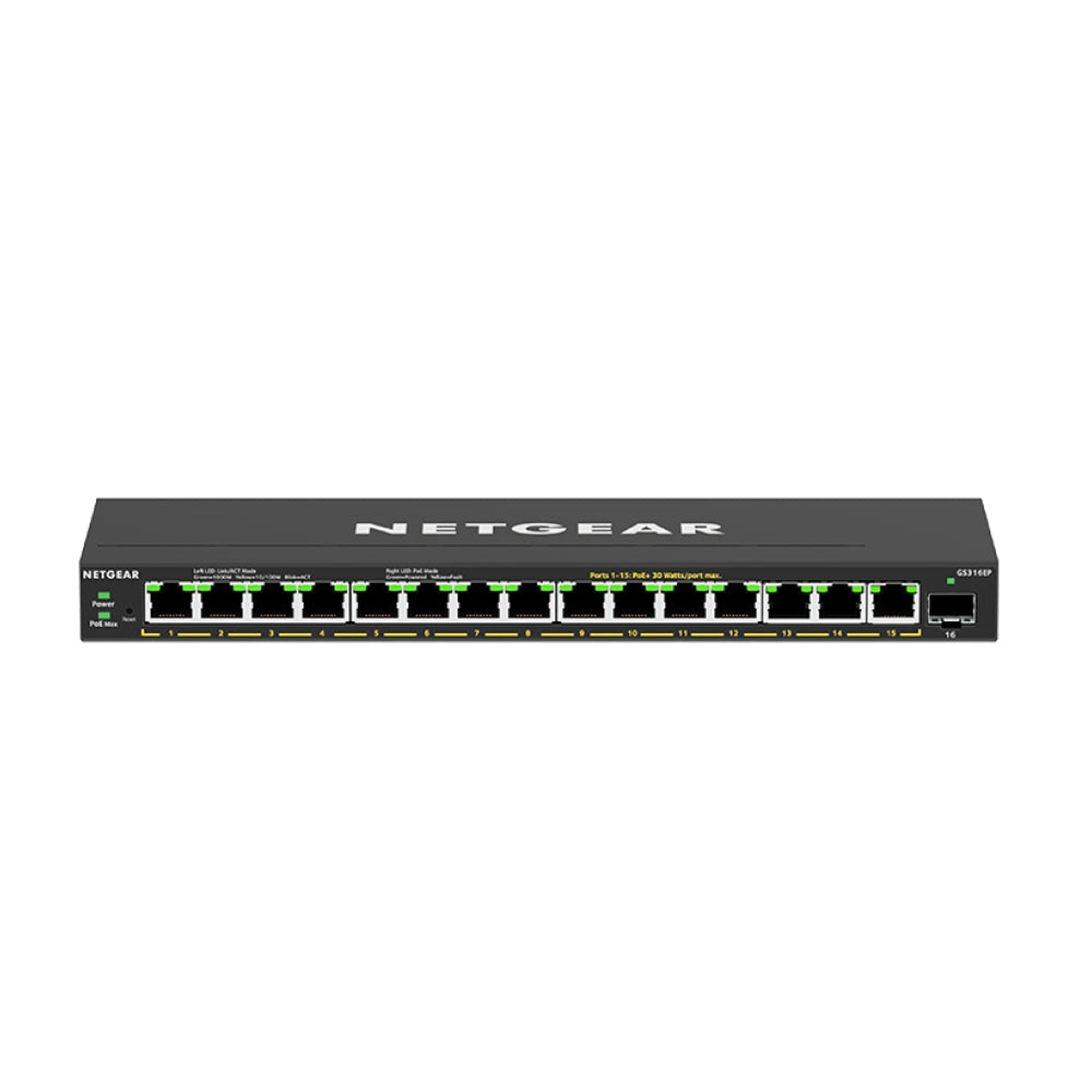

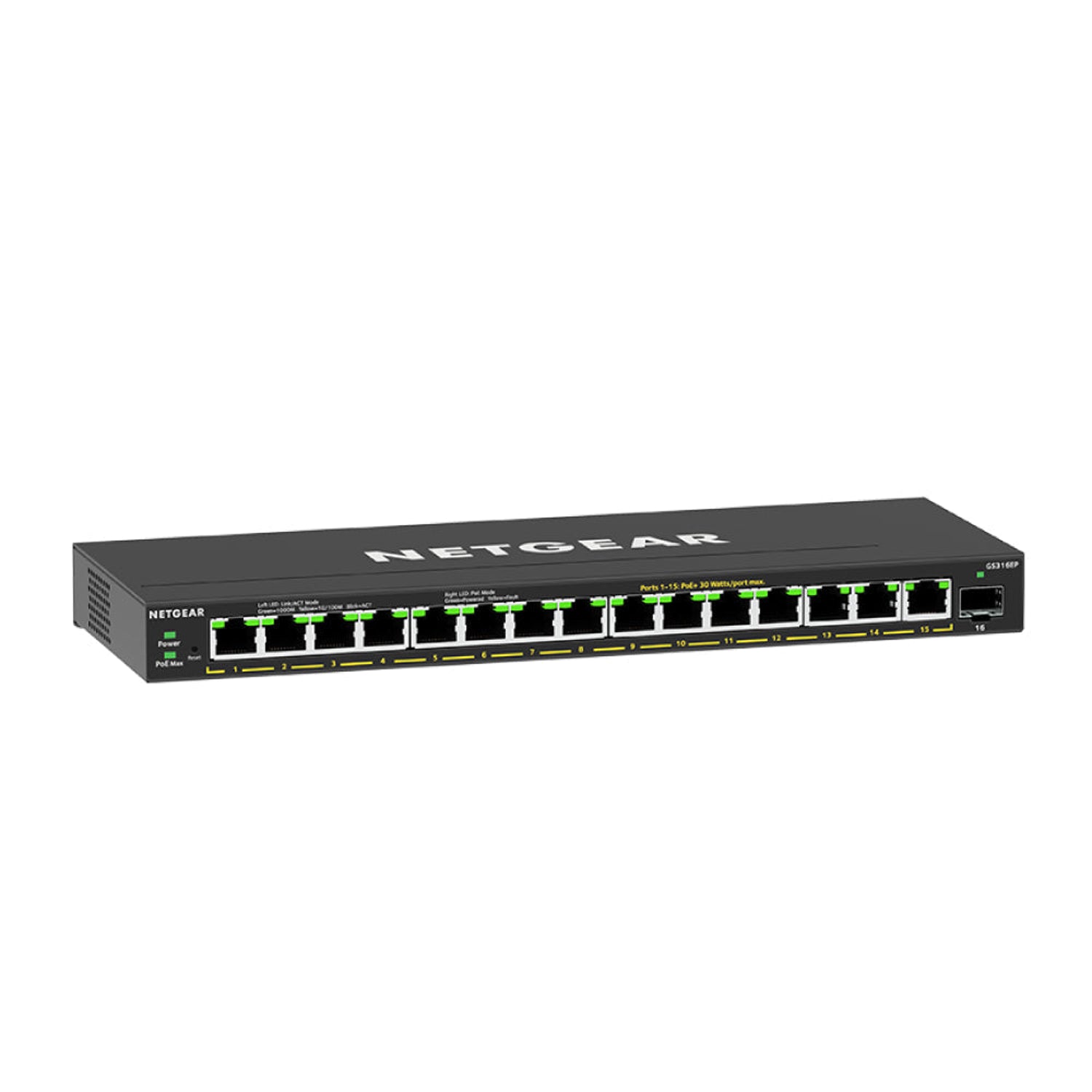

NETGEAR GS316EP 16-Port Gigabit PoE+ Easy Smart Managed Switch with SFP (15 x PoE+, 180W)
PRODUCT DESCRIPTION
NETGEAR GS316EP 16-Port Gigabit Ethernet PoE+ Easy Smart Managed Essentials Switch (180W) with 1 SFP Port (GS316EP-100UKS) - 5 Years Local Warranty
Beyond Plug-and-Play
The NETGEAR GS316EP is a 16-port Gigabit Ethernet Easy Smart (Plus) switch that works straight out of the box, then lets you add essential management — VLANs, QoS and IGMP snooping — through a simple web interface when your network outgrows an unmanaged switch.
15 PoE+ Ports, 180W Budget
15 ports deliver IEEE 802.3at PoE+ with a total power budget of 180W, enough to power IP phones, IP cameras and wireless access points over a single cable. NETGEAR lists uninterrupted PoE support.
Silent and Compact
The fanless design runs silently (0 dB) in offices, shops and homes, and the compact chassis sits on a desk or mounts on a wall. A 1G SFP port adds a fiber uplink option.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR GS316EP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS316EP 16-Port Gigabit Ethernet PoE+ Easy Smart Managed Essentials Switch (180W) with 1 SFP Port |
| Part Number | GS316EP-100UKS |
| Series | NETGEAR Plus (Easy Smart Managed Essentials) PoE+ Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 16 x 10/100/1000BASE-T RJ-45 |
| PoE | 15 x IEEE 802.3at PoE+ ports, 180W total budget |
| Fiber Ports | 1 x 1G SFP |
Performance
| Switching Bandwidth | 32 Gbps |
| MAC Address Table | 4K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 10,000 bytes |
| VLANs | Up to 64 |
Software Features
| VLANs | IEEE 802.1Q VLAN tagging, port-based VLANs |
| QoS | Rate limiting, DSCP, 802.1p CoS, ToS, WRR priority queuing |
| Multicast | IGMP snooping v1/v2/v3 |
| Other | Link aggregation, broadcast storm control, cable test, port mirroring, configuration backup/restore |
| Management | Web browser-based GUI |
Power & Environmental

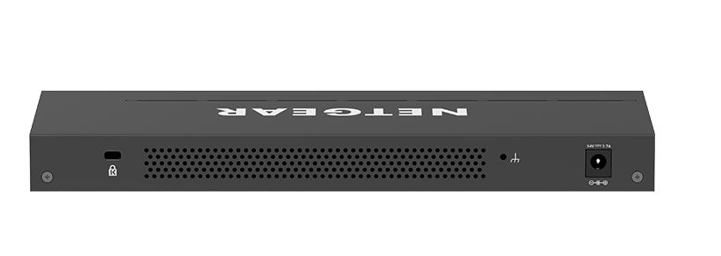

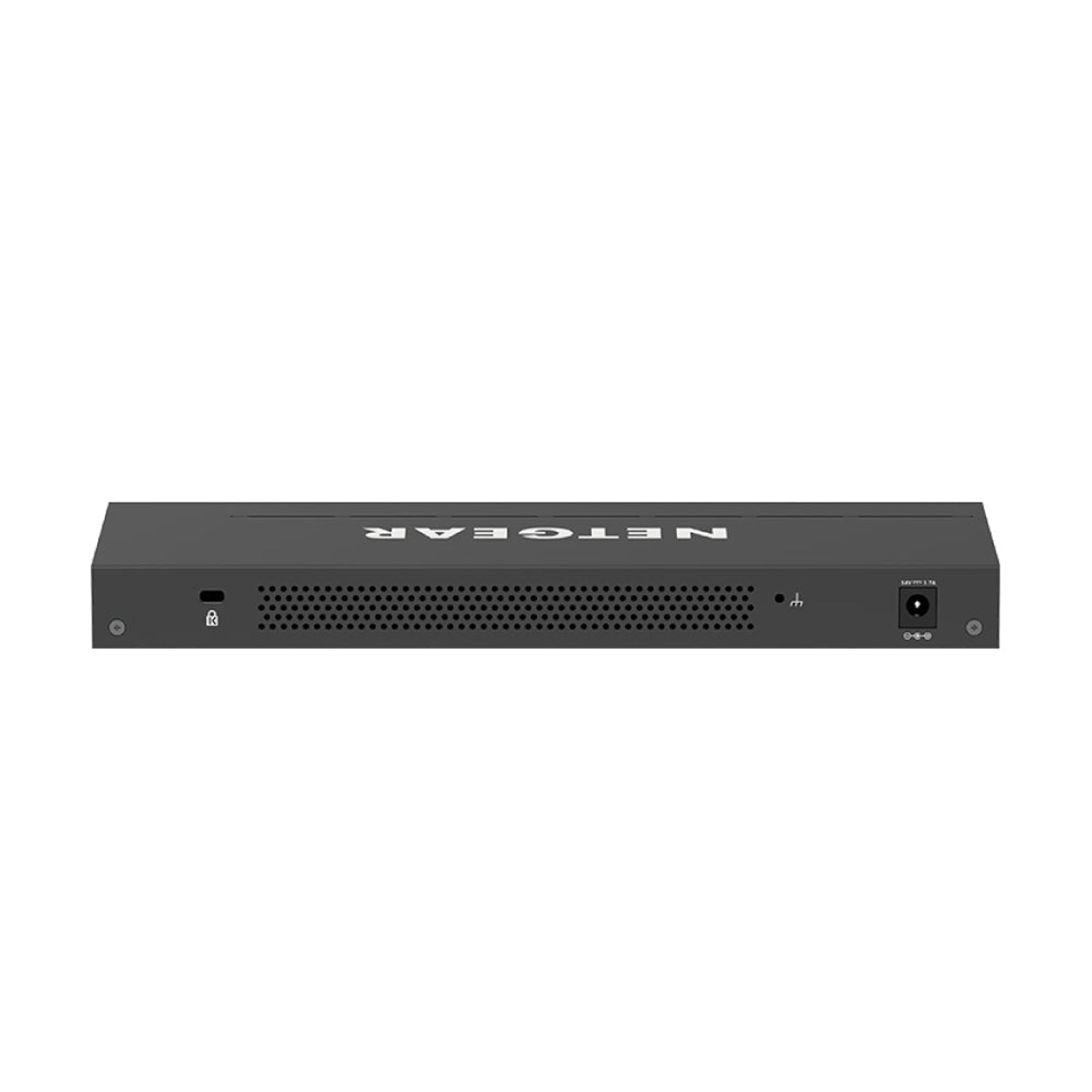

| Power Supply | External power adapter |
| Cooling | Fanless (0 dB) |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 286 x 102 x 27 mm |
| Weight | 0.883 kg |
| Mounting | Desktop or wall mount |
Certifications
| EMC | Class A: CE, UKCA, FCC, ISED, VCCI, RCM, KC, BSMI |
Compatibility & Software Support
Management
Plug-and-play out of the box; optional configuration through the web browser GUI. No PC utility is required.
Typical Use
Small offices, retail, clinics and homes that need to power up to 15 PoE devices — IP phones, IP cameras, access points — with basic VLAN and QoS control.
Package Contents & Plus PoE+ Switch Ordering Information
In the Box
GS316EP switch with external power adapter (see the NETGEAR user manual for full package contents).
NETGEAR Plus PoE+ Switch Models
| Model | Ports | Part No. |
| GS305EP | 5 x GE (4 x PoE+, 63 W) | GS305EP-100UKS |
| GS305EPP | 5 x GE (4 x PoE+, 120 W) | GS305EPP-100UKS |
| GS308EP | 8 x GE (8 x PoE+, 62 W) | GS308EP-100UKS |
| GS308EPP | 8 x GE (8 x PoE+, 123 W) | GS308EPP-100UKS |
| GS316EP (this listing) | 16 x GE + 1 x SFP (15 x PoE+, 180 W) | GS316EP-100UKS |
| GS316EPP | 16 x GE + 1 x SFP (15 x PoE+, 231 W) | GS316EPP-100UKS |
Datasheet & Downloads
| NETGEAR datasheet | PoE+ Gigabit Ethernet Plus Switches Datasheet (PDF) |
| User manual | GS316EP / GS316EPP User Manual (PDF) |
| NETGEAR product page | GS316EP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS316EP-100UKS.
Frequently Asked Questions — NETGEAR GS316EP
How much PoE power does the GS316EP provide?
180W total across 15 PoE+ (802.3at) ports.
Is it a managed switch?
It is an Easy Smart (Plus) switch: plug-and-play, with optional web-based VLAN, QoS and IGMP snooping configuration.
Does it have a fiber uplink?
Yes, 1 x 1G SFP port (SFP module sold separately, e.g. NETGEAR AGM731F or AGM732F).
Is it fanless?
Yes. NETGEAR specifies a fanless design with 0 dB acoustic noise.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
