Logitech Tap Wall Mount
PRODUCT DESCRIPTION
Logitech Tap Wall Mount (939-001817) - 2 Years Local Warranty
Logitech Tap Wall Mount — Space-Saving Wall Installation for Tap and Tap IP

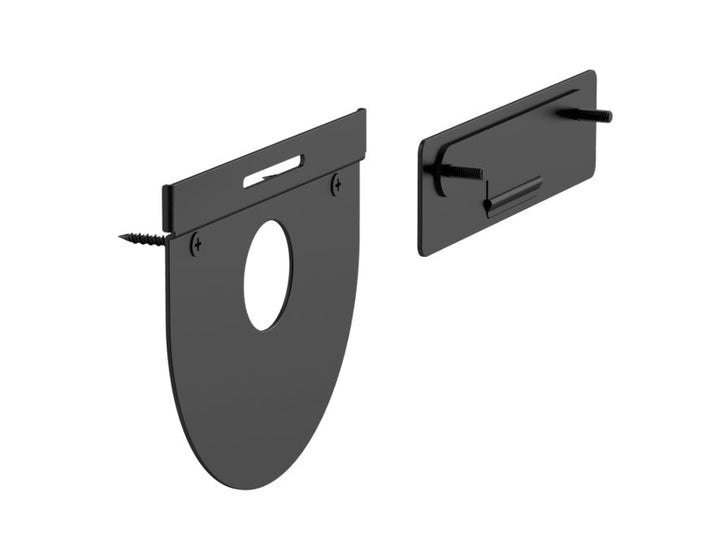

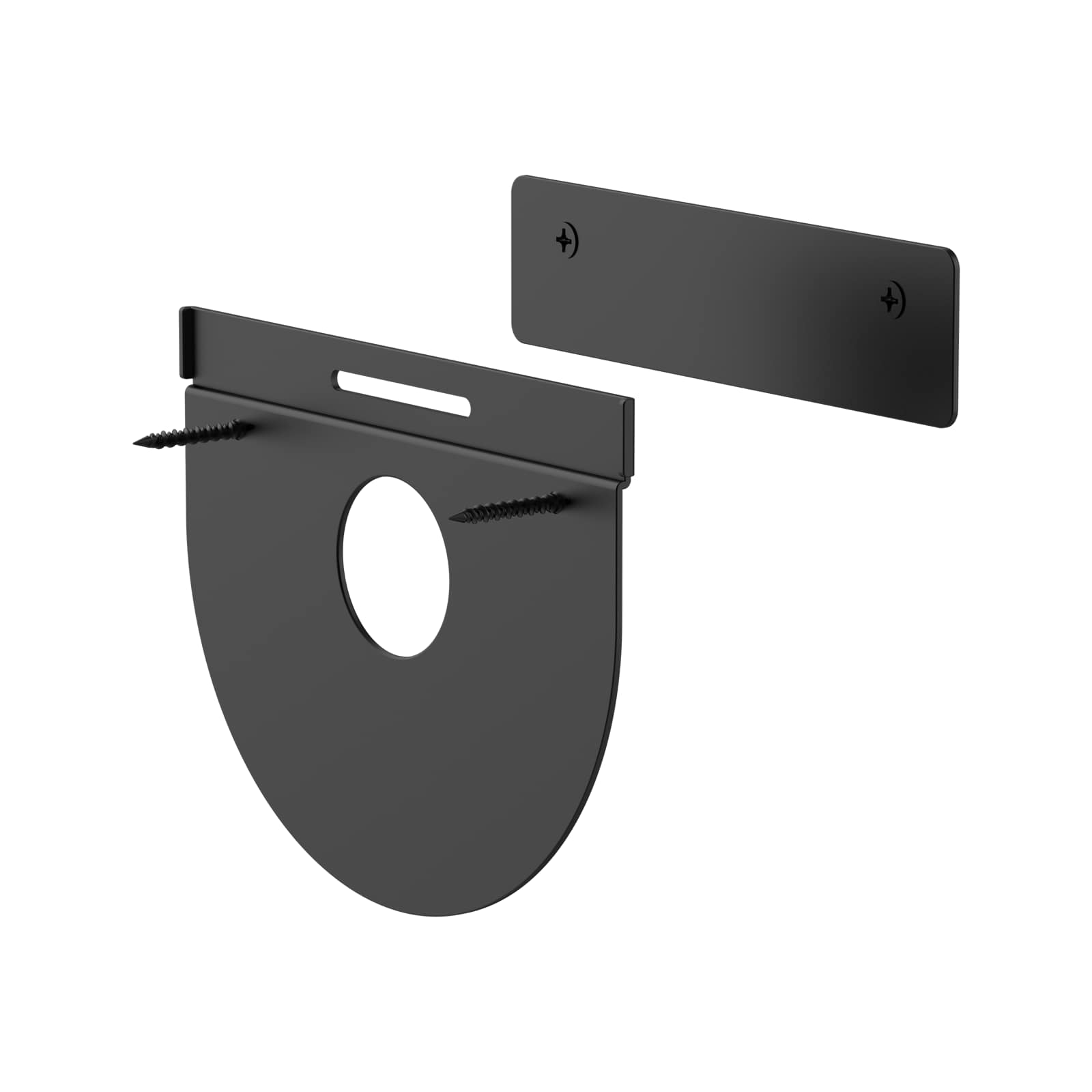

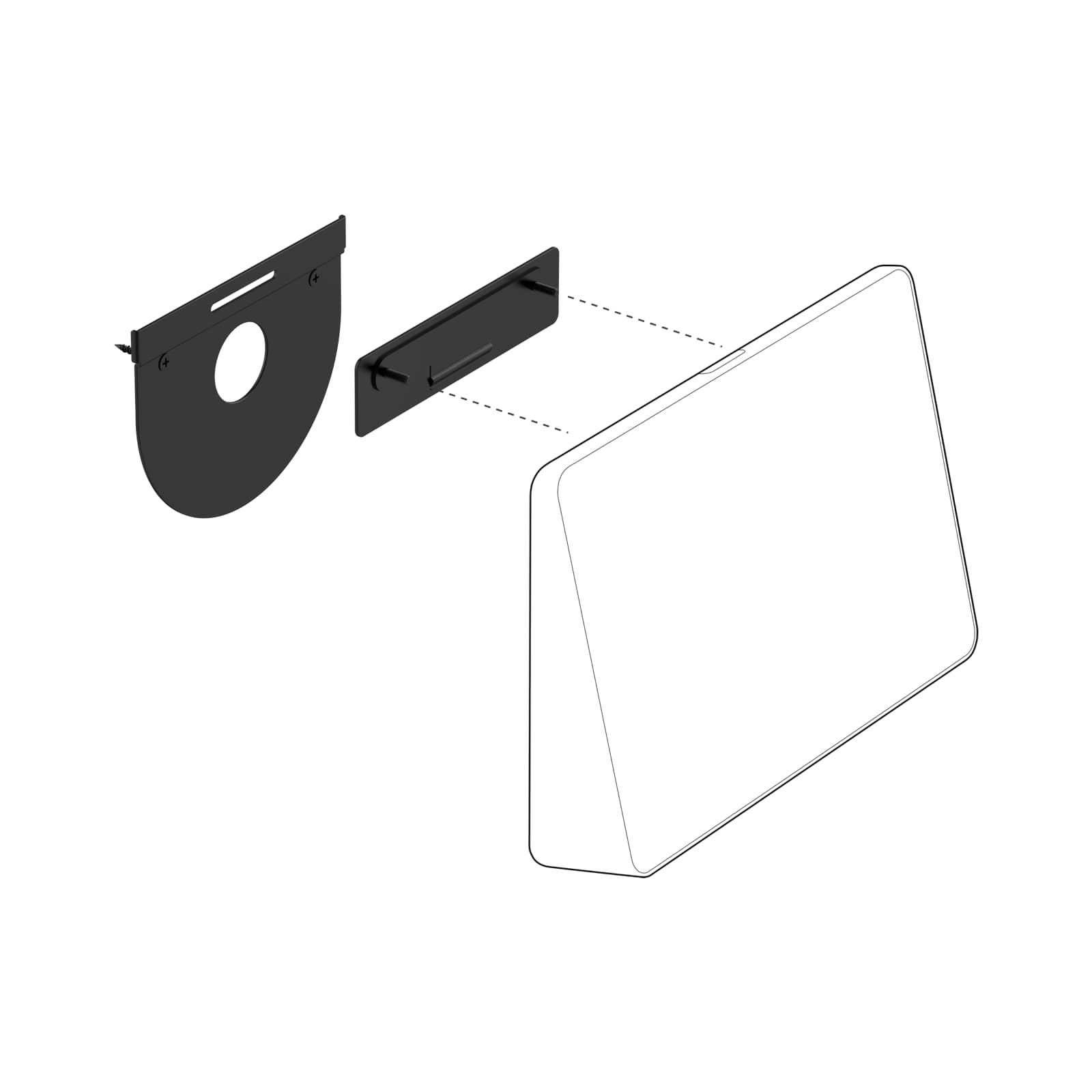

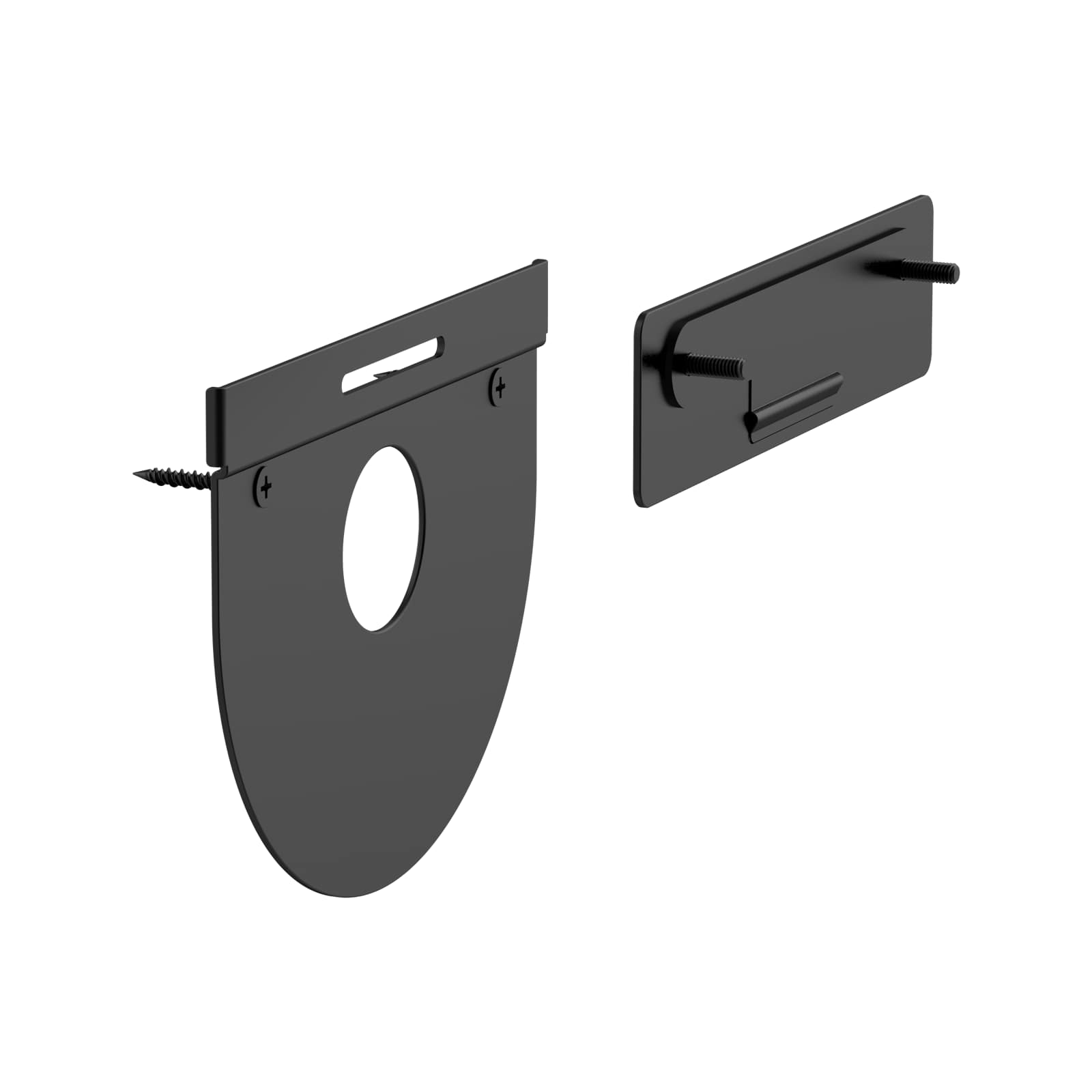

The Logitech Tap Wall Mount (939-001817) moves a Logitech Tap or Tap IP touch controller off the table and onto the wall, freeing up surface space in small rooms, huddle spaces and rooms where the table is regularly reconfigured. A sturdy plate-and-cleat construction holds the controller securely while keeping a 14° display angle for comfortable use.
In-Wall or Down-Wall Cabling with a Magnetic HDMI Cable Clip
The mount supports both in-wall and down-wall cable routing, so it suits new fit-outs with concealed conduit as well as retrofits. A magnetic HDMI cable clip and dock keeps a content-sharing cable neatly at hand beside the controller, ready for presenters to plug in.
Logitech Tap Wall Mount Datasheet — Technical Specifications
General
| Part Number | 939-001817 |
| Product series | Logitech Tap touch controller accessories |
| Compatibility | Logitech Tap, Logitech Tap IP |
| Warranty | 2 Years Local Warranty (Singapore) |
Mounting
| Construction | Plate and cleat |
| Display angle | 14° |
| Cable routing | In-wall or down-wall |
| Cable management | Magnetic HDMI cable clip and dock |
Dimensions
| Dimensions with Tap (H x W x D) | 58 x 244 x 179 mm (2.28 x 9.61 x 7.05 in) |
Compatibility & Installation
The Tap Wall Mount is designed for the Logitech touch controller family: Logitech Tap and Logitech Tap IP (Graphite or White). Both controllers share the same 100 x 100 mm VESA mounting pattern, so one mount standard covers USB-connected and network-connected rooms alike.
Mounting hardware is included. For table installations, choose the Logitech Tap Table Mount or the Logitech Tap Riser Mount (952-000080).
Package Contents & Tap Accessories Ordering Information
In the box: Wall Mount assembly (plate and cleat), magnetic HDMI cable clip and dock, mounting hardware and documentation.
Logitech Tap family at SourceIT:
| Model | Part Number |
| Logitech Tap (USB, with Cat5e connectivity) | 939-001950 |
| Logitech Tap IP — Graphite | 952-000085 |
| Logitech Tap IP — White | 952-000088 |
| Logitech Tap Table Mount | 939-001811 |
| Logitech Tap Riser Mount | 952-000080 |
| Logitech Tap Wall Mount (this listing) | 939-001817 |
| Cat5e Kit for Logitech Tap | 952-000019 |
| Logitech PoE Injector with Plug Set | 952-000074 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Tap Wall Mount
Is it compatible with Tap IP?
Yes. Logitech lists both Logitech Tap and Logitech Tap IP as compatible with the Wall Mount.
Can cables be hidden inside the wall?
Yes. The mount supports in-wall cable routing as well as down-wall routing along the wall surface.
What is the HDMI cable clip for?
The magnetic HDMI cable clip and dock holds a content-sharing HDMI cable beside the controller so presenters can find and connect it easily.
Is mounting hardware included?
Yes. The box contains the plate and cleat assembly, the magnetic HDMI cable clip and dock, mounting hardware and documentation.
Does it come with a local warranty?
Yes. Every Logitech Tap Wall Mount sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
