Logitech Tap Scheduler Angle Mount
PRODUCT DESCRIPTION
Logitech Tap Scheduler Angle Mount Graphite / Off-white (952-000126 / 952-000127) - 2 Years Local Warranty
Logitech Tap Scheduler Angle Mount — Tilt the Panel 14° for Easier Reading
The Logitech Tap Scheduler Angle Mount mounts Logitech Tap Scheduler at a comfortable 14° angle for viewing. It is designed for lower placements or angled viewing positions, where a panel mounted flat against the wall would be harder to read, so people can check the room schedule and book at a glance.
Reversible Interface in Graphite or Off-white

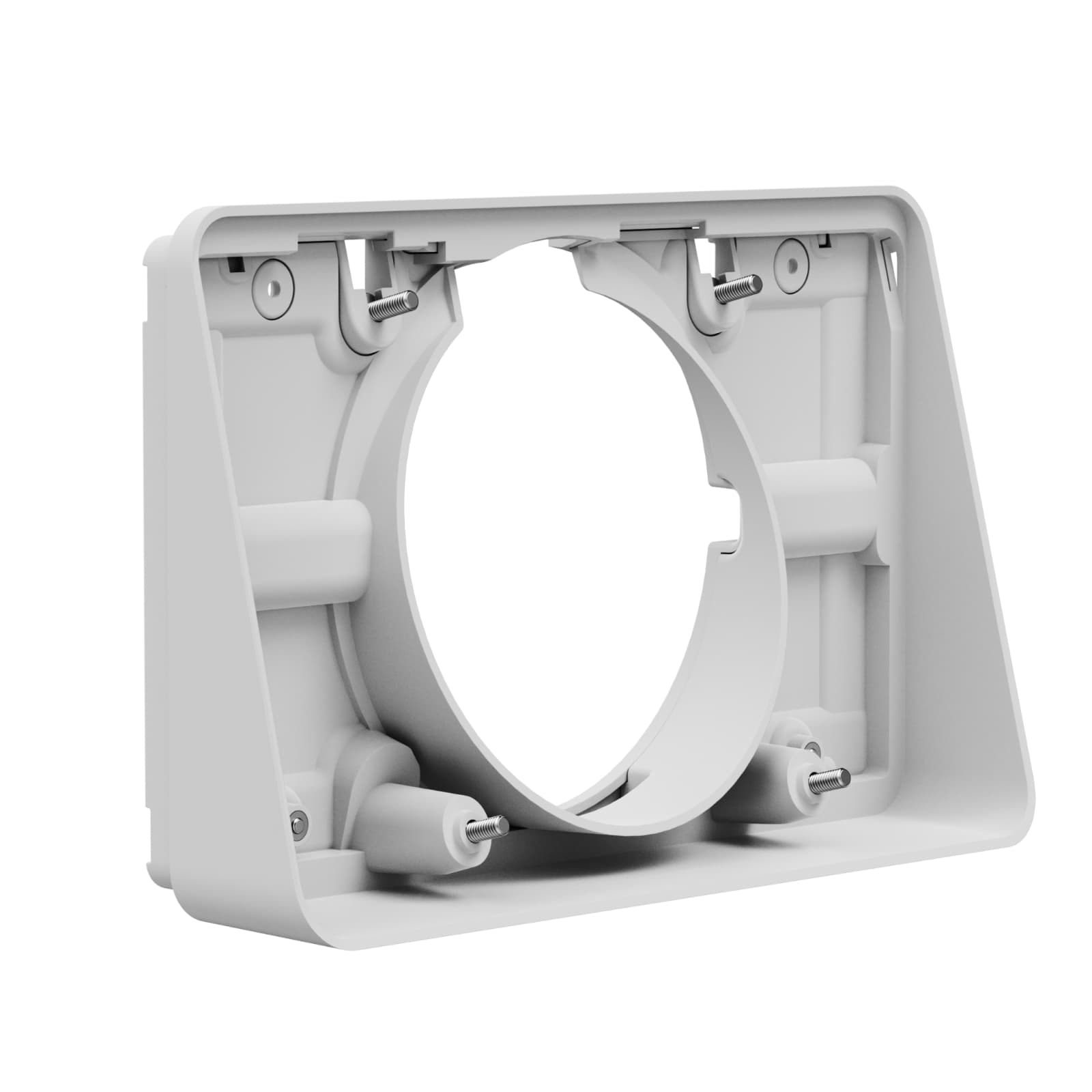

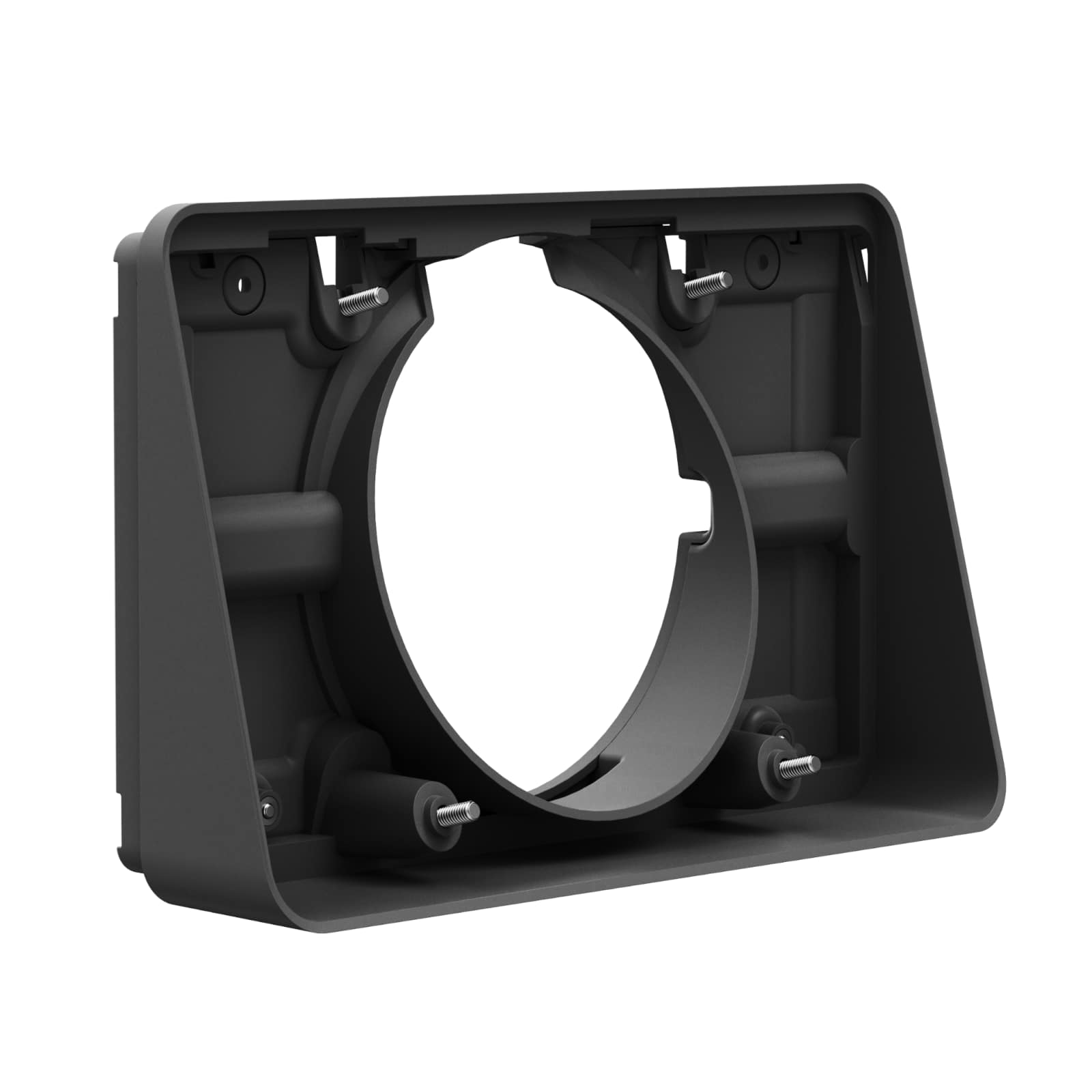

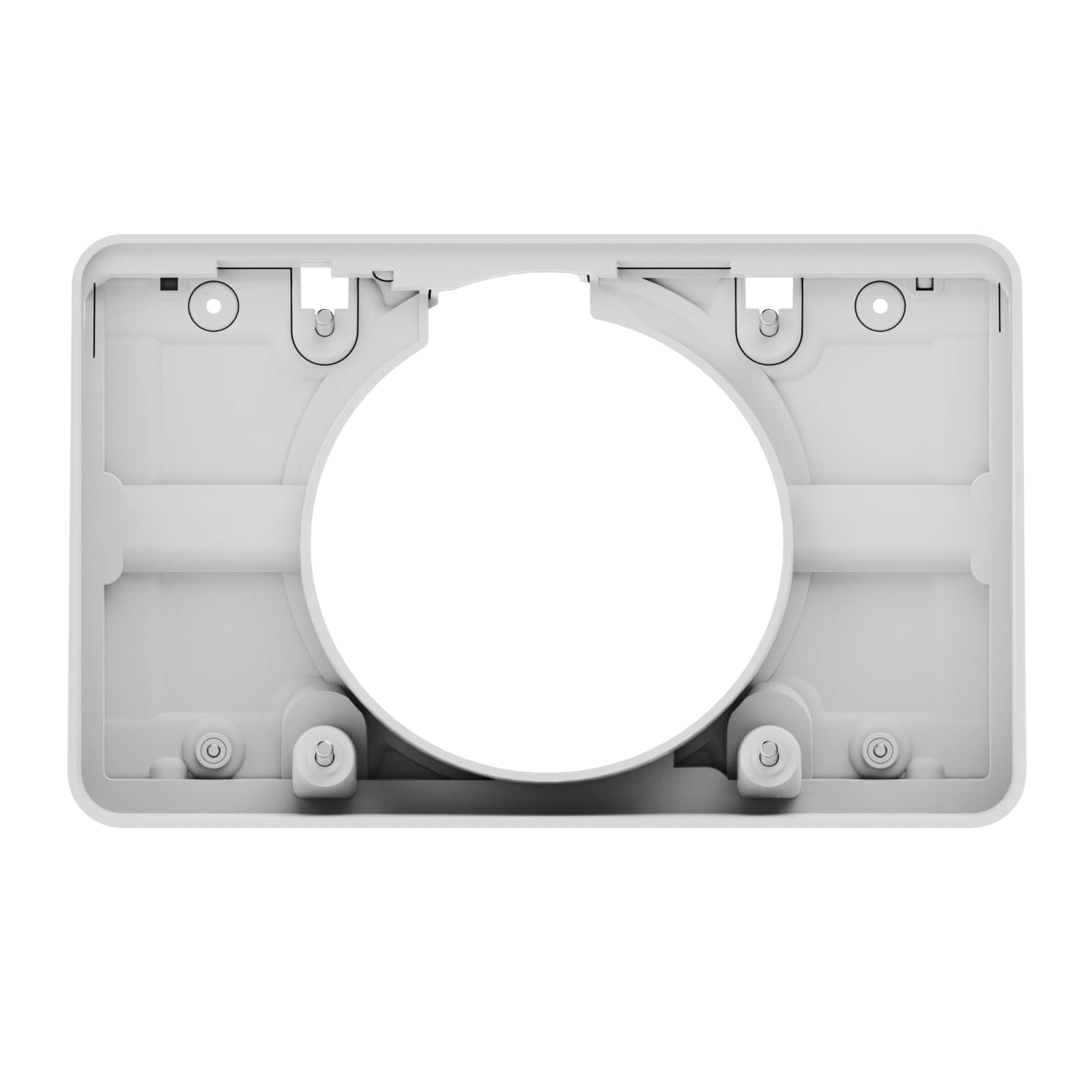

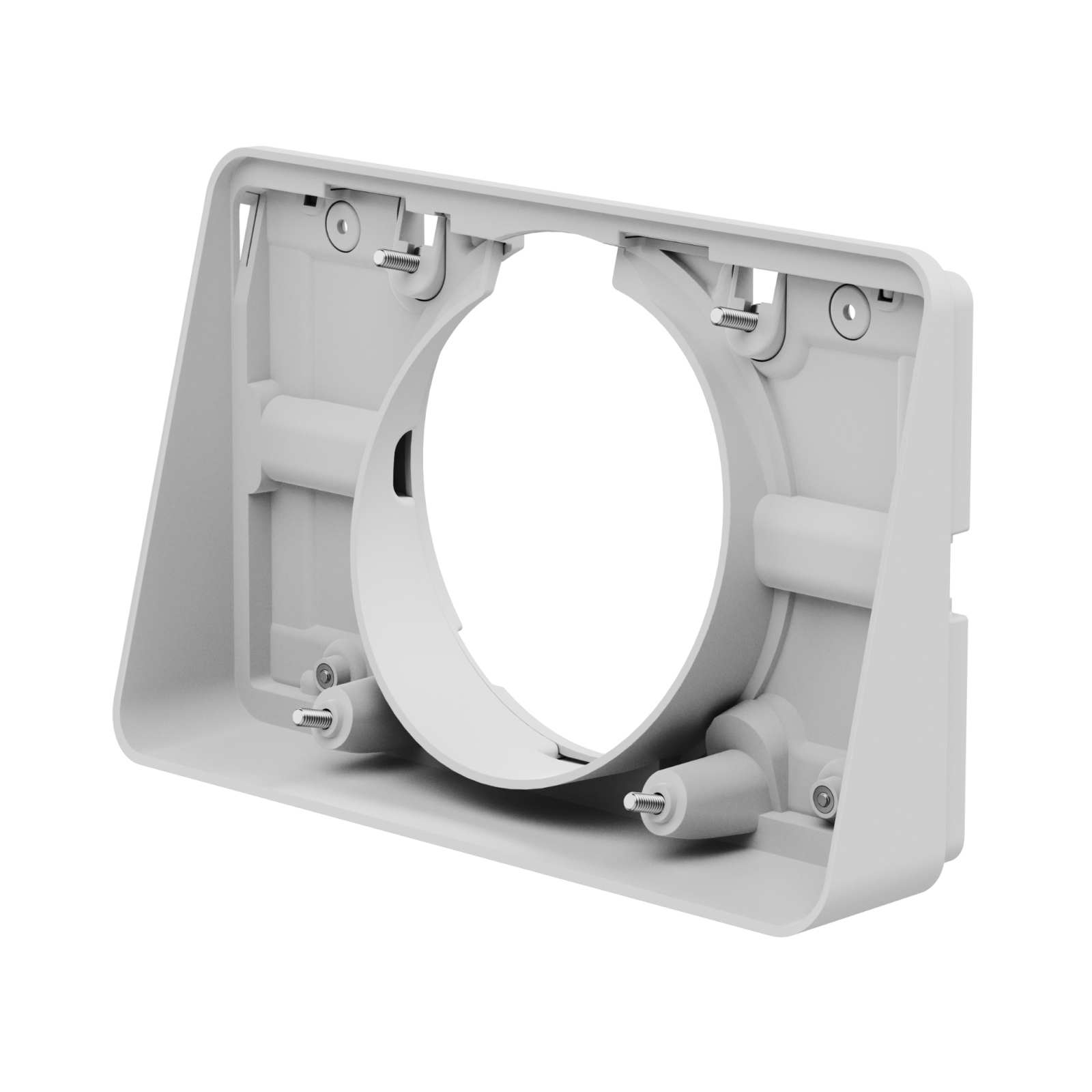

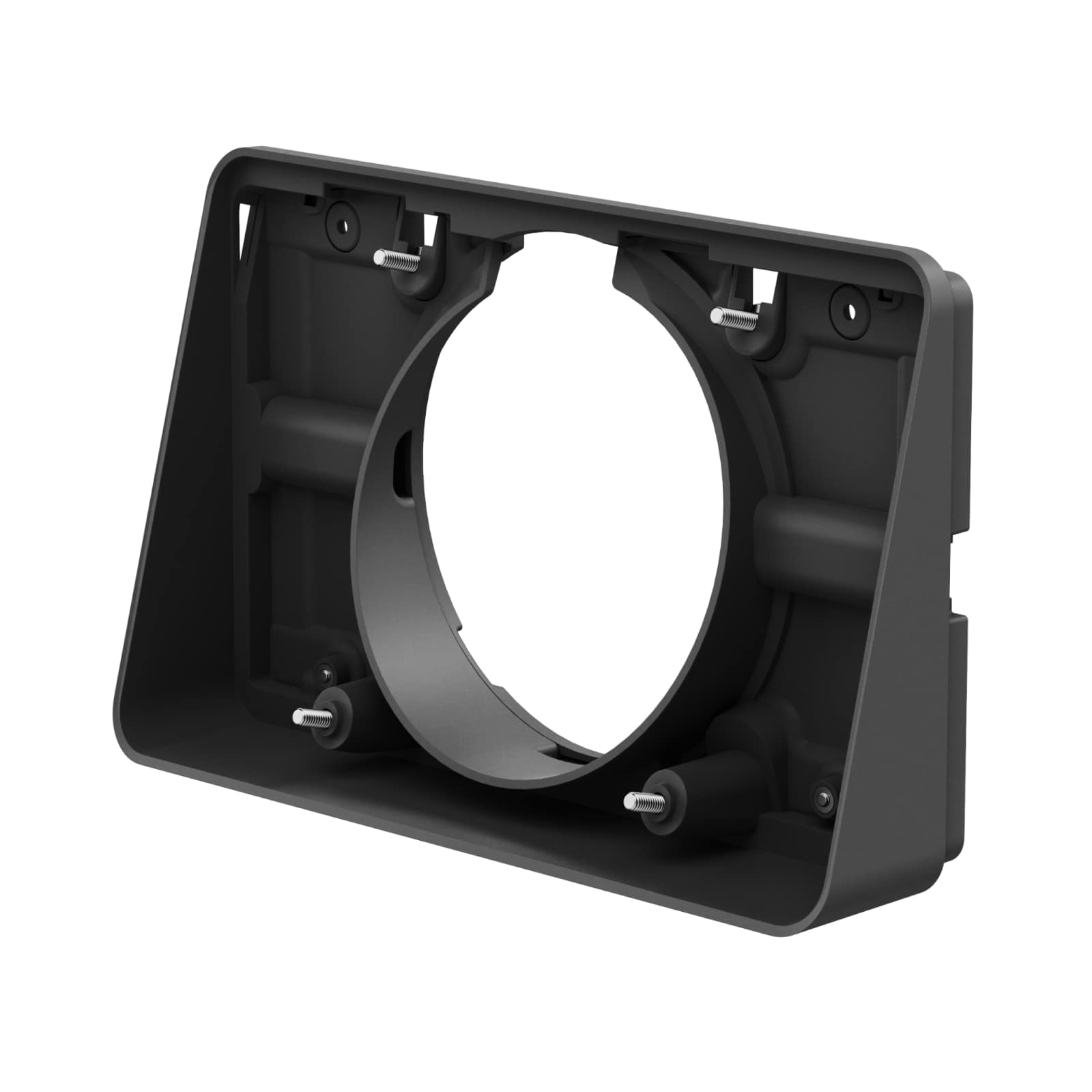

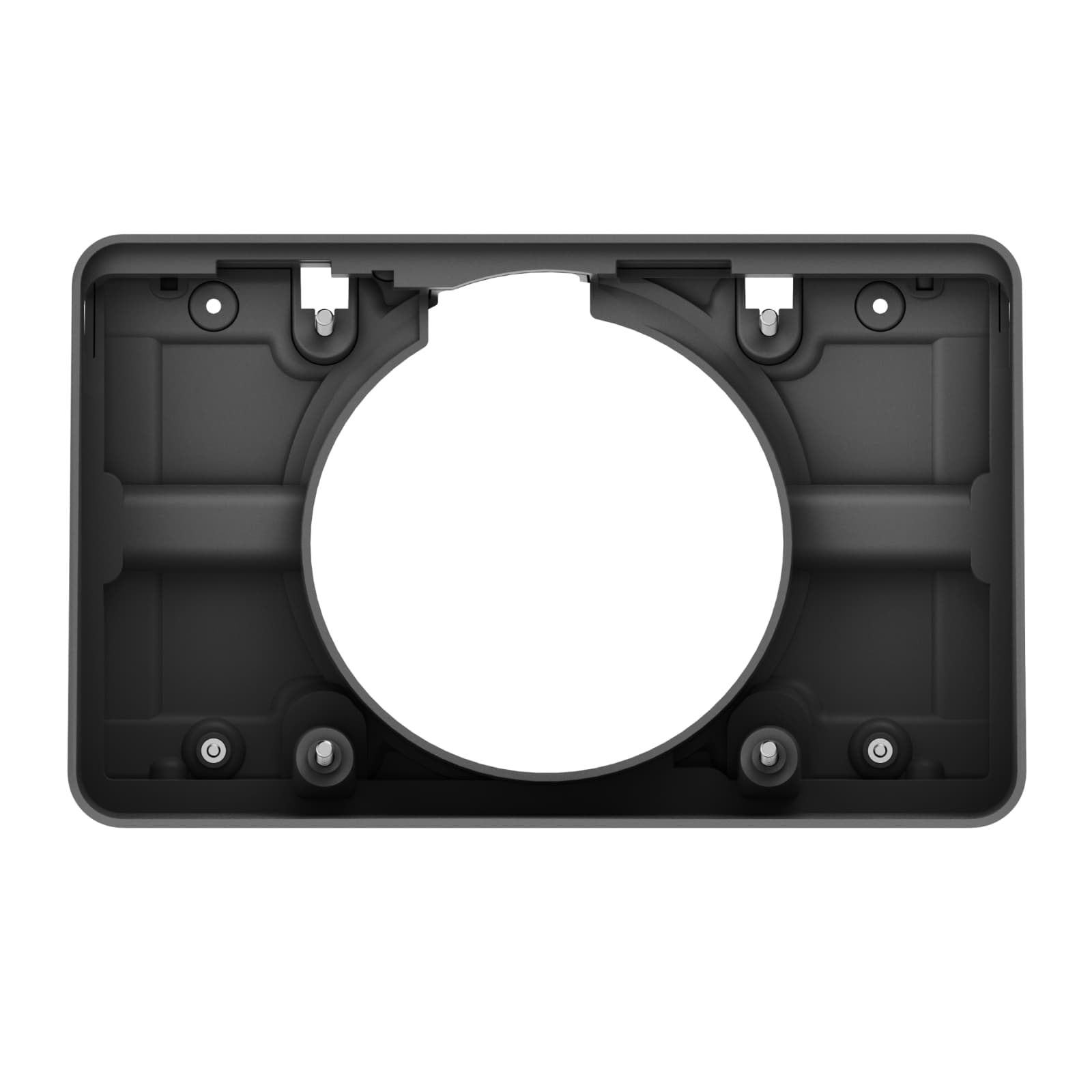

The mount combines an angle plinth with a reversible interface for installation flexibility, and is available in Graphite (952-000126) or Off-white (952-000127) to match a Graphite or White Tap Scheduler.
Logitech Tap Scheduler Angle Mount Datasheet — Technical Specifications
General
| Part Number | 952-000126 (Graphite), 952-000127 (Off-white) |
| Colour | Graphite or Off-white |
| Product series | Logitech Tap Scheduler accessories |
| Compatibility | Logitech Tap Scheduler |
| Warranty | 2 Years Local Warranty (Singapore) |
Angle Plinth
| Display angle | 14° |
| Dimensions (H x W x D) | 132.1 x 213.4 x 54.8 mm |
Reversible Interface
| Dimensions (H x W x D) | 121.7 x 208.1 x 10.5 mm |
Compatibility & Installation
The Angle Mount is made for Logitech Tap Scheduler (Graphite) and Logitech Tap Scheduler (White). Tap Scheduler itself sits flat on the mounting surface with its standard multi-surface, corner and mullion mounts; the Angle Mount adds a 14° tilt where the panel is mounted low or needs to be read from an angle.
Tap Scheduler is powered over a single Cat5e cable as an IEEE 802.3af device. Where no PoE switch port is available, use the Logitech PoE Injector with Plug Set.
Package Contents & Tap Scheduler Ordering Information
In the box: Angle plinth, reversible interface, mounting hardware and documentation.
Logitech Tap Scheduler family at SourceIT:
| Model | Part Number |
| Logitech Tap Scheduler Angle Mount — Graphite (this listing) | 952-000126 |
| Logitech Tap Scheduler Angle Mount — Off-white (this listing) | 952-000127 |
| Logitech Tap Scheduler — Graphite | 952-000091 |
| Logitech Tap Scheduler — White | 952-000094 |
| Logitech Tap IP — Graphite | 952-000085 |
| Logitech Tap IP — White | 952-000088 |
| Logitech PoE Injector with Plug Set | 952-000074 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Tap Scheduler Angle Mount
What does the Angle Mount do?
It holds Tap Scheduler at a 14° angle instead of flat against the wall, making the schedule easier to read in lower placements or when viewed from an angle.
Does it work with Tap IP or the original Tap?
No. Logitech lists Tap Scheduler as the only compatible device. For Tap and Tap IP, see the Table Mount, Riser Mount (952-000080) and Wall Mount.
Which colour should I choose?
Choose Graphite (952-000126) for a Graphite Tap Scheduler and Off-white (952-000127) for a White Tap Scheduler.
Is mounting hardware included?
Yes. The box contains the angle plinth, reversible interface, mounting hardware and documentation.
Does it come with a local warranty?
Yes. Every Logitech Tap Scheduler Angle Mount sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
