Logitech Tap Riser Mount
PRODUCT DESCRIPTION
Logitech Tap Riser Mount (952-000080) - 2 Years Local Warranty
Logitech Tap Riser Mount — Elevated 30° Swivel Mount for Tap and Tap IP

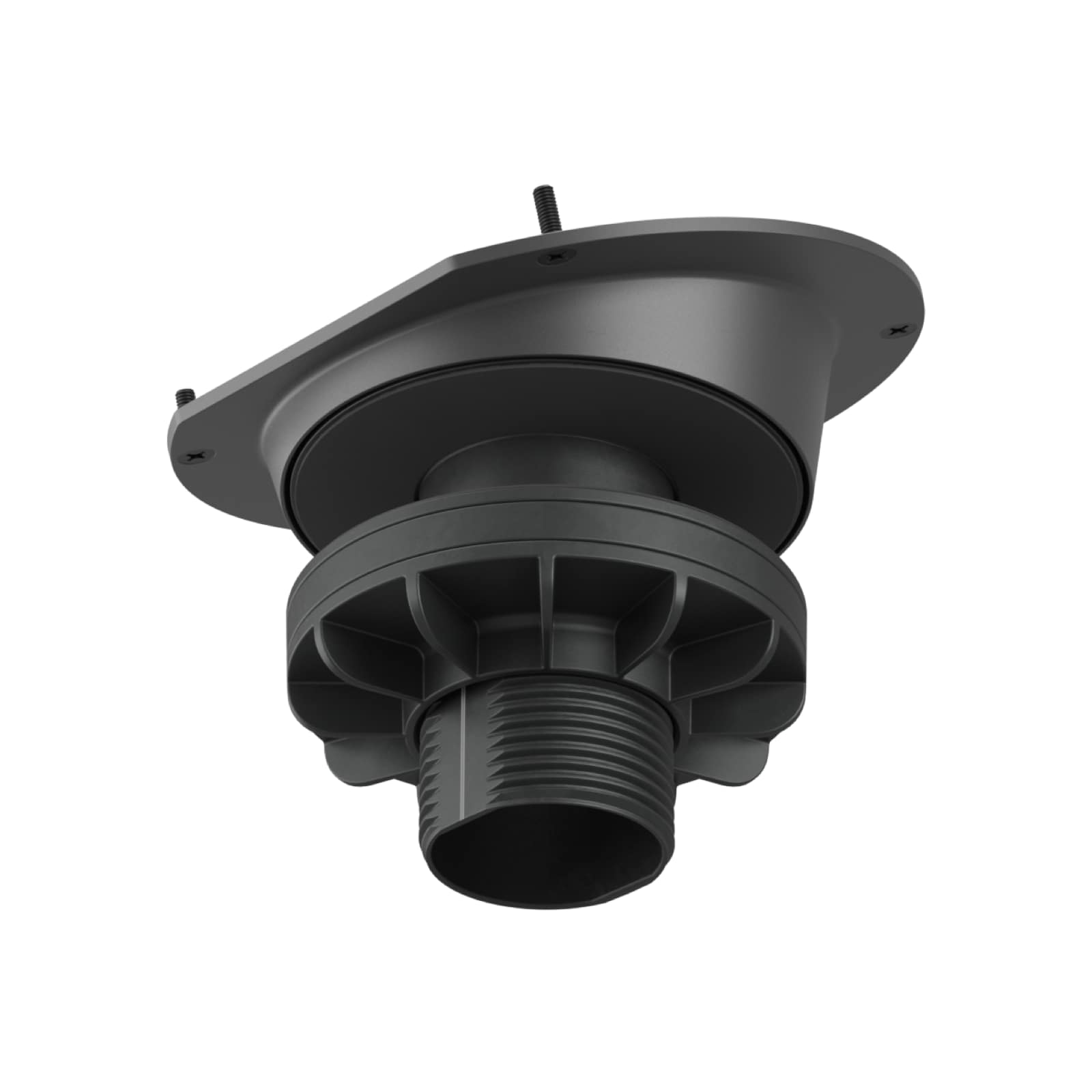

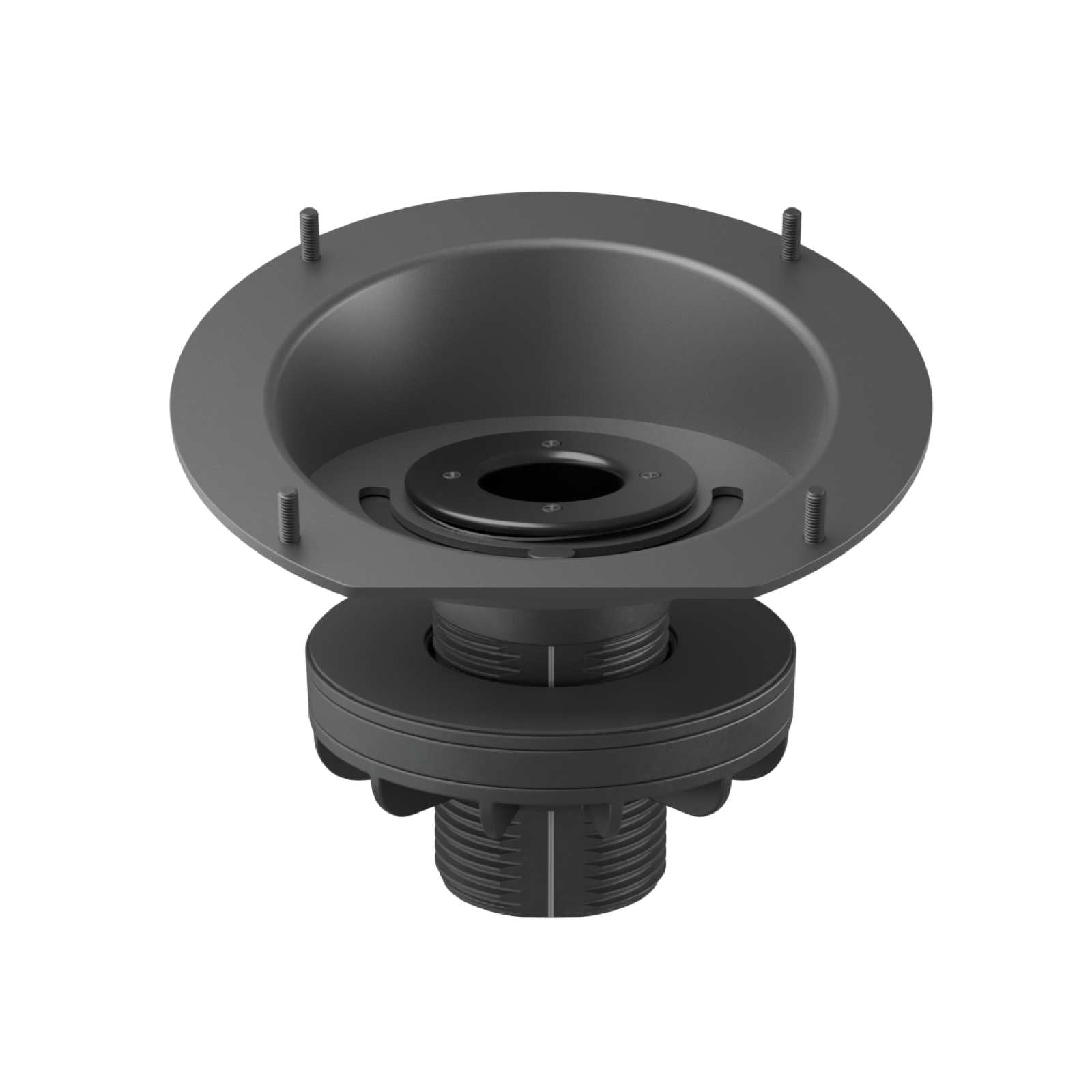

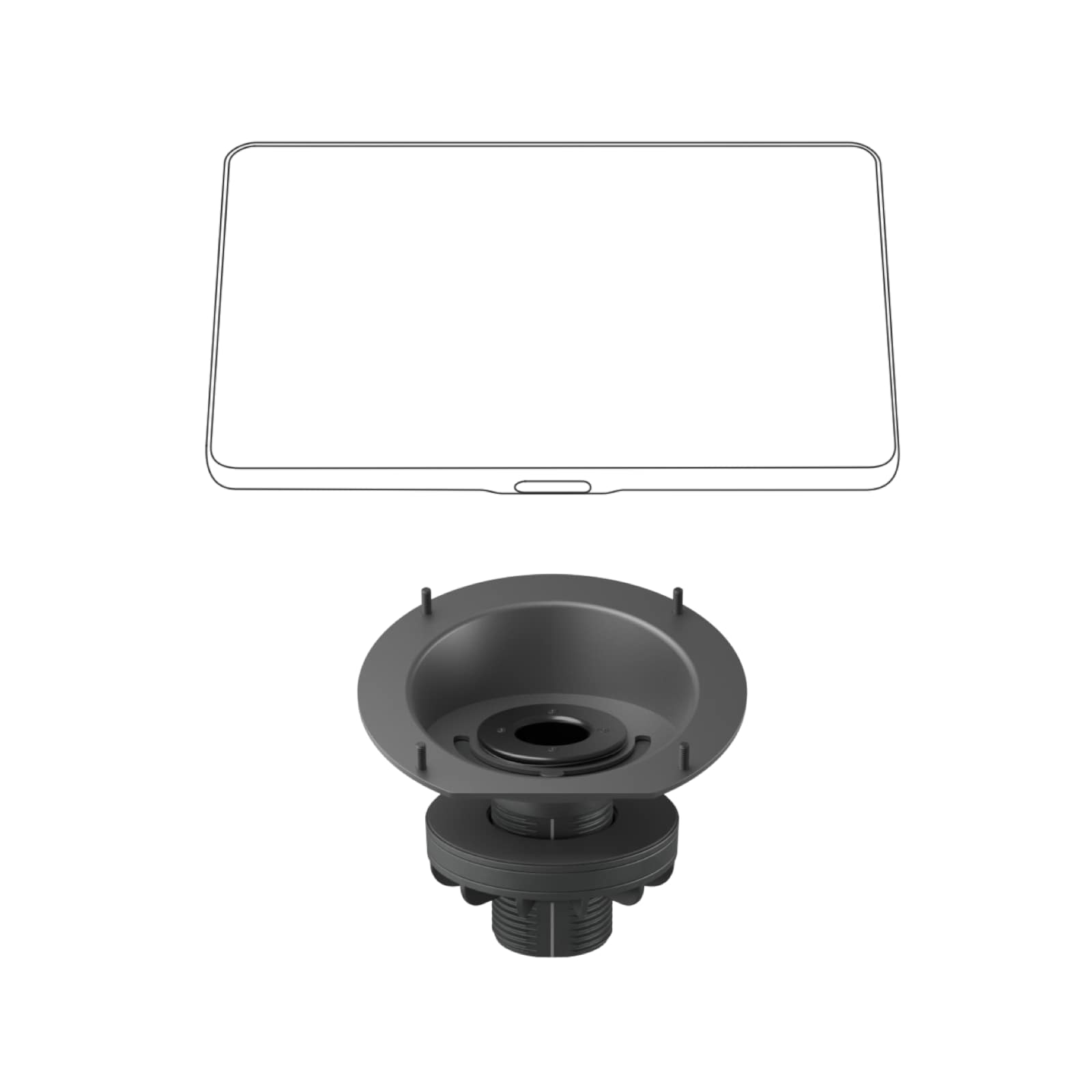

The Logitech Tap Riser Mount (952-000080) lifts a Logitech Tap or Tap IP touch controller to a 30° display angle, making the screen easier to read and operate in larger meeting rooms where people sit further from the controller. The mount swivels 180°, so the controller can be turned towards whoever is leading the meeting.
Secure Table Installation with Grommet Cable Routing
The Riser Mount fixes to table tops from 20 mm to 50 mm thick and through grommet holes from 51 mm to 89 mm in diameter. Cables route down through the grommet hole and are held by the included cable cinch for a clean, tamper-resistant installation.
Logitech Tap Riser Mount Datasheet — Technical Specifications
General
| Part Number | 952-000080 |
| Product series | Logitech Tap touch controller accessories |
| Compatibility | Logitech Tap, Logitech Tap IP |
| Warranty | 2 Years Local Warranty (Singapore) |
Mounting
| Display angle | 30° |
| Swivel | 180° |
| Table thickness | 20 – 50 mm (0.75 – 2.0 in) |
| Grommet hole diameter | 51 – 89 mm (2.0 – 3.5 in) |
| Cable management | Down-routing through the grommet hole, cable cinch included |
Dimensions
| Dimensions with Tap (H x W x D) | 102 x 244 x 174 mm (4.01 x 9.6 x 6.9 in) |
Compatibility & Installation
The Tap Riser Mount is designed for the Logitech touch controller family: Logitech Tap and Logitech Tap IP (Graphite or White). Both controllers share the same 100 x 100 mm VESA mounting pattern, so one mount standard covers USB-connected and network-connected rooms alike.
Where a lower profile is preferred, the Logitech Tap Table Mount keeps the controller at its standard 14° angle with the same 180° swivel. For wall installations, choose the Logitech Tap Wall Mount.
Package Contents & Tap Accessories Ordering Information
In the box: Riser Mount assembly, cable cinch and documentation.
Logitech Tap family at SourceIT:
| Model | Part Number |
| Logitech Tap (USB, with Cat5e connectivity) | 939-001950 |
| Logitech Tap IP — Graphite | 952-000085 |
| Logitech Tap IP — White | 952-000088 |
| Logitech Tap Table Mount | 939-001811 |
| Logitech Tap Riser Mount (this listing) | 952-000080 |
| Logitech Tap Wall Mount | 939-001817 |
| Cat5e Kit for Logitech Tap | 952-000019 |
| Logitech PoE Injector with Plug Set | 952-000074 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Tap Riser Mount
When should I choose the Riser Mount instead of the Table Mount?
Choose the Riser Mount for larger rooms where a steeper 30° display angle improves visibility. The Table Mount keeps a low profile at 14°. Both swivel 180°.
Does it work with Tap IP?
Yes. Logitech lists both Logitech Tap IP and Logitech Tap as compatible with the Riser Mount.
What table thickness does it support?
Table tops from 20 mm to 50 mm thick, installed through a grommet hole of 51 mm to 89 mm in diameter.
How tall is it with the controller fitted?
With Tap installed the assembly measures 102 mm high, 244 mm wide and 174 mm deep.
Does it come with a local warranty?
Yes. Every Logitech Tap Riser Mount sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
