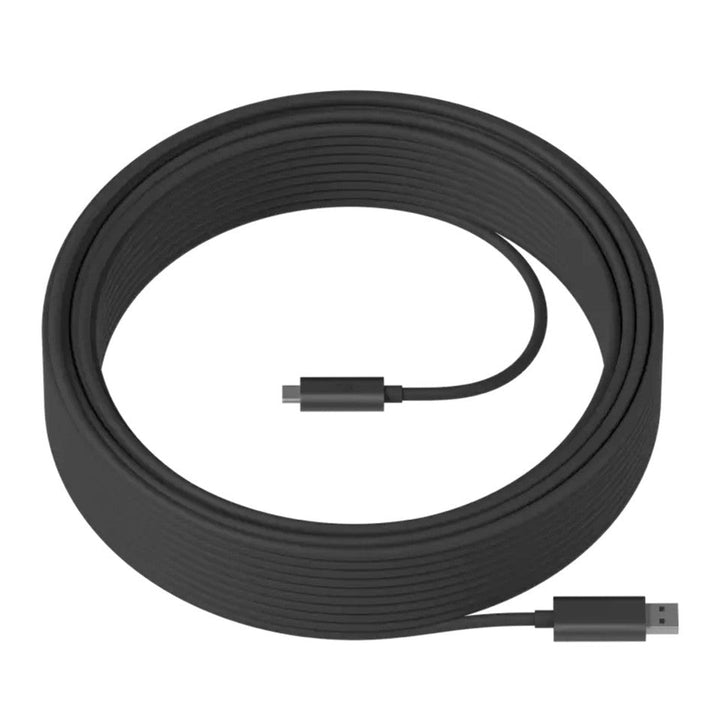

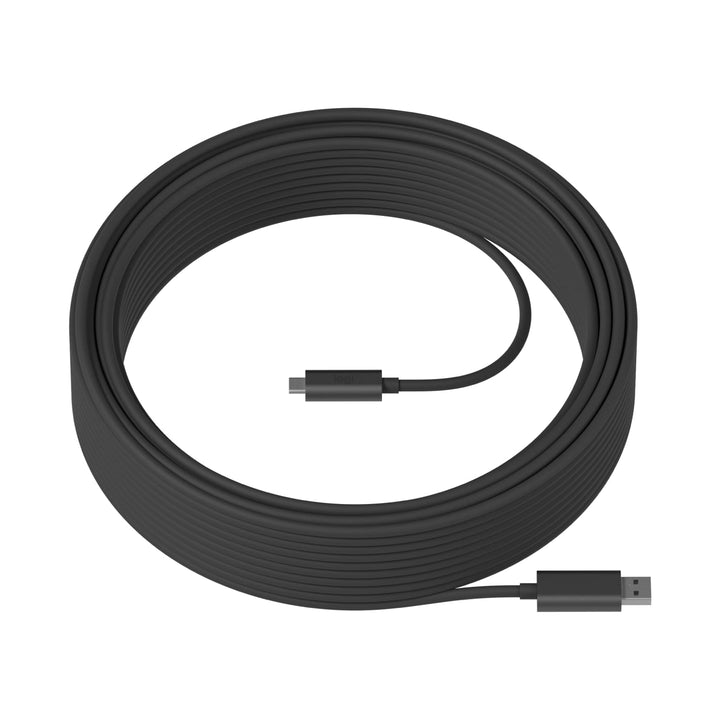

Logitech Strong USB Cable 25m USB-A to USB-C Active Optical 10Gbps
PRODUCT DESCRIPTION
Logitech Strong USB Cable 25m (939-001802) - 2 Years Local Warranty
Logitech Strong USB 25m — SuperSpeed USB 10 Gbps Over Long Distances
Logitech Strong USB (939-001802) is a 25 m (82 ft) USB 3.2 Gen 2 active optical cable, USB Type-A (male) to USB Type-C (male), built for meeting rooms where the camera or USB hub sits well away from the room PC. It lets you place a self-powered USB device or a USB hub with its own power supply at a significant distance from the host computer while keeping SuperSpeed USB 10 Gbps throughput.
Built for Commercial Installations
With 200 newtons of tensile strength and a 1000 kg crush load, Strong USB stands up to commercial deployments. It is plenum rated, Eca / IEC 60332-1-2 compliant, and fits through conduit as narrow as ¾" (19 mm) with a minimum dynamic bend radius of 25 mm, so it can be run through ceilings, walls and floor boxes for a clean room installation.
Fast and Backward Compatible
Strong USB delivers up to 10 Gbps for devices with their own power supplies and is backward compatible with USB 2.0, 3.0, 3.1 and 3.2 ports. Logitech lists it for use with Logitech Tap, Logitech MeetUp and Logitech Rally Camera, and a 152 mm (6 in) USB Type-C pigtail extension is included in the box.
Logitech Strong USB 25m Datasheet — Technical Specifications
General
| Part Number | 939-001802 |
| Product series | Logitech Strong USB active optical cable |
| Length | 25 m (82 ft) |
| Compatibility | Self-powered USB devices and USB hubs with external power supplies; Logitech Tap, MeetUp and Rally Camera |
| Warranty | 2 Years Local Warranty (Singapore) |
Cable
| Cable type | USB 3.2 Gen 2 active optical cable |
| Connectors | USB Type-A (male) to USB Type-C (male) |
| Throughput | SuperSpeed USB 10 Gbps |
| USB compatibility | USB 2.0, 3.0, 3.1 and 3.2 ports |
| Power delivery | Does not carry power to bus-powered devices |
| Included extension | 152 mm (6 in) USB Type-C pigtail extension |
Installation & Ratings
| Tensile strength | 200 N |
| Crush load | 1000 kg |
| Dynamic bend radius (min.) | 25 mm (0.98 in) |
| Conduit diameter (min.) | 19 mm (¾ in) |
| Sheath | Aramid-reinforced |
| Fire rating | Plenum rated; Eca / IEC 60332-1-2 compliant |
Compatibility & Power Requirements
Strong USB is designed for self-powered USB devices and USB hubs that have their own external power supply. Because it is an optical cable it does not carry power, so it is not suitable for bus-powered devices such as Logitech BRIO or other webcams that draw power from the USB port.
Logitech lists the following room products as compatible: Logitech Tap, Logitech MeetUp and Logitech Rally Camera. In a Logitech Rally system, the connection between the Rally Camera and the Display Hub can be extended with Strong USB — Logitech advises against using other USB cables for this extension because they will not meet the system requirements.
Package Contents & Strong USB Ordering Information
In the box: Logitech Strong USB cable (25 m), USB Type-C pigtail extension (152 mm / 6 in) and documentation.
Logitech Strong USB lengths at SourceIT:
| Model | Part Number |
| Logitech Strong USB Cable 10m | 939-001799 |
| Logitech Strong USB Cable 25m (this listing) | 939-001802 |
| Logitech Strong USB Cable 45m | 939-001805 |
| Logitech Rally Camera | 960-001226 |
| Logitech Rally Video Conferencing System | 960-001237 |
| Logitech Tap Meeting Room Touch Controller | 939-001950 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Strong USB 25m
Will Strong USB power my webcam or camera?
No. Strong USB is an active optical cable and does not deliver power to bus-powered devices. Use it with self-powered devices or USB hubs that have their own power supply — Logitech notes it is not compatible with Logitech BRIO and other bus-powered webcams.
Can I use it to extend the Rally Camera from the Display Hub?
Yes. Logitech specifies Strong USB for extending the connection between the Rally Camera and the Display Hub, and recommends against using other USB cables for this run.
Can it be run through conduit or ceiling spaces?
Yes. It is plenum rated and Eca / IEC 60332-1-2 compliant, passes through conduit from ¾" (19 mm) and has a minimum dynamic bend radius of 25 mm.
Which lengths are available?
Strong USB comes in 10 m, 25 m and 45 m lengths only. Choose the shortest length that covers your cable route.
Does it come with a local warranty?
Yes. Every Logitech Strong USB Cable sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
