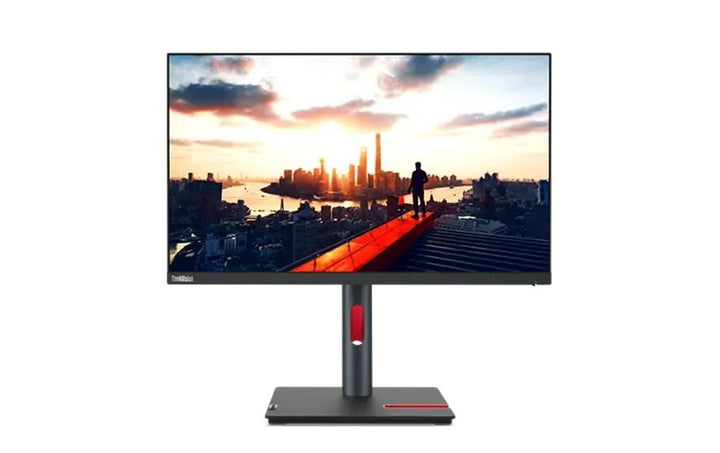

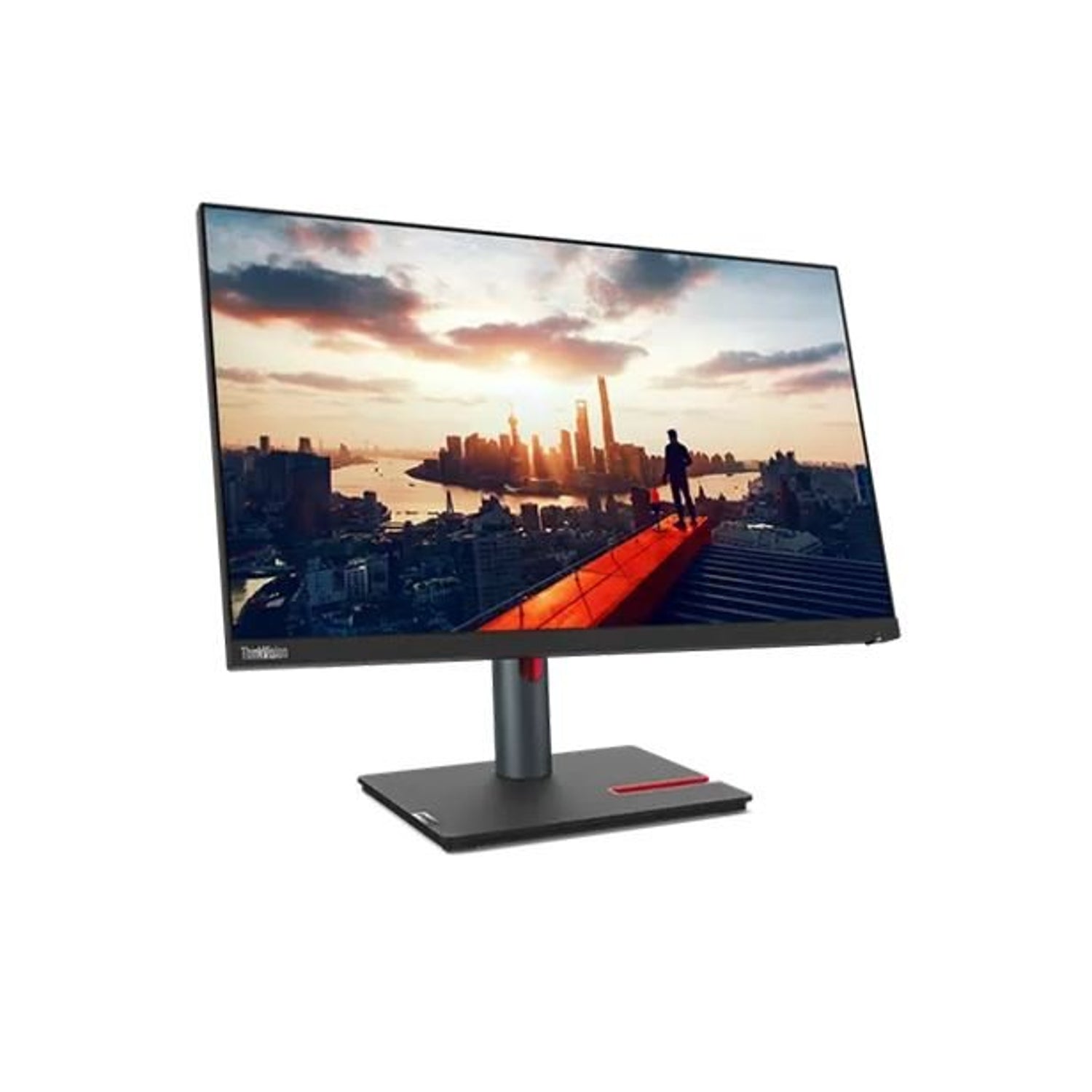

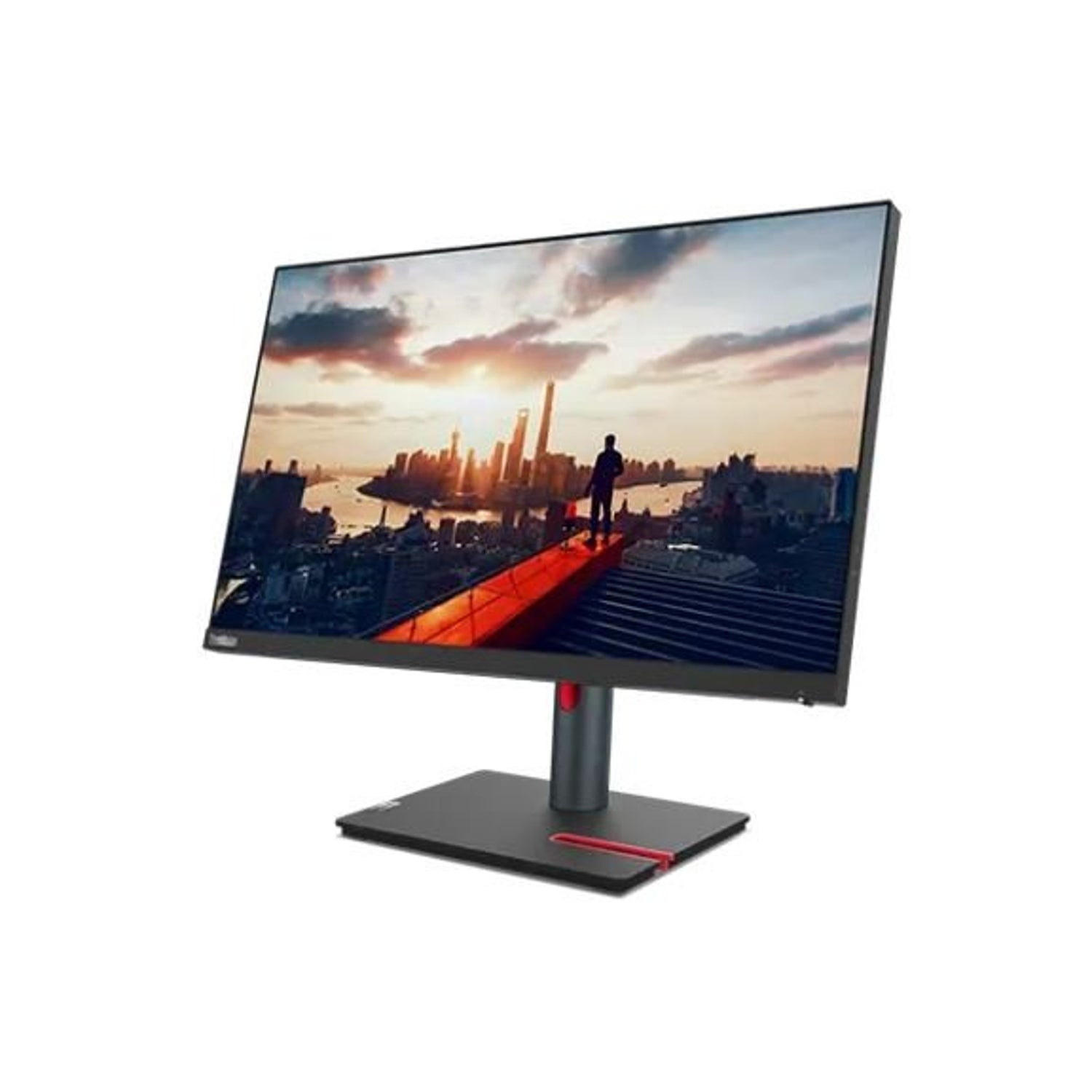

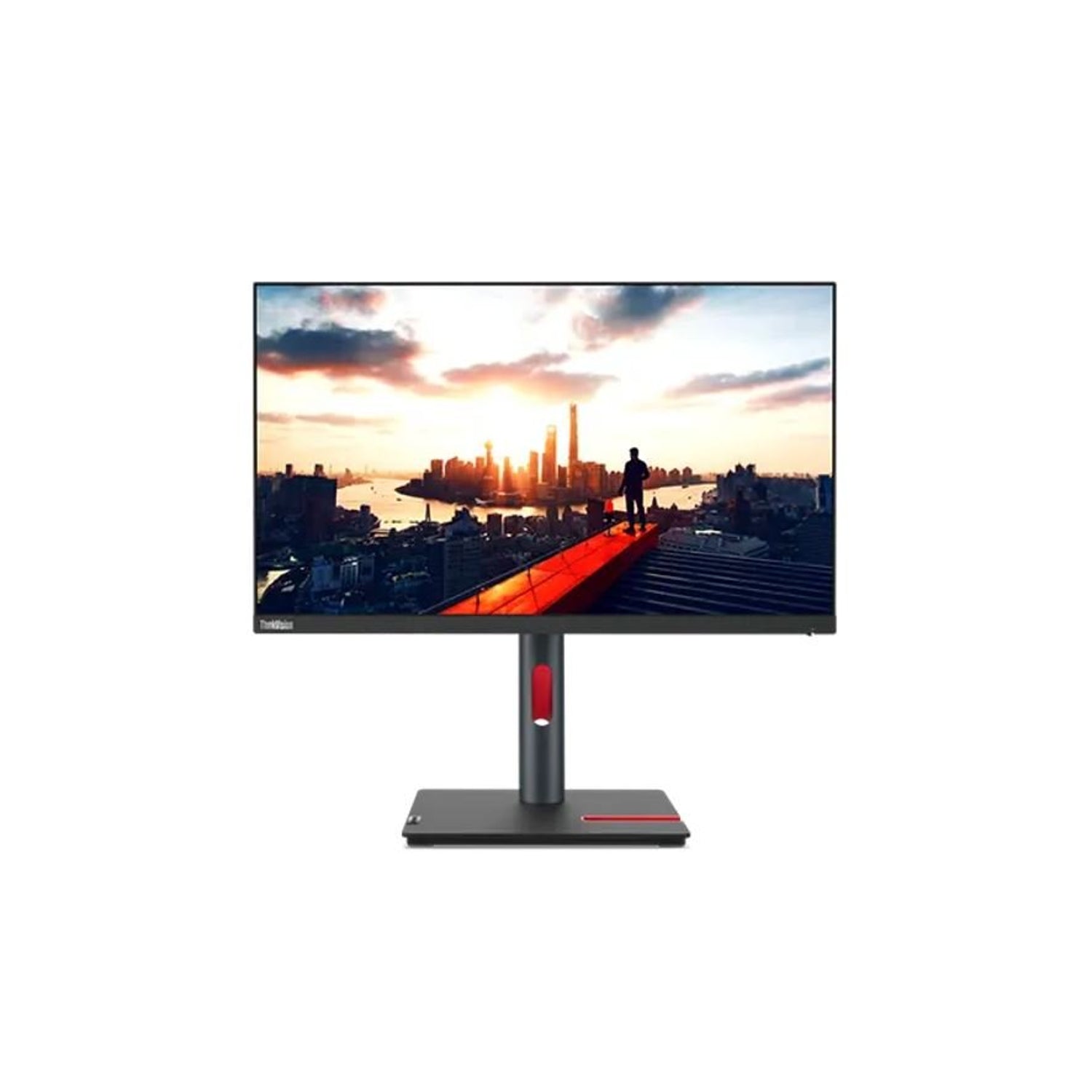

Lenovo ThinkVision P24h-30 23.8-inch Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision P24h-30 (63B3GAR6WW) - 3 Years Local Warranty
A Docking Monitor: One USB-C Cable for Video, Data, Ethernet and 100 W Charging
The ThinkVision P24h-30 is not simply a better panel than the E-series — it is a different class of product. Its USB-C 3.2 Gen 1 port with DisplayPort Alt Mode and up to 100 W Power Delivery carries video, data and laptop charging down a single cable. A user arrives, plugs in one connector, and has display, network, peripherals and power.
Gigabit Ethernet With MAPT, PXE and Wake-on-LAN
The built-in RJ-45 gigabit ethernet supports MAC address pass-through, PXE boot and Wake-on-LAN. Those three acronyms are why IT departments specify this monitor: a docked laptop can be imaged, woken and identified on the network exactly as a desktop would be, without a separate dock.
Four USB Ports, DisplayPort Out for Daisy Chaining, and Delta E Under 2
A 4-port USB 3.2 Gen 1 hub (one with BC 1.2 fast charge) handles keyboard, mouse, headset and storage. A DisplayPort out daisy-chains a second QHD monitor from the same cable. And the panel is factory calibrated to an average Delta E under 2 with HDR10 support — a genuine colour claim the E-series does not make.
One Honest Caveat: 60 Hz
This panel runs at 60 Hz, where the cheaper E-series models here run at 100 Hz. If smooth scrolling matters more to you than docking, ethernet and colour accuracy, the E-series is the better buy. If a single-cable desk and fleet manageability matter more, this is the model — and it is worth knowing the trade-off before ordering rather than after.
Specification note. Every figure on this page is taken from Lenovo's PSREF specification sheet for the ThinkVision P24h-30. Lenovo publishes monitor specifications per model; part numbers carry a regional suffix (WW, MY and others) which governs market, packaging and supplied mains cord rather than panel or port specification, though Lenovo does not publish an explicit statement to that effect — so if the exact in-box contents or plug type matter to you, ask us to confirm before ordering. Where Lenovo publishes no figure for a specification, this page says so rather than estimating one. Specifications and prices are subject to change by Lenovo without notice.
Lenovo ThinkVision P24h-30 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision P24h-30 |
| Part Number | 63B3GAR6WW |
| Machine Type | 63B3 |
| Colour | Raven black |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 23.8" |
| Panel Type | 3-side NearEdgeless In-Plane Switching (IPS), WLED backlight |
| Resolution | 2560 x 1440 (QHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60 Hz |
| Response Time | 4 ms (Extreme) / 6 ms (Normal) |
| Brightness | 300 nits |
| Contrast Ratio | 1000:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB and 99% BT.709 coverage; 111% sRGB colour area ratio |
| Factory Calibration | Average Delta E < 2; Lenovo ThinkColour software for further adjustment |
| HDR | HDR10 compliant |
| Colour Depth | 8-bit (6-bit + FRC) |
| Viewing Angles | 178° / 178° |
| Surface | Anti-glare |
Connectivity
| USB-C | 1x USB-C 3.2 Gen 1, DisplayPort 1.4 Alt Mode, up to 100 W Power Delivery, USB upstream |
| Video Inputs | 1x HDMI 2.1 TMDS (2560x1440 @ 60 Hz); 1x DisplayPort 1.4 in |
| Video Output | 1x DisplayPort out — daisy chain up to two QHD monitors |
| USB Hub | 4x USB 3.2 Gen 1 downstream, one with BC 1.2 fast charge |
| Ethernet | 1x RJ-45 gigabit (10M / 100M / 1000M), with MAPT, PXE boot and Wake-on-LAN |
| Audio Out | 1x 3.5 mm |
| Speakers | None — optional MS30 Monitor Soundbar sold separately |
| KVM | Not published by Lenovo for this model |
| Cables Supplied | DisplayPort cable (1.8 m); USB-C to USB-C cable (1.8 m); USB-C to USB-A cable (1.8 m); power cable (1.8 m) — no HDMI cable included |

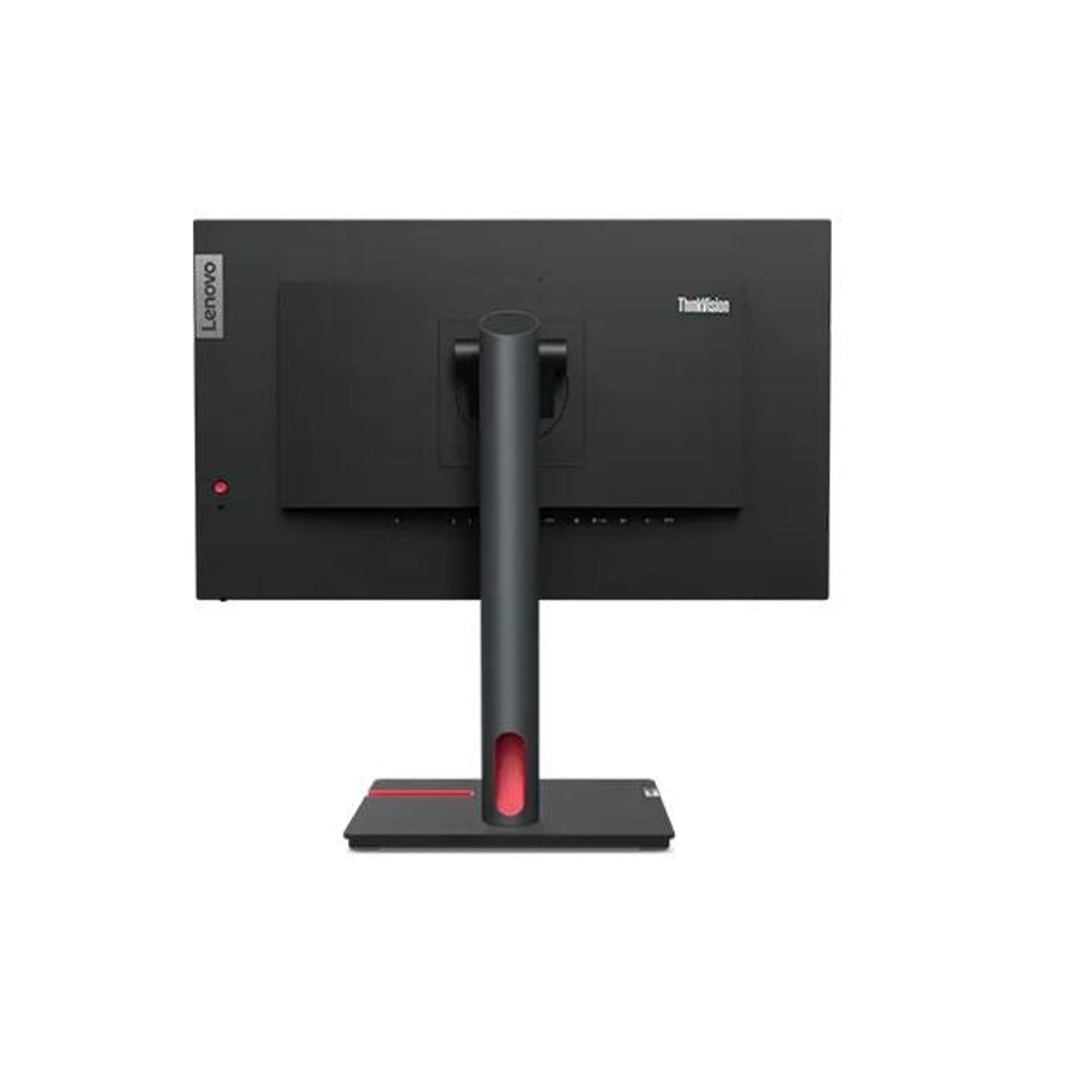

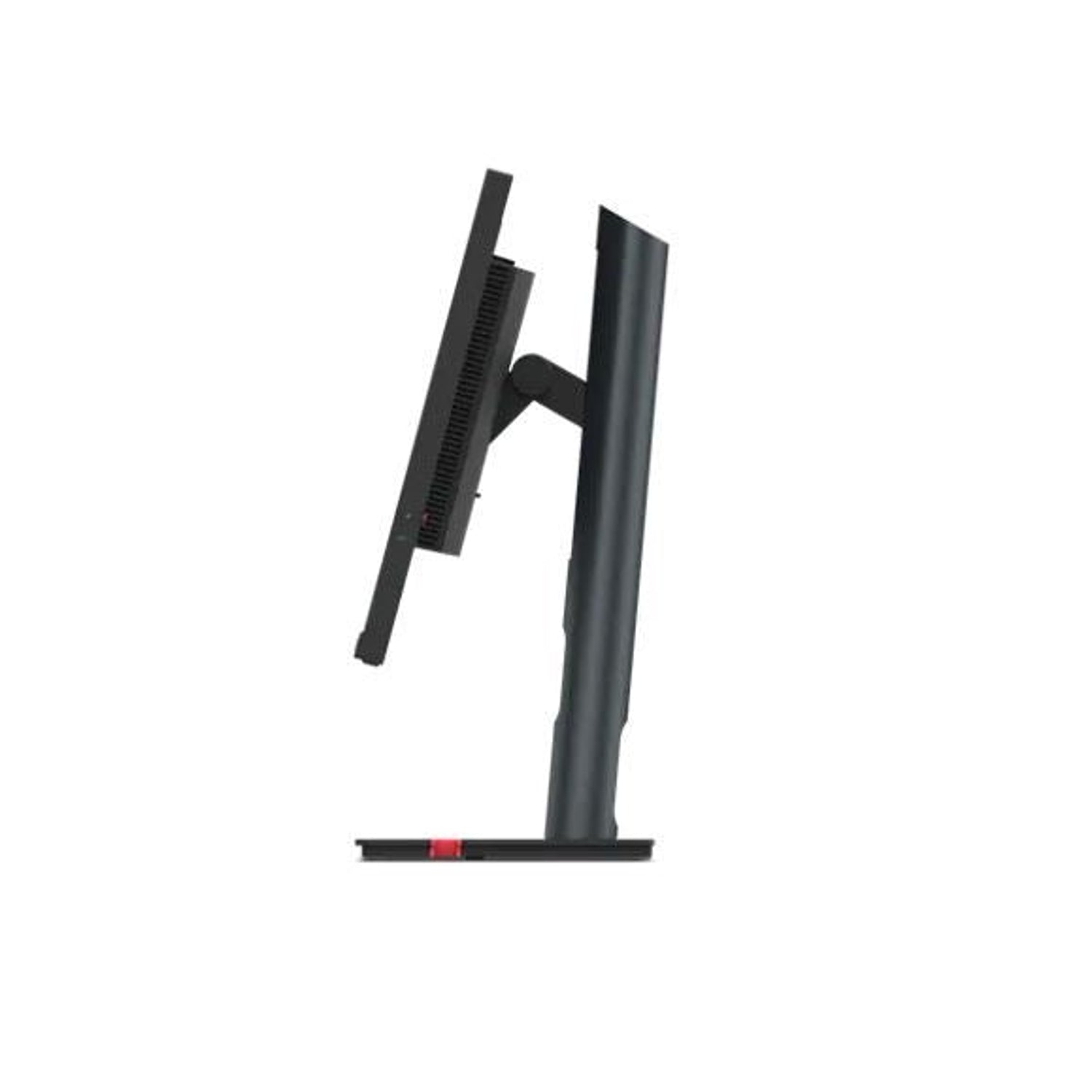

Stand & Ergonomics
| Tilt | -5° to +23.5° |
| Swivel | 45° left and right |
| Pivot | -90° to +90° |
| Height Adjustment | Up to 155 mm |
| Other | Integrated phone stand; one-button joystick control |
| VESA Mount | 100 mm |
Power & Certifications
| Power Consumption | 27 W typical / 161 W maximum — the high maximum reflects the 100 W passed to a charging laptop |
| Sleep / Off | <0.5 W; switch-off <0.3 W |
| ENERGY STAR | Power on 18 W; TEC 57 kWh |
| Power Supply | Internal, AC 100–240 V 50/60 Hz |
| Certifications | ENERGY STAR certified; EPEAT Gold; TCO Certified 9.0; TCO Edge 2.0; RoHS; VOC certification; Eyesafe Certified 2.0; TÜV Rheinland Eye Comfort; Flicker Free; Low Blue Light (Hardware Solution) |
Physical
| Dimensions with Stand | 539.5 x 199.7 x 348.8 mm (lowest) to 539.5 x 199.7 x 503.8 mm (highest) |
| Dimensions, Head Only | 539.5 x 46.5 x 323.7 mm |
| Weight with Stand | 5.7 kg |
| Weight, Head Only | 3.8 kg |
| Bezel | Side 2.0 mm, top 2 mm, bottom 18 mm |
Features
| Eye Care | Eyesafe Certified 2.0; TÜV Rheinland Eye Comfort; Flicker Free; Low Blue Light and Low Blue Light (Hardware Solution) |
| Packaging | Recyclable paper pulp |
| Operating Systems | Windows 10 and Windows 11 certified |
Compatibility & Fit
Buy this for the dock, not the panel. The picture specification is good — QHD, 99% sRGB, Delta E under 2, HDR10 — but what justifies the price over an E24q-30 is the connectivity: USB-C with 100 W charging, gigabit ethernet with MAPT, PXE and Wake-on-LAN, a four-port USB hub and DisplayPort out for daisy chaining. On a hot-desking floor it replaces a separate dock entirely.
Check your laptop's USB-C port before ordering. Single-cable operation needs a laptop whose USB-C port supports DisplayPort Alt Mode and USB Power Delivery — true of ThinkPads and most current business laptops, but not universal, particularly on budget machines. Also confirm your laptop's charging requirement: this delivers up to 100 W, which covers most 14" and 16" business laptops but may not fully power a high-wattage mobile workstation under load.
Two corrections to earlier copy on this page. Brightness is 300 nits, not 350 — 350 was overstated. And this monitor has no built-in speakers; the earlier listing did not say so. Lenovo offers the MS30 Monitor Soundbar separately if audio is needed.
The 60 Hz question: stated plainly because a buyer comparing on paper will spot it — the cheaper E-series models here run 100 Hz while this runs 60 Hz. That is a real trade-off in favour of docking, ethernet and colour accuracy.
Availability note: this is the -30 generation and Lenovo has since launched P24Q-40 and P24QD-40 at this size. Those are not confirmed drop-in replacements — we have not verified that either carries the USB-C 100 W docking and RJ45 that define this model. Ask us to confirm current availability before a fleet order.
Package Contents & ThinkVision Ordering Information
In the box: monitor with stand, DisplayPort cable (1.8 m), USB-C to USB-C cable (1.8 m), USB-C to USB-A cable (1.8 m), power cable (1.8 m). Note that no HDMI cable is supplied — the opposite of the E-series bundle.
ThinkVision Ordering Information
| 62F7KAR4MY | ThinkVision E20-30 — 19.5" HD+ TN, 60 Hz, HDMI + VGA |
| 64C9MAR6MY | ThinkVision E22-40 — 21.5" FHD IPS, 100 Hz, speakers |
| 64BAMAR1MY | ThinkVision E24-40 — 23.8" FHD IPS, 100 Hz, speakers |
| 64BCMAR4MY | ThinkVision E27-40 — 27" FHD IPS, 100 Hz, 300 nits |
| 63ECGAR2WW | ThinkVision E24q-30 — 23.8" QHD IPS, 100 Hz, Eyesafe 2.0 |
| 64BDGAR4MY | ThinkVision E27Q-40 — 27" QHD IPS, 100 Hz, 350 nits, 2x HDMI |
| 63B3GAR6WW (this listing) | ThinkVision P24h-30 — 23.8" QHD docking monitor, USB-C 100 W, RJ45 |
| 64A7GAR6MY | ThinkVision P27Q-40 — 27" QHD 10-bit, 120 Hz, DCI-P3, calibrated |
Datasheet & Downloads
- Lenovo PSREF specification sheet — ThinkVision P24h-30 (PDF)
- Lenovo ThinkVision P24h-30 datasheet (PDF)
Lenovo PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page. PSREF publishes its spec sheets per model; it also hosts a per-part-number detail page at psref.lenovo.com which will render in a normal browser if you need the configuration confirmed against this exact SKU before ordering.
Frequently Asked Questions — Lenovo ThinkVision P24h-30
What does the USB-C port actually do?
Carries video, USB data and up to 100 W of power to charge the laptop, over one cable. Combined with the built-in ethernet and four-port USB hub, the monitor works as a dock.
Will it charge my laptop?
Up to 100 W, which covers most 14" and 16" business laptops. A high-wattage mobile workstation may draw more under full load — tell us your model and we will check.
What are MAPT, PXE and Wake-on-LAN?
MAC address pass-through lets a docked laptop present a consistent network identity; PXE boot allows network imaging; Wake-on-LAN allows remote power-on. Together they let a docked laptop be managed like a desktop, which is the main reason IT teams specify this monitor.
Does it have speakers?
No. Lenovo offers the MS30 Monitor Soundbar separately. An earlier version of this listing did not make that clear.
Why is it only 60 Hz when cheaper models are 100 Hz?
Because it is built around docking, connectivity and colour accuracy rather than refresh rate. If smooth scrolling matters more than a single-cable desk, the E24q-30 is 100 Hz at the same size and resolution.
Can I run a second monitor from it?
Yes — the DisplayPort out supports daisy chaining up to two QHD monitors from one connection.
What warranty does it carry?
Lenovo publishes a 3-year limited warranty in PSREF, and every unit we supply carries local Singapore warranty and a GST invoice.
