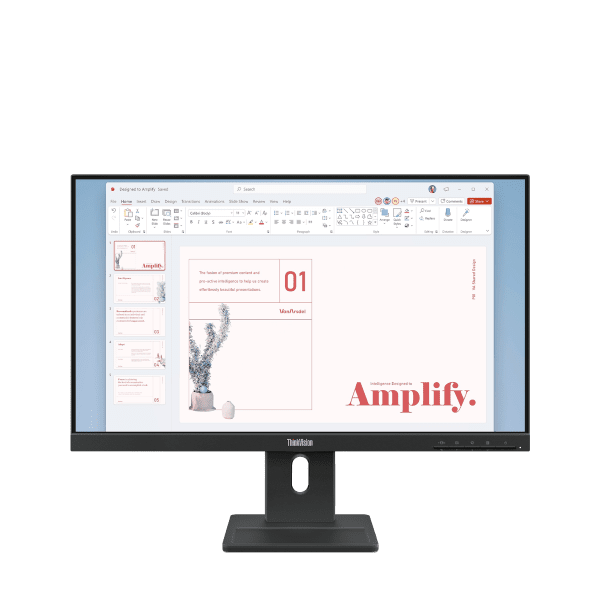

Lenovo ThinkVision E24-40 23.8" Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision E24-40 (64BAMAR1MY) - 3 Years Local Warranty
The Standard-Issue Office Monitor, Brought Up to Date
23.8 inches at Full HD is the default desk size for good reason — it fits a standard desk, sits at a comfortable viewing distance and needs no scaling. The ThinkVision E24-40 delivers that on a 3-side NearEdgeless IPS panel at 100 Hz, with a full-function stand and speakers, which is a materially better specification than the 60 Hz tilt-only panels this size has historically meant.
99% sRGB, 1300:1 Contrast, 178° Viewing
The IPS panel covers 99% of sRGB at 1300:1 typical contrast with 178°/178° viewing angles. With 2.0 mm side and top bezels, two of these side by side give an almost continuous working surface — the reason this model is bought in pairs more often than singly.
155 mm of Height Adjustment for Shared and Hot-Desk Floors
The stand offers 155 mm of lift, 360° swivel, full portrait pivot and -5° to +22° tilt, with cable management built in. On a hot-desking floor this is the difference between a screen each user can set correctly and one they work around.
Three Video Inputs and EPEAT Gold, at 13 W Typical
HDMI 1.4, DisplayPort 1.2 and VGA cover current docks and legacy estates from one part number. The panel draws 13 W typical from an internal supply and carries ENERGY STAR, EPEAT Gold, TCO Certified generation 10 and TCO Edge 2.1 — the credentials most Singapore tenders now ask for line by line.
Lenovo ThinkVision E24-40 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision E24-40 |
| Part Number | 64BAMAR1MY |
| Machine Type | 64BA |
| Colour | Raven black |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 23.8" — active area 527.0 x 296.5 mm |
| Panel Type | 3-side NearEdgeless In-Plane Switching (IPS), WLED backlight |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 100 Hz |
| Response Time | 4 ms GtG (Extreme mode) / 6 ms GtG (Normal mode) |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1300:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB (CIE 1931) coverage |
| Colour Depth | 8-bit (6-bit + FRC), 16.7 million colours |
| Viewing Angles | 178° / 178° |
| Surface | Anti-glare, flat |
Connectivity
| Video Inputs | 1x HDMI 1.4 (1920x1080 @ 100 Hz); 1x DisplayPort 1.2; 1x VGA |
| USB Ports | None |
| Speakers | Integrated 2 W x 2 |
| Audio Out | Not published by Lenovo for this model |
| Cables Supplied | 1x HDMI 1.4 cable (1.8 m); 1x power cable (1.8 m) — no DisplayPort or VGA cable included |
Stand & Ergonomics
| Tilt | -5° to +22° |
| Swivel | 360° left and right |
| Pivot | -90° to +90° |
| Height Adjustment | Up to 155 mm |
| Cable Management | Integrated in the stand |
| VESA Mount | 100 x 100 mm |
Power & Certifications
| Power Consumption | 13 W typical / 24 W maximum |
| Sleep / Off | <0.5 W; switch-off <0.3 W |
| ENERGY STAR | Power on 11.8 W; TEC 37.9 kWh |
| Power Supply | Internal, AC 100–240 V 50/60 Hz |
| Certifications | ENERGY STAR certified; EPEAT Gold; EU Energy Label C; TCO Certified generation 10; TCO Edge 2.1; RoHS; VOC certification |
Physical
| Dimensions with Stand | 539.8 x 178.6 x 343.4 mm (lowest) to 539.8 x 178.6 x 498.4 mm (highest) |
| Dimensions, Head Only | 539.8 x 44.0 x 325.7 mm |
| Weight with Stand | 4.5 kg (9.9 lb) |
| Weight, Head Only | 2.9 kg (6.4 lb) |
| Bezel | Side 2.0 mm, top 2.0 mm, bottom 21.4 mm |
Features
| Eye Care | TÜV Rheinland Flicker Free; TÜV Rheinland Low Blue Light (Hardware Solution); Natural Low Blue Light |
| Operating Systems | Windows 11, Windows 10 |
| KVM / Daisy Chain / Camera | None |
Compatibility & Fit
The default choice in this range. If you are standardising a floor on one monitor, this is usually the part number: 23.8" Full HD is the size most people work best at without display scaling, and the E24-40 adds IPS, 100 Hz, a proper adjustable stand and speakers to it.
Check the resolution question first. At 23.8", Full HD gives comfortable, large text. If your users work in large spreadsheets, side-by-side documents or code and want more on screen rather than bigger, the QHD E24q-30 is the same size at 2560 x 1440. That is a genuine fork in the decision, not an upsell — more pixels at this size means smaller text.
Connectivity: three video inputs, but no USB and no USB-C. For single-cable laptop docking with power delivery and ethernet, the P24h-30 is the model built for it. Only an HDMI cable ships in the box.
Correction to earlier copy: a previous version of this listing described the monitor as supporting "HDMI and VGA". It also has DisplayPort 1.2, per Lenovo's PSREF sheet.
Package Contents & ThinkVision Ordering Information
In the box: monitor with full-function stand, 1x HDMI 1.4 cable (1.8 m), 1x power cable (1.8 m), 4x screws, quick setup guide.
ThinkVision Ordering Information
| 62F7KAR4MY | ThinkVision E20-30 — 19.5" HD+ TN, 60 Hz, HDMI + VGA |
| 64C9MAR6MY | ThinkVision E22-40 — 21.5" FHD IPS, 100 Hz, speakers |
| 64BAMAR1MY (this listing) | ThinkVision E24-40 — 23.8" FHD IPS, 100 Hz, speakers |
| 64BCMAR4MY | ThinkVision E27-40 — 27" FHD IPS, 100 Hz, 300 nits |
| 63ECGAR2WW | ThinkVision E24q-30 — 23.8" QHD IPS, 100 Hz, Eyesafe 2.0 |
| 64BDGAR4MY | ThinkVision E27Q-40 — 27" QHD IPS, 100 Hz, 350 nits, 2x HDMI |
| 63B3GAR6WW | ThinkVision P24h-30 — 23.8" QHD docking monitor, USB-C 100 W, RJ45 |
| 64A7GAR6MY | ThinkVision P27Q-40 — 27" QHD 10-bit, 120 Hz, DCI-P3, calibrated |
Datasheet & Downloads
Lenovo PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page. PSREF publishes its spec sheets per model; it also hosts a per-part-number detail page at psref.lenovo.com which will render in a normal browser if you need the configuration confirmed against this exact SKU before ordering.
Frequently Asked Questions — Lenovo ThinkVision E24-40
Full HD or QHD at 23.8 inches?
Full HD gives larger, more comfortable text; QHD fits more on screen at the cost of size. For general office work Full HD is usually right; for spreadsheets, code and side-by-side documents, consider the E24q-30.
Does it have USB-C or USB ports?
No. HDMI 1.4, DisplayPort 1.2 and VGA only. For USB-C docking see the P24h-30.
Which cables are included?
HDMI and power, both 1.8 m. No DisplayPort or VGA cable.
Can I mount two of these on a dual arm?
Yes — VESA 100 x 100 mm, and at 2.9 kg per head most dual arms handle a pair comfortably. The 2.0 mm side bezels make a tidy pair.
Does it rotate to portrait?
Yes, -90° to +90° pivot, with 155 mm height adjustment and 360° swivel.
Is it bright enough for a well-lit office?
250 cd/m² with an anti-glare finish is the standard office specification and is fine under normal lighting. Facing a bright window, the 300 cd/m² E27-40 or 350 cd/m² E27Q-40 have more headroom.
What warranty does it carry?
Lenovo publishes a 3-year limited warranty in PSREF, and every unit we supply carries local Singapore warranty and a GST invoice.
