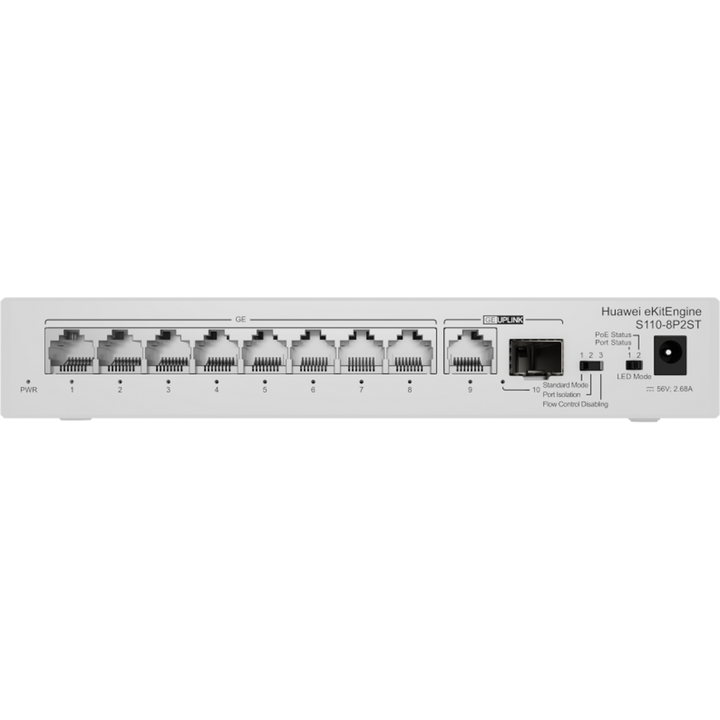

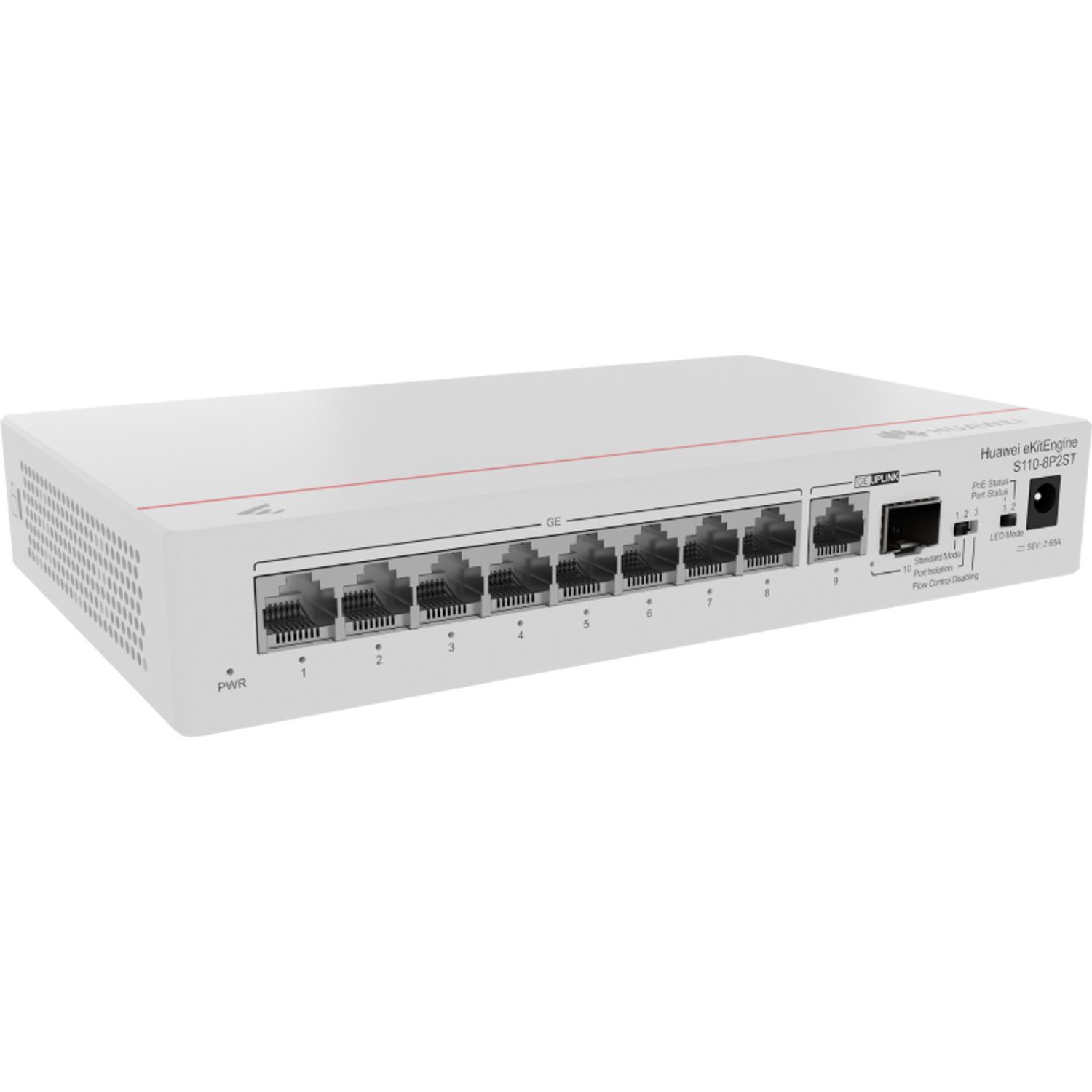

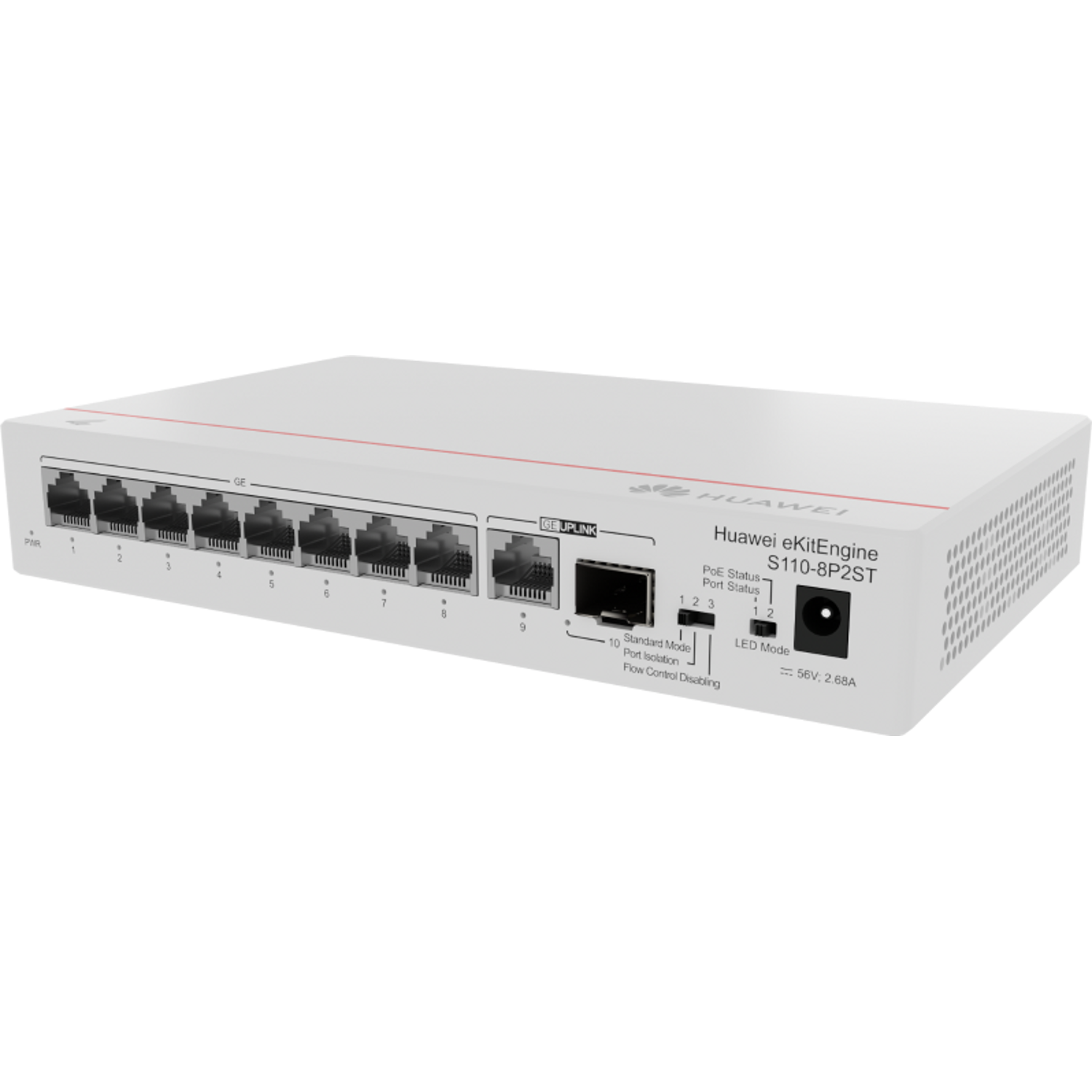

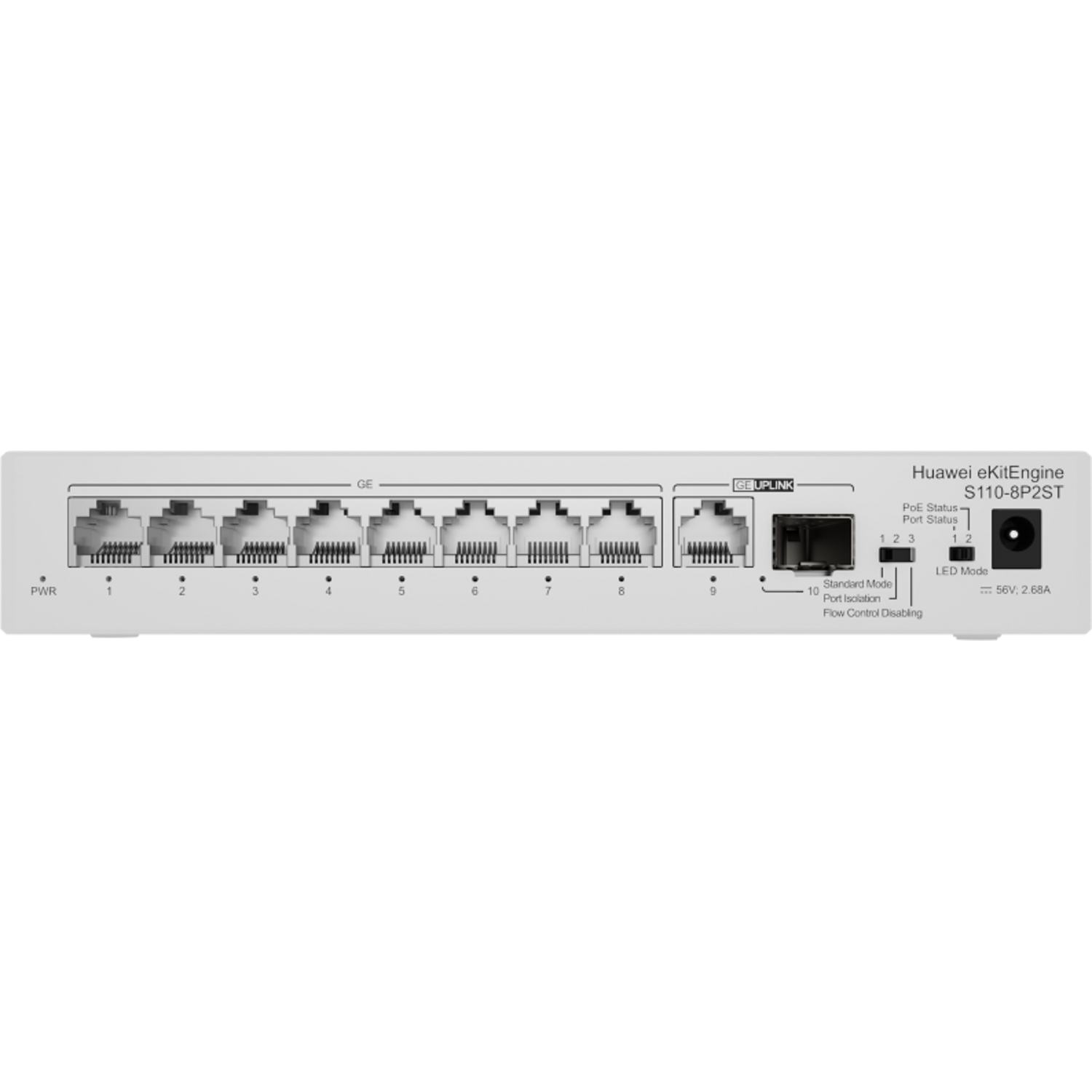

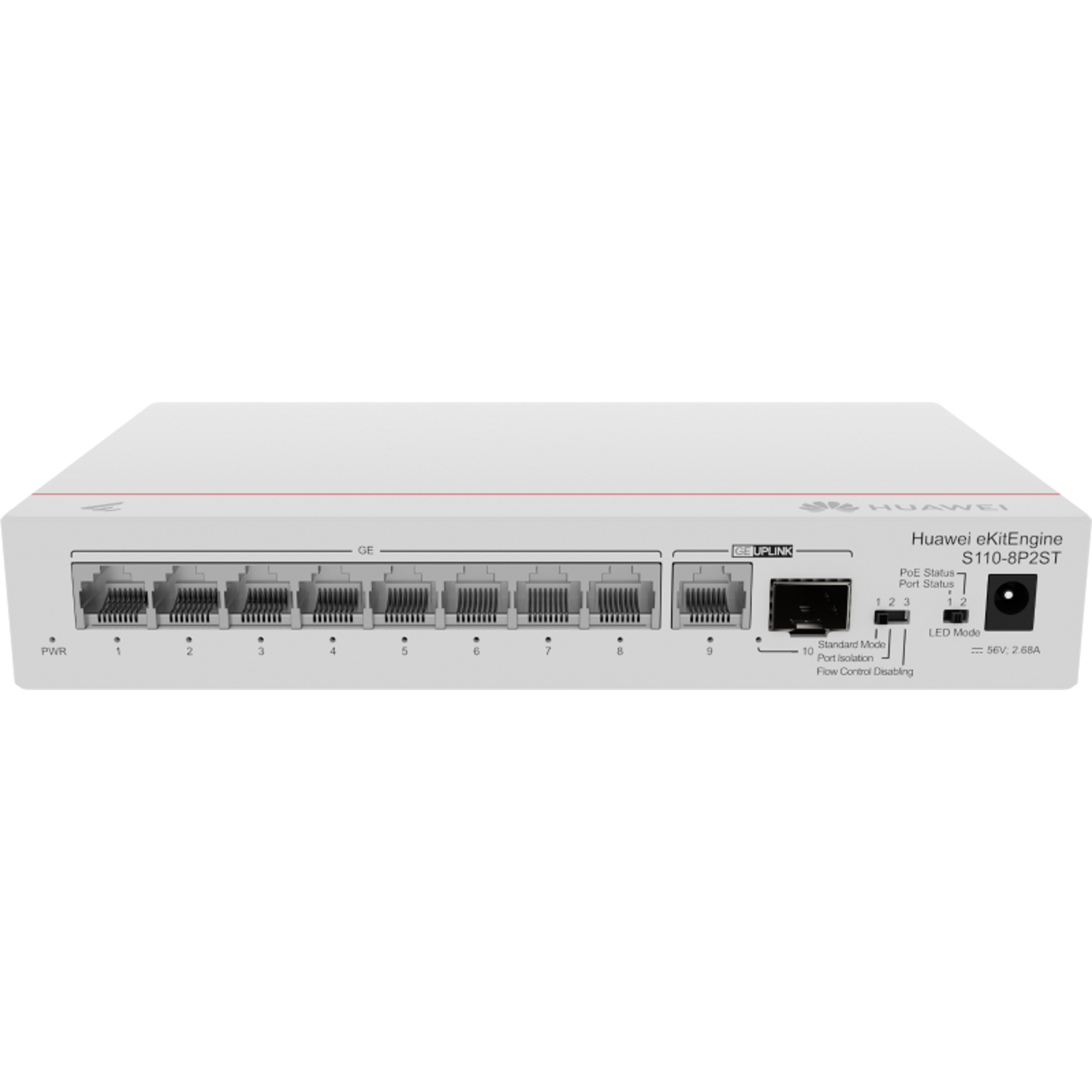

Huawei eKitEngine S110-8P2ST 8-Port Gigabit PoE+ Switch, 124W, 1 x SFP
PRODUCT DESCRIPTION
Huawei eKitEngine S110-8P2ST 8-Port Gigabit PoE+ Unmanaged Switch (S110-8P2ST) - 1 Year Local Warranty
8 PoE+ Ports, Zero Configuration
The Huawei eKitEngine S110-8P2ST is a plug-and-play unmanaged desktop switch with 8 Gigabit PoE+ ports, plus one Gigabit RJ45 and one Gigabit SFP uplink.
124 W PoE Budget
A 124 W PoE+ budget powers access points, IP cameras and IP phones directly from the switch.
Silent, Fanless Design
Natural heat dissipation means no fan noise — ideal for desks, shops and small offices.
Compact
At 210 x 130 x 35 mm and 1.11 kg, it fits on a desk or shelf and runs from an external power adapter.
Need help choosing? Email sales@sourceit.com.sg with the number of PoE devices and their power draw and we will size it for you.
Huawei S110-8P2ST Datasheet — Technical Specifications
General
| Product Name | Huawei eKitEngine S110-8P2ST PoE+ Switch |
| Model | S110-8P2ST |
| Switch Type | Unmanaged (plug and play) |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Interfaces
| GE PoE+ Ports | 8 x 10/100/1000BASE-T, PoE+ |
| GE Uplink | 1 x 10/100/1000BASE-T |
| GE SFP Port | 1 x GE SFP |
PoE
| PoE Standard | PoE+ |
| Max. PoE Power | 124 W |
Performance
| Switching Capacity | 20 Gbit/s |
| Forwarding Rate | 14.88 Mpps |
Power & Physical
| Power Supply | External power adapter; adapter input 100–240 V AC rated (90–264 V AC, 47–63 Hz) |
| Power Consumption | Typical 11 W; max 11 W without PoE; 155 W at full PoE load |
| Cooling | Natural heat dissipation (fanless) |
| Dimensions (H x W x D) | 35 x 210 x 130 mm |
| Weight | 1.11 kg (1.46 kg packed) |
| Operating Temperature | 0 to 40 °C |
Specifications from Huawei's official eKit product page for the S110-8P2ST (90–264 V AC version).
Compatibility & Software Support
Management
Unmanaged — Huawei describes the S110 series as plug-and-play, configuration-free and management-free. Selectable working modes, including port isolation, are listed in Huawei's S110 series datasheet.
Typical Use
Simple access switching for small offices, shops, CCTV and Wi-Fi AP deployments, with Gigabit SFP uplinks to a gateway or core switch.
Package Contents & Huawei eKitEngine S110 Ordering Information
Huawei eKitEngine S110 Models
| Model | Ports | PoE | Part No. |
| S110-8P2ST (this listing) | 8 x GE PoE+ + 1 x GE + 1 x GE SFP | 124 W | S110-8P2ST |
| S110-16LP2SR | 16 x GE PoE+ + 2 x GE SFP | 124 W | S110-16LP2SR |
| S110-24LP2SR | 24 x GE PoE+ + 2 x GE SFP | 124 W | S110-24LP2SR |
| S110-24T2SR | 24 x GE + 2 x GE SFP | — | S110-24T2SR |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included power adapter.
Datasheet & Downloads
| Huawei eKit product page | S110-8P2ST on ekit.huawei.com |
| Huawei datasheet | eKitEngine S110 Series Switch Datasheet (e.huawei.com) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S110-8P2ST.
Frequently Asked Questions — Huawei S110-8P2ST
How much PoE power does it provide?
124 W in total across the 8 PoE+ ports.
Does it need configuration?
No. The S110 series is plug-and-play and unmanaged.
Is it fanless?
Yes, it uses natural heat dissipation.
Does it have a fibre uplink?
Yes, 1 x Gigabit SFP port, plus 1 x Gigabit RJ45 uplink.
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
