Huawei eKitEngine S110-24T2SR 24-Port Gigabit Unmanaged Switch, 2 x SFP
PRODUCT DESCRIPTION
Huawei eKitEngine S110-24T2SR 24-Port Gigabit Unmanaged Switch (S110-24T2SR) - 1 Year Local Warranty
24 Gigabit Ports, Zero Configuration

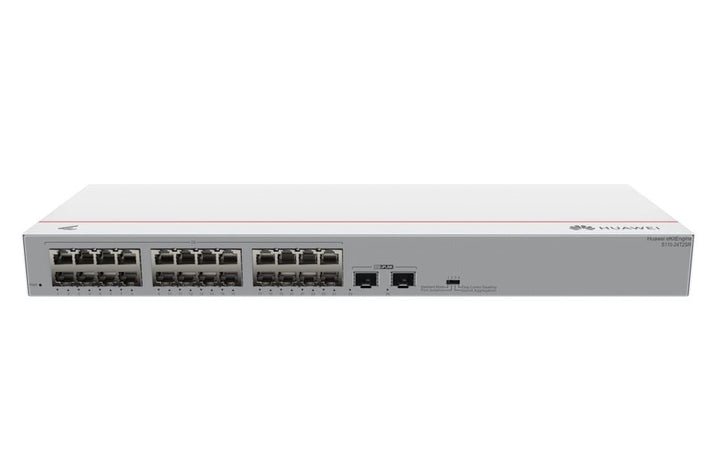

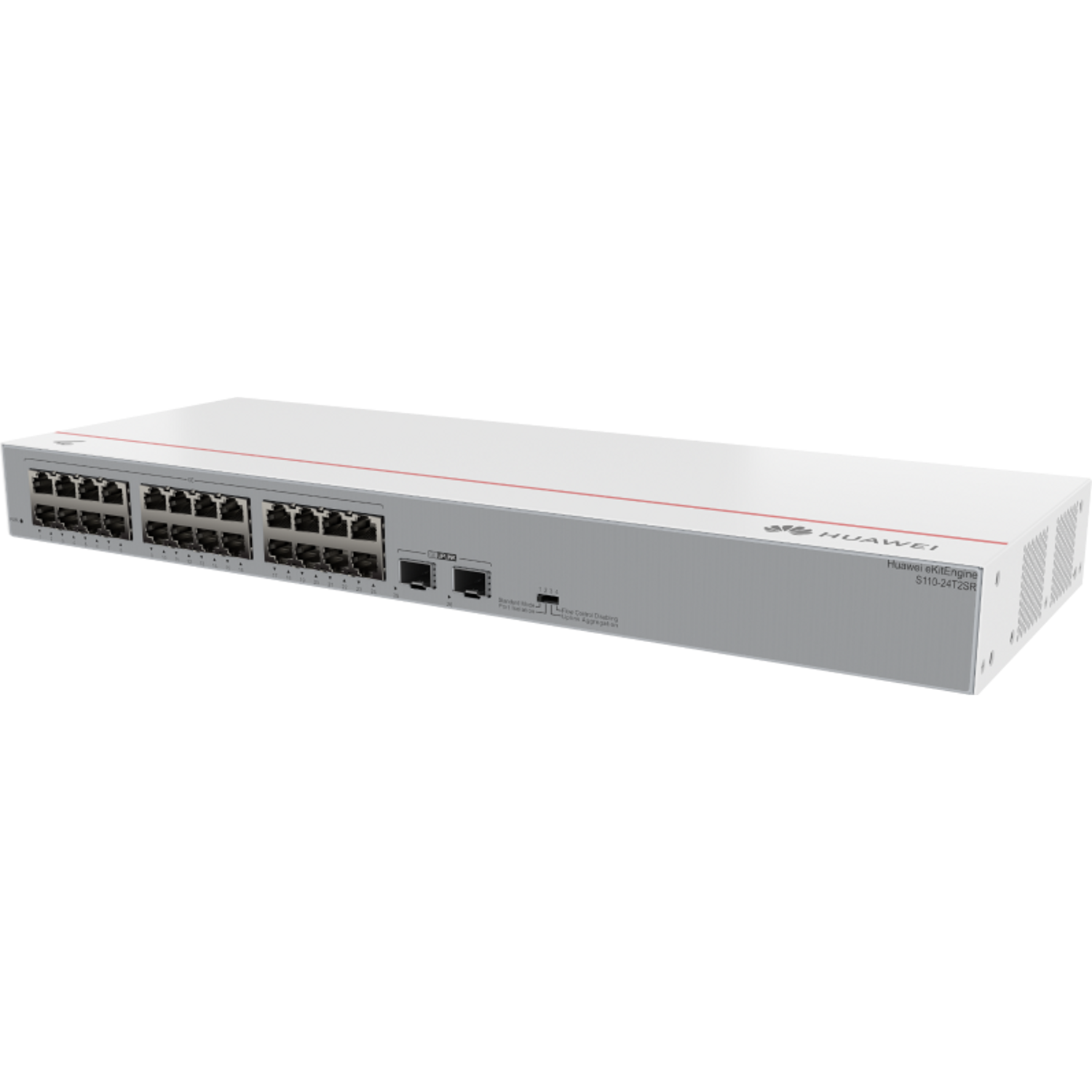

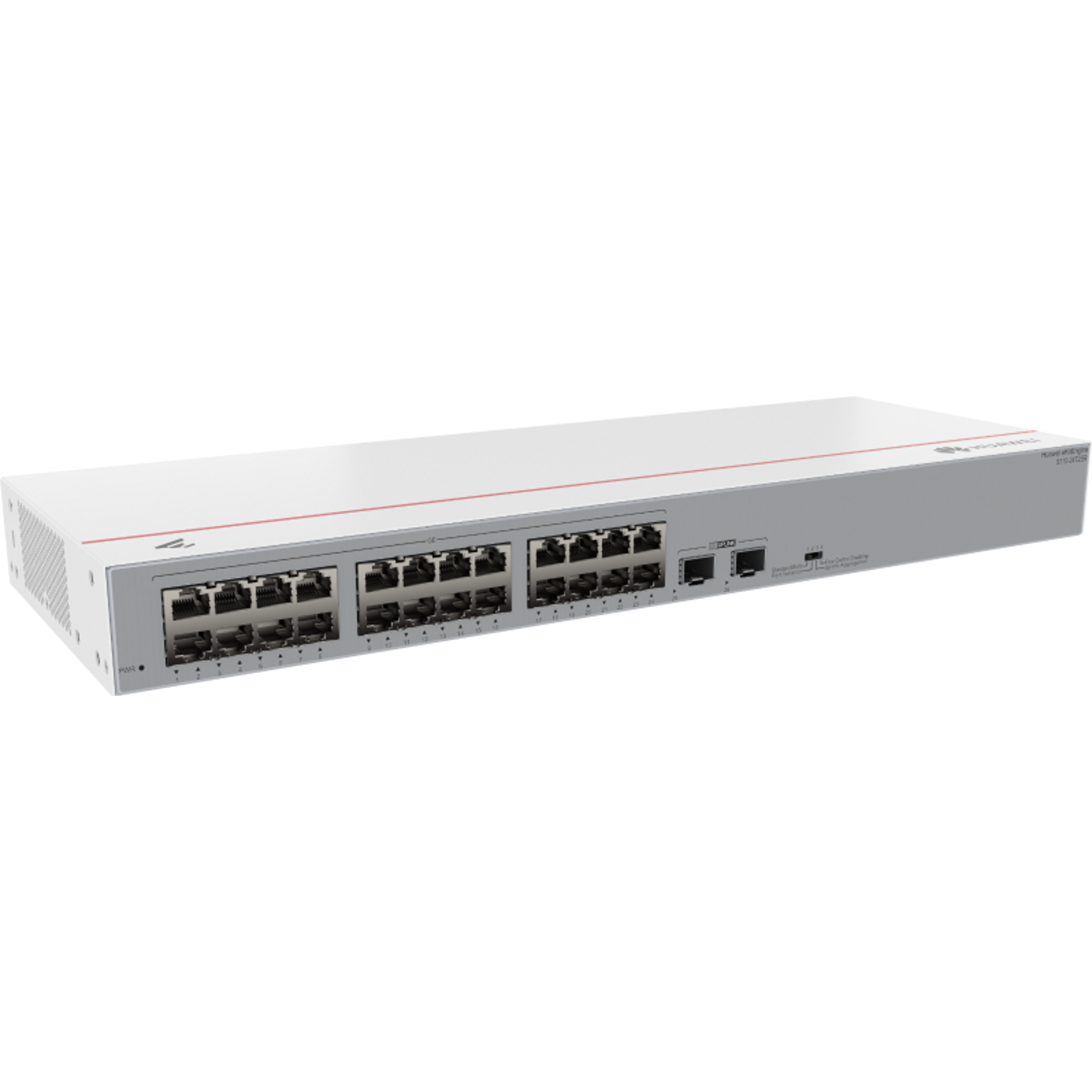

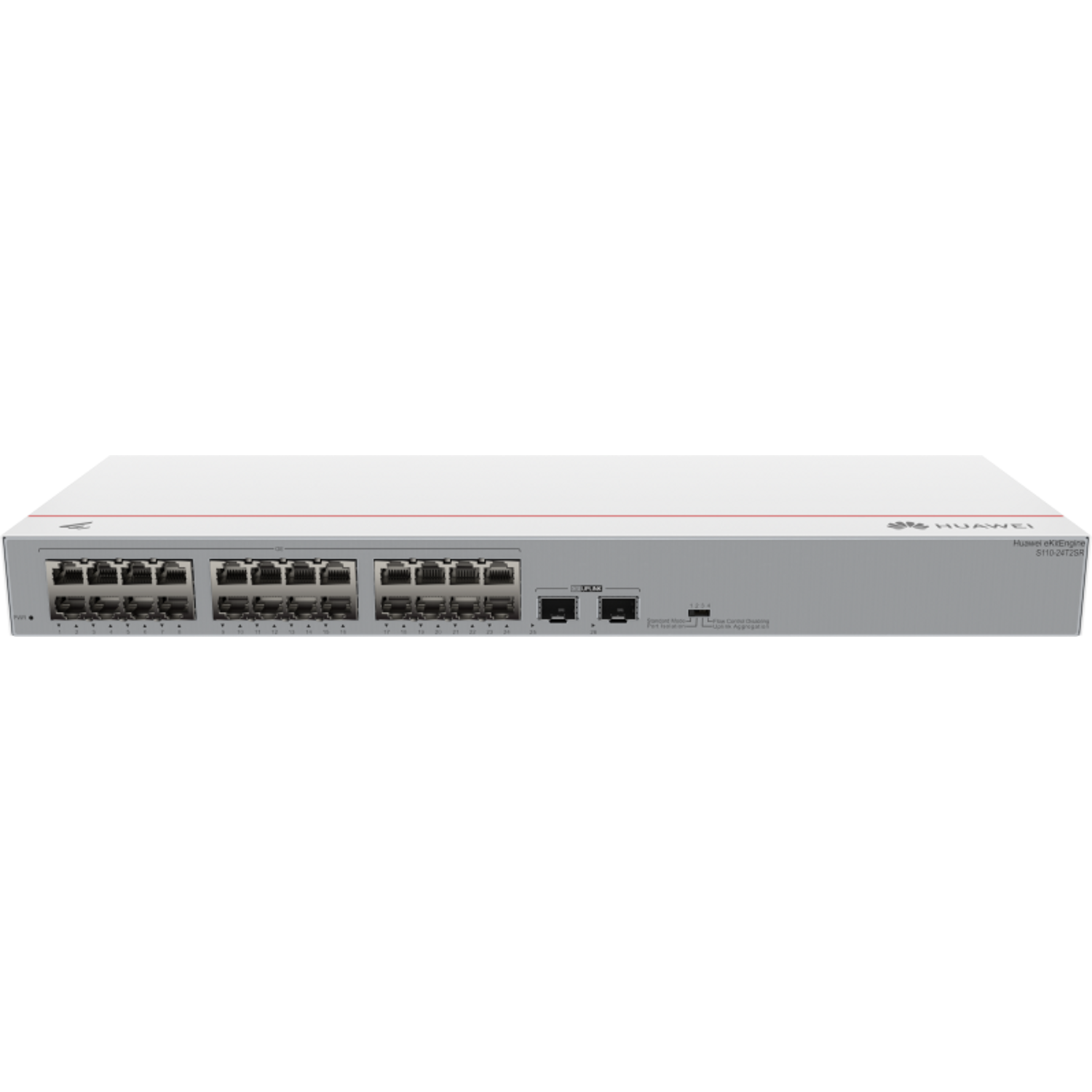

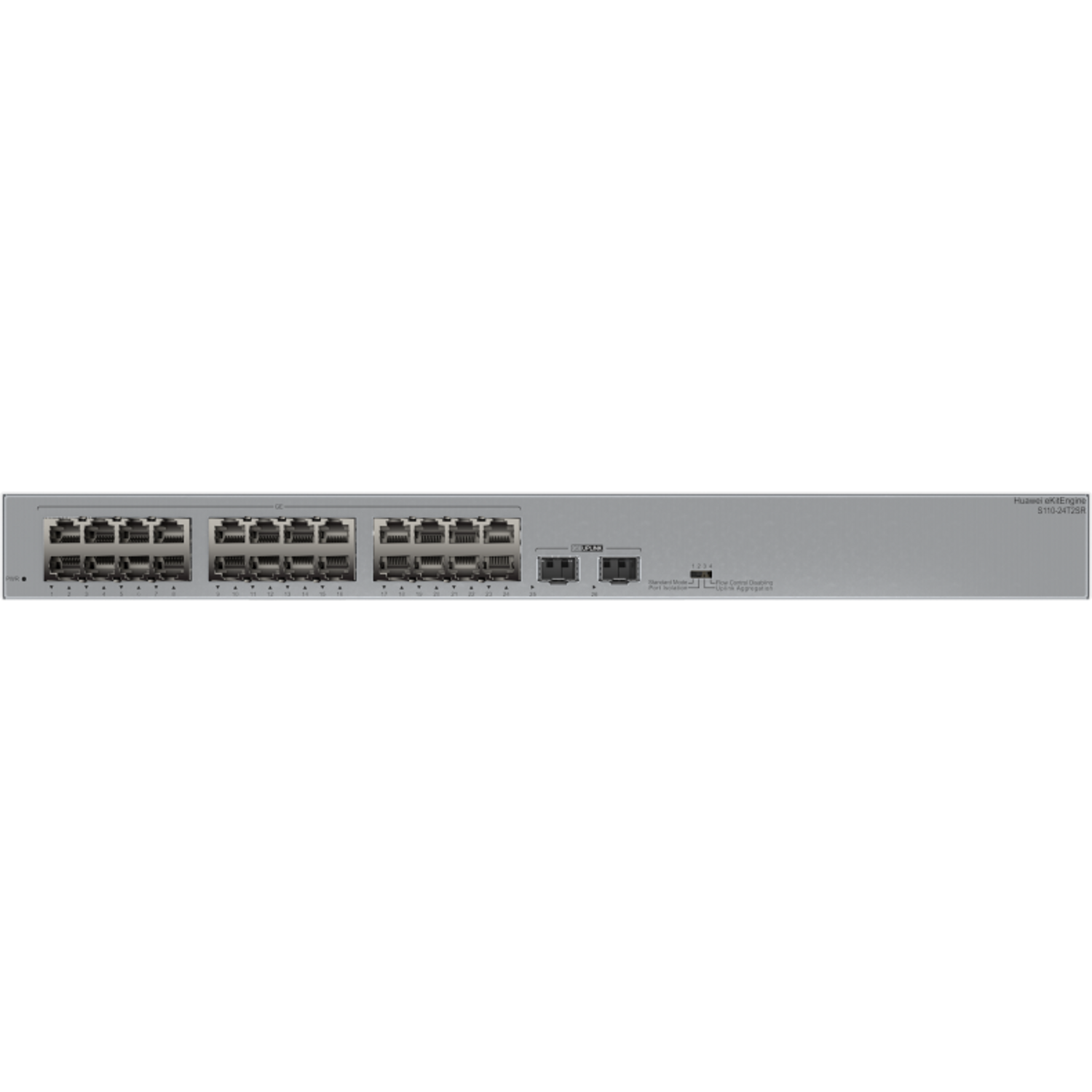

The Huawei eKitEngine S110-24T2SR is a plug-and-play unmanaged 1U switch with 24 Gigabit RJ45 ports and 2 Gigabit SFP uplinks.
Silent and Efficient
Natural heat dissipation (fanless) and a maximum draw of just 17 W.
Performance
Huawei rates the switch at 52 Gbit/s switching capacity and a 38.69 Mpps forwarding rate.
Protected
±6 kV surge protection on the power input and ±1 kV on service ports.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
Huawei S110-24T2SR Datasheet — Technical Specifications
General
| Product Name | Huawei eKitEngine S110-24T2SR Gigabit Switch |
| Model | S110-24T2SR |
| Part Number | 98012196 |
| Switch Type | Unmanaged (plug and play) |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Interfaces
| GE RJ45 Ports | 24 x 10/100/1000BASE-T |
| GE SFP Ports | 2 x GE SFP |
| PoE | No |
Performance
| Switching Capacity | 52 Gbit/s |
| Forwarding Rate | 38.69 Mpps |
Power & Physical

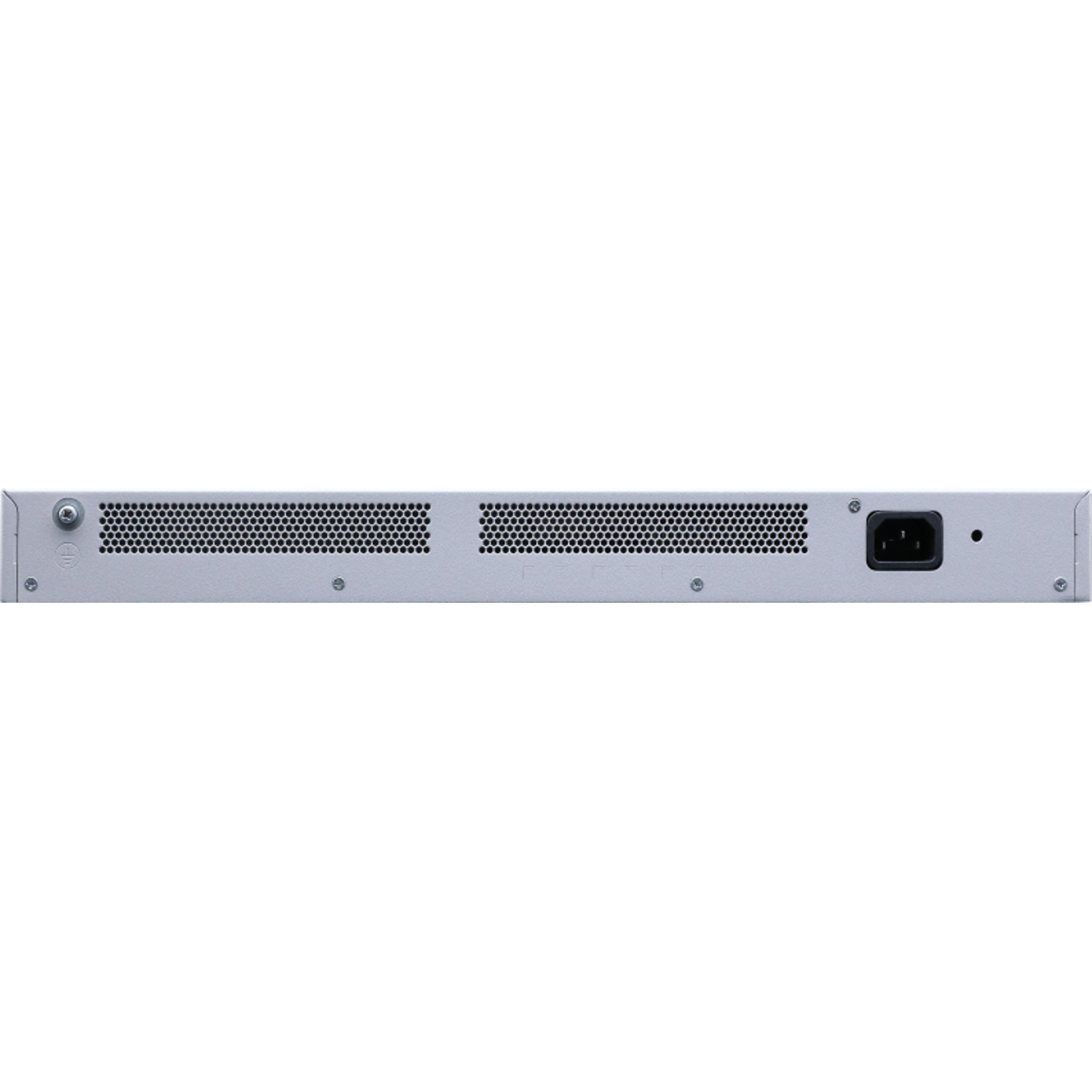

| Power Supply | Built-in AC, rated 100–240 V (90–264 V AC, 45–65 Hz); max input current 0.8 A |
| Power Consumption | Static 5 W; typical 16 W; max 17 W |
| Surge Protection | ±6 kV power; ±1 kV service ports |
| Cooling | Natural heat dissipation (fanless) |
| Dimensions (H x W x D) | 43.6 x 442 x 160 mm (167 mm max. depth), 1U |
| Weight | 1.8 kg (2.3 kg packed) |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -40 to +70 °C |
| Altitude | 0–5,000 m |
Specifications from Huawei's official eKit product page for the S110-24T2SR (part number 98012196).
Compatibility & Software Support
Management
Unmanaged — Huawei describes the S110 series as plug-and-play, configuration-free and management-free. Selectable working modes, including port isolation, are listed in Huawei's S110 series datasheet.
Typical Use
Simple access switching for small offices, shops, CCTV and Wi-Fi AP deployments, with Gigabit SFP uplinks to a gateway or core switch.
Package Contents & Huawei eKitEngine S110 Ordering Information
Huawei eKitEngine S110 Models
| Model | Ports | PoE | Part No. |
| S110-8P2ST | 8 x GE PoE+ + 1 x GE + 1 x GE SFP | 124 W | S110-8P2ST |
| S110-16LP2SR | 16 x GE PoE+ + 2 x GE SFP | 124 W | S110-16LP2SR |
| S110-24LP2SR | 24 x GE PoE+ + 2 x GE SFP | 124 W | S110-24LP2SR |
| S110-24T2SR (this listing) | 24 x GE + 2 x GE SFP | — | S110-24T2SR |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included power cord and mounting kit.
Datasheet & Downloads
| Huawei eKit product page | S110-24T2SR on ekit.huawei.com |
| Huawei datasheet | eKitEngine S110 Series Switch Datasheet (e.huawei.com) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S110-24T2SR.
Frequently Asked Questions — Huawei S110-24T2SR
Does the S110-24T2SR support PoE?
No. For PoE choose the S110-24LP2SR (24 x PoE+, 124 W).
Does it need configuration?
No. The S110 series is plug-and-play and unmanaged.
Is it fanless?
Yes, it uses natural heat dissipation.
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
