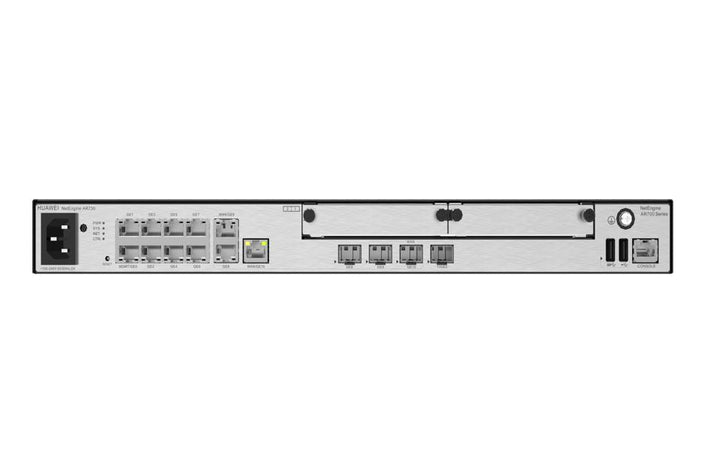

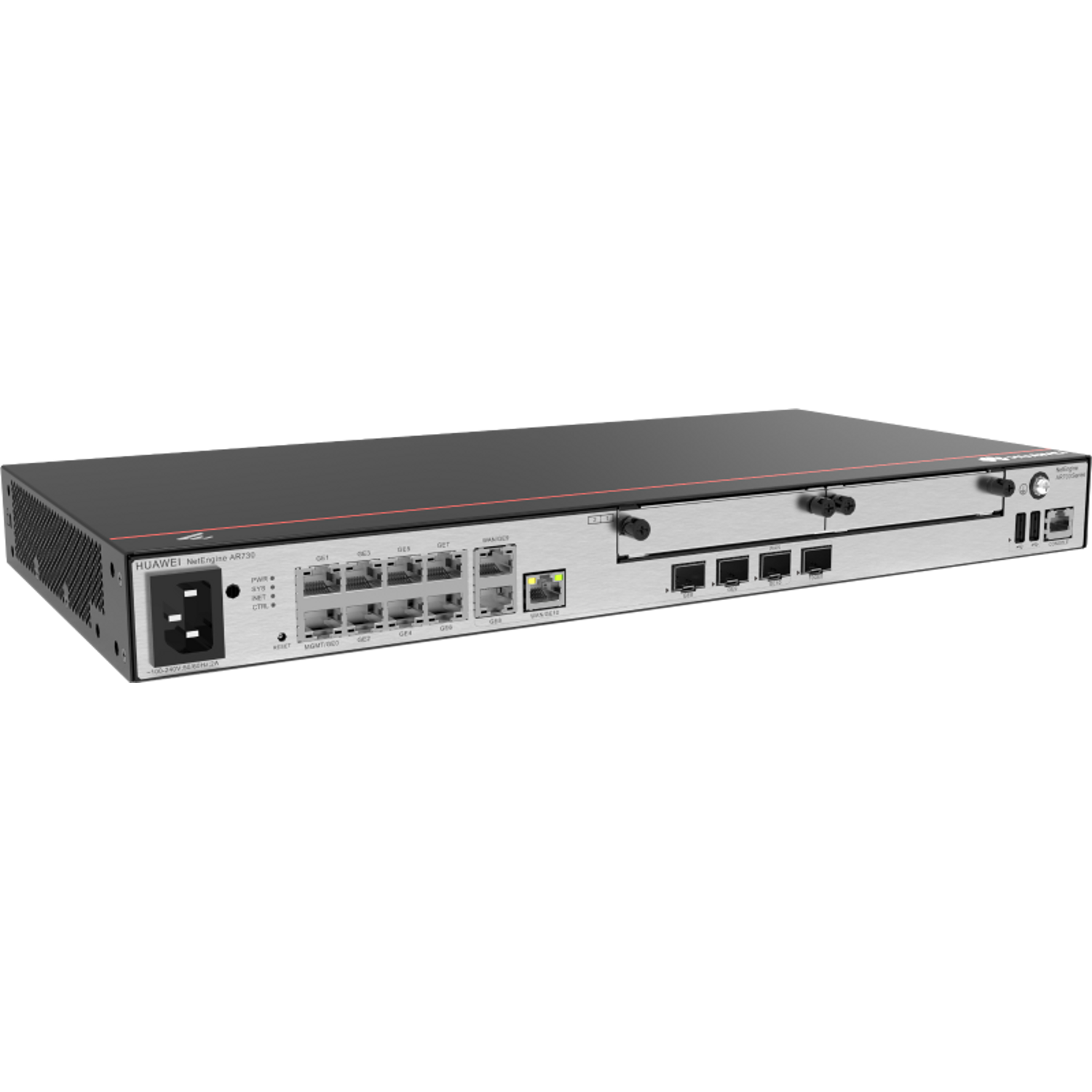

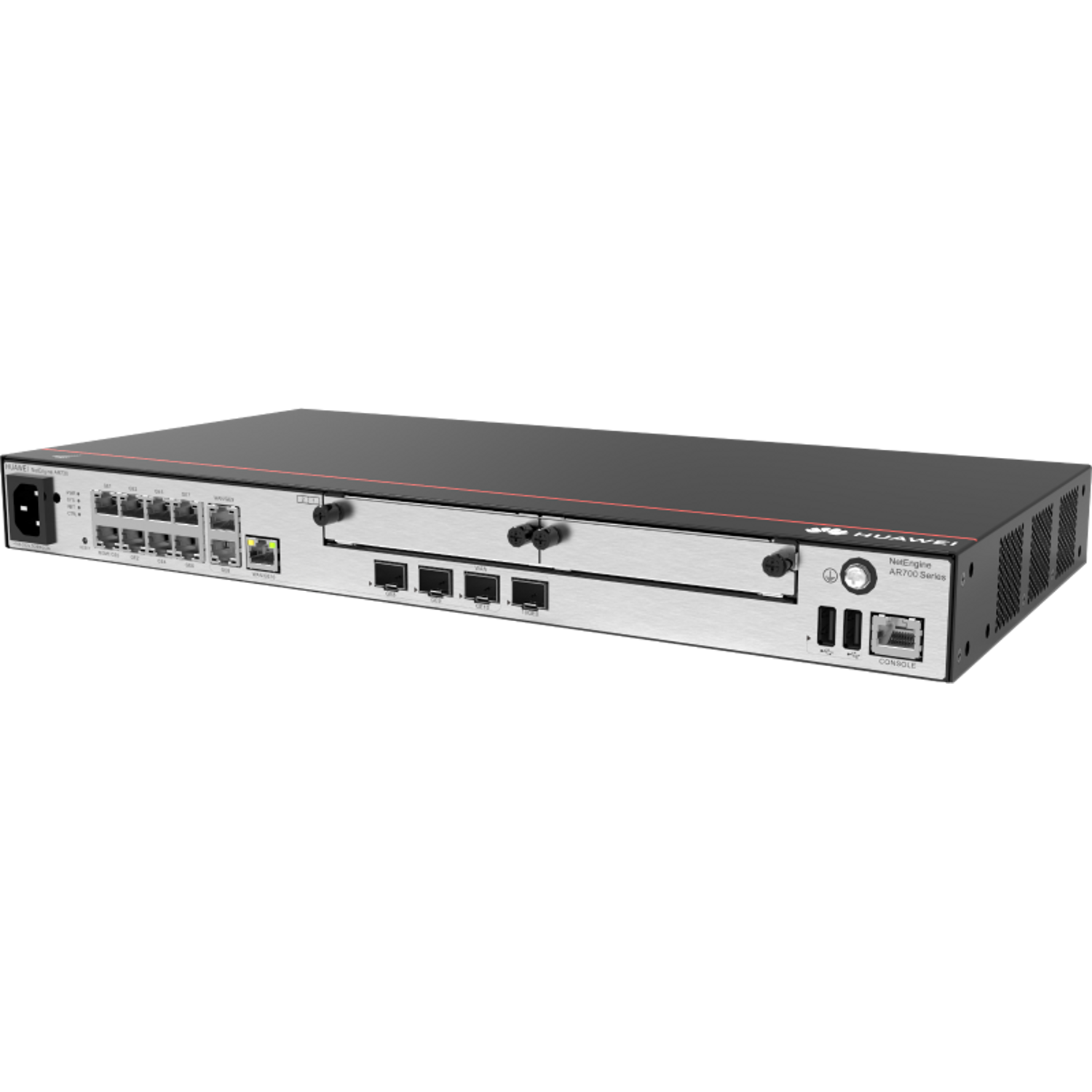

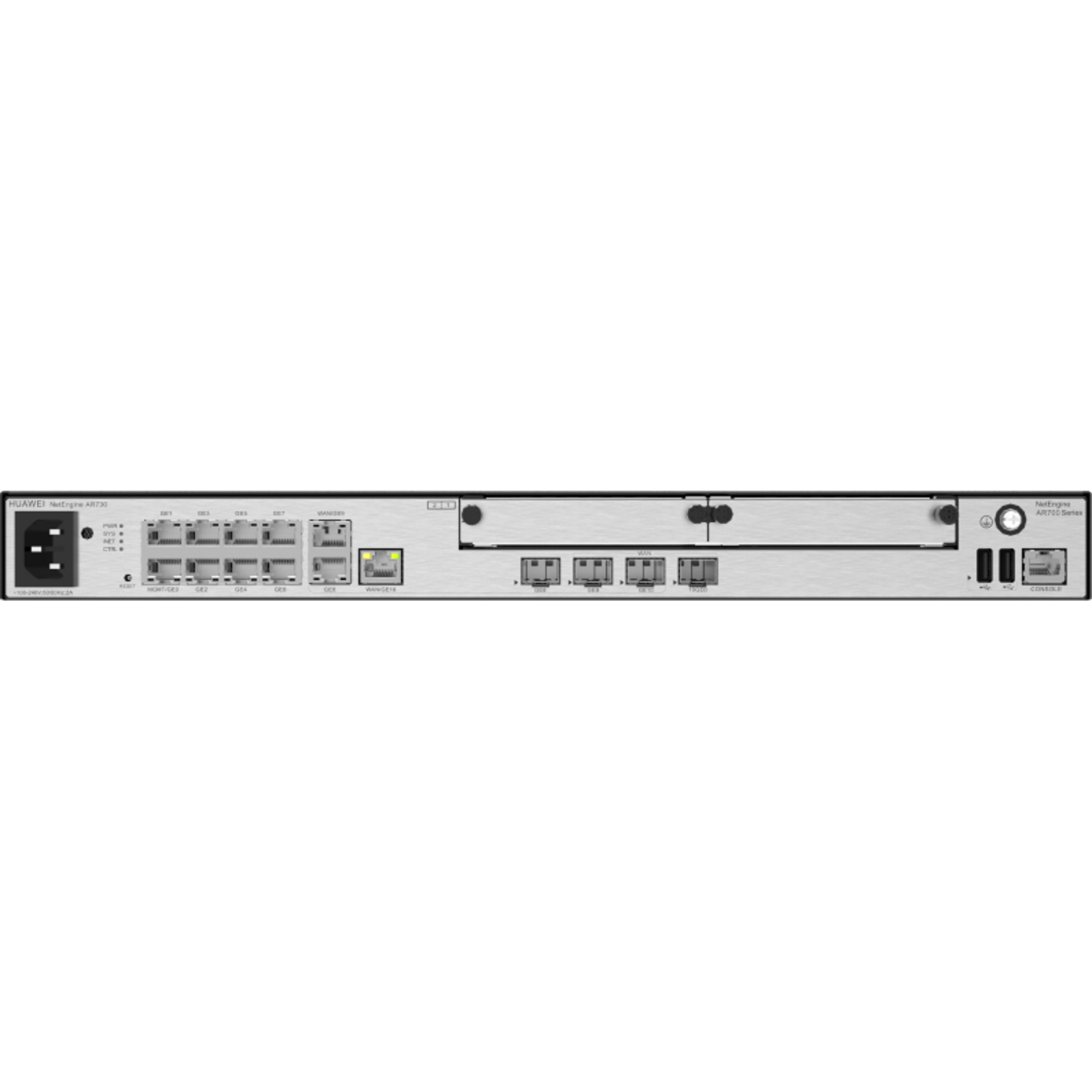

Huawei NetEngine AR730 Enterprise Router, 10GE SFP+ WAN, 8 x GE LAN
PRODUCT DESCRIPTION
Huawei NetEngine AR730 Enterprise Router with 10GE SFP+ WAN (AR730) - 1 Year Local Warranty
10GE-Ready Enterprise Routing
The Huawei NetEngine AR730 is a 1U enterprise router from Huawei's AR700 series with a 10GE SFP+ WAN port, rated by Huawei for up to 1,200 connected terminals and 9–25 Mpps forwarding performance.
Flexible WAN and LAN
WAN: 1 x 10GE optical port (GE-optic compatible) and 2 x GE combo ports. LAN: 8 x GE electrical ports (switchable to WAN) plus 1 x GE combo port.
Built for the Rack

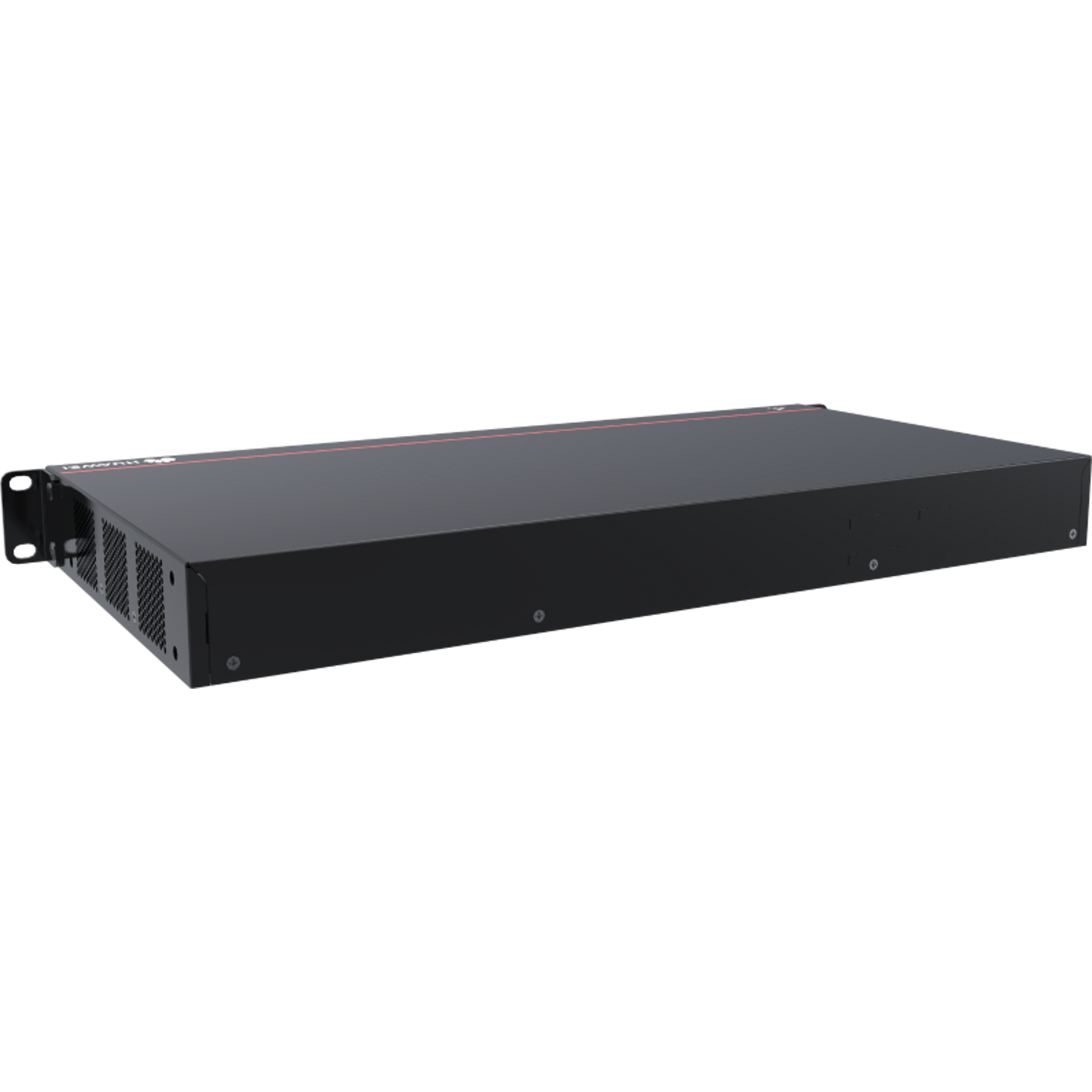

A 442 mm 1U chassis with a built-in AC power supply that can also sit on a workbench or mount on a wall.
Need help choosing? Email sales@sourceit.com.sg with your number of users, internet lines and branch sites and we will size it for you.
Huawei AR730 Datasheet — Technical Specifications
General
| Product Name | Huawei NetEngine AR730 Enterprise Router |
| Model | AR730 |
| Part Number | 02354GBM-001 |
| Type | Enterprise router / gateway, 1U |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 1 x 10GE SFP+ (compatible with GE optics) + 2 x GE combo (RJ45/SFP) |
| LAN | 8 x GE RJ45 (can be switched to WAN ports) + 1 x GE combo |
Performance
| Forwarding Performance | 9 Mpps to 25 Mpps |
| Connected Terminals | 1,200 |
Power & Physical
| Power Supply | Built-in AC, 90–264 V, 47–63 Hz |
| Power Consumption | Typical 28 W; max 33 W |
| Dimensions (H x W x D) | 44.4 x 442 x 220.4 mm, 1U |
| Weight | 3.2 kg (4.6 kg packed) |
| Installation | Rack, workbench or wall |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 5% to 95% RH, non-condensing |
Specifications from Huawei's official eKit product page for the AR730 (part number 02354GBM-001).
Compatibility & Software Support
Typical Use
Branch and SME internet gateway / enterprise router for sites of up to 1,200 connected terminals, per Huawei's eKit product page.
Expansion
The distributor price list describes the AR700 models with 2 x USB and 2 x SIC slots; these are not listed on Huawei's eKit product page — ask us to confirm expansion options and supported cards before ordering.
Features
Huawei's eKit page lists hardware specifications only. Ask us for the software feature set (routing protocols, VPN, security) for your deployment, and we will confirm against Huawei's AR700 datasheet.
Package Contents & Huawei NetEngine AR700 Ordering Information
Huawei NetEngine AR700 Models
| Model | WAN | LAN | Part No. |
| AR720 | 2 x GE combo | 8 x GE (switchable to WAN) | AR720 |
| AR730 (this listing) | 2 x GE combo + 1 x 10GE SFP+ | 8 x GE + 1 x GE combo | AR730 |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| Huawei eKit product page | AR730 on ekit.huawei.com |
| Huawei datasheet | NetEngine AR700 Series Enterprise Router Datasheet (e.huawei.com) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AR730.
Frequently Asked Questions — Huawei AR730
How many users does it support?
Huawei's eKit page rates the AR730 for 1,200 connected terminals.
What is the difference from the AR720?
The AR730 adds a 10GE SFP+ WAN port and a GE combo LAN port, and is rated for 1,200 terminals versus 700.
Does it have built-in Wi-Fi?
No Wi-Fi is listed — pair it with Huawei access points and a controller.
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
