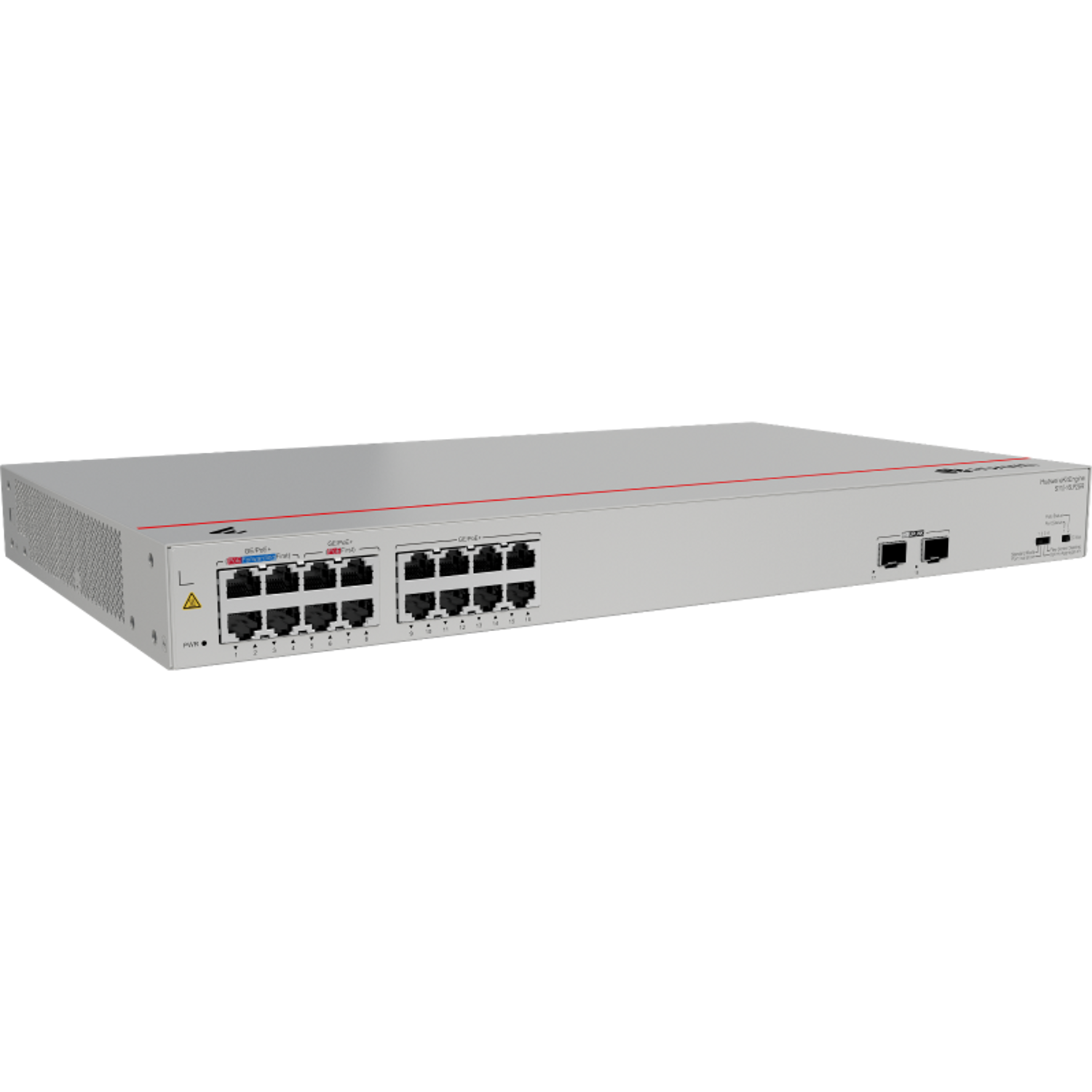

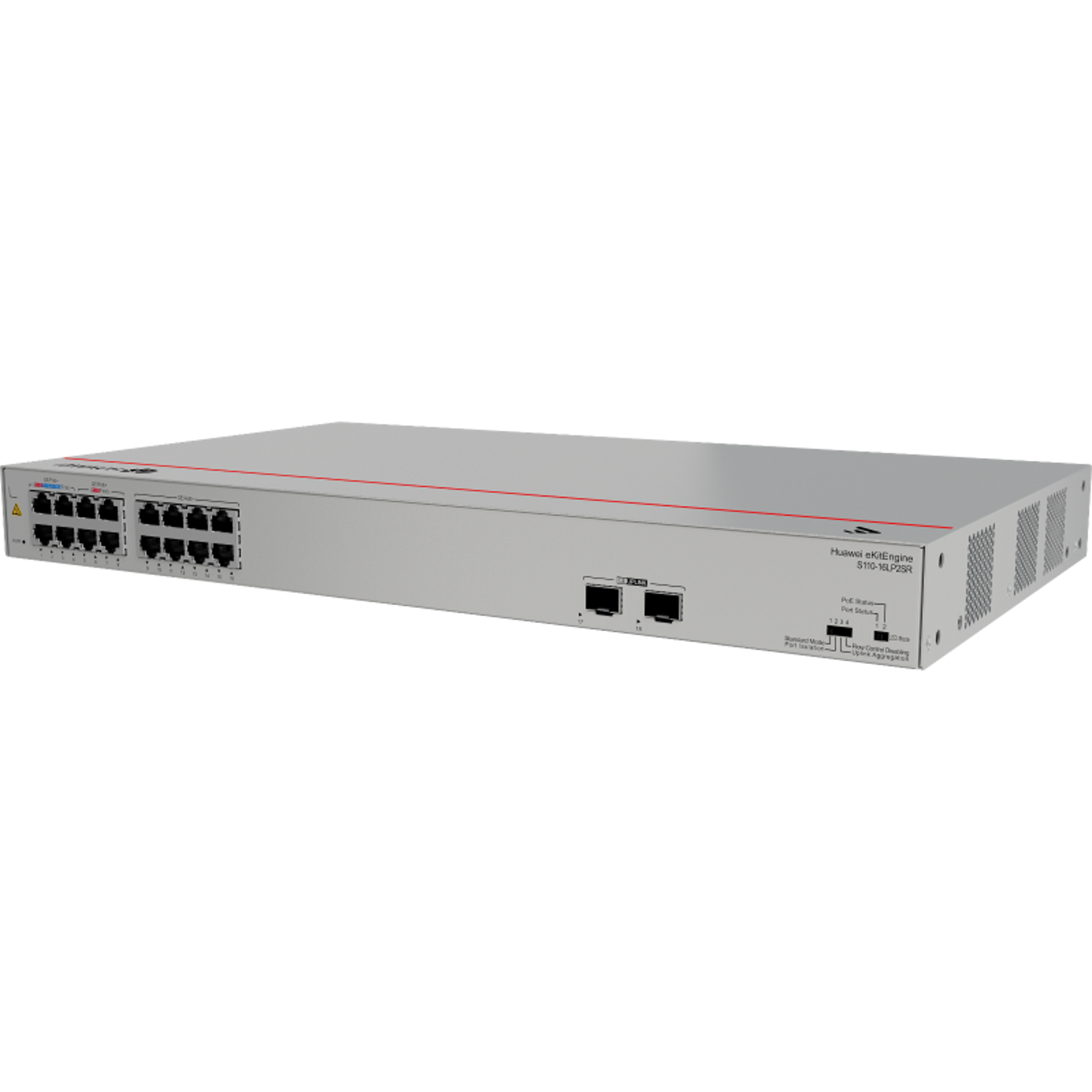

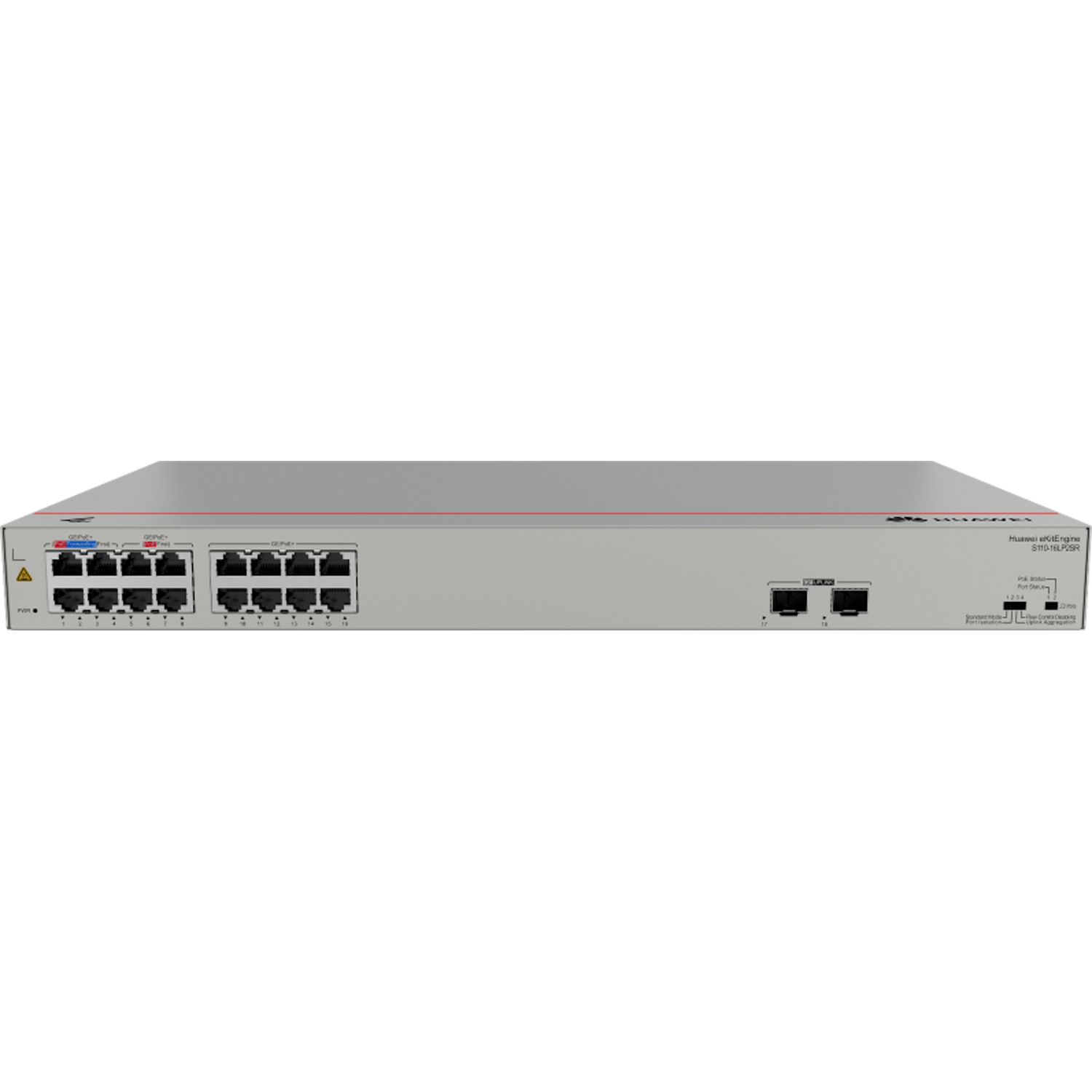

Huawei eKitEngine S110-16LP2SR 16-Port Gigabit PoE+ Switch, 124W, 2 x SFP
PRODUCT DESCRIPTION
Huawei eKitEngine S110-16LP2SR 16-Port Gigabit PoE+ Unmanaged Switch (S110-16LP2SR) - 1 Year Local Warranty
16 PoE+ Ports, Zero Configuration
The Huawei eKitEngine S110-16LP2SR is a plug-and-play unmanaged switch with 16 Gigabit PoE+ ports and 2 Gigabit SFP uplinks.
124 W PoE Budget
A 124 W PoE+ budget powers access points, IP cameras and IP phones.
Performance
Huawei rates the switch at 36 Gbit/s switching capacity and a 26.78 Mpps forwarding rate.
Rack, Desk or Wall
A 442 mm chassis with a built-in AC power supply (90–300 V AC).
Need help choosing? Email sales@sourceit.com.sg with the number of PoE devices and their power draw and we will size it for you.
Huawei S110-16LP2SR Datasheet — Technical Specifications
General
| Product Name | Huawei eKitEngine S110-16LP2SR PoE+ Switch |
| Model | S110-16LP2SR |
| Part Number | 98012197 |
| Switch Type | Unmanaged (plug and play) |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Interfaces
| GE PoE+ Ports | 16 x 10/100/1000BASE-T, PoE+ |
| GE SFP Ports | 2 x GE SFP |
PoE
| PoE Standard | PoE+ |
| Max. PoE Power | 124 W |
Performance
| Switching Capacity | 36 Gbit/s |
| Forwarding Rate | 26.78 Mpps |
Power & Physical
| Power Supply | Built-in AC: 90–300 V AC, 47–63 Hz |
| Max. Power Consumption | 22.0 W without PoE; 160.0 W at full PoE load |
| Dimensions (H x W x D) | 43.6 x 442 x 260 mm (267 mm max. depth) |
| Weight | 3.0 kg (3.7 kg packed) |
| Installation | Rack, desk or wall |
Specifications from Huawei's official eKit product page for the S110-16LP2SR (part number 98012197). Operating temperature and cooling are not listed on that page.
Compatibility & Software Support
Management
Unmanaged — Huawei describes the S110 series as plug-and-play, configuration-free and management-free. Selectable working modes, including port isolation, are listed in Huawei's S110 series datasheet.
Typical Use
Simple access switching for small offices, shops, CCTV and Wi-Fi AP deployments, with Gigabit SFP uplinks to a gateway or core switch.
Package Contents & Huawei eKitEngine S110 Ordering Information
Huawei eKitEngine S110 Models
| Model | Ports | PoE | Part No. |
| S110-8P2ST | 8 x GE PoE+ + 1 x GE + 1 x GE SFP | 124 W | S110-8P2ST |
| S110-16LP2SR (this listing) | 16 x GE PoE+ + 2 x GE SFP | 124 W | S110-16LP2SR |
| S110-24LP2SR | 24 x GE PoE+ + 2 x GE SFP | 124 W | S110-24LP2SR |
| S110-24T2SR | 24 x GE + 2 x GE SFP | — | S110-24T2SR |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included power cord and mounting kit.
Datasheet & Downloads
| Huawei eKit product page | S110-16LP2SR on ekit.huawei.com |
| Huawei datasheet | eKitEngine S110 Series Switch Datasheet (e.huawei.com) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S110-16LP2SR.
Frequently Asked Questions — Huawei S110-16LP2SR
How much PoE power does it provide?
124 W in total across the 16 PoE+ ports — plan your PoE devices within that budget.
Does it need configuration?
No. The S110 series is plug-and-play and unmanaged.
Does it have fibre uplinks?
Yes, 2 x Gigabit SFP ports.
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
