Huawei eKitEngine AC650-256AP Wireless Access Controller, up to 256 APs
PRODUCT DESCRIPTION
Huawei eKitEngine AC650-256AP Wireless Access Controller for up to 256 APs (AC650-256AP) - 1 Year Local Warranty
Central Control for up to 256 Access Points
The Huawei eKitEngine AC650-256AP is a wireless access controller (WAC) from Huawei's eKit SME range. It manages up to 256 Huawei access points from one device, simplifying configuration and roaming across a multi-AP Wi-Fi network.
10GE Uplinks

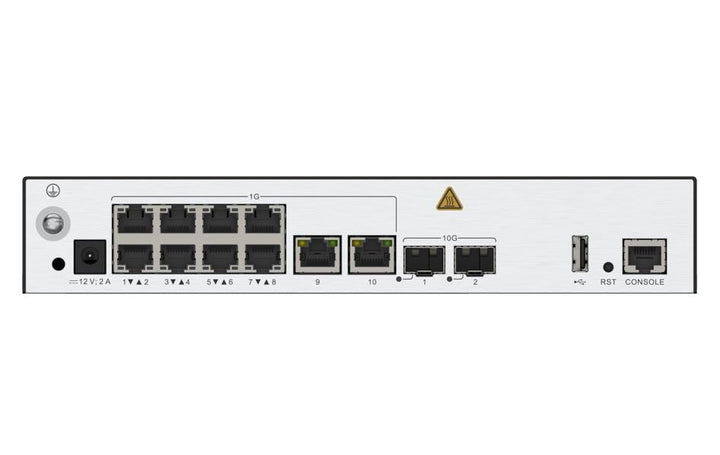

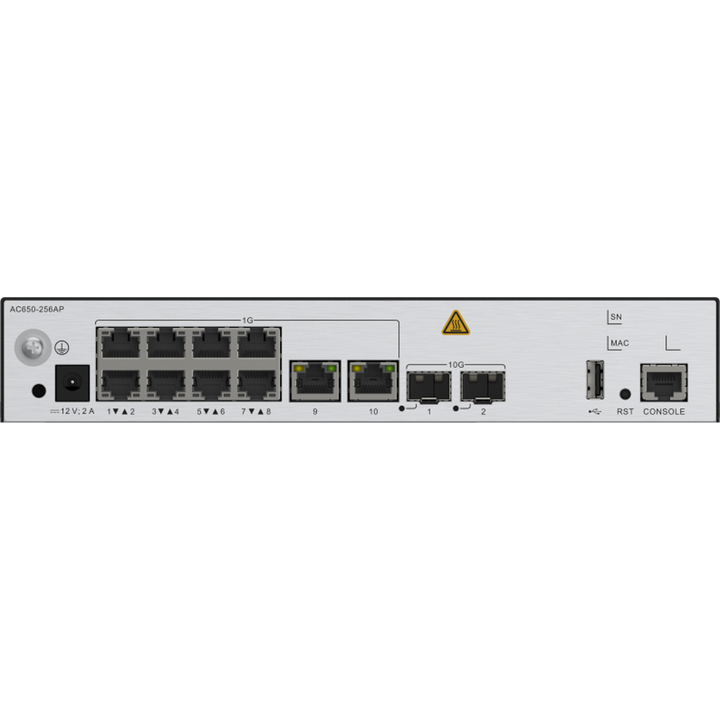

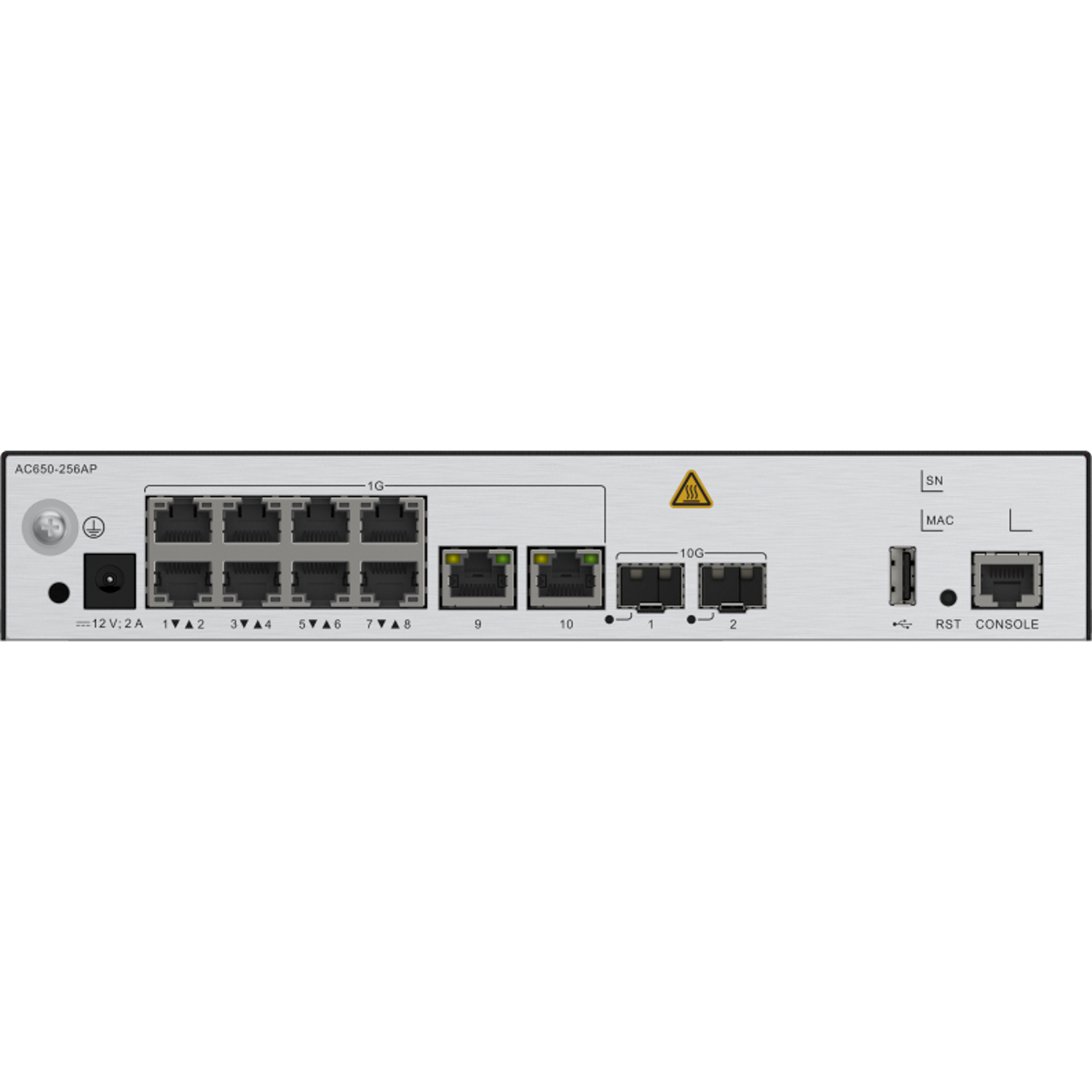

Ten Gigabit RJ45 ports and two 10GE SFP+ ports connect the controller to your core switch and APs.
Compact and Easy to Install

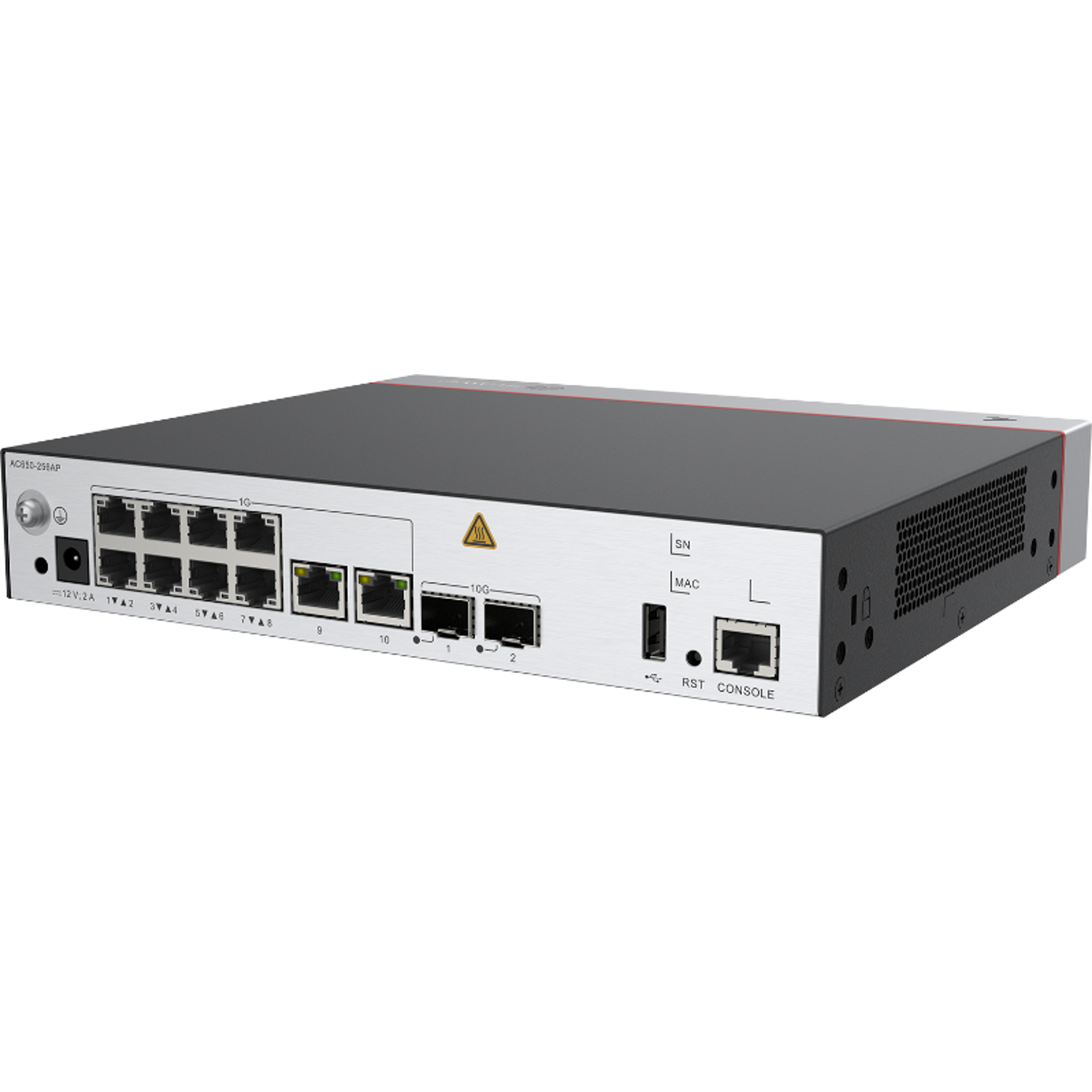

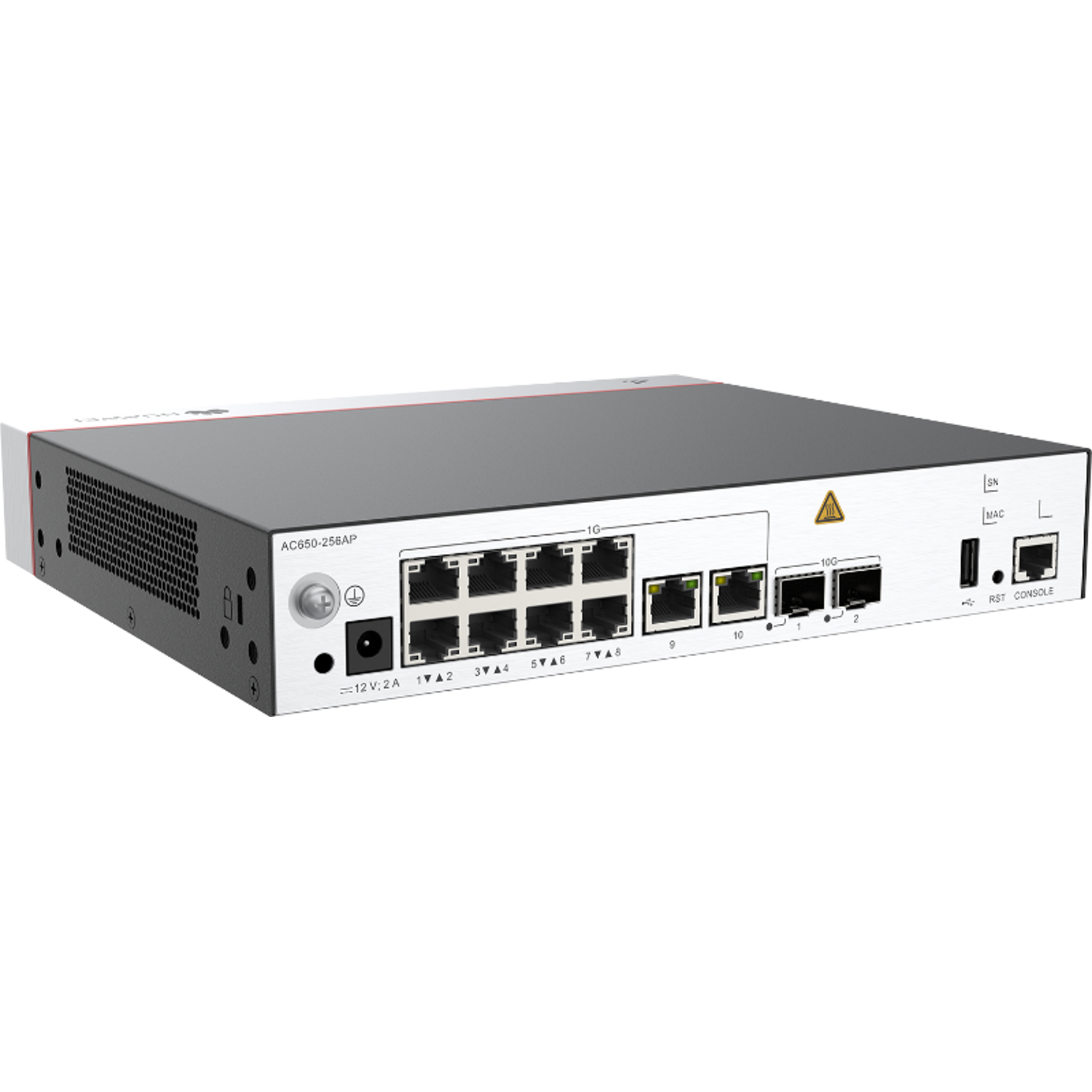

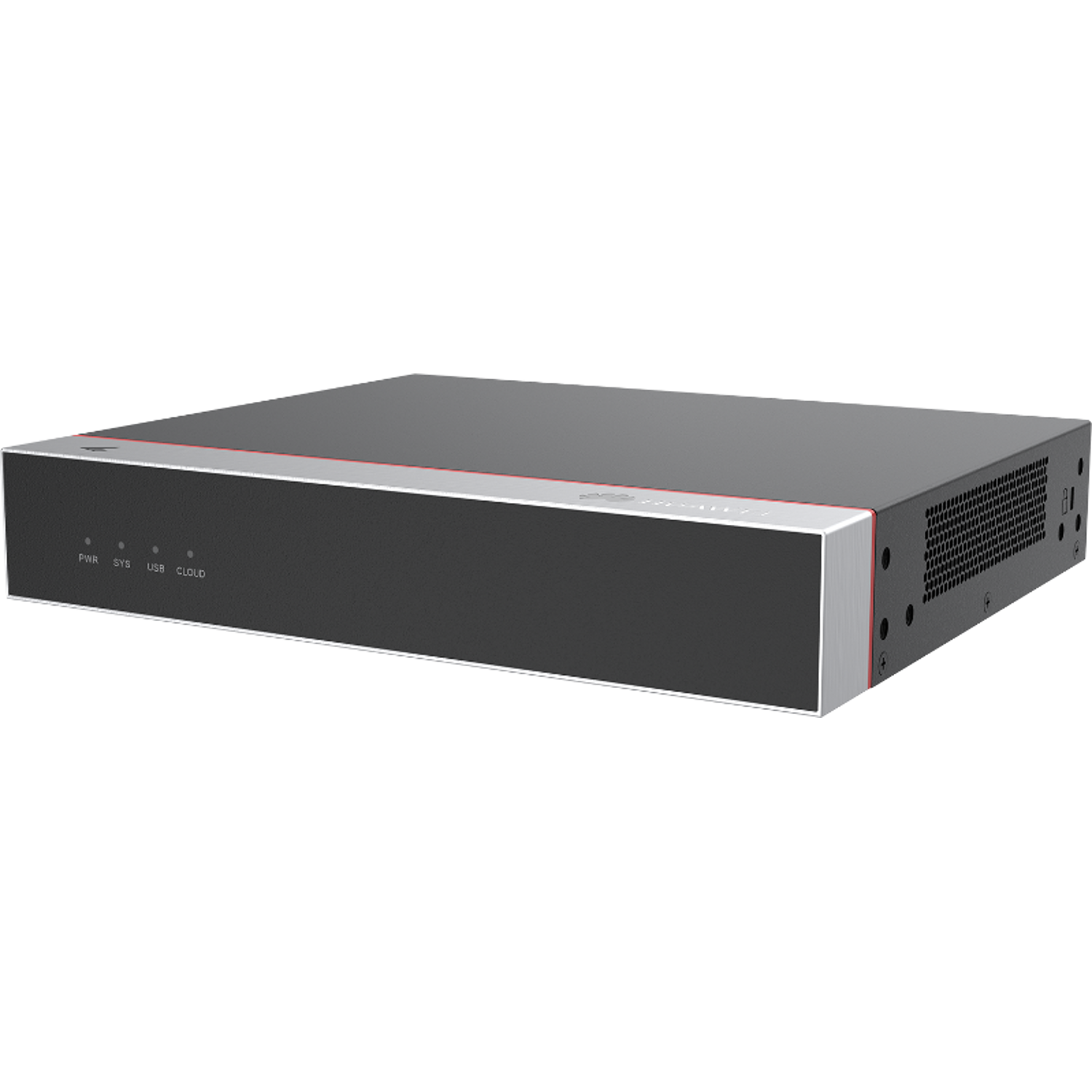

The AC650 is a compact 43.6 mm-high unit (250 x 210 mm footprint) that can be rack-, desk- or wall-mounted and is powered by a DC power adapter, drawing a maximum of 23.58 W.
Scale Up When You Need To
Need more APs? The AC650 is also available as the AC650-128AP — see the ordering table below.
Need help choosing? Email sales@sourceit.com.sg with the number of access points and users you plan to support and we will size it for you.
Huawei AC650-256AP Datasheet — Technical Specifications
General
| Product Name | Huawei eKitEngine AC650-256AP Wireless Access Controller |
| Model | AC650-256AP |
| Part Number | 02355NCH |
| Type | Wireless access controller (WAC) |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Capacity
| Managed APs | 256 |
| Wireless Access Users | 2,048 (per Huawei eKit Scenario-based Products Manual) |
| Forwarding Capability | 10 Gbps (per Huawei eKit Scenario-based Products Manual) |
Interfaces
| GE Ports | 10 x 10/100/1000BASE-T RJ45 |
| 10GE Ports | 2 x 10GE SFP+ |
Physical & Environmental
| Dimensions (H x W x D) | 43.6 x 250 x 210 mm (215 mm max. depth) |
| Weight | 1.9 kg (2.55 kg packed) |
| Installation | Rack, desk or wall |
| Power Supply | DC power adapter |
| Max. Power Consumption | 23.58 W |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 5% to 95% RH, non-condensing |
Specifications from Huawei's official eKit product page for the AC650-256AP; user count and forwarding capability from Huawei's eKit Scenario-based Products Manual (April 2024).
Compatibility & Software Support
Supported Access Points
Designed to manage Huawei eKit access points such as the AP362 and AP263. Ask us to confirm AP model and firmware compatibility before ordering.
Licensing
Huawei's eKit page lists the AP management capacity for this model; the distributor price list describes it as having a built-in licence for 256 APs. Ask us if you need licence details in writing.
Typical Use
Multi-floor offices, schools, hotels and retail chains running many Huawei APs.
Package Contents & Huawei eKit WLAN Ordering Information
Huawei eKit WLAN Models
| Model | Type | Key Spec | Part No. |
| AP362 | Wi-Fi 6 wall/ceiling AP | 2.975 Gbps, 1 x GE | AP362 |
| AP263 | Wi-Fi 6 wall-plate AP | 2.975 Gbps, 2 x GE, USB, BLE | AP263 |
| AC650-128AP | Wireless access controller | Manages up to 128 APs | AC650-128AP |
| AC650-256AP (this listing) | Wireless access controller | Manages up to 256 APs | AC650-256AP |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included DC power adapter and mounting kit.
Datasheet & Downloads
| Huawei eKit product page | AC650-256AP on ekit.huawei.com |
| Huawei datasheet | eKitEngine AC650-256AP Wireless Access Controller Datasheet (e.huawei.com) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AC650-256AP.
Frequently Asked Questions — Huawei AC650-256AP
How many APs can it manage?
Up to 256 access points, per Huawei's eKit product page.
Does it have 10G uplinks?
Yes, 2 x 10GE SFP+ ports alongside 10 x Gigabit RJ45 ports.
Does it supply PoE to the APs?
No PoE is listed for the AC650. Power your APs from a PoE switch such as the Huawei eKitEngine S310-24P4S or S110 PoE models.
Can it be rack-mounted?
Yes — Huawei lists rack, desk and wall installation.
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
