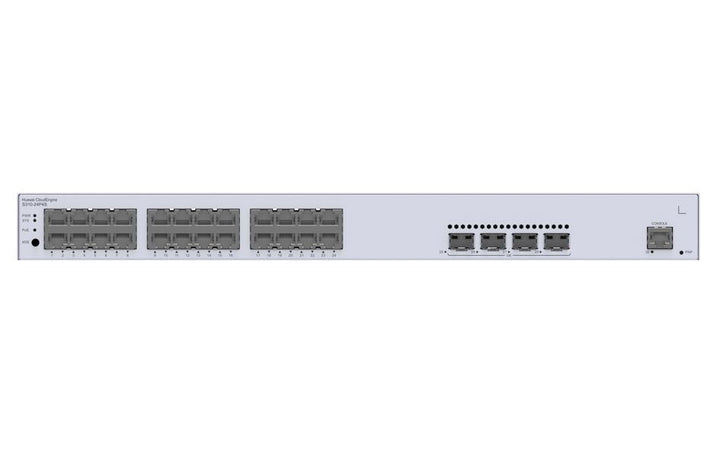

Huawei eKitEngine S310-24P4S 24-Port Gigabit PoE+ L2+ Switch, 400W, 4 x SFP
PRODUCT DESCRIPTION
Huawei eKitEngine S310-24P4S 24-Port Gigabit PoE+ L2+ Managed Switch (S310-24P4S) - 1 Year Local Warranty
24 PoE+ Ports with a 400 W Budget
The Huawei eKitEngine S310-24P4S is a Layer 2+ managed switch with 24 Gigabit PoE+ RJ45 ports and 4 Gigabit SFP uplinks. A 400 W PoE budget powers access points, IP cameras and IP phones.
Performance
Huawei rates the switch at 56 Gbit/s switching capacity and a 42 Mpps forwarding rate.
Stack and Manage from the Cloud
iStack lets you stack up to four S310 switches and manage them as one. Per Huawei's S310 series datasheet, the switch supports static routing and policy-based routing and can be configured and monitored in the cloud through the HUAWEI eKit app.
Built for Rack, Desk or Wall
The 1U metal chassis has a built-in AC power supply, ±6 kV surge protection and intelligent fan-speed cooling.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs and we will size it for you.
Huawei S310-24P4S Datasheet — Technical Specifications
General
| Product Name | Huawei eKitEngine S310-24P4S Gigabit PoE+ Switch |
| Model | S310-24P4S |
| Part Number | 98012201 |
| Switch Type | Layer 2+ managed (static routing) |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Interfaces
| GE RJ45 Ports | 24 x 10/100/1000BASE-T, PoE+ |
| GE SFP Ports | 4 x GE SFP |
PoE
| PoE Standard | PoE+ |
| Max. PoE Power | 400 W |
Performance
| Switching Capacity | 56 Gbit/s |
| Forwarding Rate | 42 Mpps |
| MAC Address Table | 16K entries (per S310 series datasheet) |
| Stacking | iStack, up to 4 switches of the same series |
Power & Physical
| Power Supply | Built-in AC: 90–290 V AC, 45–65 Hz, or 190–290 V high-voltage DC |
| Power Consumption | Static 30.82 W; typical 40.07 W; max 47.1 W without PoE; 491.66 W at full PoE load (PoE 400 W) |
| Surge Protection | ±6 kV (differential and common mode) |
| Cooling | 2 built-in fan modules, intelligent fan speed; air in left/front, out right |
| Dimensions (H x W x D) | 43.6 x 442 x 220 mm (227 mm max. depth) |
| Weight | 2.92 kg (3.79 kg packed) |
| Installation | Rack, desk or wall |
| Chassis | Metal |
| Operating Temperature | -5 to +50 °C (0–1,800 m) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Certifications | EMC, Safety, Manufacturing |
Specifications from Huawei's official eKit product page for the S310-24P4S (part number 98012201); MAC table from Huawei's S310 series datasheet.
Compatibility & Software Support
Management
Per Huawei's S310 series datasheet: web, CLI and SNMP v1/v2/v3 management, plus cloud configuration, monitoring and inspection through the HUAWEI eKit app.
Layer 2+ Features
L2 switching with static routing and policy-based routing (PBR), 4,094 VLANs and L2–L4 ACLs per Huawei's S310 series datasheet.
Typical Use
Access switching for SME offices, shops and branches, uplinked by SFP to a core switch or an eKitEngine S380 / NetEngine AR gateway.
Package Contents & Huawei eKitEngine S310 Ordering Information
Huawei eKitEngine S310 Models
| Model | Ports | PoE | Part No. |
| S310-24T4S | 24 x GE + 4 x GE SFP | — | S310-24T4S |
| S310-24P4S (this listing) | 24 x GE PoE+ + 4 x GE SFP | 400 W | S310-24P4S |
| S310-48T4S | 48 x GE + 4 x GE SFP | — | S310-48T4S |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included power cord and mounting kit.
Datasheet & Downloads
| Huawei eKit product page | S310-24P4S on ekit.huawei.com |
| Huawei datasheet | eKitEngine S310 Series Switches Datasheet (e.huawei.com) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S310-24P4S.
Frequently Asked Questions — Huawei S310-24P4S
How much PoE power does it provide?
400 W in total across the 24 PoE+ ports.
Is it a Layer 3 switch?
Huawei's S310 series datasheet lists static routing and policy-based routing; dynamic routing protocols such as OSPF are not listed. Ask us before planning dynamic routing on it.
Can I stack it?
Yes, iStack supports up to 4 switches of the same series.
Does it have a fan?
Yes, two built-in fan modules with intelligent fan speed.
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
