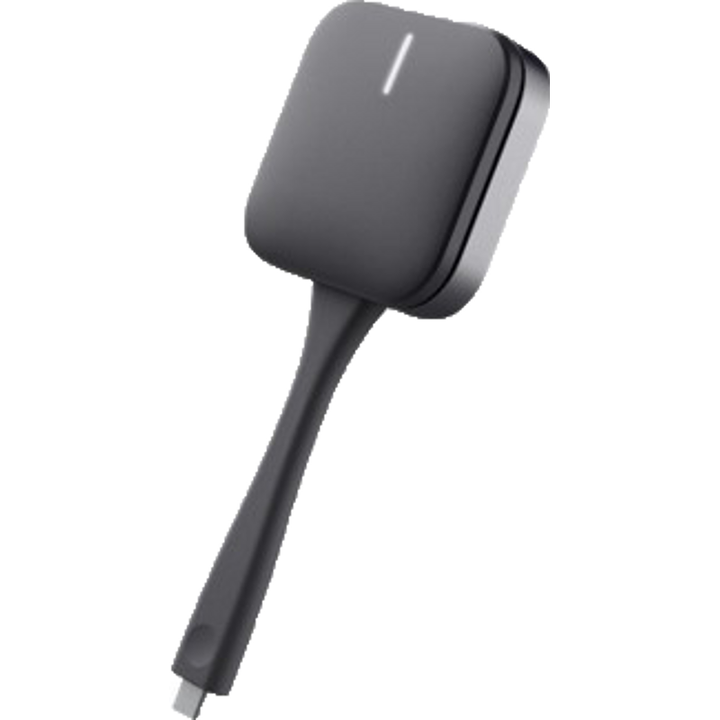

Huawei IdeaShare Key (Type-C) Wireless Screen Sharing Dongle, HWA-01
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Huawei IdeaShare Key (Type-C) Wireless Screen Sharing Dongle (HWA-01) - Local Warranty
The HUAWEI IdeaShare Key (Type-C, HWA-01) is a plug-and-share dongle: plug it into a laptop, phone or tablet USB-C port and tap to mirror your screen to a HUAWEI IdeaHub.
Key Features
- Up to 1080p60 without software, up to 4K30 with the IdeaShare Key driver.
- Windows and macOS laptops; Android 10+, iOS 12.1+ and HarmonyOS devices with video over USB-C.
- Mirror-and-control and screen extension with Windows or macOS.
- Up to six IdeaShare Keys can be connected to one IdeaHub at the same time.
- Pairs through the IdeaHub USB Type-C port.
Huawei HWA-01 Datasheet — Technical Specifications
General
| Product Name | Huawei IdeaShare Key (Type-C) Wireless Screen Sharing Dongle |
| Brand | Huawei |
| Huawei Part Number | 02170477 |
| Model | HWA-01 |
Sharing
| Interface | USB Type-C |
| Resolution | Up to 1080p60 (no driver), up to 4K30 (with driver) |
| Simultaneous Keys | Up to 6 |
Supported Devices
| Computers | Windows 10/11 and macOS 10.15.3+ with video over Type-C; otherwise Windows 7-11 and macOS 10.13.6+ with IdeaShare Key software |
| Mobile | Android 10.0+, iOS 12.1+, HarmonyOS 2.0 to before 5.0 (video output over Type-C required) |
Compatibility & Ordering Information
For HUAWEI IdeaHub 65" / 75" / 86" displays, including the IdeaHub Board 3 Pro 65" 4K Interactive Collaboration Display, IdeaHub B3 65" 4K Interactive Display with Built-in Camera, IdeaHub S2 65" 4K Video Conferencing Interactive Display, IdeaHub S3 65" 4K AI Video Conferencing Interactive Display ranges.
IdeaShare Keys
| Model | Huawei part / model |
| Huawei IdeaShare Key (Type-C) Wireless Screen Sharing Dongle | 02170477 / HWA-01 |
| Huawei IdeaShare Key (Type-A) 4K Wireless Screen Sharing Dongle | 02170469 / EP02T-H |
IdeaHub Accessories
| Accessory | Huawei part / model |
| Huawei IdeaHub OPS W021 Z PC Module | 06190054 / OPS W021 Z |
| Huawei IdeaHub OPS W022 Z PC Module | 06190053 / OPS W022 Z |
| Huawei IdeaHub Rolling Stand II, White | 21155908 / WB1M0IDEAHUB07 |
| Huawei IdeaHub Rolling Stand II, Gray | 21155908-001 / WB1M0IDEAHUB08 |
| Huawei IdeaHub Wall Mount Bracket | 21156005 / WB1M0BRACKET01 |
| Huawei IdeaShare Key (Type-A) 4K Wireless Screen Sharing Dongle | 02170469 / EP02T-H |
| Huawei IdeaShare Key (Type-C) Wireless Screen Sharing Dongle | 02170477 / HWA-01 |
Datasheet & Downloads
| Datasheet | HUAWEI IdeaShare Key (Type-C) Datasheet |
| User guide | IdeaShare Key (Type-C) User Guide |
Frequently Asked Questions — IdeaShare Key (Type-C) Wireless Screen Sharing Dongle
Do I need software?
No for 1080p60 on devices with video over USB-C; install the IdeaShare Key software for 4K30 or on computers without video over USB-C.
How many keys can one IdeaHub use?
Up to six at the same time.
Type-C or Type-A?
This is the Type-C key. For laptops with only USB-A, see the IdeaShare Key (Type-A) EP02T-H.
