Huawei IdeaHub OPS W022 Z PC Module, Intel Core i7-13620H, 16GB / 512GB SSD, Windows 11 IoT Enterprise
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Huawei IdeaHub OPS W022 Z PC Module - Local Warranty

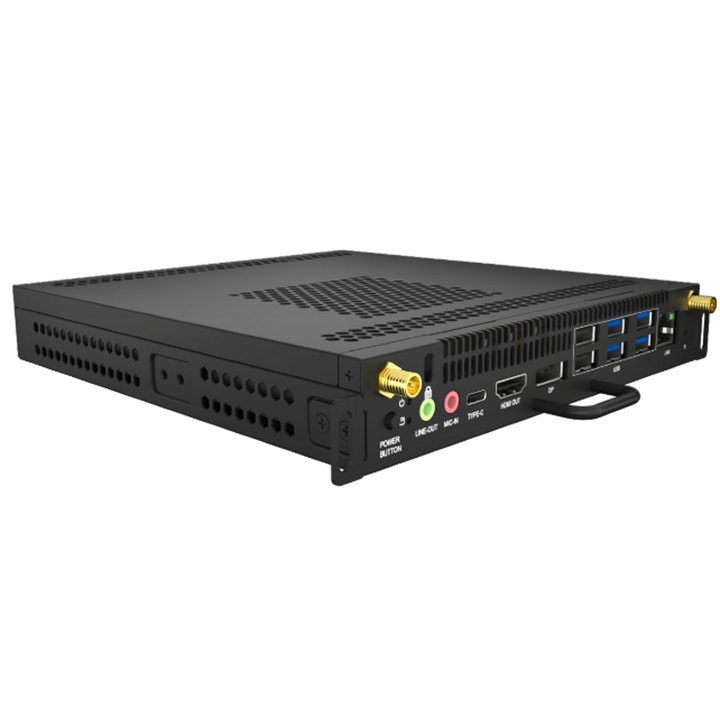

The Huawei OPS W022 Z OPS PC module (06190053) slides into the OPS slot of a HUAWEI IdeaHub to add Windows 11 IoT Enterprise — Intel Core i7-13620H, DDR4 16GB and 512GB SSD — and lets you switch between HarmonyOS and Windows with one tap.
Key Features
- Intel Core i7-13620H processor.
- DDR4 16GB memory, 512GB SSD.
- Windows 11 IoT Enterprise (SAC) pre-installed.
- Powered from the IdeaHub OPS slot: DC 19V, max 90 W.
- Ports: RJ45, HDMI, DP, line in, line out, USB Type-A and 2 x Wi-Fi antenna ports.
- Power, one-click restore and restart buttons; 195 x 180 x 30 mm.
Huawei OPS W022 Z Datasheet — Technical Specifications
General
| Product Name | Huawei IdeaHub OPS W022 Z PC Module |
| Brand | Huawei |
| Huawei Part Number | 06190053 |
| Model | OPS W022 Z |
System
| Processor | Intel Core i7-13620H |
| Memory | DDR4 16GB |
| Storage | 512GB SSD |
| Operating System | Windows 11 IoT Enterprise SAC |
Connectivity
| Ports | 1 x RJ45, 1 x HDMI, 1 x DP, 1 x line in, 1 x line out, USB Type-A, 2 x Wi-Fi antenna ports |
| Buttons & Indicators | Power, one-click restoration and restart buttons; power and disk indicators |
Power & Physical
| Power | DC 19V, max 90 W (from the IdeaHub OPS slot) |
| Dimensions | 195 x 180 x 30 mm |
Compatibility & Ordering Information
Fits the OPS slot of HUAWEI IdeaHub 65" / 75" / 86" displays, including the IdeaHub Board 3 Pro 65" 4K Interactive Collaboration Display, IdeaHub B3 65" 4K Interactive Display with Built-in Camera, IdeaHub S2 65" 4K Video Conferencing Interactive Display, IdeaHub S3 65" 4K AI Video Conferencing Interactive Display ranges. Power the IdeaHub off before installing or removing the OPS.
Huawei OPS Modules
| Model | Huawei part / model |
| Huawei IdeaHub OPS W021 Z PC Module | 06190054 / OPS W021 Z |
| Huawei IdeaHub OPS W022 Z PC Module | 06190053 / OPS W022 Z |
IdeaHub Accessories
| Accessory | Huawei part / model |
| Huawei IdeaHub OPS W021 Z PC Module | 06190054 / OPS W021 Z |
| Huawei IdeaHub OPS W022 Z PC Module | 06190053 / OPS W022 Z |
| Huawei IdeaHub Rolling Stand II, White | 21155908 / WB1M0IDEAHUB07 |
| Huawei IdeaHub Rolling Stand II, Gray | 21155908-001 / WB1M0IDEAHUB08 |
| Huawei IdeaHub Wall Mount Bracket | 21156005 / WB1M0BRACKET01 |
| Huawei IdeaShare Key (Type-A) 4K Wireless Screen Sharing Dongle | 02170469 / EP02T-H |
| Huawei IdeaShare Key (Type-C) Wireless Screen Sharing Dongle | 02170477 / HWA-01 |
Datasheet & Downloads
| Datasheet | Huawei OPS W022 Z Datasheet |
Frequently Asked Questions — IdeaHub OPS W022 Z PC Module
Which IdeaHub models does it fit?
IdeaHub displays with an OPS slot, including the Board 3 Pro, B3, S2 and S3. The OPS must match the IdeaHub model.
Is Windows licensed?
Yes, Windows 11 IoT Enterprise (SAC) is pre-installed.
Does it need a separate power supply?
No, it is powered through the IdeaHub OPS slot.
