Huawei IdeaHub Wall Mount Bracket for 65" / 75" / 86" Displays (WB1M0BRACKET01)
Pricing available upon request
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
Shipping calculated at checkout.
PRODUCT DESCRIPTION
Huawei IdeaHub Wall Mount Bracket (WB1M0BRACKET01) - Local Warranty

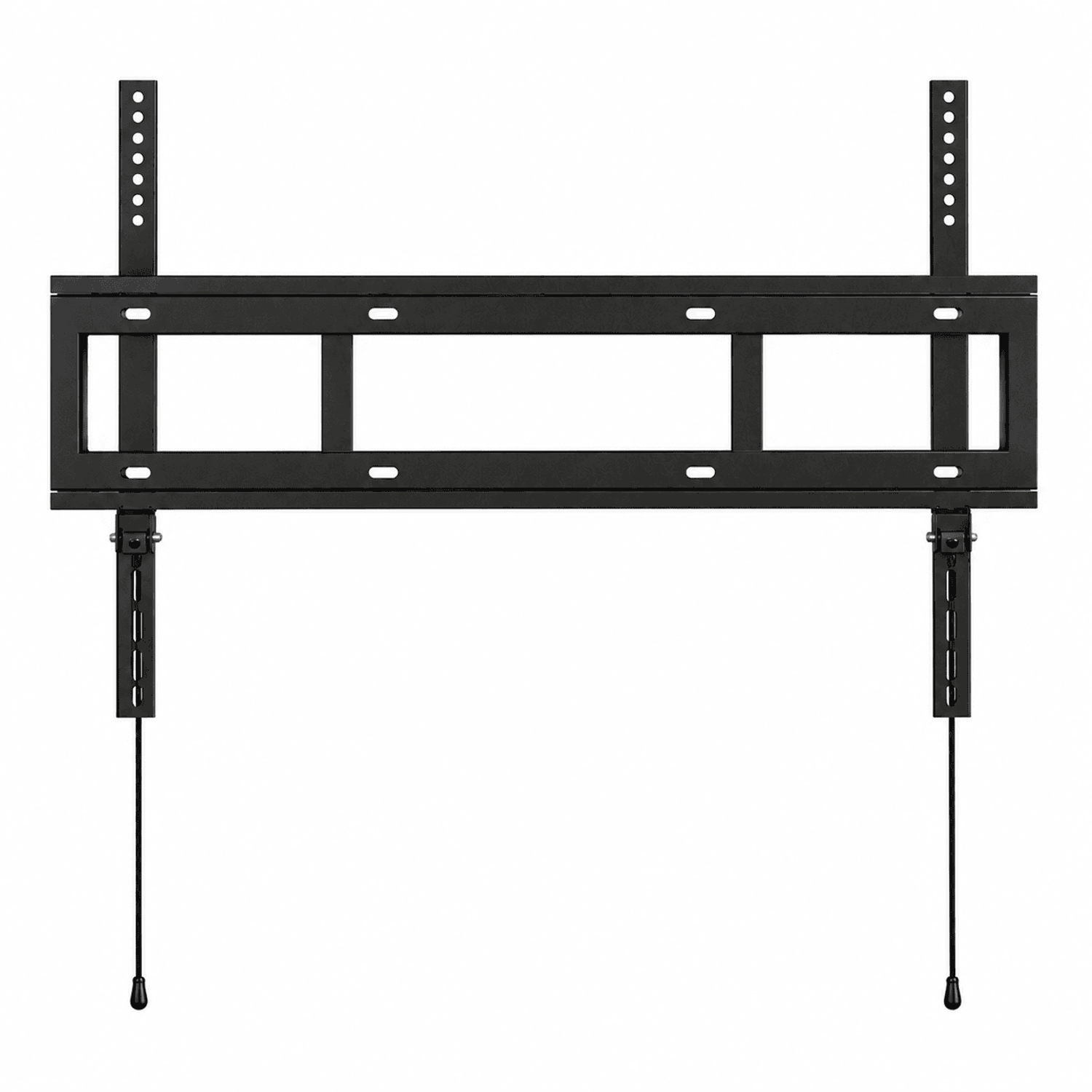

The HUAWEI IdeaHub Wall Mount Bracket (WB1M0BRACKET01) hangs a 65-, 75- or 86-inch HUAWEI IdeaHub flat against the wall of a meeting room or classroom.
Key Features
- Fits HUAWEI IdeaHub 65" / 75" / 86" displays.
- VESA mounting with M8 x 25 mm screws: 600 x 400 mm (65") or 800 x 400 mm (75" / 86").
- Slim 34 mm depth; 1100 x 200 mm bracket.
- Net weight 4.3 kg.
Huawei WB1M0BRACKET01 Datasheet — Technical Specifications
General
| Product Name | Huawei IdeaHub Wall Mount Bracket |
| Brand | Huawei |
| Huawei Part Number | 21156005 |
| Model | WB1M0BRACKET01 |
Physical
| Dimensions | 34 x 1100 x 200 mm |
| Package Dimensions | 55 x 1260 x 345 mm |
| Net / Gross Weight | 4.3 kg / 5.3 kg |
| VESA / Screws | 600 x 400 mm (65"), 800 x 400 mm (75" / 86"); M8 x 25 mm |
Compatibility & Ordering Information
For HUAWEI IdeaHub 65" / 75" / 86" displays, including the IdeaHub Board 3 Pro 65" 4K Interactive Collaboration Display, IdeaHub B3 65" 4K Interactive Display with Built-in Camera, IdeaHub S2 65" 4K Video Conferencing Interactive Display, IdeaHub S3 65" 4K AI Video Conferencing Interactive Display ranges. The display must hang vertically.
IdeaHub Accessories
| Accessory | Huawei part / model |
| Huawei IdeaHub OPS W021 Z PC Module | 06190054 / OPS W021 Z |
| Huawei IdeaHub OPS W022 Z PC Module | 06190053 / OPS W022 Z |
| Huawei IdeaHub Rolling Stand II, White | 21155908 / WB1M0IDEAHUB07 |
| Huawei IdeaHub Rolling Stand II, Gray | 21155908-001 / WB1M0IDEAHUB08 |
| Huawei IdeaHub Wall Mount Bracket | 21156005 / WB1M0BRACKET01 |
| Huawei IdeaShare Key (Type-A) 4K Wireless Screen Sharing Dongle | 02170469 / EP02T-H |
| Huawei IdeaShare Key (Type-C) Wireless Screen Sharing Dongle | 02170477 / HWA-01 |
Frequently Asked Questions — IdeaHub Wall Mount Bracket
Which displays does it fit?
HUAWEI IdeaHub 65-, 75- and 86-inch models.
Is it included with the IdeaHub?
No, the wall mount bracket is an optional accessory.
