HPE ProLiant MicroServer Gen11 Ultra Micro Tower Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
HPE ProLiant MicroServer Gen11 Ultra Micro Tower Server (Configure-to-Order) - Local Warranty
Compact Entry Server for Small Offices
The HPE ProLiant MicroServer Gen11 is an ultra micro tower just 15.4 cm high, built for small offices, retail and edge sites that need an affordable server for file sharing, backup and light virtualisation.
Intel Xeon 6300, Xeon E-2400 or Pentium
Choose an Intel Xeon 6300 Series (up to 12 cores), Xeon E-2400 or Pentium Gold G7400 processor, up to 128 GB of DDR5 ECC UDIMM memory, four 3.5-inch LFF drive bays with Intel VROC RAID, a PCIe 5.0 x16 slot and four embedded 1 GbE ports.
Remote Management Built In
HPE iLO 6 remote management is enabled through the shared on-board port by default, with an optional kit for a dedicated iLO port, M.2 boot and serial. HPE's standard warranty is 1 year parts, 1 year labour and 1 year onsite next-business-day.
HPE ProLiant MicroServer Gen11 Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant MicroServer Gen11 |
| Form Factor | Ultra micro tower, 1-socket |
| Order Type | Configure-to-Order (CPU, memory, drives, controller, power adapter and support term chosen per order) |
| HPE Standard Warranty | 1 year parts, 1 year labour, 1 year onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
| Dimensions (H x W x D) | 15.4 x 26.1 x 24.9 cm |
| Weight | 8.52 to 8.65 kg |
Processor & Memory
| Processors | One Intel Xeon 6300 Series (4 to 12 cores, up to 95 W), Intel Xeon E-2434 / E-2414 (4 cores, 55 W) or Intel Pentium Gold G7400 (2 cores, 46 W) |
| Memory Slots | 4 DIMM slots, DDR5 ECC unbuffered UDIMM |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Speed | Up to 4400 MT/s |
Storage

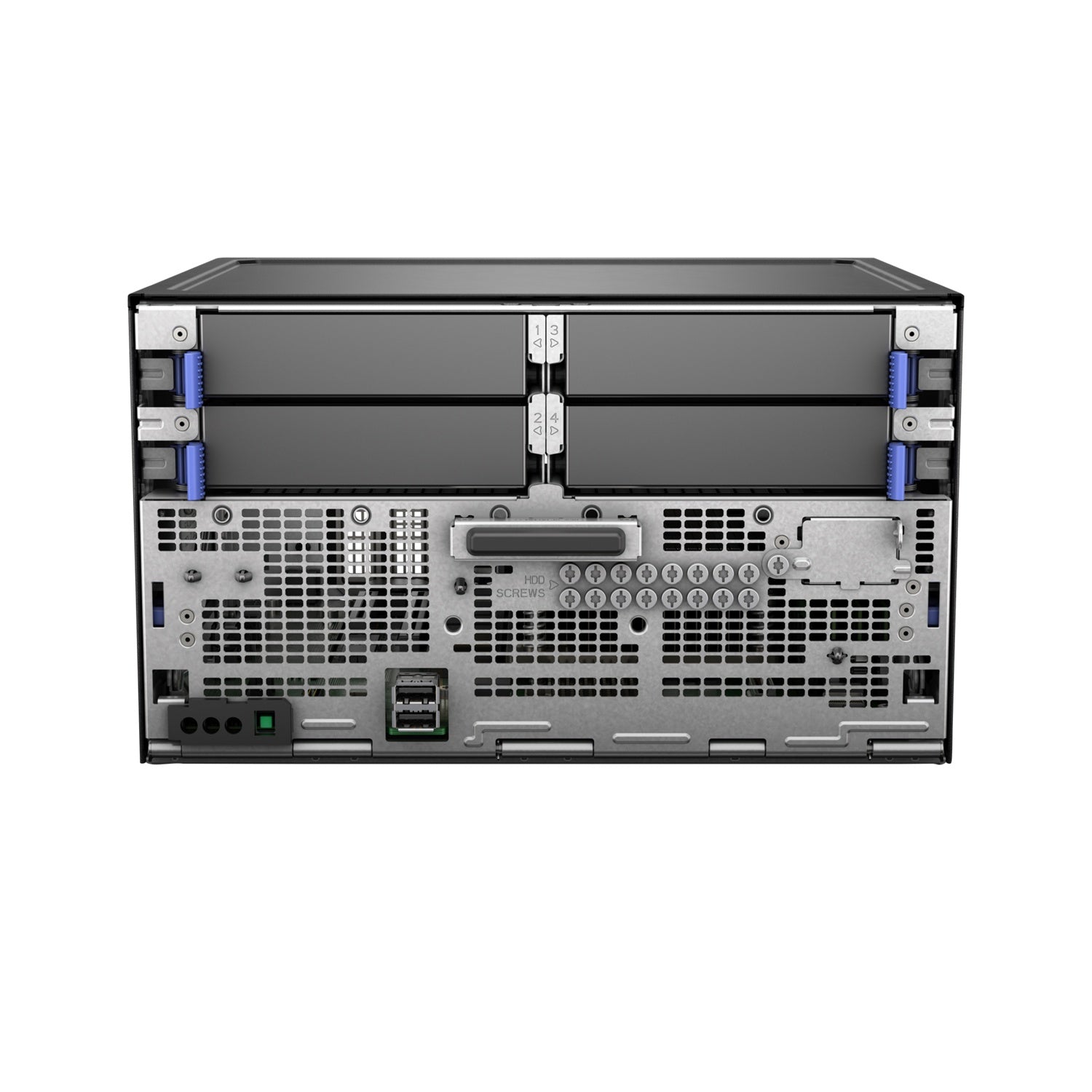

| Drive Bays | 4 x LFF (3.5-inch) non-hot-plug |
| RAID | Embedded Intel VROC SATA (RAID 0/1/5/10); optional HPE MR216i-p or MR408i-p controllers |
| M.2 | One optional M.2 slot (with HPE iLO/M.2/serial port enablement kit P65741-B21) |
Expansion & Connectivity
| PCIe Slots | Slot 1: PCIe 5.0 x16; Slot 2: PCIe 4.0 x8 |
| GPU Support | Up to one single-wide GPU |
| Embedded NIC | Broadcom BCM5719 4-port 1GbE BASE-T |
| Front Ports | 2 x USB 3.2 Gen 2 Type-A |

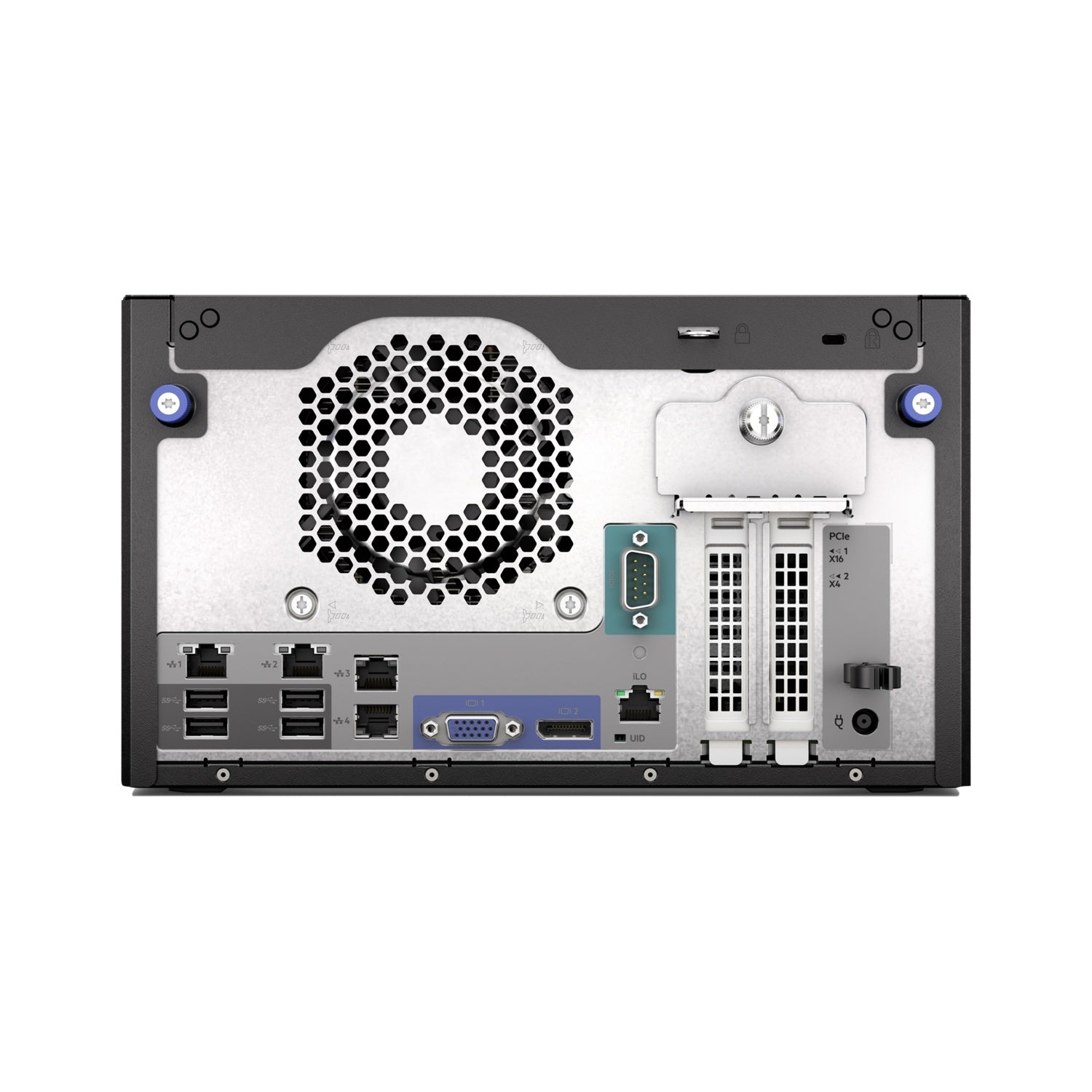

| Rear Ports | 4 x USB 3.2 Gen 1 Type-A, 1 x VGA, 1 x DisplayPort 1.1a |
Management & Security
| Management | HPE iLO 6 via shared on-board port; dedicated iLO port with optional enablement kit |
| Security | Immutable silicon root of trust, UEFI Secure Boot and Secure Start, embedded TPM 2.0, front bezel lock, padlock and Kensington slots |
Power
| Power Supply | 180 W or 330 W external power adapter (non-redundant), 100-240 VAC |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi (Xeon E processors), Red Hat Enterprise Linux, Canonical Ubuntu and XenServer. Check HPE's Servers Support & Certification Matrices for the exact versions certified on your chosen processor.
Management Tools
HPE iLO 6 provides out-of-band remote console, monitoring and alerting. HPE Compute Ops Management adds cloud-based firmware compliance, monitoring and lifecycle management across a fleet of ProLiant servers.
Typical Workloads
File and print serving, small-office collaboration, backup targets, video surveillance storage, branch and edge applications, and entry-level virtualisation.
Package Contents & HPE ProLiant Gen11 Ordering Information
What Is Supplied
The MicroServer Gen11 is built to order: chassis with the processor, memory, drives, storage controller and external power adapter specified on your quotation, plus power cord and any optional kits ordered.
HPE ProLiant Gen11
| Model | Key feature |
| ProLiant MicroServer Gen11 (this listing) | Ultra-compact, 1-socket Intel Xeon E-2400 |
| ProLiant ML30 Gen11 | Tower, 1-socket Intel Xeon E-2400 |
| ProLiant ML110 Gen11 | Tower, 1-socket Intel Xeon Scalable |
| ProLiant ML350 Gen11 | Tower, 2-socket Intel Xeon Scalable |
| ProLiant DL20 Gen11 | 1U, 1-socket Intel Xeon E-2400 |
| ProLiant DL145 Gen11 | Edge, 1-socket AMD EPYC 8004 |
| ProLiant DL320 Gen11 | 1U, 1-socket Intel Xeon Scalable |
| ProLiant DL325 Gen11 | 1U, 1-socket AMD EPYC |
| ProLiant DL345 Gen11 | 2U, 1-socket AMD EPYC |
| ProLiant DL360 Gen11 | 1U, 2-socket Intel Xeon Scalable |
| ProLiant DL365 Gen11 | 1U, 2-socket AMD EPYC |
| ProLiant DL380a Gen11 | 2U, 2-socket Intel Xeon, GPU-optimised |
| ProLiant DL385 Gen11 | 2U, 2-socket AMD EPYC |
Datasheet & Downloads
| HPE QuickSpecs | HPE ProLiant MicroServer Gen11 QuickSpecs |
| HPE product page | HPE ProLiant MicroServer Gen11 on hpe.com |
| HPE store page | HPE ProLiant MicroServer Gen11 on buy.hpe.com |
Frequently Asked Questions — HPE ProLiant MicroServer Gen11
Is this a fixed configuration?
No. The MicroServer Gen11 is configure-to-order. Processor, memory, drives, RAID controller and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
How many drives does it hold?
Four 3.5-inch LFF non-hot-plug drive bays, with embedded Intel VROC SATA RAID 0/1/5/10.
How much memory can it take?
Four DDR5 ECC UDIMM slots for up to 128 GB.
Does it have remote management?
Yes. HPE iLO 6 runs through the shared on-board network port by default; an optional kit adds a dedicated iLO port, an M.2 slot and a serial port.
What warranty does it carry?
HPE's standard warranty is 1 year parts, 1 year labour and 1 year onsite next-business-day. Longer terms are available as HPE Care Pack upgrades; 3 years is recommended for business use.
