HPE ProLiant DL145 Gen11 2U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

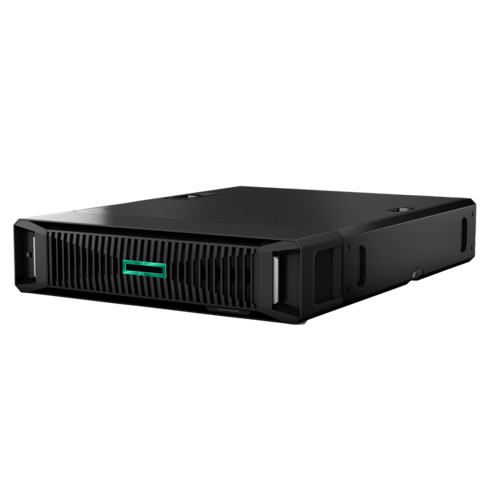

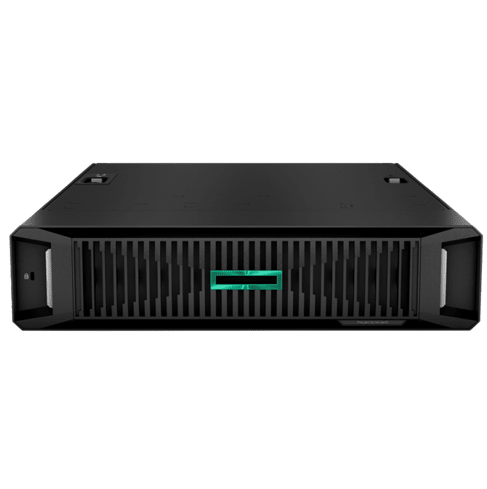

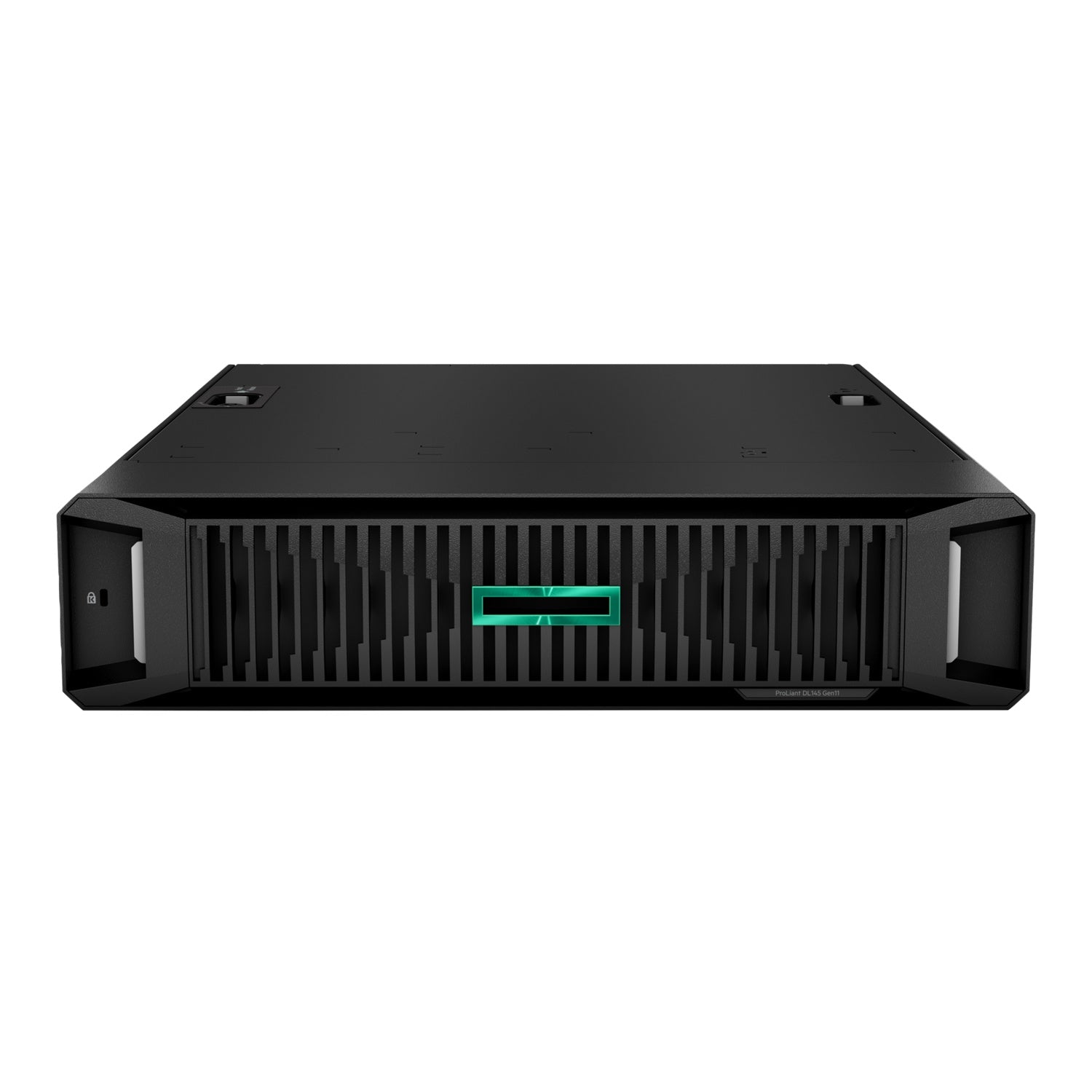

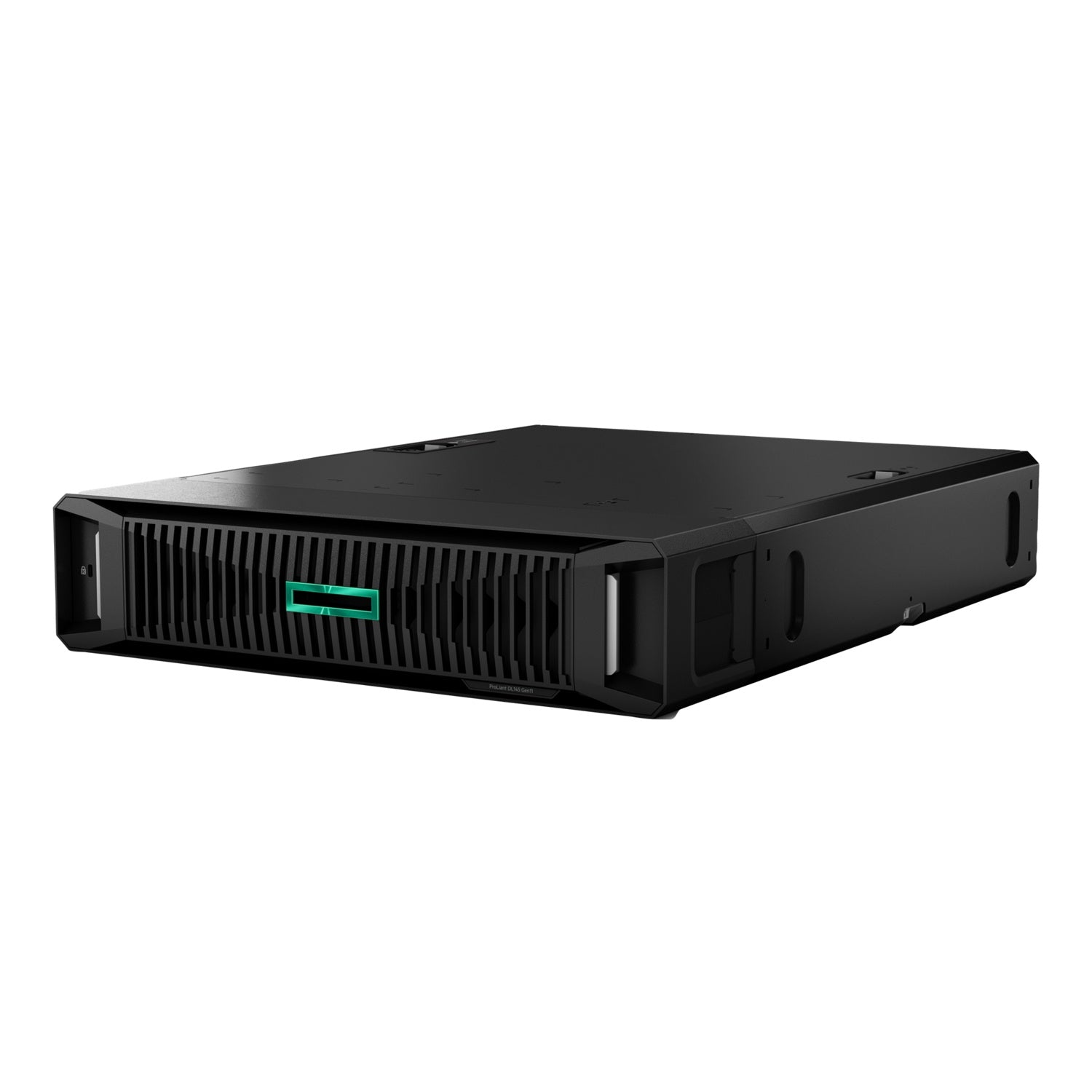

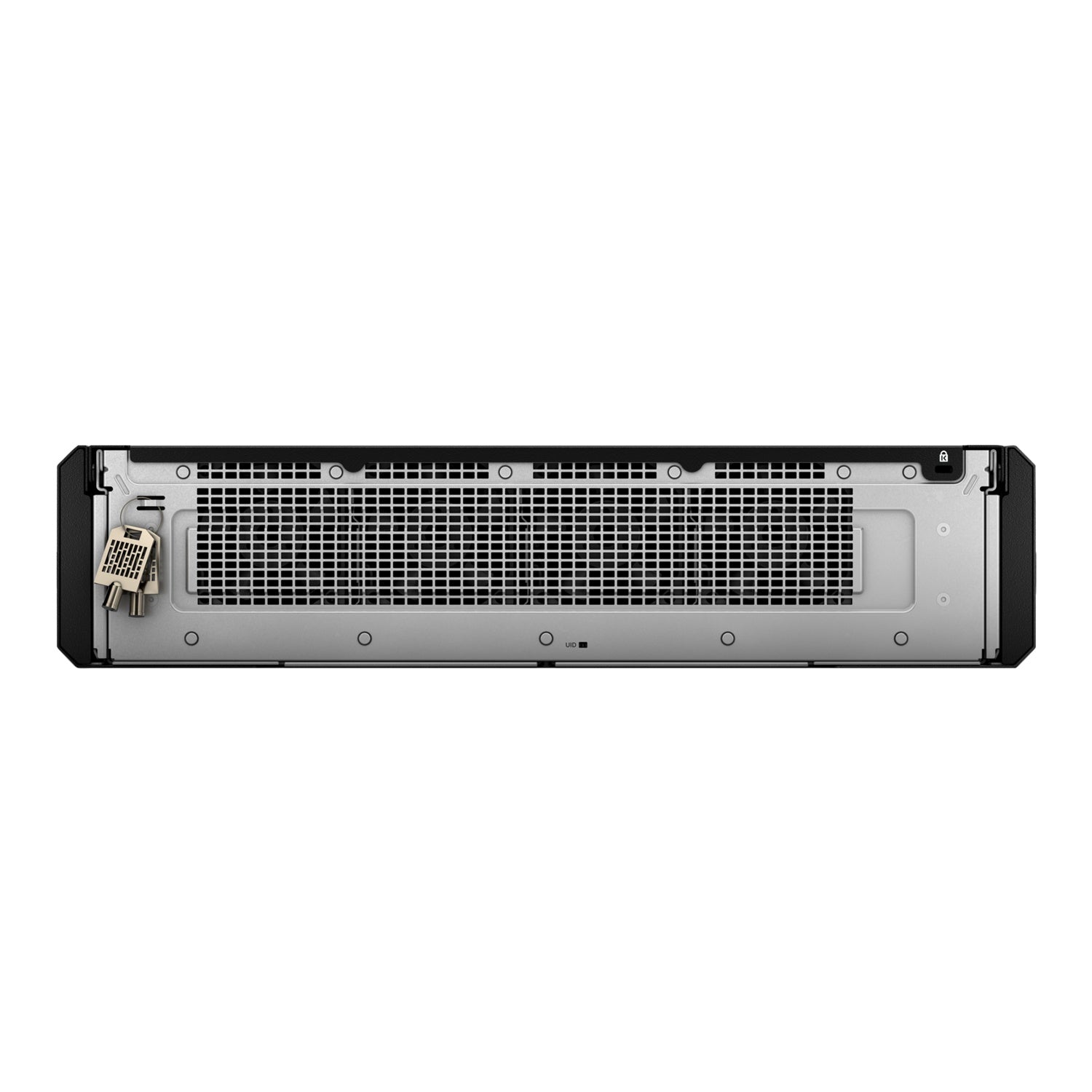

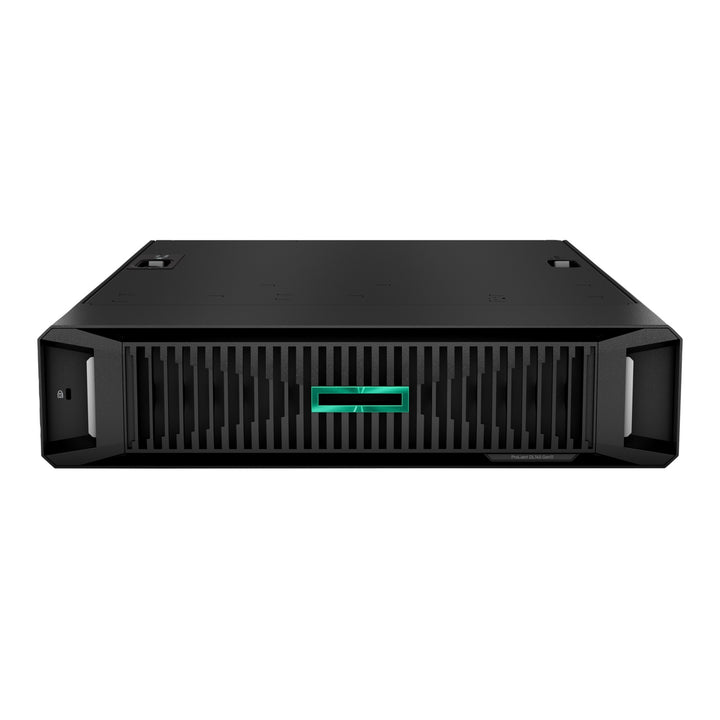

HPE ProLiant DL145 Gen11 2U Rack Server (Configure-to-Order) - Local Warranty
Purpose-Built Edge Server with AMD EPYC 8004/8005

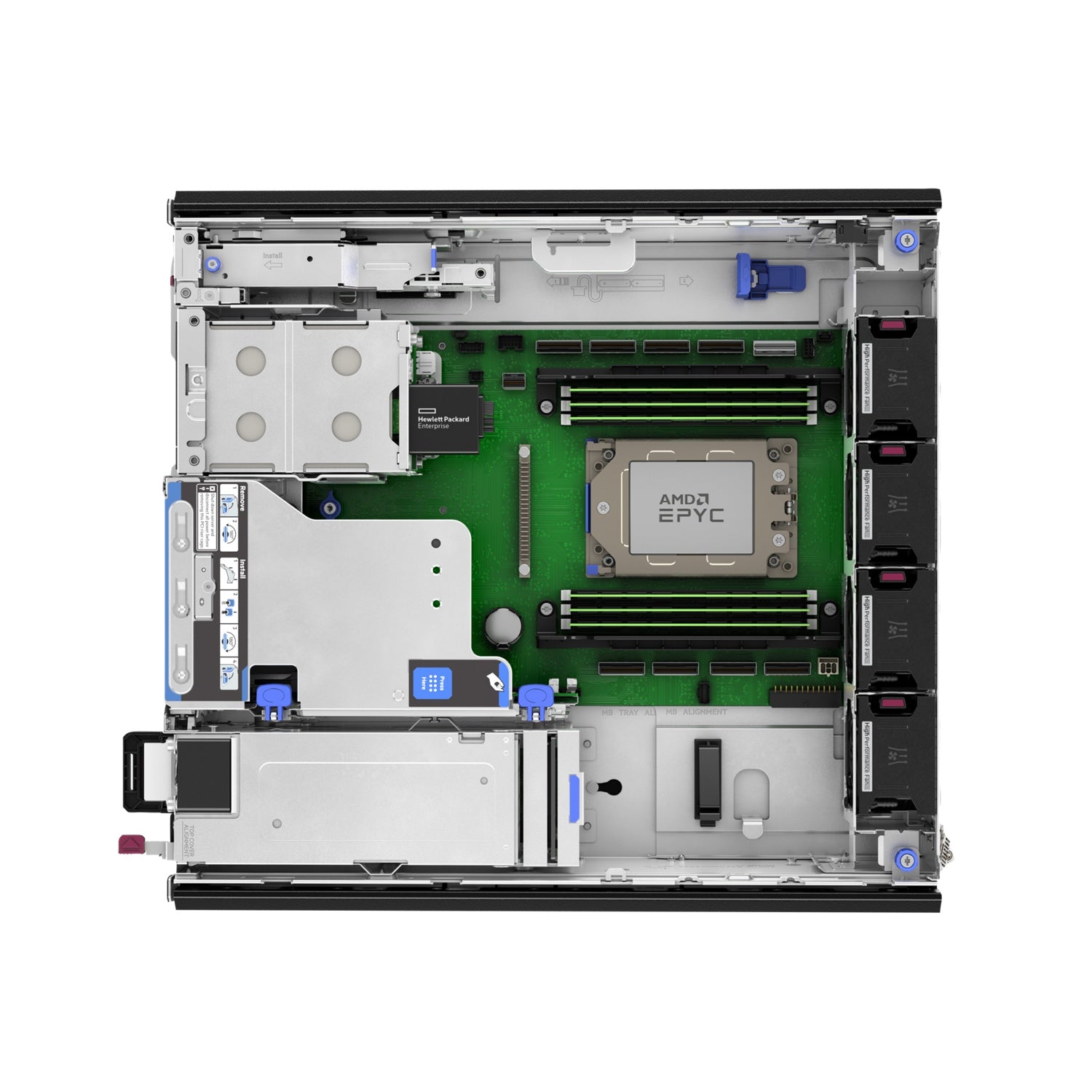

The HPE ProLiant DL145 Gen11 is a short-depth 2U, single-socket edge server for AMD EPYC 8004 or 8005 series processors (8 to 84 cores, up to 225 W TDP), with six DDR5 DIMM slots for up to 768 GB at up to 6400 MT/s.
Built for Harsh Environments
Rated for operation from -5°C to 55°C, the DL145 Gen11 suits retail, manufacturing, telco and remote sites. Storage options run to 2 SFF SAS/SATA/NVMe or 6 EDSFF E3.S NVMe drives, with an HPE NS204i-u boot device.
GPU-Ready Edge AI

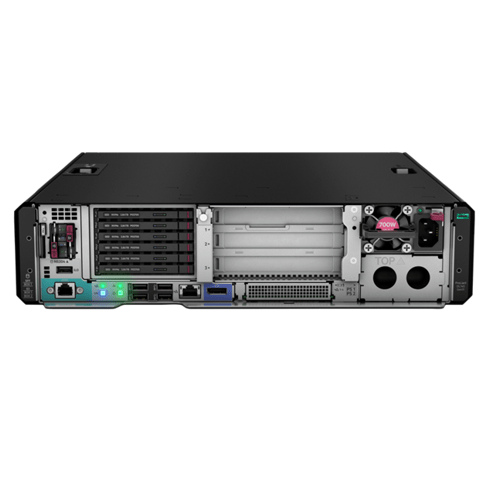

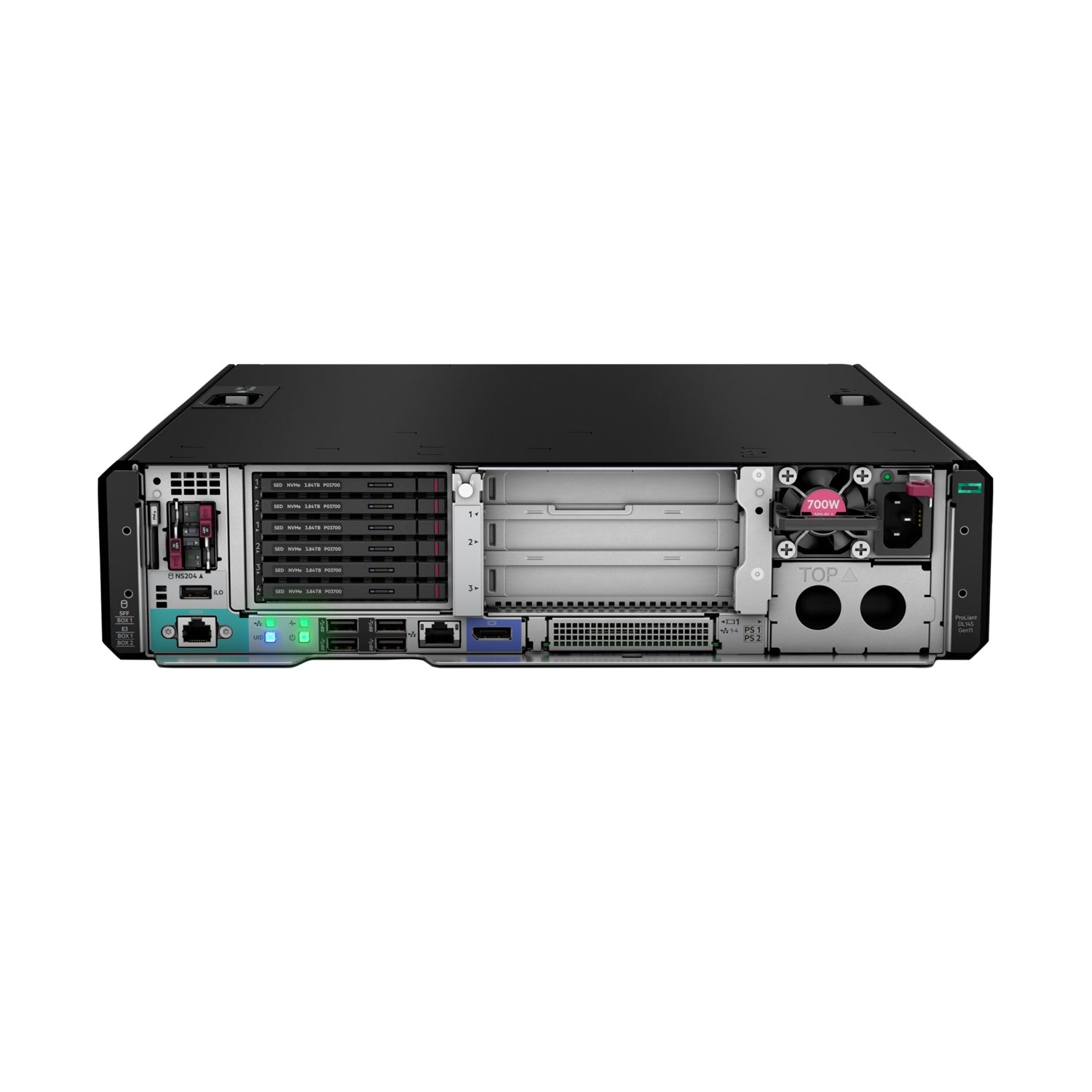

Three PCIe 5.0 x16 slots and an OCP 3.0 slot accept up to three single-wide or one double-wide GPU, such as NVIDIA L4 or L40S, for inference at the edge. HPE iLO 6 and HPE Compute Ops Management handle remote management, backed by HPE's 3-year parts, labour and onsite warranty.
HPE ProLiant DL145 Gen11 Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant DL145 Gen11 Server |
| Form Factor | 2U rack, 1-socket, short depth (approx. 15 in wide x 16 in deep without bezel filter) |
| Order Type | Configure-to-Order (CPU, memory, drive cage, controller, NIC, PSU and support term chosen per order) |
| HPE Standard Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
Processor & Memory
| Processors | One AMD EPYC 8004 series (8 to 64 cores, 90 W to 200 W) or AMD EPYC 8005 series (8 to 84 cores, 95 W to 225 W) processor |
| Memory Slots | 6 DIMM slots, HPE DDR5 Smart Memory |
| Maximum Memory | 768 GB (6 x 128 GB) |
| Memory Speed | DDR5 4800 MT/s or 6400 MT/s (processor dependent) |
Storage
| Drive Options | Up to 2 x SFF SAS/SATA/NVMe or up to 6 x EDSFF E3.S NVMe |
| Boot Device | HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device |
Expansion & Networking
| PCIe Slots | 3 x PCIe 5.0 x16 |
| OCP Slots | 1 x OCP 3.0 (PCIe 5.0 x16) |
| GPU Support | Up to 3 single-wide or 1 double-wide GPU, including NVIDIA L4 and NVIDIA L40S |
Management & Security
| Management | HPE iLO 6; HPE Compute Ops Management |
| Security | HPE iLO silicon root of trust, secure boot and firmware validation |
Power & Cooling
| Power Supplies | HPE Flex Slot 700 W AC or DC, and 900 W to 1000 W AC options |
| Fans | 4 hot-plug standard fans; performance fans optional |
Environmental
| Operating Temperature | -5°C to 55°C |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and Ubuntu. Check HPE's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
HPE iLO 6 provides out-of-band remote console, monitoring and alerting. HPE Compute Ops Management adds cloud-based firmware compliance, monitoring and lifecycle management across a fleet of ProLiant servers.
Typical Workloads
Edge AI inference and computer vision, retail and branch infrastructure, manufacturing and telco sites, and other deployments outside the data centre where space, temperature and dust are constraints.
Package Contents & HPE ProLiant Gen11 Ordering Information
What Is Supplied
The DL145 Gen11 is built to order: chassis with the processor(s), memory, drives, storage controller, network adapters and power supplies specified on your quotation, plus rail kit, bezel and power cords where ordered.
HPE ProLiant Gen11
| Model | Key feature |
| ProLiant MicroServer Gen11 | Ultra-compact, 1-socket Intel Xeon E-2400 |
| ProLiant ML30 Gen11 | Tower, 1-socket Intel Xeon E-2400 |
| ProLiant ML110 Gen11 | Tower, 1-socket Intel Xeon Scalable |
| ProLiant ML350 Gen11 | Tower, 2-socket Intel Xeon Scalable |
| ProLiant DL20 Gen11 | 1U, 1-socket Intel Xeon E-2400 |
| ProLiant DL145 Gen11 (this listing) | Edge, 1-socket AMD EPYC 8004 |
| ProLiant DL320 Gen11 | 1U, 1-socket Intel Xeon Scalable |
| ProLiant DL325 Gen11 | 1U, 1-socket AMD EPYC |
| ProLiant DL345 Gen11 | 2U, 1-socket AMD EPYC |
| ProLiant DL360 Gen11 | 1U, 2-socket Intel Xeon Scalable |
| ProLiant DL365 Gen11 | 1U, 2-socket AMD EPYC |
| ProLiant DL380a Gen11 | 2U, 2-socket Intel Xeon, GPU-optimised |
| ProLiant DL385 Gen11 | 2U, 2-socket AMD EPYC |
Datasheet & Downloads
| HPE QuickSpecs | HPE ProLiant DL145 Gen11 QuickSpecs |
| HPE product brief | HPE ProLiant DL145 Gen11 Product Brief |
| User guide | HPE ProLiant DL145 Gen11 User Guide on HPE Support |
| HPE product page | HPE ProLiant DL145 Gen11 on hpe.com |
Frequently Asked Questions — HPE ProLiant DL145 Gen11
Is this a fixed configuration?
No. The DL145 Gen11 is configure-to-order. Processor, memory, drives, network adapters, GPUs, power supplies and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
What makes it an edge server?
A short-depth 2U chassis, an operating range of -5°C to 55°C and AMD EPYC 8004/8005 processors tuned for performance per watt make it suitable for sites outside a conventional data centre.
How much memory can it take?
Six DDR5 DIMM slots for up to 768 GB, at up to 6400 MT/s depending on the processor.
Can it run GPUs?
Yes. It supports up to three single-wide or one double-wide GPU, including NVIDIA L4 and NVIDIA L40S.
What warranty does it carry?
HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day. Faster response and longer terms are available as HPE Care Pack upgrades.
