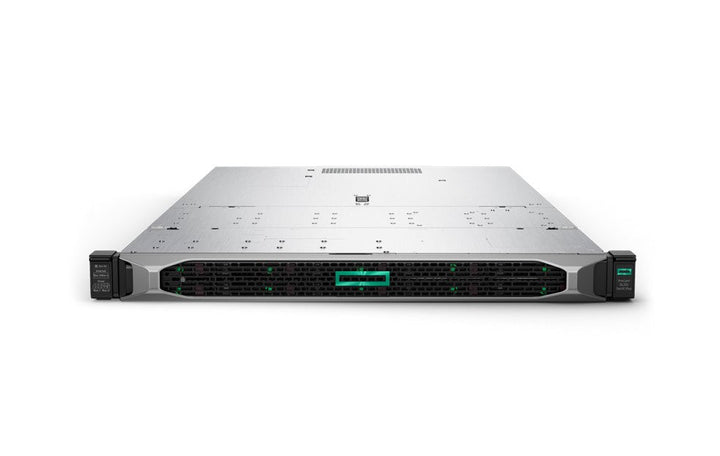

HPE ProLiant DL325 Gen10 Plus 1U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
HPE ProLiant DL325 Gen10 Plus 1U Rack Server (Configure-to-Order) - Local Warranty
Single-Socket AMD EPYC in 1U
The HPE ProLiant DL325 Gen10 Plus runs one 2nd Gen AMD EPYC 7002 Series processor with up to 64 cores (120 W to 225 W), giving dual-socket-class core counts and PCIe 4.0 I/O from a single socket, which keeps per-socket software licensing down.
Memory, NVMe Storage and PCIe 4.0
16 DDR4 DIMM slots run at up to 3200 MT/s for up to 1 TB with RDIMMs or 2 TB with LRDIMMs. The 8 SFF chassis takes SAS, SATA or NVMe drives with an optional 2 SFF expansion, alongside two PCIe 4.0 x16 slots and an optional OCP 3.0 slot. HPE's current generation is the ProLiant DL325 Gen11.
Secure, Manageable Platform
HPE iLO 5 with silicon root of trust protects firmware from the ground up, with TPM 2.0 and intrusion detection as options. HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day.
HPE ProLiant DL325 Gen10 Plus Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant DL325 Gen10 Plus Server |
| Form Factor | 1U rack, 1-socket |
| Order Type | Configure-to-Order (CPU, memory, drive cage, controller, NIC, PSU and support term chosen per order) |
| HPE Standard Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
Processor & Memory
| Processor | One 2nd Gen AMD EPYC 7002 Series processor, up to 64 cores, 120 W to 225 W |
| Memory Slots | 16 DIMM slots, 8 channels, HPE DDR4 Smart Memory |
| Maximum Memory | 1 TB RDIMM (16 x 64 GB); 2 TB LRDIMM (16 x 128 GB) |
| Memory Speed | Up to 3200 MT/s |
Storage
| Drive Cage Options | 4 x LFF SAS/SATA; or 8 x SFF SAS/SATA/NVMe with optional 2 x SFF SAS/SATA or U.3 NVMe |
| RAID Controllers | HPE Smart Array E208i-a and P408i-a SR Gen10 controllers, among other HPE options |
Expansion & Networking
| PCIe Slots | 2 x PCIe 4.0 x16 on the primary riser (1 full-height, 1 low profile); optional secondary riser |
| OCP Slot | Optional OCP 3.0 slot |
| GPU Support | NVIDIA T4 16 GB |
Management & Security
| Management | HPE iLO 5 |
| Security | HPE iLO silicon root of trust; TPM 2.0 (optional); chassis intrusion detection (optional) |
Power
| Power Supplies | HPE Flex Slot hot-plug options: 500 W, 800 W and 1600 W |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and other certified platforms. Check HPE's Servers Support & Certification Matrices for the exact versions certified on your chosen processor and options.
Management Tools
HPE iLO 5 provides out-of-band remote console, monitoring, alerting and firmware management, with HPE iLO Advanced licences available for extended remote features.
Typical Workloads
Virtualisation and software-defined storage, VDI, databases and analytics, and per-socket-licensed applications where one high-core-count CPU replaces two smaller ones.
Package Contents & HPE ProLiant Gen10 Plus Ordering Information
What Is Supplied
The DL325 Gen10 Plus is built to order: chassis with the processor, memory, drive cage, storage controller, network adapters and power supplies specified on your quotation, plus rail kit and power cords where ordered.
HPE ProLiant Gen10 Plus
| Model | Key feature |
| ProLiant DL20 Gen10 Plus | 1U, 1-socket Intel Xeon E-2300 |
| ProLiant DL325 Gen10 Plus (this listing) | 1U, 1-socket AMD EPYC |
| ProLiant DL325 Gen10 Plus v2 | 1U, 1-socket AMD EPYC 7003 |
| ProLiant DL360 Gen10 Plus | 1U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL365 Gen10 Plus | 1U, 2-socket AMD EPYC |
| ProLiant DL380 Gen10 Plus | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL385 Gen10 Plus | 2U, 2-socket AMD EPYC |
| ProLiant DL360 Gen11 (current generation) | 1U, 2-socket 4th/5th Gen Intel Xeon Scalable |
Datasheet & Downloads

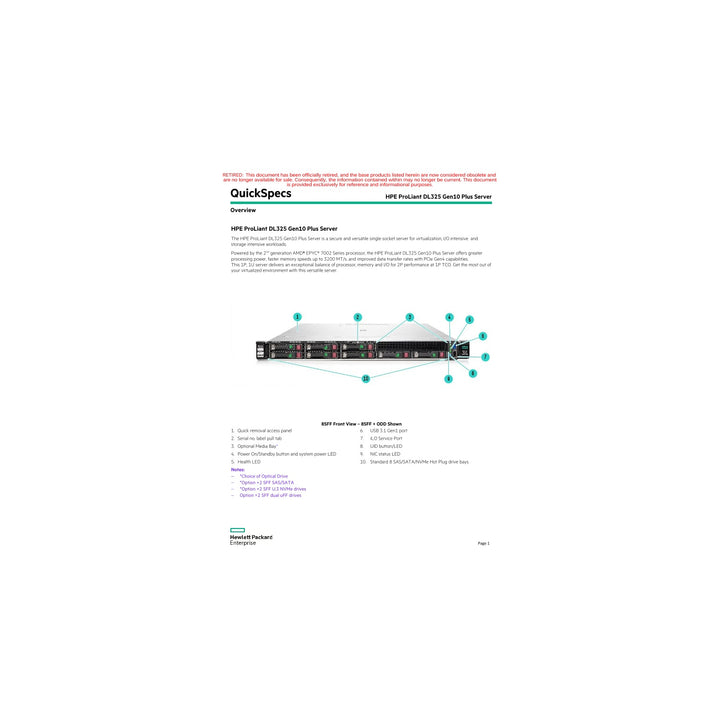

| HPE QuickSpecs | HPE ProLiant DL325 Gen10 Plus Server QuickSpecs |
| HPE QuickSpecs | HPE ProLiant DL325 Gen10 Plus Carrier Grade Supplement QuickSpecs |
Frequently Asked Questions — HPE ProLiant DL325 Gen10 Plus
Is this a fixed configuration?
No. The DL325 Gen10 Plus is configure-to-order. Processor, memory, drive cage, RAID controller, network adapters, power supplies and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
Which processors does it take?
One 2nd Gen AMD EPYC 7002 Series processor, up to 64 cores. For AMD EPYC 7003 Series processors see the DL325 Gen10 Plus v2.
How much memory can it take?
16 DDR4 DIMM slots at up to 3200 MT/s: up to 1 TB with RDIMMs or 2 TB with LRDIMMs.
What warranty does it carry?
HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day. Faster response and longer terms are available as HPE Care Pack upgrades.
Is there a newer model?
Yes. HPE's current generation is the ProLiant DL325 Gen11 with AMD EPYC 9004 Series processors and DDR5 memory.
