Ricoh fi-7700S A3 Simplex Scanner with Flatbed
PRODUCT DESCRIPTION
Ricoh fi-7700S A3 Simplex Production Scanner with A3 Flatbed, 75 ppm, 300-Sheet ADF (PA03740-B301) - 1 Year Local Warranty
A3 Production ADF Plus A3 Flatbed
The Ricoh fi-7700S combines a 300-sheet A3 production feeder with an A3 flatbed in one unit. The ADF scans simplex at 75 pages per minute (A4 landscape, 200/300 dpi) and the scanner is rated by Ricoh for an expected daily volume of 33,000 sheets. The fi-7700S is the single-sided (simplex) model; the fi-7700 scans both sides in one pass.

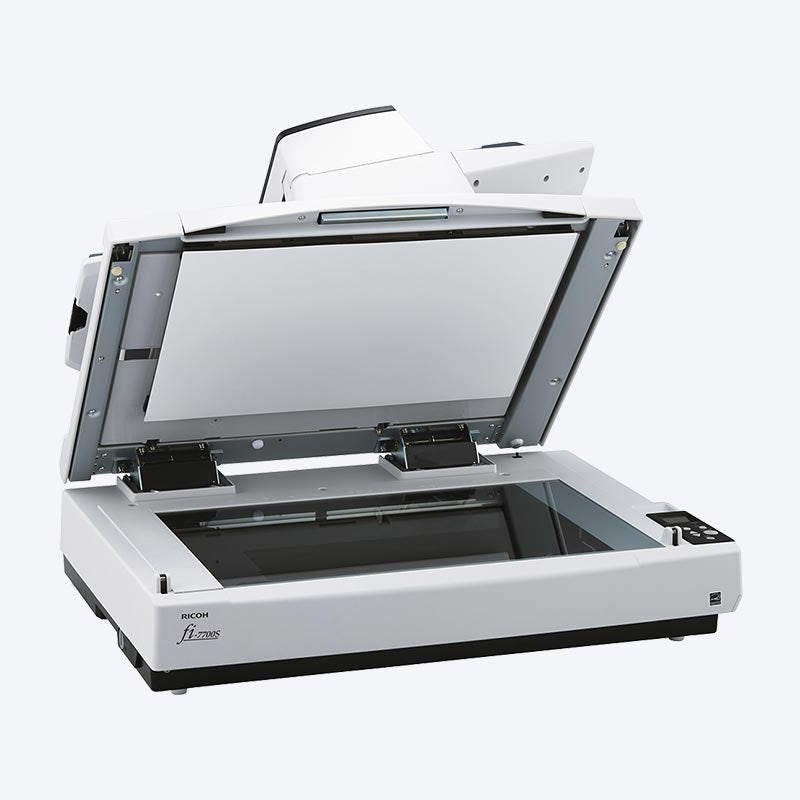

Books, Bound Files and Fragile Originals
The flatbed takes originals up to 304.8 x 457.2 mm (12 x 18 in) with no paper weight limit, so bound books and delicate documents can be scanned without going through the feeder. A Cover-Open Cropping function lets you scan thick items with the lid open.

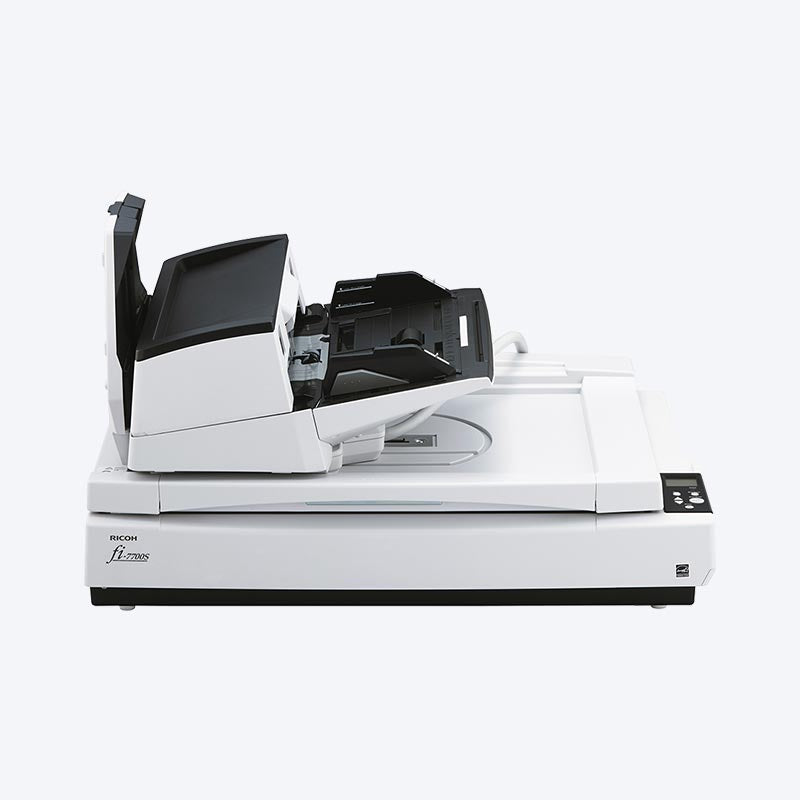

Flexible ADF Position
The ADF can slide to the left or right and rotate 180 degrees to suit your workspace, and LCD operation panels show scan settings, sheet counts and error status. Independent side guides help align documents of different sizes.
Safe, Reliable Feeding
The feeder handles paper from 20 to 413 g/m², plastic cards up to 1.4 mm and long pages up to 5,588 mm. Ultrasonic overlap detection, length detection and Intelligent Sonic Paper Protection (iSOP) help prevent missed pages and damaged originals, and PaperStream IP cleans up images to support OCR accuracy.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and whether you need a flatbed and we will size it for you.
Ricoh fi-7700S Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-7700S Image Scanner |
| Part Number | PA03740-B301 |
| Series | Ricoh fi-7000 series (A3 production ADF + flatbed) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Simplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | Colour CCD x 2 (front x 1, flatbed x 1) |
| Light Source | White LED array x 4 (front x 2, flatbed x 2) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| ADF Speed (A4 Landscape) | Simplex 75 ppm (200/300 dpi) |
| ADF Speed (A4 Portrait) | Simplex 58 ppm (200/300 dpi) |
| Flatbed Speed (A4 Landscape) | 0.9 sec (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | ADF: White / Black (selectable); Flatbed: White (black document pad optional) |
Paper Handling
| ADF Maximum Document Size | 304.8 x 431.8 mm (12 x 17 in) |
| ADF Minimum Document Size | 50.8 x 69 mm (2 x 2.7 in), portrait |
| Flatbed Maximum Document Size | 304.8 x 457.2 mm (12 x 18 in) |
| Long Page Scanning | Up to 5,588 mm (220 in) at 200 dpi or less |
| Paper Weight (ADF) | 20 to 413 g/m² (5.3 to 110 lb); less than A8 size 128 to 209 g/m²; flatbed: no limitation |
| Plastic Cards | Up to 1.4 mm (up to 3 cards at a time; one embossed card at a time) |
| ADF Capacity | 300 sheets (A4 80 g/m²) |
| Expected Daily Volume | 33,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor), length detection |
| Paper Protection | Lag detection, sound detection (iSOP) |
Connectivity & Power
| Interface | USB 3.1 Gen1 / USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 55 W or less; Sleep 1.7 W or less; Auto Standby (Off) 0.3 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 706 x 500 x 345 mm |
| Weight | 35 kg (77 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016 and Linux (Ubuntu), per Ricoh's fi-7700S datasheet. macOS is not listed.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS) and WIA driver, plus Image Scanner Driver for Linux (SANE).
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, iDTC / Advanced DTC / SDTC, error diffusion, dither, de-screen, emphasis, dropout colour, sRGB output, hole-punch removal, index-tab cropping, split image, de-skew, edge correction, vertical streak reduction, cropping, static threshold and divide long page.
Package Contents & fi-7000 Series Ordering Information
In the Box (per Ricoh)
fi-7700S scanner, stacker, ADF paper chute, AC cable, AC adapter, USB cable and setup DVD-ROM.
fi-7000 A3 Production Models
| Model | Type | ADF Speed (ppm / ipm, A4 landscape) | Daily Volume | Part No. |
| fi-7600 | ADF only | Duplex, 100 / 200 | 44,000 sheets | PA03740-B501 |
| fi-7700S (this listing) | ADF + A3 flatbed | Simplex, 75 | 33,000 sheets | PA03740-B301 |
| fi-7700 | ADF + A3 flatbed | Duplex, 100 / 200 | 44,000 sheets | PA03740-B001 |
Lower volume? The compact fi-7460 and fi-7480 handle A3 with a 100-sheet feeder.
Datasheet & Downloads
| Ricoh datasheet | fi-7700S Datasheet (PDF) |
| Ricoh product page | fi-7700S on pfu-asia.ricoh.com |
| Drivers & software | fi-7600 / fi-7700 / fi-7700S downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03740-B301.
Frequently Asked Questions — Ricoh fi-7700S
Does the fi-7700S scan both sides?
No. The fi-7700S is the simplex (single-sided) model. If you need both sides in one pass, choose the fi-7700, which is duplex.
How fast is the fi-7700S?
The ADF scans 75 ppm on A4 landscape (58 ppm portrait) at 200/300 dpi, and the flatbed scans an A4 page in 0.9 seconds.
Can it scan books?
Yes. The flatbed takes originals up to 304.8 x 457.2 mm with no paper weight limit, and Cover-Open Cropping lets you scan thick items with the lid open.
Does it work with Linux?
Yes. Ricoh's fi-7700S datasheet lists Linux (Ubuntu) with the SANE driver alongside Windows and Windows Server.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
