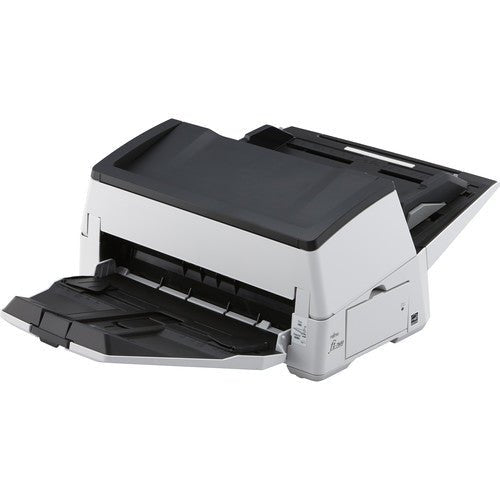

Ricoh fi-7600 A3 Duplex Production Scanner
PRODUCT DESCRIPTION
Ricoh fi-7600 A3 Duplex Production Scanner, 100 ppm / 200 ipm, 300-Sheet ADF, USB 3.1 (PA03740-B501) - 1 Year Local Warranty
100 ppm A3 Production Scanning
The Ricoh fi-7600 is a heavy-duty A3 production scanner for professional use. It scans at 100 pages per minute simplex and 200 images per minute duplex (A4 landscape, 200/300 dpi), loads up to 300 sheets in the ADF and is rated by Ricoh for an expected daily volume of 44,000 sheets.

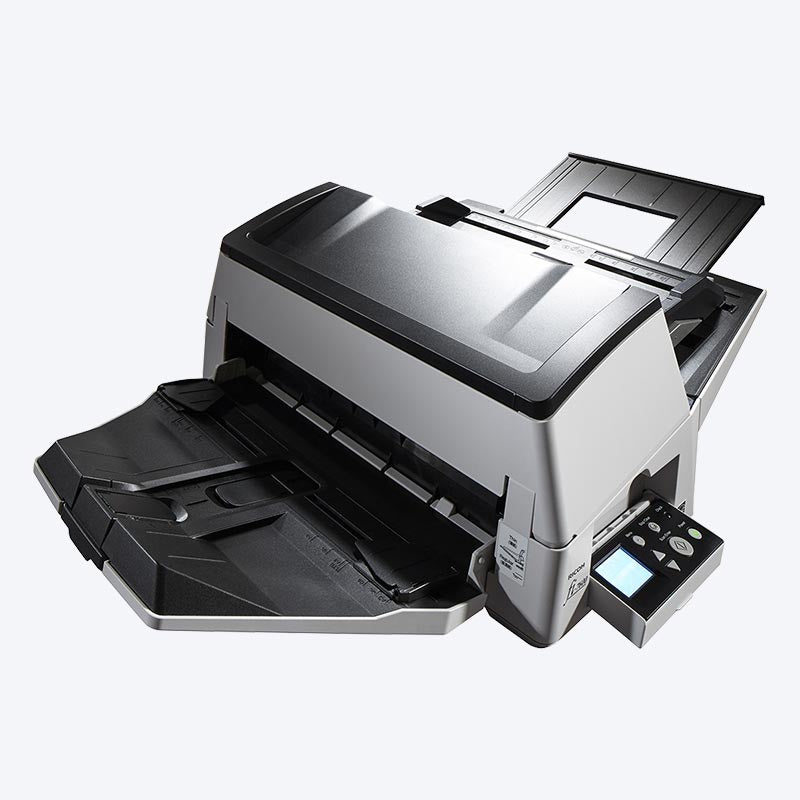

Compact Design with Dual Operation Panels
Its compact 236 mm-wide footprint suits limited space, and LCD operation panels on both sides let left- or right-handed operators check settings, sheet counts and error status from whichever side they work.
Built for Mixed and Fragile Batches
A straight paper path takes documents from 50.8 x 69 mm up to 304.8 x 431.8 mm, paper from 20 to 413 g/m², plastic cards up to 1.4 mm and long pages up to 5,588 mm. Ultrasonic overlap detection, length detection and Intelligent Sonic Paper Protection (iSOP) help prevent missed pages and damaged originals.
Clean Images with PaperStream IP
The PaperStream IP driver automatically converts scans into clean images to support OCR accuracy, even on documents with background patterns or wrinkles. PaperStream Capture and PaperStream ClickScan are supplied for batch scanning workflows.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and whether you need a flatbed and we will size it for you.
Ricoh fi-7600 Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-7600 Image Scanner |
| Part Number | PA03740-B501 |
| Series | Ricoh fi-7000 series (A3 production ADF) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | Colour CCD x 2 (front x 1, back x 1) |
| Light Source | White LED array x 4 (front x 2, back x 2) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Landscape) | Simplex 100 ppm / Duplex 200 ipm (200/300 dpi) |
| Scanning Speed (A4 Portrait) | Simplex 80 ppm / Duplex 160 ipm (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | White / Black (selectable) |
Paper Handling
| Maximum Document Size | 304.8 x 431.8 mm (12 x 17 in) |
| Minimum Document Size | 50.8 x 69 mm (2 x 2.7 in), portrait |
| Long Page Scanning | Up to 5,588 mm (220 in) |
| Paper Weight | 20 to 413 g/m² (5.3 to 110 lb); less than A8 size 128 to 209 g/m² |
| Plastic Cards | Up to 1.4 mm (up to 3 cards at a time; one embossed card at a time) |
| ADF Capacity | 300 sheets (A4 80 g/m²) |
| Expected Daily Volume | 44,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor), length detection |
| Paper Protection | Lag detection, sound detection (iSOP) |
Connectivity & Power
| Interface | USB 3.1 Gen1 / USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 64 W or less; Sleep 1.7 W or less; Auto Standby (Off) 0.3 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 236 x 432 x 214 mm |
| Weight | 11 kg (24 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016, per Ricoh's fi-7600 datasheet. macOS and Linux are not listed.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS) and WIA driver.
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, iDTC / Advanced DTC / SDTC, error diffusion, dither, de-screen, emphasis, dropout colour, sRGB output, hole-punch removal, index-tab cropping, split image, de-skew, edge correction, vertical streak reduction, cropping, static threshold and divide long page.
Package Contents & fi-7000 Series Ordering Information
In the Box (per Ricoh)
fi-7600 scanner, stacker, ADF paper chute, AC cable, AC adapter, USB cable and setup DVD-ROM.
fi-7000 A3 Production Models
| Model | Type | ADF Speed (ppm / ipm, A4 landscape) | Daily Volume | Part No. |
| fi-7600 (this listing) | ADF only | Duplex, 100 / 200 | 44,000 sheets | PA03740-B501 |
| fi-7700S | ADF + A3 flatbed | Simplex, 75 | 33,000 sheets | PA03740-B301 |
| fi-7700 | ADF + A3 flatbed | Duplex, 100 / 200 | 44,000 sheets | PA03740-B001 |
Lower volume? The compact fi-7460 and fi-7480 handle A3 with a 100-sheet feeder.
Datasheet & Downloads
| Ricoh datasheet | fi-7600 Datasheet (PDF) |
| Ricoh product page | fi-7600 on pfu-asia.ricoh.com |
| Drivers & software | fi-7600 / fi-7700 / fi-7700S downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03740-B501.
Frequently Asked Questions — Ricoh fi-7600
How fast is the fi-7600?
100 ppm simplex and 200 ipm duplex on A4 landscape, or 80 ppm / 160 ipm on A4 portrait, at 200/300 dpi.
Does the fi-7600 replace the fi-6670?
Yes. The fi-7600 is the current model we supply in place of the older fi-6670.
Should I choose the fi-7600 or the fi-7700?
They share the same 300-sheet duplex ADF and speed. The fi-7700 adds an A3 flatbed for books and fragile originals; the fi-7600 is much smaller (236 mm wide, 11 kg) if you only need the feeder.
Can it scan ID cards?
Yes. It scans plastic cards up to 1.4 mm thick, up to 3 cards at a time (one embossed card at a time).
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
