Ricoh fi-7700 A3 Duplex Scanner with Flatbed
PRODUCT DESCRIPTION
Ricoh fi-7700 A3 Duplex Production Scanner with A3 Flatbed, 100 ppm / 200 ipm, 300-Sheet ADF (PA03740-B001) - 1 Year Local Warranty
A3 Production ADF Plus A3 Flatbed

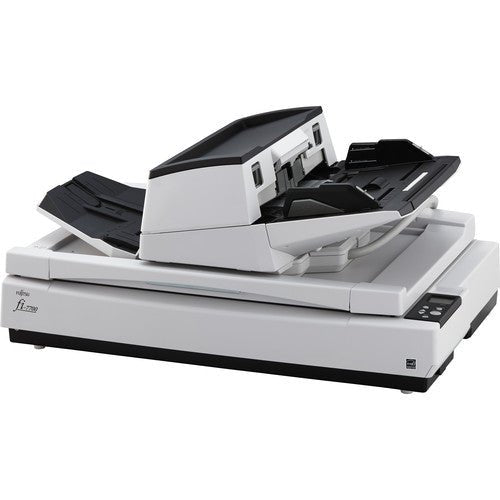

The Ricoh fi-7700 combines a 300-sheet A3 production feeder with an A3 flatbed in one unit. The ADF scans at 100 pages per minute simplex and 200 images per minute duplex (A4 landscape, 200/300 dpi) and the scanner is rated by Ricoh for an expected daily volume of 44,000 sheets.
Books, Bound Files and Fragile Originals

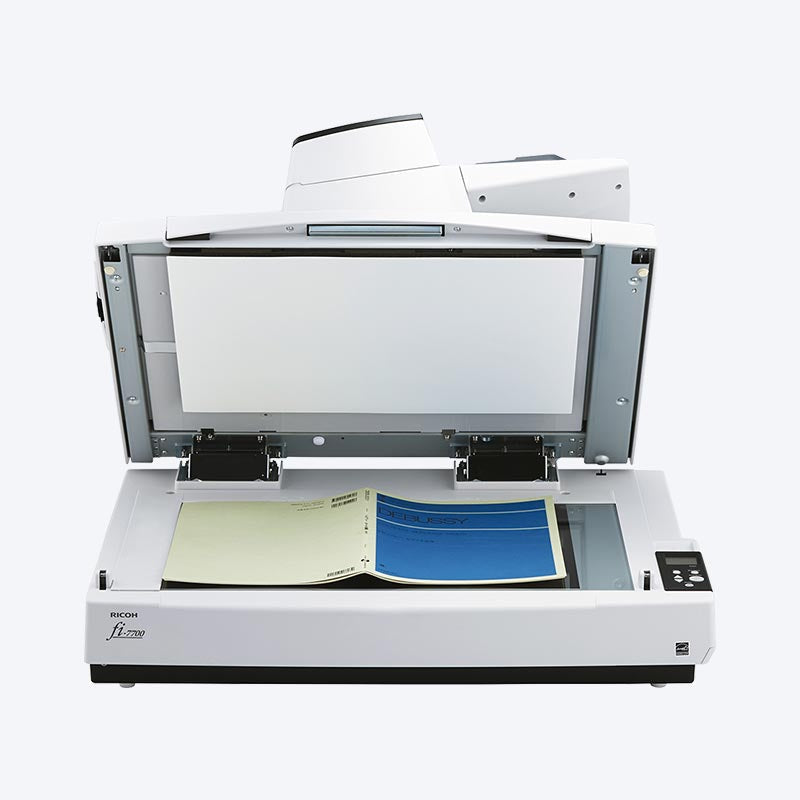

The flatbed takes originals up to 304.8 x 457.2 mm (12 x 18 in) with no paper weight limit, so bound books and delicate documents can be scanned without going through the feeder. A Cover-Open Cropping function lets you scan thick items with the lid open.
Flexible ADF Position

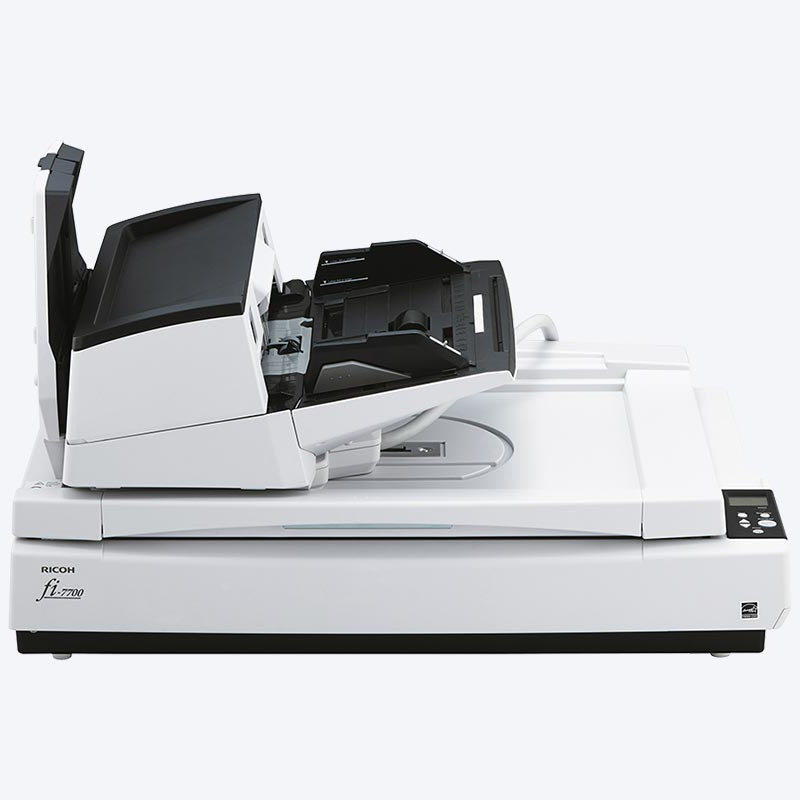

The ADF can slide to the left or right and rotate 180 degrees to suit your workspace, and LCD operation panels show scan settings, sheet counts and error status. Independent side guides help align documents of different sizes.
Safe, Reliable Feeding
The feeder handles paper from 20 to 413 g/m², plastic cards up to 1.4 mm and long pages up to 5,588 mm. Ultrasonic overlap detection, length detection and Intelligent Sonic Paper Protection (iSOP) help prevent missed pages and damaged originals, and PaperStream IP cleans up images to support OCR accuracy.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and whether you need a flatbed and we will size it for you.
Ricoh fi-7700 Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-7700 Image Scanner |
| Part Number | PA03740-B001 |
| Series | Ricoh fi-7000 series (A3 production ADF + flatbed) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Duplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | Colour CCD x 3 (front x 1, back x 1, flatbed x 1) |
| Light Source | White LED array x 6 (front x 2, back x 2, flatbed x 2) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| ADF Speed (A4 Landscape) | Simplex 100 ppm / Duplex 200 ipm (200/300 dpi) |
| ADF Speed (A4 Portrait) | Simplex 80 ppm / Duplex 160 ipm (200/300 dpi) |
| Flatbed Speed (A4) | Landscape 0.6 sec / Portrait 0.9 sec (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | ADF: White / Black (selectable); Flatbed: White (black document pad optional) |
Paper Handling
| ADF Maximum Document Size | 304.8 x 431.8 mm (12 x 17 in) |
| ADF Minimum Document Size | 50.8 x 69 mm (2 x 2.7 in), portrait |
| Flatbed Maximum Document Size | 304.8 x 457.2 mm (12 x 18 in) |
| Long Page Scanning | Up to 5,588 mm (220 in) at 200 dpi or less |
| Paper Weight (ADF) | 20 to 413 g/m² (5.3 to 110 lb); less than A8 size 128 to 209 g/m²; flatbed: no limitation |
| Plastic Cards | Up to 1.4 mm (up to 3 cards at a time; one embossed card at a time) |
| ADF Capacity | 300 sheets (A4 80 g/m²) |
| Expected Daily Volume | 44,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor), length detection |
| Paper Protection | Lag detection, sound detection (iSOP) |
Connectivity & Power
| Interface | USB 3.1 Gen1 / USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 64 W or less; Sleep 1.7 W or less; Auto Standby (Off) 0.3 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 706 x 500 x 345 mm |
| Weight | 35 kg (77 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016, per Ricoh's fi-7700 datasheet. macOS and Linux are not listed.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS) and WIA driver.
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, iDTC / Advanced DTC / SDTC, error diffusion, dither, de-screen, emphasis, dropout colour, sRGB output, hole-punch removal, index-tab cropping, split image, de-skew, edge correction, vertical streak reduction, cropping, static threshold and divide long page.
Package Contents & fi-7000 Series Ordering Information
In the Box (per Ricoh)
fi-7700 scanner, stacker, ADF paper chute, AC cable, AC adapter, USB cable and setup DVD-ROM.
fi-7000 A3 Production Models
| Model | Type | ADF Speed (ppm / ipm, A4 landscape) | Daily Volume | Part No. |
| fi-7600 | ADF only | Duplex, 100 / 200 | 44,000 sheets | PA03740-B501 |
| fi-7700S | ADF + A3 flatbed | Simplex, 75 | 33,000 sheets | PA03740-B301 |
| fi-7700 (this listing) | ADF + A3 flatbed | Duplex, 100 / 200 | 44,000 sheets | PA03740-B001 |
Lower volume? The compact fi-7460 and fi-7480 handle A3 with a 100-sheet feeder.
Datasheet & Downloads
| Ricoh datasheet | fi-7700 Datasheet (PDF) |
| Ricoh product page | fi-7700 on pfu-asia.ricoh.com |
| Drivers & software | fi-7600 / fi-7700 / fi-7700S downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03740-B001.
Frequently Asked Questions — Ricoh fi-7700
How fast is the fi-7700?
The ADF scans 100 ppm simplex and 200 ipm duplex on A4 landscape (80 ppm / 160 ipm portrait) at 200/300 dpi. The flatbed scans an A4 page in 0.6 seconds landscape.
Does the fi-7700 replace the fi-6770?
Yes. The fi-7700 is the current model we supply in place of the older fi-6770.
What is the difference between the fi-7700 and fi-7700S?
Both have the same A3 flatbed and 300-sheet ADF. The fi-7700 scans both sides in one pass (duplex, 100 ppm), while the fi-7700S is single-sided (simplex, 75 ppm).
Can it scan books?
Yes. The flatbed takes originals up to 304.8 x 457.2 mm with no paper weight limit, and Cover-Open Cropping lets you scan thick items with the lid open.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
