Ricoh ScanSnap iX1300 White Compact Wi-Fi Document Scanner
PRODUCT DESCRIPTION
Ricoh ScanSnap iX1300 White Compact Wi-Fi Duplex Document Scanner, 30 ppm / 60 ipm (PA03805-B001) - 1 Year Local Warranty
Compact 30 ppm Duplex Scanning

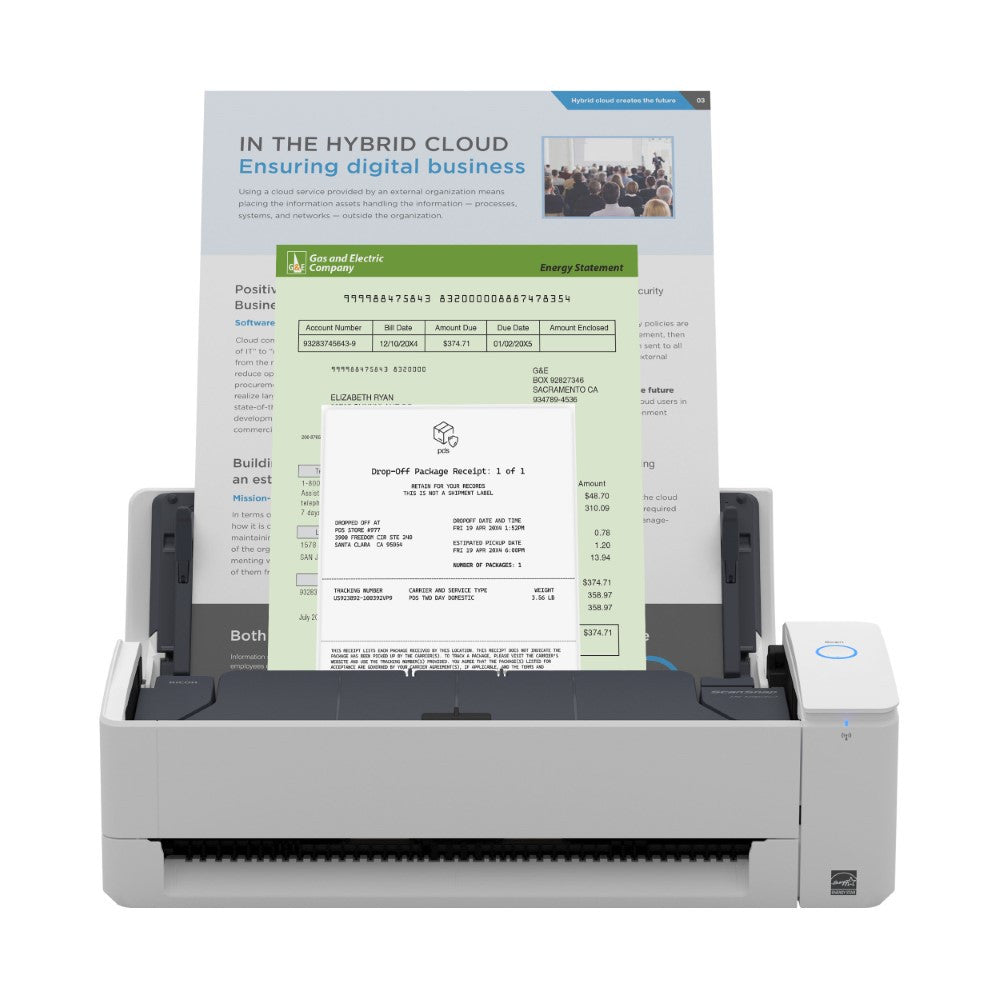

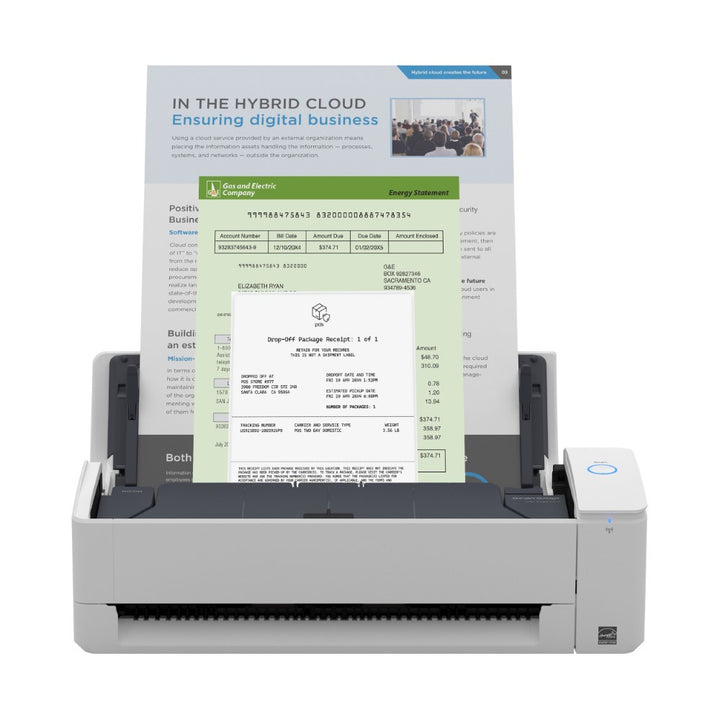

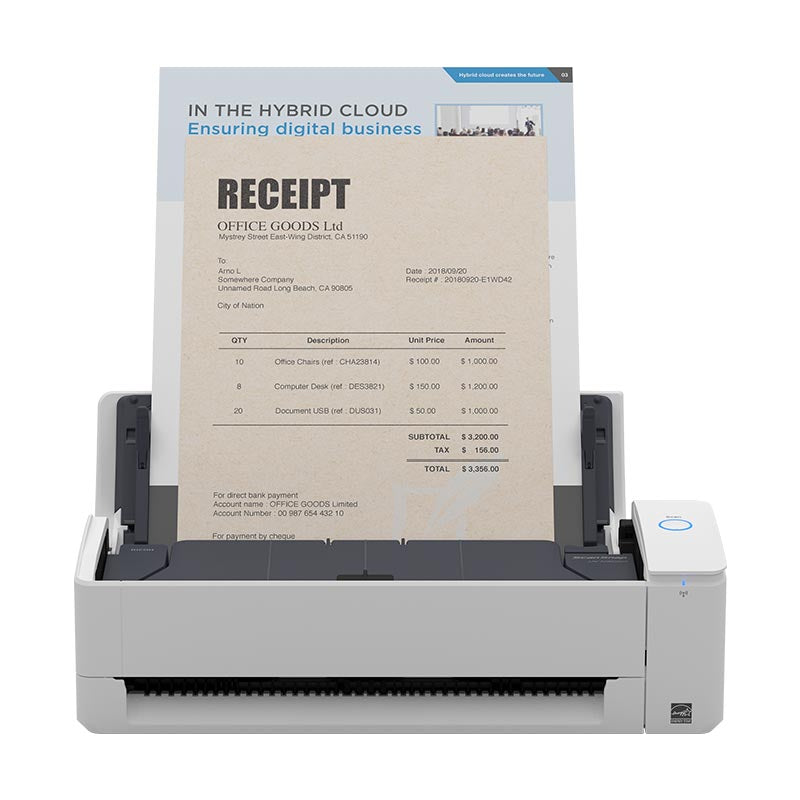

The Ricoh ScanSnap iX1300 in white scans both sides of the page at up to 30 pages per minute (60 images per minute) from a 20-sheet ADF. Its space-saving U-turn paper path returns scanned pages to the top of the scanner, so it needs little more than an A4 footprint on your desk.
Two Feed Paths
Use the ADF for stacks of paper, or the dedicated front manual feeder (Return Scan) for thicker items: plastic cards up to 1.4 mm including embossed cards, booklets up to 2 mm, folded papers and pamphlets.
Wi-Fi and Scan-to-Cloud
Connect by USB 3.2 Gen1x1 or dual-band Wi-Fi (2.4 / 5 GHz). With a ScanSnap Cloud account you can scan straight to popular cloud services with no computer or mobile device needed.
One-Button Scanning with ScanSnap Home
Press one button and ScanSnap's intelligent image processing does the rest. ScanSnap Home creates searchable PDFs, JPEGs and editable Microsoft Word, Excel and PowerPoint files, and scans 4" x 6" photos in under a second with automatic face orientation and red-eye reduction.
Need help choosing? Email sales@sourceit.com.sg with what you scan and how often and we will recommend the right ScanSnap.
Ricoh ScanSnap iX1300 White Datasheet — Technical Specifications
General
| Product Name | Ricoh ScanSnap iX1300 (White) |
| Part Number | PA03805-B001 |
| Colour | White |
| Series | Ricoh ScanSnap series (compact desktop) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feeder, Duplex |
| Local Warranty (Singapore) | 1 year carry-in, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | CIS x 2 (front x 1, back x 1) |
| Light Source | 3-colour LED (red / green / blue) |
| Optical Resolution | 600 dpi (colour / grayscale), 1,200 dpi (monochrome) |
| Scanning Speed (A4, USB / Wi-Fi) | 30 ppm simplex / 60 ipm duplex (Auto, Normal and Better modes) |
| Colour Modes | Colour, Grayscale, Monochrome, Automatic (colour / grayscale / monochrome detection) |
| Output Format | PDF, searchable PDF, JPEG |
Paper Handling
| Document Size (ADF and Manual Feeder) | Minimum 50.8 x 50.8 mm; Maximum 216 x 355.6 mm (8.5 x 14 in) |
| Paper Weight, U-turn Scan (ADF) | 40 to 128 g/m² (A8 or smaller: 128 to 209 g/m²) |
| Paper Weight, Return Scan (Manual Feeder) | 20 to 413 g/m²; booklets 2 mm or less |
| Plastic Cards | 1.4 mm or less (embossed cards supported) |
| ADF Capacity | 20 sheets (A4 80 g/m²) |
| Multifeed Detection | Length detection |
Connectivity & Power
| USB | USB 3.2 Gen1x1 / USB 3.0 / USB 2.0 / USB 1.1 (Type-B) |
| Wi-Fi | IEEE 802.11a/b/g/n/ac, 2.4 GHz / 5 GHz |
| Wi-Fi Modes | Access Point Connect Mode (infrastructure), Direct Connect Mode |
| Power Requirements | AC 100 to 240 V, 50/60 Hz |
| Power Consumption | Operating 17 W or less; Sleep 2.0 W or less (USB) / 1.7 W or less (Wi-Fi); Standby 0.3 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 296 x 114 x 87 mm |
| Weight | 2.0 kg (4.4 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11 (64-bit), Windows 10 (32-bit / 64-bit), macOS Monterey 12 or later, iOS / iPadOS 16 or later, Android 10 or later and ChromeOS, per Ricoh's iX1300 brochure.
Driver
ScanSnap Home (ScanSnap-specific driver). TWAIN / ISIS are not supported on Windows, and TWAIN is not supported on macOS.
Software & Cloud
ScanSnap Home for PC and for mobile, plus ScanSnap Cloud for direct scanning to cloud services over Wi-Fi.
Image Processing
Automatic colour detection (colour / grayscale / monochrome), searchable PDF creation, and automatic face orientation and red-eye reduction for photos.
Package Contents & ScanSnap Ordering Information
In the Box (per Ricoh)
ScanSnap iX1300 scanner, AC cable, AC adapter, USB cable and Safety Precautions.
ScanSnap Models
| Model | Type | Speed | Connectivity | Part No. |
| iX1300 White (this listing) | Compact ADF + manual feeder, duplex | 30 ppm / 60 ipm | USB + Wi-Fi | PA03805-B001 |
| iX1300 Black | Compact ADF + manual feeder, duplex | 30 ppm / 60 ipm | USB + Wi-Fi | PA03805-B101 |
| iX2500 White | 100-sheet ADF, duplex, 5" touch screen | 45 ppm / 90 ipm | USB + Wi-Fi | PA03860-B111 |
| iX2500 Black | 100-sheet ADF, duplex, 5" touch screen | 45 ppm / 90 ipm | USB + Wi-Fi | PA03860-B011 |
| SV600 | Overhead, contactless, up to A3 | 3 seconds per page | USB 2.0 | PA03641-B301 |
Need a bigger ADF and a touch screen? See the ScanSnap iX2500. For bound books, see the SV600 overhead scanner.
Datasheet & Downloads
| Ricoh brochure / datasheet | ScanSnap iX1300 Brochure (PDF) |
| Ricoh product page | ScanSnap iX1300 on pfu-asia.ricoh.com |
| Drivers, manuals & software | ScanSnap iX1300 downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03805-B001.
Frequently Asked Questions — Ricoh ScanSnap iX1300 White
How fast is the iX1300?
Up to 30 ppm simplex and 60 ipm duplex on A4 in Auto, Normal and Better modes, over USB or Wi-Fi.
Can it scan ID cards and booklets?
Yes. Use the front manual feeder for plastic cards up to 1.4 mm (including embossed cards) and booklets up to 2 mm thick.
Can I scan without a computer?
Yes. Over Wi-Fi, ScanSnap Cloud sends scans directly to supported cloud services, and ScanSnap Home for mobile lets you scan to a phone or tablet.
Does it work with a Mac?
Yes. ScanSnap Home supports macOS Monterey 12 or later as well as Windows 11 / 10, iOS / iPadOS and Android.
What warranty do I get?
1 year carry-in local warranty in Singapore, supplied by SourceIT with a GST invoice.
