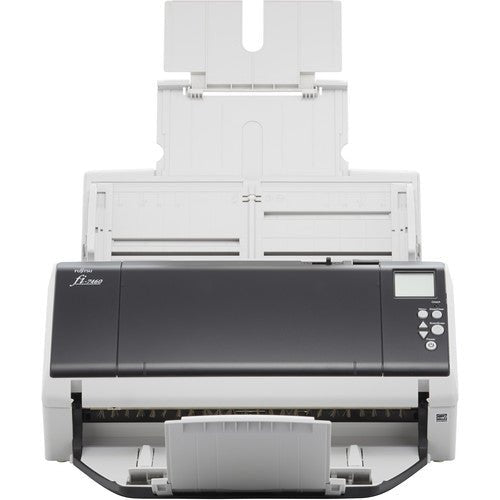

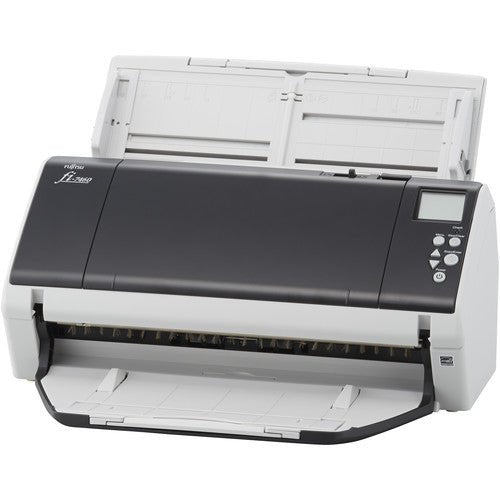

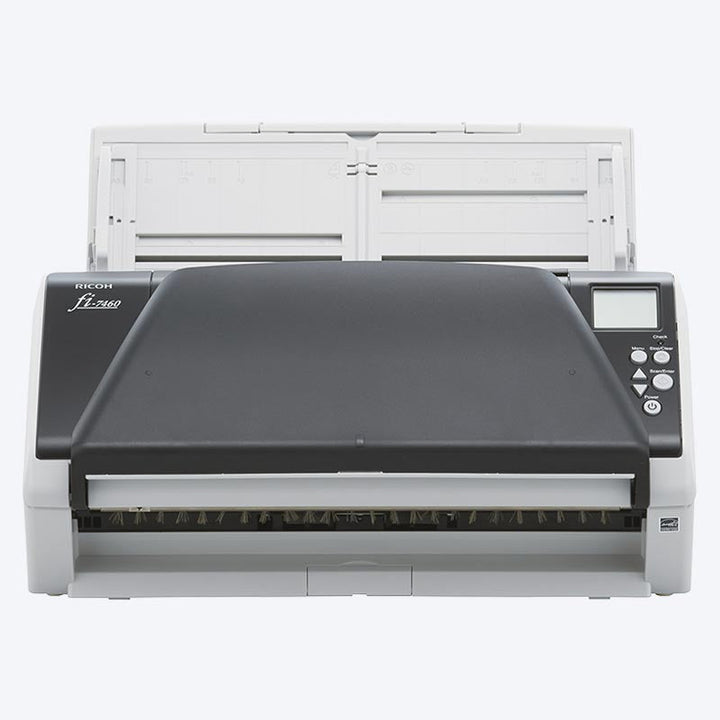

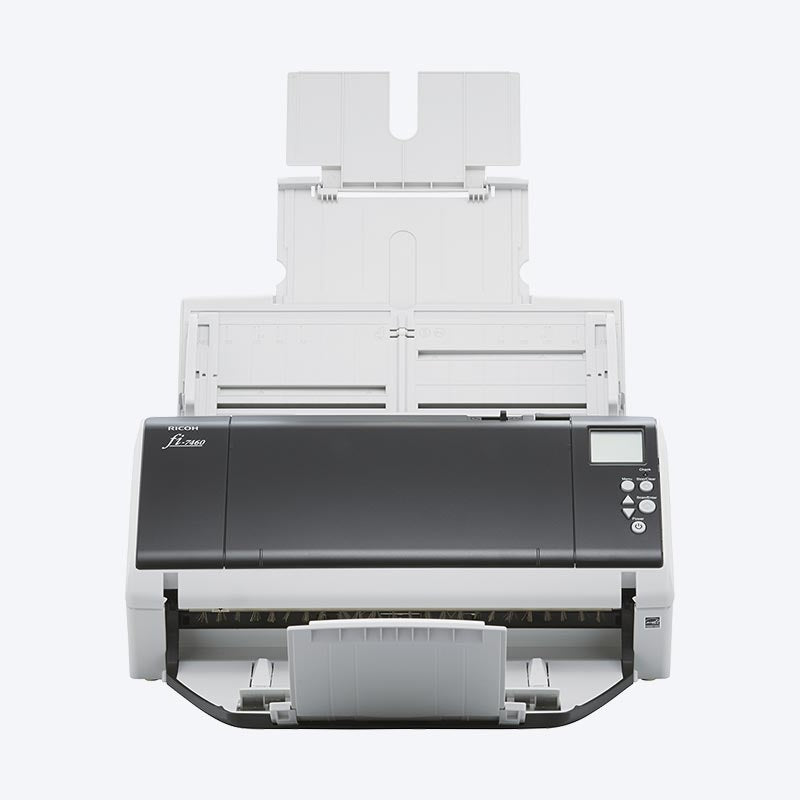

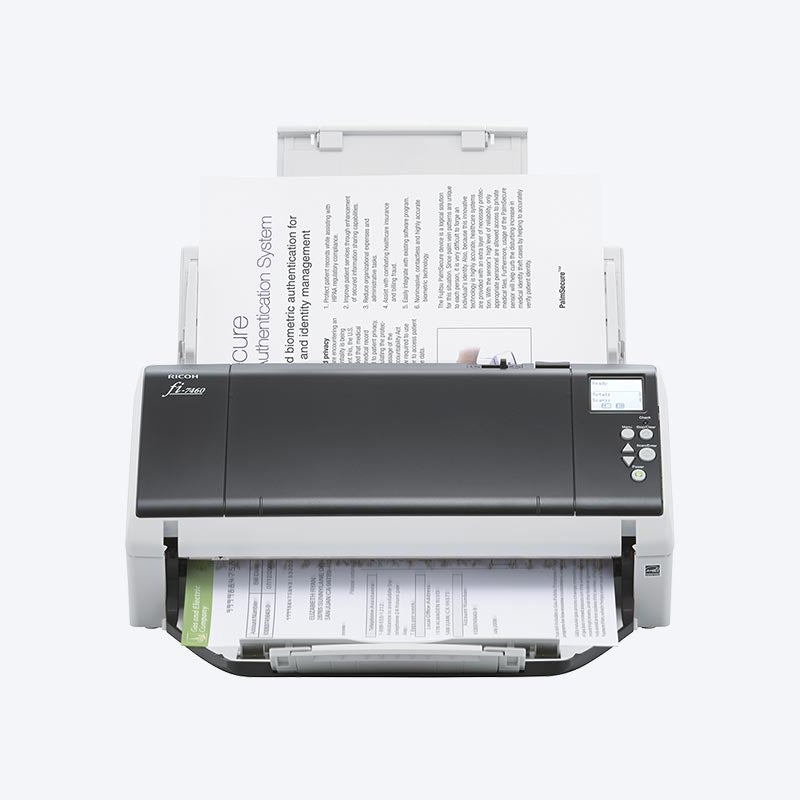

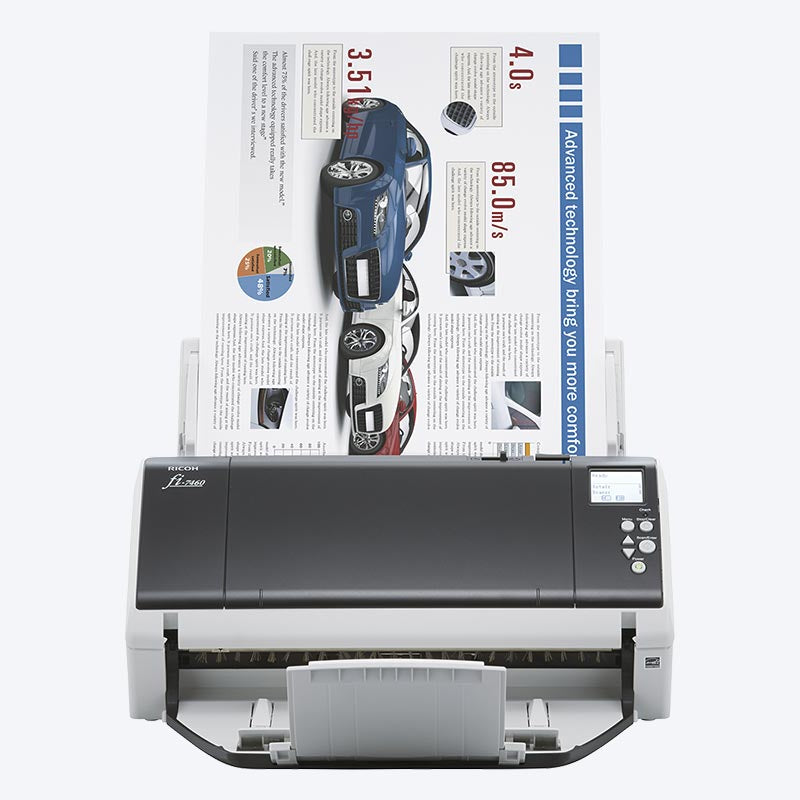

Ricoh fi-7460 A3 Duplex Document Scanner
PRODUCT DESCRIPTION
Ricoh fi-7460 A3 Duplex Document Scanner, 60 ppm / 120 ipm, 100-Sheet ADF, USB 3.0 (PA03710-B051) - 1 Year Local Warranty
60 ppm A3 Duplex Scanning in a Compact Footprint
The Ricoh fi-7460 is an A3 departmental scanner that Ricoh describes as the most compact A3 scanner in its class for mixed batches and large sizes. It scans at 60 pages per minute simplex and 120 images per minute duplex (A4 landscape, 200/300 dpi), holds 100 sheets in the ADF and is rated for an expected daily volume of 18,000 sheets.

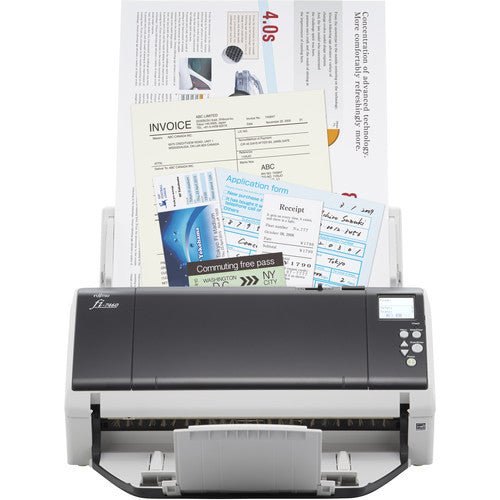

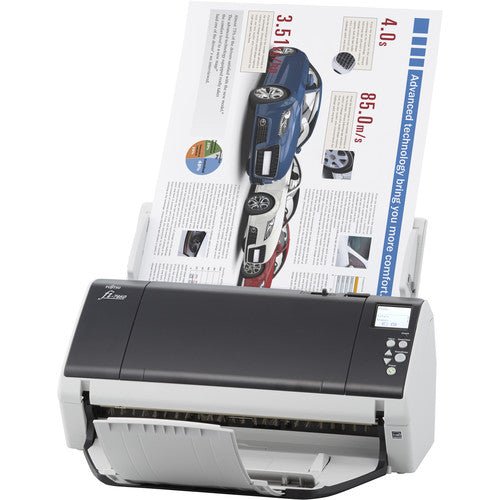

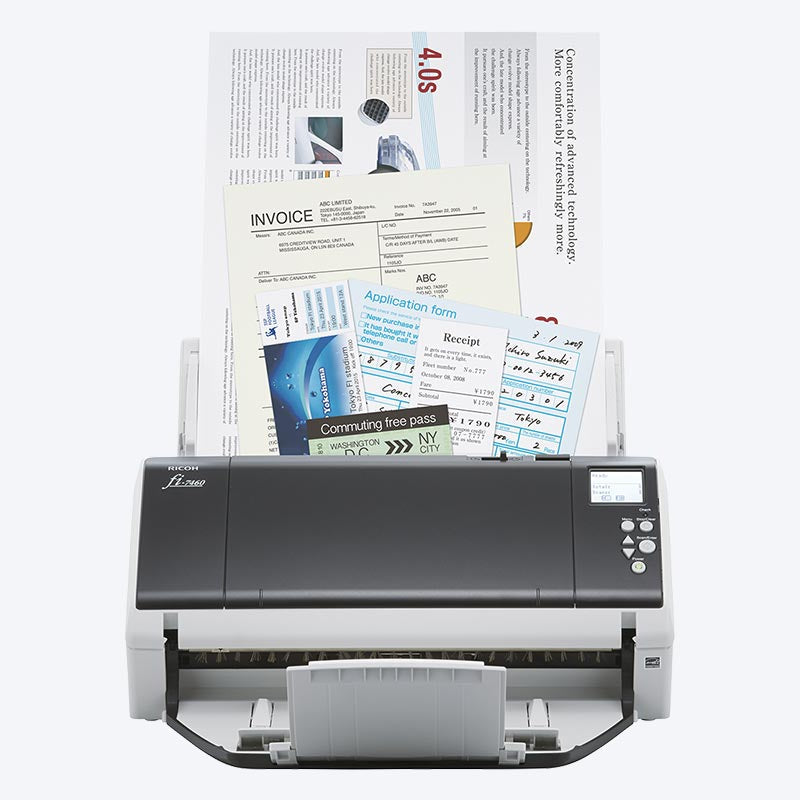

A8 to A3 in One Batch
The fi-7460 feeds documents from 50.8 x 69 mm up to 304.8 x 431.8 mm (12 x 17 in), paper from 27 to 413 g/m², plastic cards up to 1.4 mm and long pages up to 5,588 mm. Ricoh lists thick folded A2 documents, drawings folded in half, multi-layered receipts and envelopes among the items it can process.
Protects Documents and Catches Misfeeds
Ultrasonic overlap detection and length detection flag double-fed pages, while Intelligent Sonic Paper Protection (iSOP) uses lag and sound detection to help stop a jam before an original is damaged. Manual Feed Mode is available for items that need to go through one at a time.
PaperStream Software Included
Connect over USB 3.0. PaperStream IP (TWAIN/ISIS), WIA and Linux (SANE) drivers are supported, and PaperStream Capture and PaperStream ClickScan are supplied for day-to-day scanning workflows.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, largest document size and document types and we will size it for you.
Ricoh fi-7460 Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-7460 Image Scanner |
| Part Number | PA03710-B051 |
| Series | Ricoh fi-7000 series (A3 ADF) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | Colour CCD x 2 (front x 1, back x 1) |
| Light Source | White LED array x 4 (front x 2, back x 2) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Landscape) | Simplex 60 ppm / Duplex 120 ipm (200/300 dpi) |
| Scanning Speed (A4 Portrait) | Simplex 50 ppm / Duplex 100 ipm (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | White / Black (selectable) |
Paper Handling
| Maximum Document Size | 304.8 x 431.8 mm (12 x 17 in) |
| Minimum Document Size | 50.8 x 69 mm (2 x 2.7 in), portrait |
| Long Page Scanning | Up to 5,588 mm (220 in) |
| Paper Weight | 27 to 413 g/m² (7.2 to 110 lb); A8 size 127 to 209 g/m² |
| Plastic Cards | Up to 1.4 mm |
| ADF Capacity | 100 sheets (A4 80 g/m²) |
| Expected Daily Volume | 18,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor), length detection |
| Paper Protection | Lag detection, sound detection (iSOP) |
Connectivity & Power
| Interface | USB 3.0 / USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 36 W or less; Sleep 1.4 W or less; Auto Standby (Off) 0.3 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 380 x 209 x 168 mm |
| Weight | 7.6 kg (16 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016 and Linux (Ubuntu), per Ricoh's fi-7460 datasheet. macOS is not listed.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS), WIA driver and Image Scanner Driver for Linux (SANE).
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, iDTC / Advanced DTC / SDTC, error diffusion, dither, de-screen, emphasis, dropout colour, sRGB output, hole-punch removal, index-tab cropping, split image, de-skew, edge correction, vertical streak reduction, cropping and static threshold.
Package Contents & fi-7000 Series Ordering Information
In the Box (per Ricoh)
fi-7460 scanner, ADF paper chute, AC cable, AC adapter, USB cable and setup DVD-ROM.
fi-7000 Compact A3 Models
| Model | Speed (ppm / ipm, A4 landscape) | Daily Volume | Part No. |
| fi-7460 (this listing) | 60 / 120 | 18,000 sheets | PA03710-B051 |
| fi-7480 | 80 / 160 | 24,000 sheets | PA03710-B001 |
Need higher volume or a 300-sheet feeder? See the fi-7600, or the fi-7700 and fi-7700S, which add an A3 flatbed.
Datasheet & Downloads
| Ricoh datasheet | fi-7460 Datasheet (PDF) |
| Ricoh product page | fi-7460 on pfu-asia.ricoh.com |
| Drivers & software | fi-7460 / fi-7480 downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03710-B051.
Frequently Asked Questions — Ricoh fi-7460
How fast is the fi-7460?
60 ppm simplex and 120 ipm duplex on A4 landscape, or 50 ppm / 100 ipm on A4 portrait, at 200/300 dpi.
What is the largest document it can scan?
Up to 304.8 x 431.8 mm (12 x 17 in) through the feeder, which covers A3, and long pages up to 5,588 mm.
What is the difference between the fi-7460 and fi-7480?
They share the same body, paper handling and 100-sheet ADF. The fi-7480 is faster (80 ppm vs 60 ppm, A4 landscape) and is rated for 24,000 sheets a day versus 18,000.
Does it work with a Mac or Linux?
Ricoh lists Windows, Windows Server and Linux (Ubuntu, via the SANE driver). macOS is not listed in the datasheet.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
