Epson EV-115 LightScene WXGA 3LCD Laser Projector (Black)
PRODUCT DESCRIPTION
Epson EV-115 LightScene WXGA 3LCD Laser Projector, Black (V11HA22152) - 3 Years Singapore Local Warranty
Black Spotlight Finish That Disappears Into Dark Ceilings and Track Lighting
The EV-115 is the black finish of Epson's LightScene accent lighting projector. Its spotlight-style cylindrical body is designed to read as a light fitting rather than as AV equipment, and the black chassis is the one to specify where the ceiling, track or truss is already dark. In a boutique with blackened services, a gallery with matte black track, a hotel bar or a themed attraction, a white projector announces itself; this one recedes. Functionally it is identical to the white EV-110, so the choice between them is purely about how the fitting sits in the space.
2,200 Lumens of Matching White and Colour Brightness for Retail Accent Projection
Epson rates the EV-115 at 2,200 lumens white light output and 2,200 lumens colour light output, with a contrast ratio quoted at over 5,000,000:1. Equal white and colour brightness matters more here than in a meeting room, because accent projection is almost entirely colour content: product imagery, brand graphics, textures and gobo-style patterns. A projector that measured high on white and low on colour would wash those out. Quiet and extended modes run at 1,100 lumens where a dimmer, longer-life setting suits a lobby or a permanent installation.
Powered Zoom, Powered Focus and ±45° Keystone for Awkward Mounting Angles
Accent projection rarely lets you mount square to the surface. The EV-115 answers that with powered optical zoom and powered focus, a 1.38 to 2.19 throw ratio, and geometric correction running to ±45° vertically and ±40° horizontally, plus Quick Corner. Total zoom reaches 1 to 2.21 by combining 1 to 1.58 optical with 1 to 1.40 digital. Screen sizes run 30” to 150”, from 0.88 to 4.51 metres at the wide end. Edge blending is supported where two units cover one long wall or a wrapped column.
Built-In Playlist Scheduling and SD Card Playback With No Media Player
The EV-115 runs content on its own. An SD card slot takes an SDHC card up to 32GB, and the built-in contents player handles playlists, a timetable for scheduled playback and an SD viewer, working with Motion JPEG movie files (AVI) and JPEG, PNG, GIF and BMP stills. For a retail chain or a museum that means no media player to mount, power, network and maintain behind every fitting. Built-in wireless LAN, wired RJ45 and the Epson Creative Projection app cover content updates and commissioning, with a GPI input for external triggering.
Epson EV-115 Datasheet — Technical Specifications
General
| Product | Epson EV-115 LightScene WXGA 3LCD Laser Projector (Black) |
| Part Number (SKU) | V11HA22152 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Native Resolution | WXGA |
| Light Source Type | Laser diode |
| Finish | Black |
| Throw Type | Standard throw |
| Local Warranty (Singapore) | 3 Years — supplied by SourceIT with GST invoice |
Projection & Optics
| LCD Panel Size | 0.59 inch (D8, C2 fine) |
| White Light Output (Normal / Quiet / Extended) | 2,200 lm / 1,100 lm / 1,100 lm |
| Colour Light Output | 2,200 lm |
| Contrast Ratio | Over 5,000,000:1 |
| Lens Type | Optical Zoom (Powered) / Focus (Powered) |
| Focal Length | 18.2 – 28.4 mm |
| F-number | 1.51 – 1.92 |
| Zoom Ratio | 1 – 2.21 (1 – 1.58 optical zoom and 1 – 1.40 digital zoom) |
| Throw Ratio | 1.38 – 2.19 (Wide to Tele) |
| Screen Size (Wide Zoom) | 30” to 150” (0.88 to 4.51 m) |
| Screen Size (Tele Zoom) | 30” to 150” (1.41 to 7.16 m) |
| Standard Size Reference | 60” screen at 1.79 m |
| Keystone Correction | ±45° vertical / ±40° horizontal |
| Quick Corner | Yes |
| Edge Blending | Yes |
| Colour Modes | Dynamic, Normal |
Light Source
| Type | Laser diode |
| Life (Normal / Quiet / Extended) | 20,000 / 20,000 / 30,000 hours |
Connectivity
| Digital Input | HDMI x 1 |
| Audio Output | Stereo mini jack x 1 |
| Memory Card | SD card x 1 (SDHC, up to 32GB, Class 10 or higher) |
| USB Type A | 1 (for GPI In [2 Ch] or 5V/2A power supply) |
| USB Type B | 1 (for firmware update) |
| Wired Network | LAN RJ45 x 1 (100Mbps) |
| Wireless LAN | Built-in |
| Control | RS-232C |
Audio & Features
| Contents Player — Playlist | Yes |
| Contents Player — Timetable (scheduled playlist) | Yes |
| Contents Player — SD Viewer | Yes |
| Playlist Content Formats | Motion JPEG movie (AVI); photo (JPEG, PNG, GIF, BMP) |
| App Support | Epson Creative Projection App |
| GPI Function | Yes |
| Wireless Standards | IEEE 802.11b (11 Mbps), 802.11g (54 Mbps), 802.11n (72.2 Mbps) |
| Wireless LAN Security | Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP |
| Supported EAP Types | PEAP, PEAP-TLS, EAP-TLS, EAP-Fast |
| Supported Connection Modes | Infrastructure, Access Point |
| Start-Up Period | Less than 9 seconds (warm-up period 30 seconds) |
| Cool Down Period | Instant off |
| Direct Power On / Off | Yes / Yes |
Physical & Environmental
| Dimensions — Projection Unit | Φ175 x D260 mm |
| Dimensions — Power Supply Unit | 361 x 110 x 65 mm (without cable cover) |
| Weight | Approx. 6.9 kg (main unit and direct mount unit) |
| Fan Noise (Normal / Eco) | 34 / 22 dB |
| Operating Temperature (low altitude, 0 to 2,286 m) | 5 °C to 40 °C (41 °F to 104 °F) |
| Operating Temperature (high altitude, over 2,286 m) | 5 °C to 35 °C (41 °F to 95 °F) |
| Operating Humidity | 20% – 80%, no condensation |
| Operating Altitude | 0 m to 3,048 m (0 ft to 10,000 ft); above 1,500 m use high altitude mode |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
| Power Consumption — Laser Diode On (Normal / Quiet) | 149W / 112W |
| Standby (Network On / Off) | 2.0W / 0.40W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement

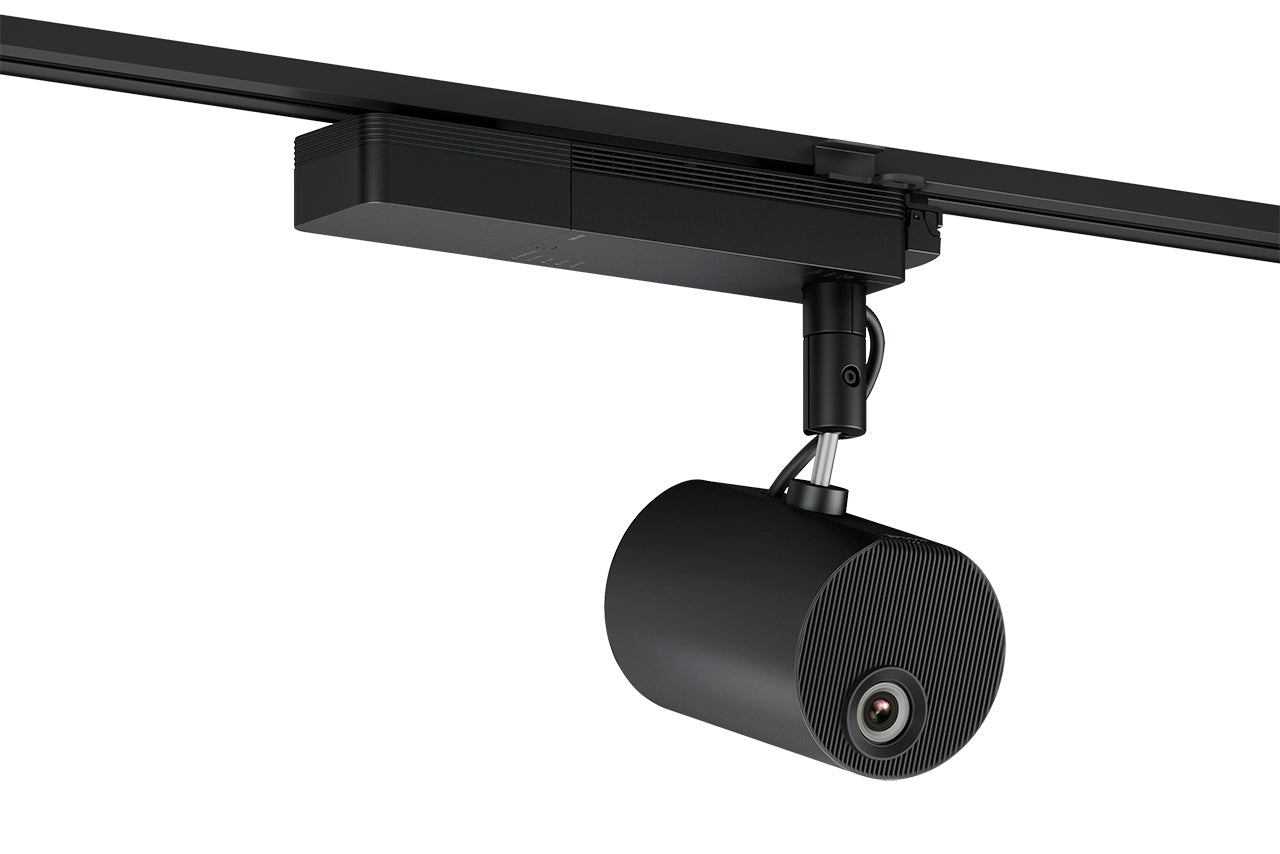

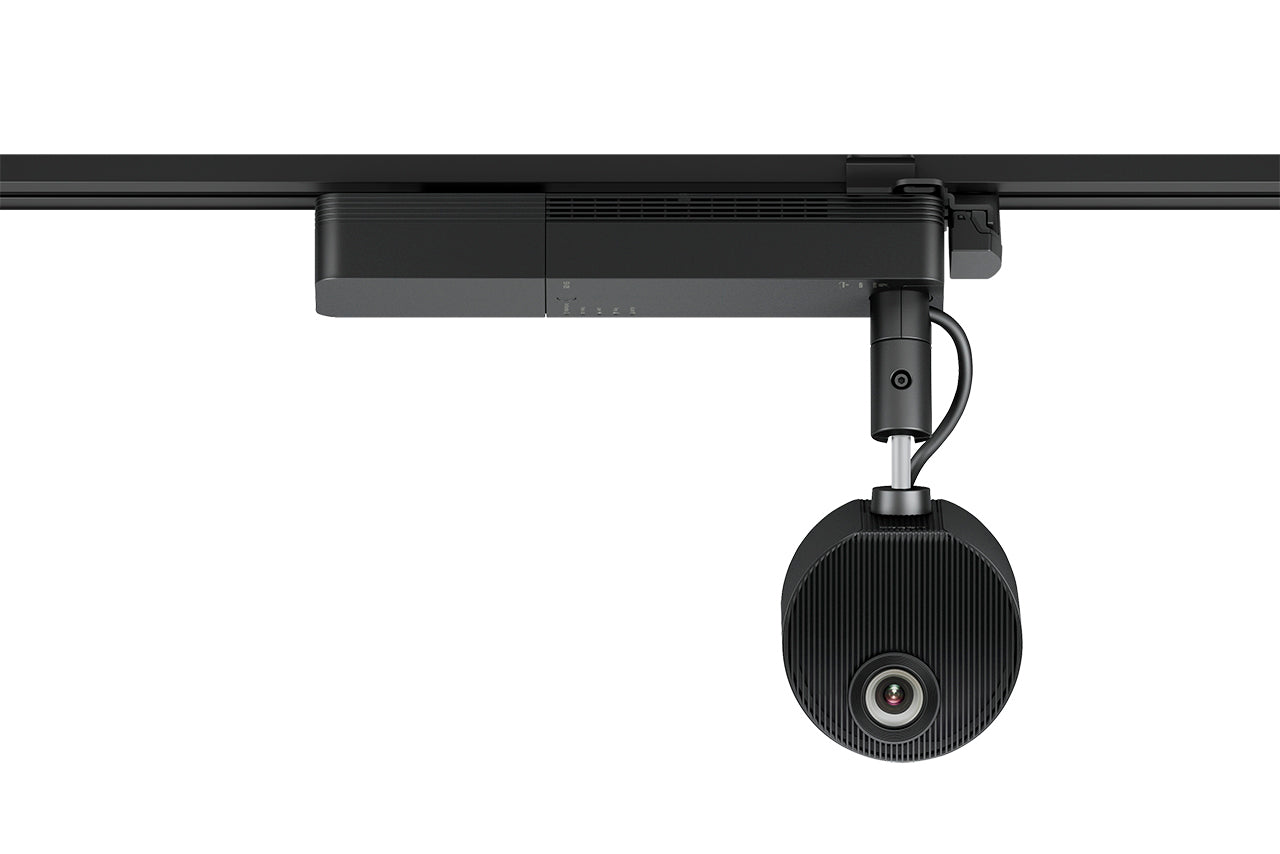

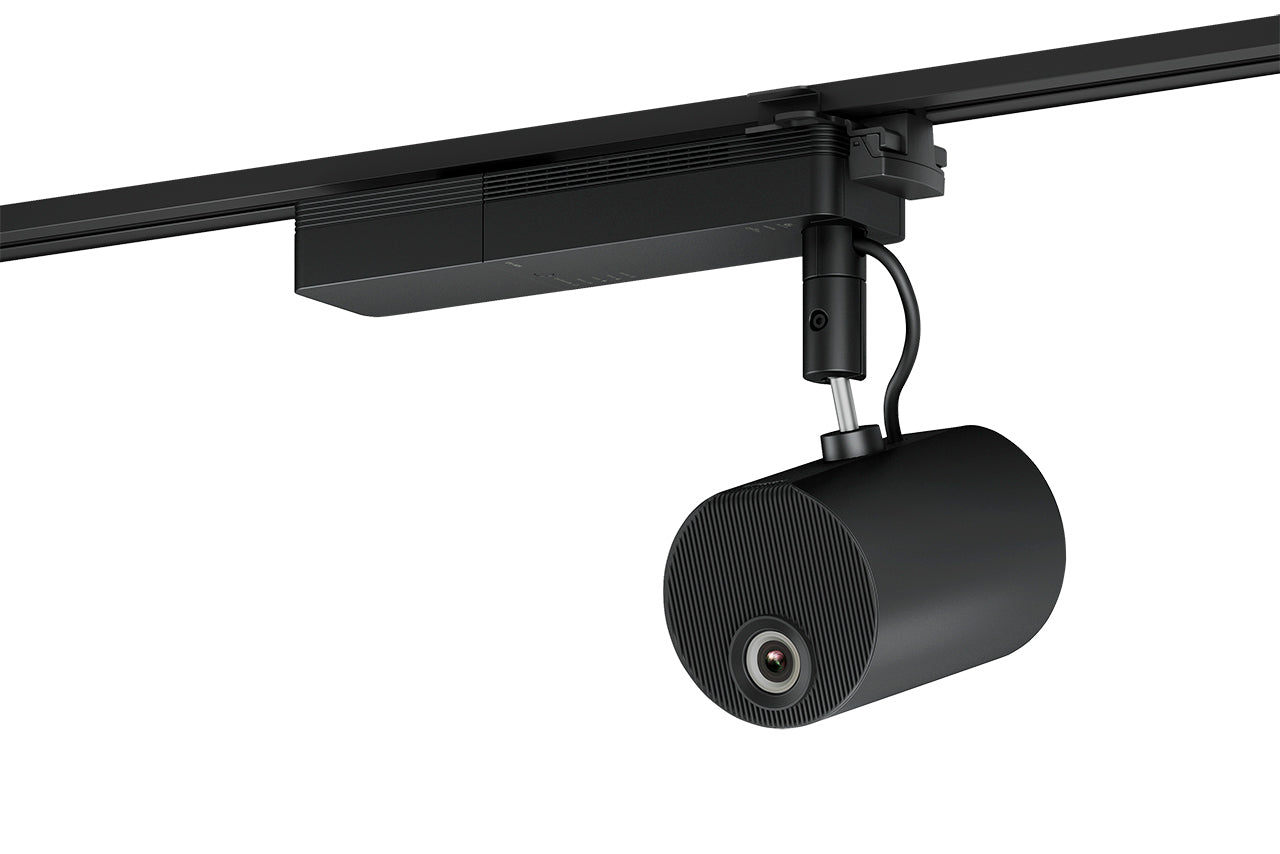

The EV-115 comes as a cylindrical projection unit measuring Φ175 x D260mm with a separate power supply unit of 361 x 110 x 65mm, and Epson quotes approximately 6.9kg for the main unit together with the direct mount unit. Epson lists a black floor stand (ELPMB55B) and a black lighting track mount (ELPMB66B) for this model, with white equivalents (ELPMB55W, ELPMB66W) also available. The lighting track option is what lets the projector share a standard track with the luminaires around it, which is how most retail and gallery installations handle both power and position.
Aiming and correction
Powered zoom and powered focus mean the image can be set from the remote once the fitting is in place, which matters when the unit is on a high track. Geometric correction runs to ±45° vertically and ±40° horizontally with Quick Corner for finer shaping, so the projector can sit well off the surface normal and still produce a square image. Edge blending is supported where two or more units cover a long wall, a wrapped column or a continuous window display.
Content, network and control
An SD card slot takes an SDHC card up to 32GB at Class 10 or higher, and the built-in contents player handles playlists, scheduled playback via a timetable, and direct SD viewing. Content formats are Motion JPEG movie (AVI) and JPEG, PNG, GIF and BMP stills. A single HDMI input accepts a live source where one is needed. Built-in wireless LAN and a 100Mbps LAN RJ45 port support commissioning and content updates, including through the Epson Creative Projection app, while RS-232C and a GPI input on USB Type A allow integration with external control and triggering.
Choosing between the EV-115 and the EV-110
The EV-115 is the black finish and the Epson EV-110 is the white finish of the same LightScene projector. Specify the finish that matches the ceiling, track or truss it will hang from. Note that the floor stand and lighting track accessories are also finish-specific: ELPMB55B and ELPMB66B are the black parts, ELPMB55W and ELPMB66W the white.
Package Contents & Epson LightScene Range
In the box
Epson Singapore does not publish a bundled-accessory list for the EV-115 on its product page, so no box contents are claimed here. SourceIT can confirm exactly what ships in the carton against the current Epson Singapore packing list before you order, including whether the mount you need is supplied or ordered separately.
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson LightScene range
| Model | Finish |
| EV-115 (this listing) | Black |
| EV-110 | White |
Optional mounting accessories
| Floor Stand (Black) | ELPMB55B |
| Floor Stand (White) | ELPMB55W |
| Lighting Track Mount (Black) | ELPMB66B |
| Lighting Track Mount (White) | ELPMB66W |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the EV-115 together with a formal quotation. Tell us the mounting method, the surface you are projecting onto and the throw distance available, and we will confirm the lens coverage and the correct track or stand part number before you order.
Frequently Asked Questions — Epson EV-115
What is the difference between the EV-115 and the EV-110?
Finish. The EV-115 is black and the EV-110 is white. The projection specification is the same on both, so choose the one that matches the ceiling, track or truss the unit will mount to. Remember that the floor stand and lighting track accessories are also finish-specific.
What is a LightScene projector actually for?
It is built for accent projection rather than for presentations. The spotlight-style body is meant to sit alongside luminaires on a lighting track, projecting product imagery, brand graphics, textures or patterns onto walls, floors, columns and displays in retail, hospitality, galleries and themed spaces.
Does it need a media player or a PC attached?
No. The EV-115 has an SD card slot taking an SDHC card up to 32GB and a built-in contents player with playlist, timetable scheduling and an SD viewer. It plays Motion JPEG movie files (AVI) and JPEG, PNG, GIF and BMP stills on its own. An HDMI input is fitted for a live source when you need one.
How large an image does it produce and from how far?
Screen sizes run from 30” to 150”. At the wide end that is 0.88 to 4.51 metres of throw distance, and at the tele end 1.41 to 7.16 metres. As a reference point Epson quotes a 60” image at 1.79 metres. The throw ratio is 1.38 to 2.19.
Can it be mounted at an angle to the surface?
Yes, and that is the normal case for accent projection. Geometric correction runs to ±45° vertically and ±40° horizontally, with Quick Corner for finer shaping. Zoom and focus are both powered, so the image can be set from the remote once the fitting is in position.
How long does the laser light source last?
Epson rates it at 20,000 hours in Normal and Quiet modes and 30,000 hours in Extended mode. For a retail site running twelve hours a day, that is several years of operation before the light source becomes a consideration.
Can two units cover one long wall?
Yes. Edge blending is supported, so two or more EV-115 units can produce a single continuous image across a long wall, a wrapped column or a window run. Tell us the surface dimensions and we will work through the unit count and placement with you.
What warranty and invoicing do I get from SourceIT?
Every EV-115 sold by SourceIT carries a 3-year Singapore local warranty and ships with a GST invoice. Service is handled locally through Epson Singapore's network.
