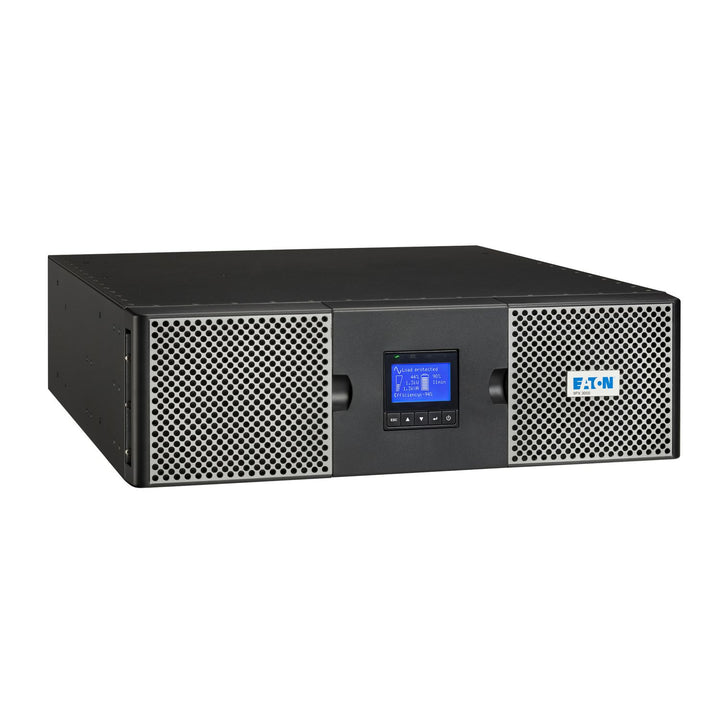

Eaton 9PX Marine 3000VA 3000W Online Rack/Tower UPS, DNV GL Certified, 3U, 8x C13 + 2x C19
PRODUCT DESCRIPTION
Eaton 9PX Marine 3000VA/3000W Online Rack/Tower UPS (9PX3000IRTM, 9103-83913) - 3 Years Local Warranty
DNV GL-Certified Online UPS for Vessels and Offshore Installations
The Eaton 9PX Marine 9PX3000IRTM is a 3000 VA / 3000 W online double-conversion UPS that Eaton lists as DNV GL certified, for bridge electronics, navigation and communications racks, engine-room control systems and other shipboard or offshore IT. For Singapore shipyards, ship managers and marine system integrators it brings the 9PX platform to installations that need a marine-certified unit.
The load always runs from the inverter as a regenerated 230 V sine wave, so connected equipment is isolated from the sags, spikes and frequency drift common on generator-fed shipboard supplies. Eaton rates it at unity power factor (VA = W), so the full 3000 W is usable.
3U Rack or Tower Installation
Eaton supplies 19-inch mounting brackets, a rack-mounting kit and tower supports in the box, so the 9PX3000IRTM fits a 19-inch equipment rack (3U) or stands as a tower. A cable locking system is included to keep output leads secure.
Wide Input Window and High Efficiency
Eaton specifies an input range of 176–276 V without going to battery (100–276 V with derating) and a 40–70 Hz input frequency window. Efficiency at maximum load is 94% per Eaton, and the unit is ENERGY STAR certified.
Hot-Swappable Batteries and Expandable Runtime
Internal batteries and external battery modules (EBMs) are hot-swappable, so batteries can be serviced without shutting down the protected equipment, and Eaton lists extended battery capability for longer runtime.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 9PX Marine in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives 3 years on the UPS and 3 years on the internal battery. For vessel projects, email sales@sourceit.com.sg with your load and runtime requirement.
Eaton 9PX3000IRTM Datasheet — Technical Specifications
General
| Product Name | Eaton 9PX marine UPS |
| Model Code | Eaton 9PX 3000i RT3U Marine |
| Catalogue Number | 9PX3000IRTM |
| Part Number (SKU) | 9103-83913 |
| Range | Eaton 9PX Marine |
| Topology | Online / double-conversion |
| Form Factor | Rack/tower convertible, 3U (482.6 mm / 19-inch device) |
| Colour | Black/silver |
| Local Warranty (Singapore) | 3 years UPS / 3 years internal battery (Eaton Singapore price list), with GST invoice from SourceIT |
Power
| Rated Power | 3000 VA / 3000 W (output power factor 1) |
| Output Waveform | Sine wave |
| Output Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Output Voltage Regulation | ±1% |
| Output Voltage Distortion (linear load) | 3% max |
| Output Outlets | 8 x IEC C13 + 2 x IEC C19 |
| Input Connection | C20 |
| Input Cord Length | 1.8 m |
| Input Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Input Voltage Range | 176–276 V (100–276 V with derating) |
| Input Frequency Range | 40–70 Hz (50/60 Hz nominal) |
| Input Power Factor | >0.99 |
| Efficiency at Max. Load | 94% |
| Internal Bypass | Yes |
Battery
| Battery Type | Sealed lead-acid |
| Battery Rating | 12 V / 9 Ah |
| Battery Replacement | Hot-swappable internal batteries and EBMs |
| Extended Battery Capability | Yes |
Communications
| Communication Ports | USB port (HID compliant); serial port (RS232); mini terminal block for remote On/Off; mini terminal block for remote power off; mini terminal block for output relay; dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| Expansion Slot | 1 slot for optional communication card (network card not included) |
| User Interface | Multilingual graphical LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
Physical & Environmental
| Dimensions (W x H x D) | 440 x 130 x 485 mm |
| Weight | 27.4 kg |
| Noise Level | <40 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–96% non-condensing |
| Altitude | 3000 m |
| Certifications | DNV GL Certified, IEC/EN 62040-1, IEC/EN 62040-2, UL 1778, CE, EAC, ENERGY STAR certified |
| Compliances | CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B |
Compatibility & Software Support
What It Is Suited To
The 9PX3000IRTM suits marine and offshore IT and control loads where a DNV GL-certified UPS is specified: navigation and communications racks, bridge and engine-room PCs, network switches and monitoring systems. Keep the continuous load under 3000 W with headroom.
Monitoring and Shutdown Software
The HID-compliant USB and RS232 ports work with Eaton Intelligent Power Protector for automatic shutdown and Eaton Intelligent Power Manager for centralised monitoring. Dry contacts and remote on/off / remote power-off terminals allow integration with alarm and emergency-stop circuits. An optional Eaton network card can be fitted in the communication slot for network monitoring.
Outlets and Input
Outputs are 8 x IEC C13 + 2 x IEC C19; input is an IEC C20 inlet, with the input cable included.
Package Contents & 9PX Marine Ordering Information
In the Box
UPS, input cable, (2) IEC-IEC output cables, USB cable, serial cable, (2) brackets for 19" mounting, (2) rack-mounting kit, (2) supports for tower mounting, cable locking system, safety instructions, quick start guide (per Eaton).
Eaton 9PX Marine — Ordering Information
| 9PX1500IRTM | 1500 VA / 1500 W | RT2U | 8 x IEC C13 | 9103-63148 |
| 9PX3000IRTM (this listing) | 3000 VA / 3000 W | RT3U | 8 x IEC C13 + 2 x IEC C19 | 9103-83913 |
For non-marine installations, see the standard Eaton 9PX 1500VA and Eaton 9PX 3000VA online UPS.
Datasheet & Downloads
| Eaton product page | Eaton 9PX3000IRTM specifications |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9PX3000IRTM.
Frequently Asked Questions — Eaton 9PX3000IRTM
What makes this a marine UPS?
Eaton lists the 9PX3000IRTM as DNV GL certified. Otherwise it is built on the Eaton 9PX online double-conversion platform.
How much load can I connect?
Up to 3000 W — unity power factor means the watt and VA ratings are the same.
Can the batteries be replaced at sea without shutdown?
Yes. Eaton specifies hot-swappable internal batteries and EBMs.
Can it run longer on battery?
Yes, Eaton lists extended battery capability with external battery modules. Tell us your load and required runtime and we will size it.
What warranty do I get?
3 years on the UPS and 3 years on the internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
