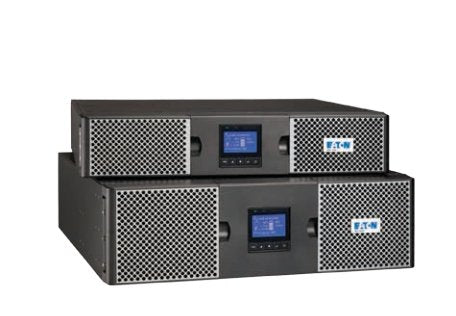

Eaton 9PX1500IRTM Marine UPS 1500VA Tower Models 220V

Eaton 9PX1500IRTM Marine UPS 1500VA Tower Models 220V (9103-63148) - 3 Years Local Warranty

Eaton 9PX Marine UPS 1500VA Tower Models – Tailored Power Protection for Maritime Applications

The Eaton 9PX Marine UPS 1500VA Tower Models 220V is specifically designed to provide reliable and robust power protection in marine environments. Offering 1500VA of protection, it is ideally suited for a variety of maritime applications where the reliability of electrical systems is critical. Whether used for onboard power systems, communication equipment, or navigational systems, the Eaton 9PX Marine UPS ensures your equipment remains operational during power interruptions, safeguarding valuable assets while navigating the waters.

Optimized for Marine Environments

The Eaton 9PX Marine UPS is engineered to withstand the unique challenges posed by maritime environments. Its rugged design, along with its compliance with marine industry standards, makes it the perfect solution for vessels, offshore platforms, and maritime industries that require continuous, high-quality power. Designed for seamless integration with maritime systems, it provides peace of mind by keeping essential equipment safe from power disruptions, ensuring smooth operations at sea.

Advanced Lithium-ion Technology for Efficient Power Management

Utilizing cutting-edge lithium-ion battery technology, the Eaton 9PX Marine UPS 1500VA offers longer battery life, quicker recharge times, and improved efficiency compared to traditional lead-acid battery UPS systems. This technology is especially beneficial for marine applications where space is limited, and operational efficiency is a priority. Lithium-ion batteries provide more power in a compact form, reducing the need for regular replacements and enhancing the reliability of your vessel’s power backup systems.

Energy-Efficient, High-Performance Power Protection

The Eaton 9PX Marine UPS operates with up to 98% efficiency in double-conversion mode, which ensures minimal energy consumption and lowers operating costs. This efficient operation is crucial for marine environments, where energy management is key to reducing operational costs and extending battery life. With superior efficiency, the Eaton 9PX also reduces the environmental impact, making it a more sustainable choice for power protection on the water.

Compact and Reliable Design for Marine Applications

Designed in a tower form factor, the Eaton 9PX Marine UPS 1500VA is compact yet capable of delivering high performance. Its compact size makes it easy to install in the tight spaces often found on vessels and offshore platforms. The system is also equipped with an LCD display that provides real-time monitoring, ensuring operators can quickly assess the health of their UPS and power systems. With integrated surge protection and continuous power flow, this UPS minimizes downtime and ensures uninterrupted operation for sensitive equipment.

Technical Specifications

General

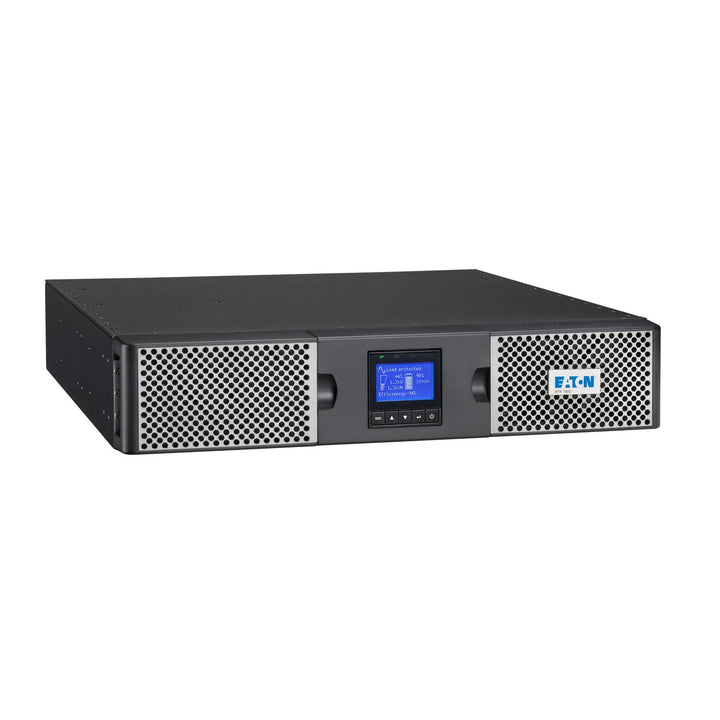

Model: 9PX1500IRTM
Part Number: 9103-63148
Product Name: Eaton 9PX1500IRTM Marine UPS 1500VA Tower Models 220V
Manufacturer: Eaton
Product Type: Marine Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)
Form Factor: Rack/Tower Convertible
Rack Height: 2U
Power Capacity: 1500VA / 1500W
Power Factor: 1.0 (Unity Power Factor)
Input Voltage: 220V / 230V / 240V AC
Output Voltage: 200V / 208V / 220V / 230V / 240V Configurable
Battery Technology: Sealed Lead Acid (VRLA)
Application: Marine Vessels, Offshore Platforms, Bridge Systems, Navigation Systems, Communication Systems, Industrial Marine Automation
Marine Certification: DNV-GL Type Approved
Warranty: 3 Years Electronics Warranty, 2 Years Battery Warranty

Power Specifications
Rated Capacity: 1500VA / 1500W
UPS Topology: Online Double Conversion
Output Power Factor: 1.0
Output Waveform: Pure Sine Wave
Input Voltage Range: 176V – 276V AC (100V – 276V with Derating)
Input Frequency Range: 40Hz – 70Hz
Output Frequency: 50Hz / 60Hz Selectable
Voltage Regulation: ±1%
Input Power Factor: >0.99
Efficiency (Online Mode): Up to 92.5%
Efficiency (High-Efficiency Mode): Up to 98%
Internal Automatic Bypass: Supported
Maintenance Bypass Compatibility: Supported
Auto Restart: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Rating: 12V / 9Ah
Battery Management: Eaton ABM® Advanced Battery Management
Battery Charging Technology: Three-Stage Charging System
Battery Life Extension: Up to 50% Longer Battery Life
Hot-Swappable Batteries: Supported
Automatic Battery Testing: Supported
Extended Battery Modules (EBM): Supported
Maximum External Battery Modules: Up to 4
Automatic EBM Recognition: Supported
Battery Replacement: User Replaceable

Runtime Specifications
Runtime at 50% Load: Approximately 14 Minutes
Runtime at Full Load: Approximately 6 Minutes
Extended Runtime Support: Supported via External Battery Modules
Long Runtime Applications: Supported
Critical Load Runtime Optimization: Supported

Marine Features
DNV-GL Type Approval: Supported
Marine Environment Certified: Supported
Marine & Offshore Design: Supported
Conformal Coated Circuit Boards: Supported
High Temperature Environment Compatibility: Supported
Marine Filter Compatibility: Supported
Corrosion Resistant Design: Supported
Vibration Resistant Deployment: Supported
Marine Communication System Support: Supported
Navigation System Protection: Supported
Bridge Control System Protection: Supported
Offshore Platform Deployment Ready: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Monitoring: Supported
Input Protection: Integrated
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported

Output Specifications
Total Output Outlets: 8
IEC C13 Outlets: 8
Output Voltage: 200V / 208V / 220V / 230V / 240V
Output Distortion: Less Than 3% (Linear Load)
Programmable Load Segments: Supported
Critical Load Management: Supported
Load Shedding: Supported
Energy Metering by Outlet Groups: Supported

Display & User Interface
Display Type: Multilingual Graphical LCD Display
Real-Time Power Monitoring: Supported
Input/Output Metering: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Energy Consumption Metering: Supported
Alarm Notifications: Supported
Event Logging: Supported
Advanced Configuration Interface: Supported

Management & Communication
USB HID Port: Supported
RS232 Serial Port: Supported
Remote On/Off Function: Supported
Remote Power Off (RPO): Supported
Output Relay Contacts: Supported
Communication Expansion Slot: 1
Network Management Card: Optional
SNMP Monitoring: Supported (Optional)
Remote Monitoring: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported
Virtualization Integration: Supported

Virtualization & Software Support
VMware Compatible
Microsoft Hyper-V Compatible
Citrix Compatible
Red Hat Virtualization Compatible
Cloud Orchestration Support
Virtual Machine Shutdown Automation
Centralized UPS Management Supported

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Surge Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Internal Automatic Bypass
Continuous Power Conditioning

Environmental Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: 0% to 96% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 35 dB at 1 Meter

Design & Construction
Color: Black / Silver
Form Factor: Rack/Tower Convertible
Rack Size: 2U
Rack Mount Kit: Included
Construction: Enterprise & Marine Grade Chassis
19-Inch Rack Compatible: Yes
Marine Deployment Ready: Yes

Physical Specifications
Dimensions (W × H × D): 440 × 86.5 × 450 mm
Weight: 18.9 kg
Installation Type: Rack or Tower
Rack Height: 2U

Package Contents
Eaton 9PX1500IRTM Marine UPS
Rack Mount Kit
USB Communication Cable
RS232 Communication Cable
Quick Start Guide
Safety Documentation

Features
1500VA / 1500W Unity Power Factor Output
Marine & Offshore Certified Design
DNV-GL Type Approval
Online Double Conversion Topology
Pure Sine Wave Output
ABM Battery Management Technology
Hot-Swappable Batteries
Graphical LCD Display
USB & Serial Communications
Network Management Card Ready
Supports Up to 4 External Battery Modules
Rack/Tower Convertible Design
Energy Star Qualified
Marine Filter Compatible

Performance & Features
The Eaton 9PX1500IRTM is purpose-built for marine and offshore environments, delivering continuous clean power through true online double-conversion technology. Its DNV-GL certified design, conformal-coated electronics, and high-temperature tolerance make it ideal for shipboard and offshore deployments. The unity power factor design provides the full 1500W output capacity, while Eaton ABM technology extends battery life by up to 50% compared to traditional charging methods. Advanced monitoring, virtualization integration, and expandable runtime capabilities make it suitable for mission-critical marine operations.

Key Features
1500VA / 1500W Capacity
Unity Power Factor (VA = W)
DNV-GL Marine Certification
Online Double Conversion UPS
Pure Sine Wave Output
ABM Battery Management Technology
Hot-Swappable Batteries
8 × IEC C13 Outputs
Graphical LCD Display
USB & RS232 Connectivity
Network Management Card Ready
Supports Up to 4 External Battery Modules
Rack/Tower Convertible 2U Design
Marine & Offshore Approved Design
Energy Star Certified

Typical Use Cases
Marine Navigation Systems
Bridge Control Systems
Shipboard Communication Equipment
Marine IT Infrastructure
Offshore Platforms
Marine Automation Systems
Radar Systems
Marine Security Systems
Control Rooms
Industrial Marine Applications
Telecommunications Equipment
Mission-Critical Maritime Operations

Certifications & Compliance
DNV-GL Type Approved
CE Certified
ENERGY STAR Qualified
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
TÜV Certified
cULus Listed
CSA 22.2
FCC Part 15 Class B
CISPR22 Class B
EAC Certified

UPC / GTIN
UPC: 743172081230
