Eaton 9PX 2200VA 2200W Online Double-Conversion Rack/Tower UPS, 3U, 8x C13 + 2x C19
PRODUCT DESCRIPTION
Eaton 9PX 2200VA/2200W RT3U UPS (9PX2200IRT3U, 9103-73789) - 3 Years Local Warranty
Online Double-Conversion with Unity Power Factor
The Eaton 9PX2200IRT3U is a 2200 VA / 2200 W online double-conversion UPS in a 3U rack/tower chassis. It constantly monitors power conditions and regulates voltage and frequency, protecting servers, storage and network equipment in Singapore offices and comms rooms from outages, sags, surges and noise. With an output power factor of 1, the full VA rating is available in watts.
Hot-Swappable Batteries and Extended Runtime
The six internal 12 V / 7 Ah sealed lead-acid batteries are hot-swappable, and Eaton lists extended battery capability with hot-swappable external battery modules. ABM battery management with temperature-compensated charging and automatic battery tests helps extend battery life.

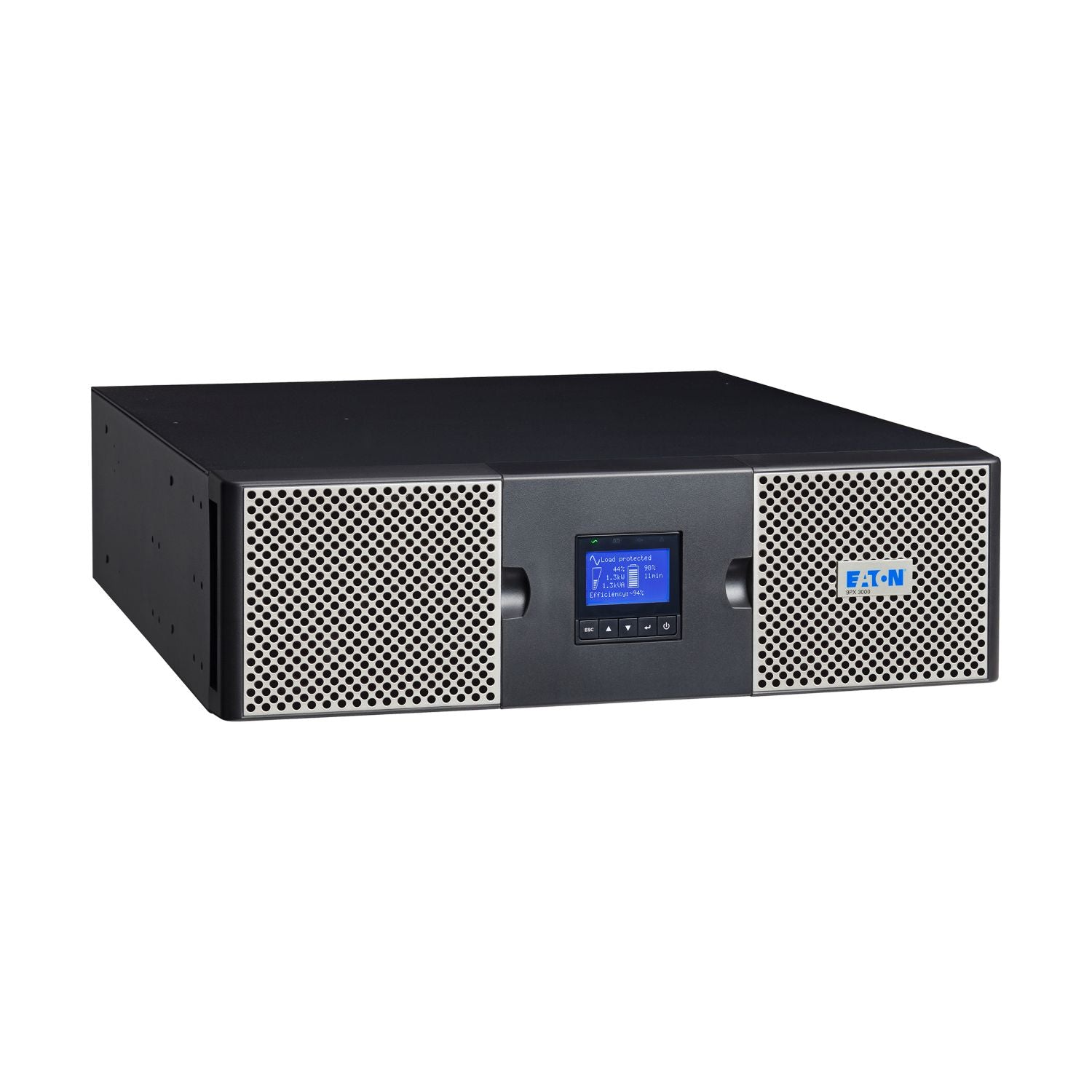

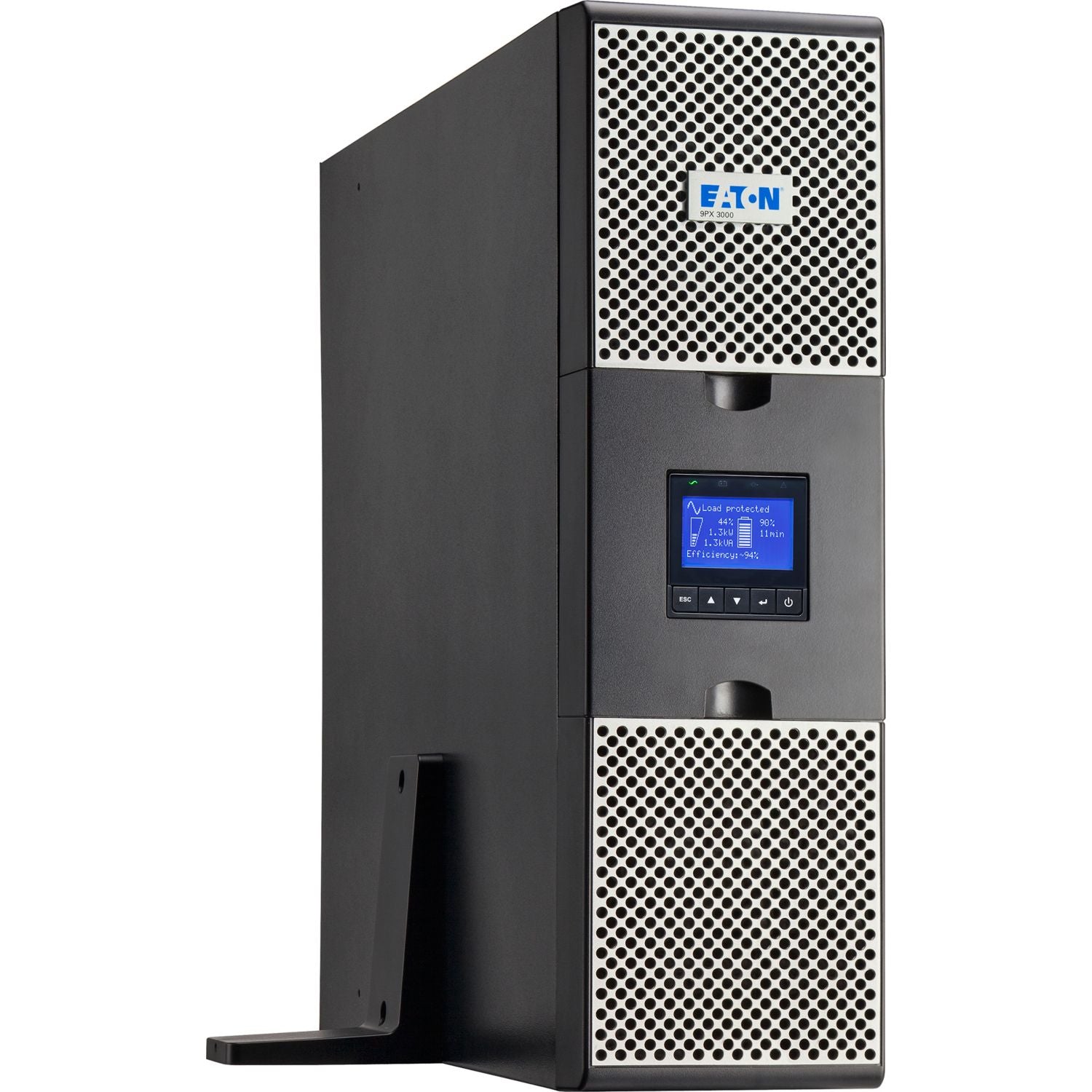

Rack or Tower, 8 C13 + 2 C19 Outlets

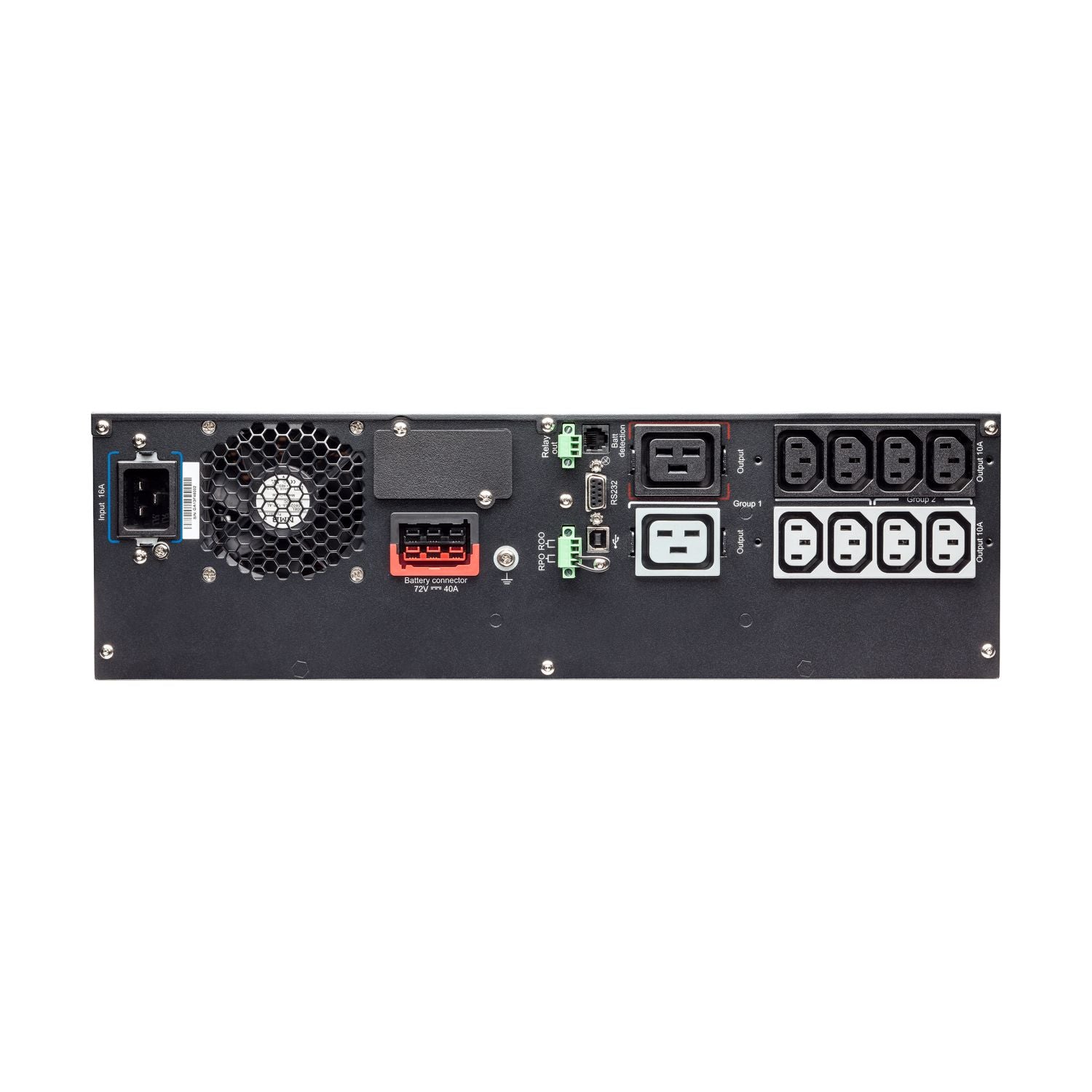

The 19" 3U chassis installs in a rack with the included mounting kit or stands as a tower. Output is on 8 IEC C13 and 2 IEC C19 sockets, and the input is an IEC C20 inlet with a 1.8 m input cord. Eaton rates efficiency at 93% at maximum load.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 9PX in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives 3 years on the UPS and its internal battery.
Need runtime sized for your rack? Email sales@sourceit.com.sg with your load in watts.
Eaton 9PX2200IRT3U Datasheet — Technical Specifications
General
| Product Name | Eaton 9PX UPS |
| Catalogue Number | 9PX2200IRT3U |
| Part Number (SKU) | 9103-73789 |
| Topology | Online / double conversion |
| Form Factor | Rack/tower 3U, 19" (482.6 mm) |
| User Interface | Multilingual graphical LCD display |
| Local Warranty (Singapore) | 3 years on the UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Input
| Input Connection | IEC C20, 1.8 m input cord |
| Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Input Voltage Range | 176–276 V (100–276 V with derating) |
| Frequency | 50/60 Hz nominal; 40–70 Hz range |
| Input Power Factor | >0.99 |
Output
| Rated Power | 2200 VA / 2200 W |
| Output Power Factor | 1 |
| Outlets | 8 x IEC C13, 2 x IEC C19 |
| Output Voltage | 200/208/220/230/240 V ±1% |
| Waveform | Sine wave |
| Output Frequency | 50/60 Hz |
| Efficiency at Max. Load | 93% |
| Internal Bypass | Yes |
Battery
| Battery Type | Sealed lead-acid |
| Battery Quantity / Rating | 6 x 12 V / 7 Ah |
| Battery Replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery Management | ABM and temperature-compensated charging (user selectable), automatic battery test |
| Extended Battery Capability | Yes |
Communications
| Ports | USB port (HID compliant), serial port (RS232), mini terminal block for remote On/Off |
| Expansion Slot | One slot for optional communication card (network card not included) |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
Physical & Environmental
| Dimensions (W x H x D) | 440 x 130 x 485 mm |
| Weight | 28 kg |
| Heat Dissipation (online) | 488 BTU/h |
| Noise Level | <40 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–96% non-condensing |
| Altitude | 3000 m |
| Certifications | cULus Listed, EAC, CE, ENERGY STAR certified, IEC/EN 62040-1, UL 1778, IEC/EN 62040-2 |
| Compliances | CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B |
Compatibility & Software Support
What It Is Suited To
The 9PX2200IRT3U suits servers, storage, switches and firewalls up to 2200 W in a rack or as a tower. The IEC C20 input needs a 16 A outlet or a C19-equipped PDU upstream.
Monitoring and Shutdown
USB (HID compliant) and RS232 connect to a single host; add an optional Eaton network card in the expansion slot for SNMP/web monitoring and multi-server or virtualised shutdown with Eaton Intelligent Power Manager.
Outlets
8 x IEC C13 and 2 x IEC C19. Equipment with BS 1363 (Type G) plugs needs an IEC lead or an IEC-input power strip.
Package Contents & 9PX Ordering Information
In the Box
UPS, input cable, 2 x IEC-IEC output cables, USB cable, serial cable (per Eaton).
Eaton 9PX 1000–3000 VA — Ordering Information
| 9PX1000IRT2U | 1000 VA / 1000 W, 2U | 9103-53748 |
| 9PX1500IRT2U | 1500 VA / 1500 W, 2U | 9103-63130 |
| 9PX2200IRT2U | 2200 VA / 2200 W, 2U | 9103-73784 |
| 9PX3000IRT2U | 3000 VA / 3000 W, 2U | 9103-83800 |
| 9PX2200IRT3U (this listing) | 2200 VA / 2200 W, 3U | 9103-73789 |
| 9PX3000IRT3U | 3000 VA / 3000 W, 3U | 9103-83805 |
Datasheet & Downloads
| Eaton specifications | Eaton 9PX2200IRT3U specifications page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9PX2200IRT3U.
Frequently Asked Questions — Eaton 9PX2200IRT3U
What is the difference between the 2U and 3U 9PX models?
Both are online double-conversion 9PX UPS with the same rating per size. The 3U model is the taller chassis; compare the dimensions, weight and battery details on each listing before choosing.
Can the batteries be replaced without shutting down?
Yes. Eaton lists hot-swappable internal batteries and extended battery modules.
Does it include a network card?
No. There is one slot for an optional communication card; ask us to quote an Eaton network card if you need SNMP monitoring.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
