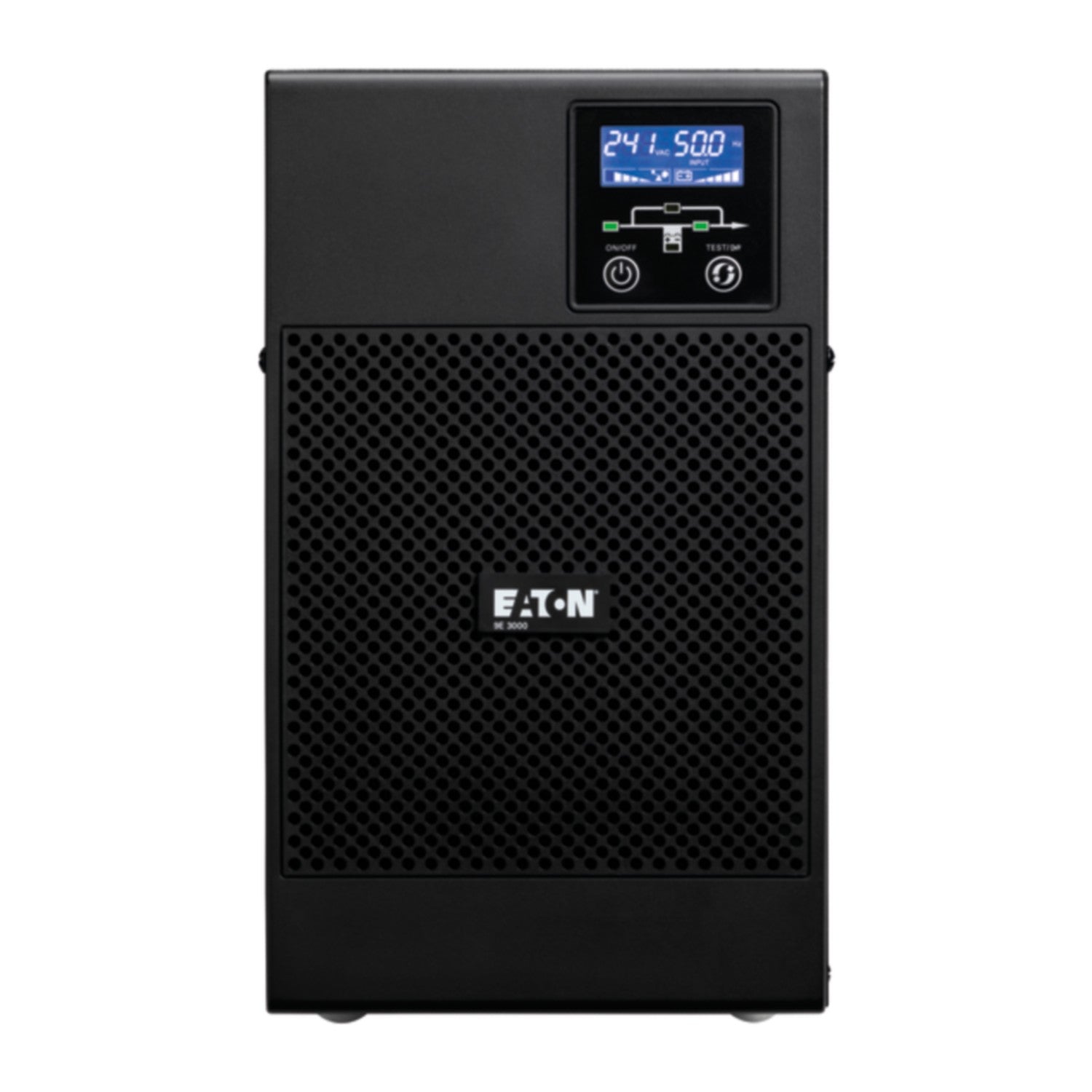

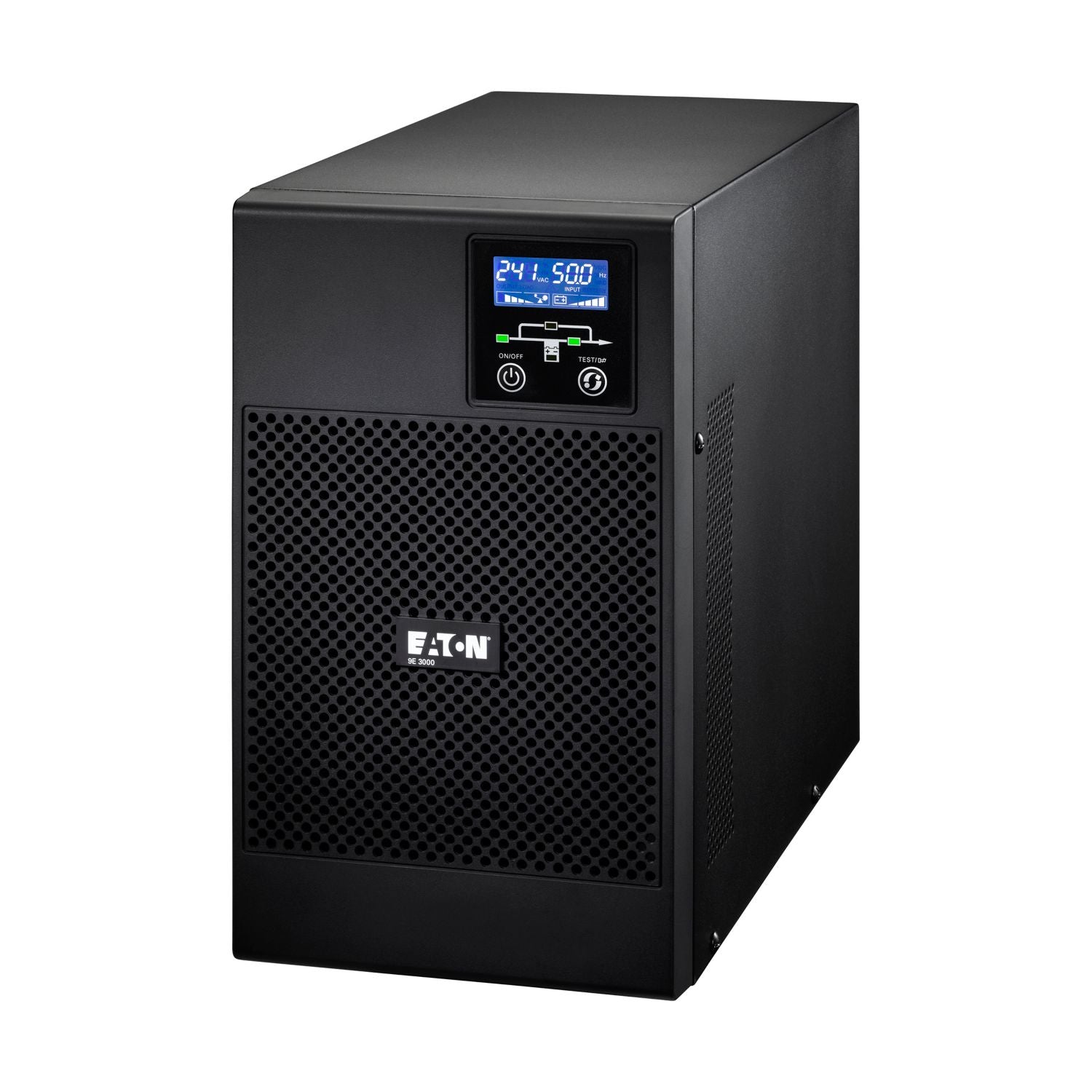

Eaton 9E XL 3000VA 2400W Online Tower UPS, No Internal Battery, 6x C13 + 1x C19
PRODUCT DESCRIPTION
Eaton 9E XL 3000VA/2400W Online Tower UPS (9E3000IXL, 9103-83967) - 3 Years Local Warranty
True Online Double-Conversion Protection
The Eaton 9E is an online double-conversion UPS rated 3000 VA / 2400 W. It rebuilds a clean, regulated sine wave output continuously, so connected equipment is isolated from sags, surges, frequency drift and noise on the incoming supply, with zero transfer time to battery. This XL version ships without internal batteries and is designed to run from Eaton 9E external battery modules, so runtime is sized to the job.
Plug-In Connection and Quiet Operation
Eaton lists a C20 input with six IEC C13 and one C19 outputs, an input window of 176–300 V (100–300 V with derating), 91% efficiency at maximum load and a noise level below 37 dB at 1 m — quiet enough for an office or comms cupboard.
Monitoring and Shutdown
An LCD display, USB (HID) and RS232 ports plus one slot for an optional network card integrate with Eaton Intelligent Power Manager and Intelligent Power Protector for orderly shutdown. An internal bypass keeps the load powered if the UPS itself needs attention.
Supplied Locally with GST Invoice
SourceIT supplies the Eaton 9E in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9E3000IXL Datasheet — Technical Specifications
General
| Product Name | Eaton 9E UPS |
| Catalogue Number | 9E3000IXL |
| Part Number (SKU) | 9103-83967 |
| Range | Eaton 9E |
| Topology | Online double-conversion |
| Form Factor | Tower (free standing) |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on the UPS (Eaton Singapore price list; XL model has no internal battery), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 3000 VA / 2400 W |
| Output Power Factor | 0.8 |
| Input Connection | IEC C20 |
| Input Phase | 1 |
| Input Nominal Voltage | 230 V default (220/230/240 V) |
| Input Voltage Range | 176–300 V (100–300 V with derating) |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (220/230/240 V) ±2% |
| Output Waveform | Sine wave (max. 3% distortion, linear load) |

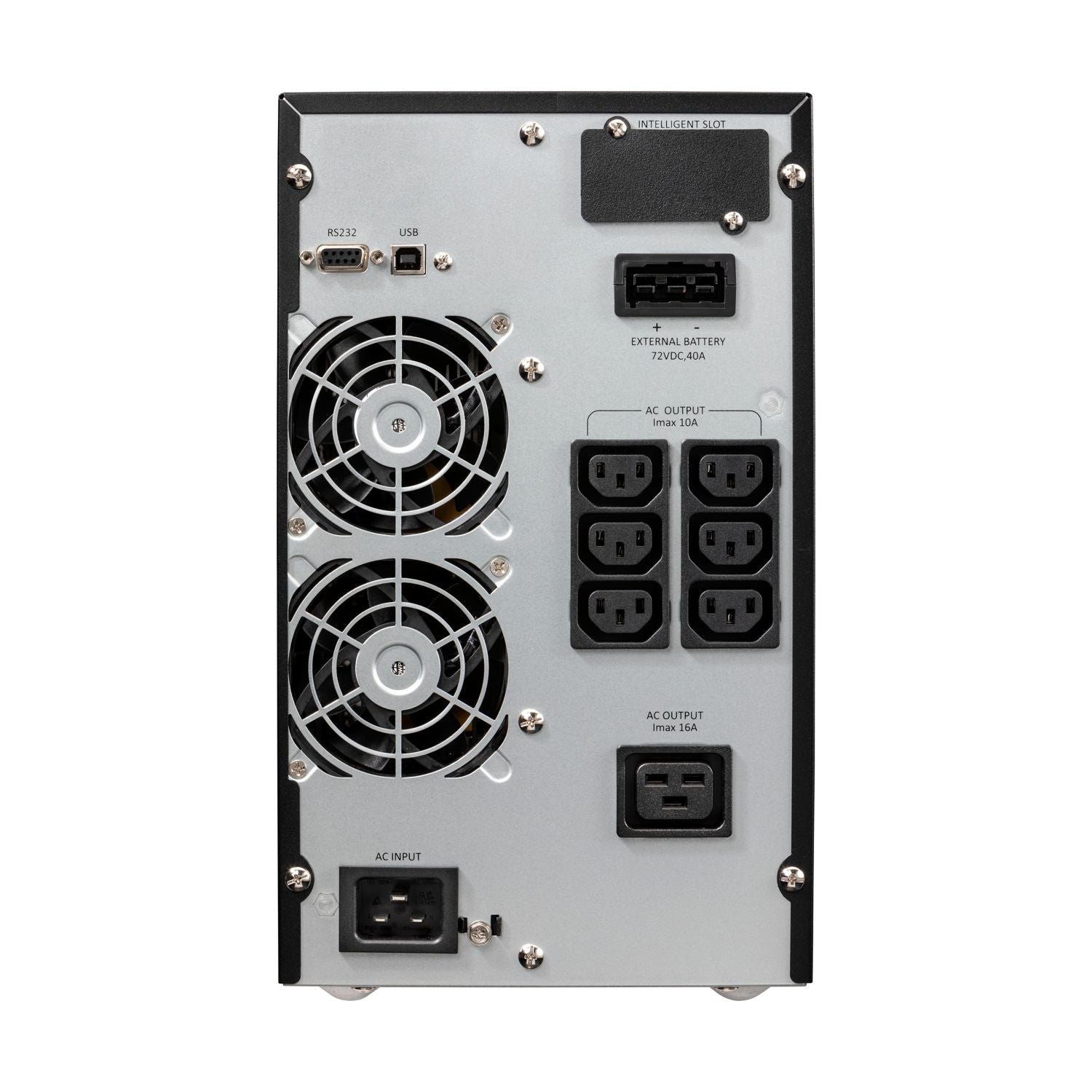

| Output Receptacles | 6x IEC C13, 1x IEC C19 |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 91% |
Battery
| Internal Battery | None (XL model — runs from external battery modules) |
| Battery Management | Automatic battery test, deep discharge protection |
| Extended Battery Capability | Yes (Eaton 9E EBM) |
Communications
| Communication Ports | USB (HID compliant), Serial (RS232), communication slot |
| Expansion Slot | One slot for optional communication card |
| User Interface | LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 399 / 330 / 190 mm |
| Weight | 7.9 kg |
| Noise Level | <37 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
Compatibility & Software Support
What It Is Suited To
Servers, network and storage in an office or comms room where longer runtime is needed. Size by watts (2400 W) rather than VA.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS natively. Eaton Intelligent Power Protector handles single-server shutdown; Eaton Intelligent Power Manager and an optional network card cover multiple servers and virtualised hosts.
Batteries Required
The XL model has no internal battery, so order it together with Eaton 9E external battery modules. Tell us the runtime you need and we will quote the right number of EBMs.
Package Contents & 9E Ordering Information
In the Box
Eaton lists: UPS, USB cable, serial cable, quick start guide, safety instructions.
Eaton 9E Range — Ordering Information
| 9E1000i | 1000 VA / 800 W | Tower | 9103-53904 |
| 9E2000i | 2000 VA / 1600 W | Tower | 9103-73929 |
| 9E3000i | 3000 VA / 2400 W | Tower | 9103-83968 |
| 9E3000iXL (this listing) | 3000 VA / 2400 W | Tower, no internal battery (XL) | 9103-83967 |
| 9E6Ki | 6000 VA / 4800 W | Tower | 9104-12759 |
| 9E10Ki | 10000 VA / 8000 W | Tower | 9105-32343 |
| 9E10KiXL | 10000 VA / 8000 W | Tower, no internal battery (XL) | 9105-32344 |
| 9E15Ki | 15000 VA / 12000 W | Tower, 3-phase in / 1-phase out | 9105-52106 |
| 9E20Ki | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out | 9105-62201 |
| 9E20KiXL | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out, no internal battery (XL) | 9105-62202 |
| 9E1000iR | 1000 VA / 900 W | Rack 2U | 9103-53953 |
| 9E2000iR | 2000 VA / 1800 W | Rack 2U | 9103-73981 |
| 9E3000iR | 3000 VA / 2700 W | Rack 2U | 9103-83A23 |
| 9E6KiR | 6000 VA / 5400 W | Rack 3U | 9104-12959 |
| 9E11KiPMR | 11000 VA / 10000 W | Rack 3U power module (use with 9EEBM240R) | 9104-32744 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9E3000IXL specifications (eaton.com) |
| Eaton datasheet | Eaton 9E UPS datasheet (PDF) |
| Eaton advanced user guide | Eaton 9E 1–3 kVA and EBM advanced user guide (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E3000IXL.
Frequently Asked Questions — Eaton 9E3000IXL
What does online double-conversion mean?
The load always runs from the UPS inverter, so there is no transfer time to battery and the output is regulated at all times. It is the right choice for servers, storage and sensitive equipment.
Does it work without an external battery module?
The XL model ships with no internal battery (Eaton lists battery quantity 0), so it needs Eaton 9E external battery modules to provide backup runtime.
How long will it run?
It depends on the load and how many EBMs are connected. See Eaton's runtime tool (Eaton runtime graph) or send us your load in watts.
Can I plug it into a normal wall socket?
Eaton lists an IEC C20 input and does not list an input cord in the box, so ask us about a suitable input cord and supply outlet.
What warranty do I get?
3 years on the UPS per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
