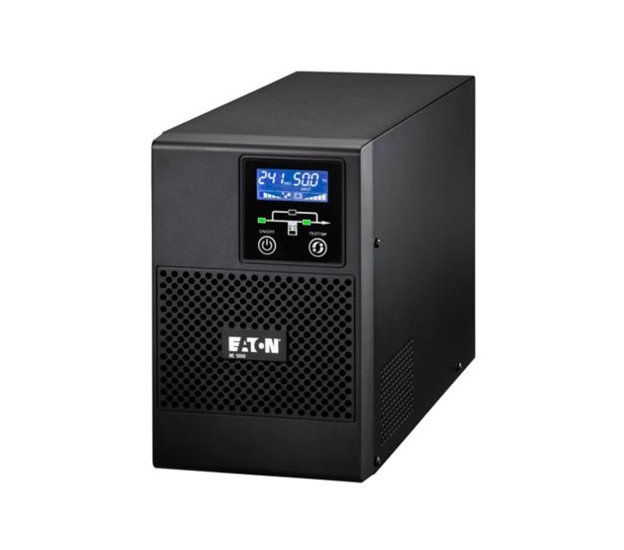

Eaton 9E6Ki 6000VA Tower UPS with internal batteries 230V

Eaton 9E6Ki 6000VA Tower UPS with internal batteries 230V (9104-12759) - 3 Years Local Warranty

Eaton 9E 6000VA Tower UPS – Premium Power Protection for High-Load Systems

The Eaton 9E 6000VA Tower UPS provides powerful and reliable backup power for demanding applications. With a 6000VA capacity, it is ideal for protecting large IT environments, critical servers, industrial machinery, and network equipment. This UPS ensures continuous and stable power supply during electrical outages and fluctuations, protecting your business operations and minimizing downtime. It is the perfect solution for businesses that require a high level of power protection for their essential infrastructure.

Robust Battery Management and Extended Runtime

Featuring advanced battery management technology, the Eaton 9E 6000VA Tower UPS optimizes battery performance and ensures longer battery life. It prevents issues such as overcharging and deep discharges, ensuring that the internal batteries remain in peak condition. The internal batteries offer seamless backup during power disturbances, and the UPS supports optional external battery packs for extended runtime, allowing your systems to stay operational longer in the event of a power failure.

Comprehensive Surge Protection for Equipment Safety

The Eaton 9E 6000VA Tower UPS includes integrated surge protection, safeguarding sensitive equipment from damaging power surges and spikes. By providing clean, stable power, the UPS protects connected devices from potential damage caused by electrical fluctuations. With its energy-efficient design, the Eaton 9E ensures minimal energy loss while supplying high-quality power, making it a cost-effective and reliable solution for businesses needing high-performance backup power.

Intelligent Monitoring for Optimal Performance

The Eaton 9E 6000VA Tower UPS comes equipped with an intuitive LCD display, providing real-time updates on the UPS’s status, including input/output voltage, battery capacity, and load levels. This allows users to monitor the UPS performance easily and respond quickly to any potential issues. Furthermore, the UPS is compatible with Eaton’s Intelligent Power Software, enabling remote monitoring and management. This ensures that your power protection system is always performing optimally and helps avoid disruptions to your business.

Technical Specifications

General
Model: 9E6Ki
Part Number: 9104-12759
Product Name: Eaton 9E6Ki 6000VA Tower UPS with Internal Batteries 230V
Manufacturer: Eaton
Product Type: Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)
Form Factor: Tower
Power Capacity: 6000VA / 4800W
Power Factor: 0.8
Input Voltage: 220V / 230V / 240V AC
Output Voltage: 220V / 230V / 240V AC
Battery Configuration: Internal Batteries Included
Application: Servers, Storage Systems, Networking Equipment, Industrial Automation, Medical Equipment, Telecommunications, Critical Infrastructure
Warranty: 1 Year Limited Warranty (Region Dependent)

Power Specifications
Rated Capacity: 6000VA / 4800W
UPS Topology: Online Double Conversion
Output Power Factor: 0.8
Output Waveform: Pure Sine Wave
Input Voltage Range: 176V – 276V AC (110V – 276V with Derating)
Input Frequency Range: 45Hz – 66Hz
Nominal Frequency: 50Hz / 60Hz Auto-Sensing
Output Voltage Regulation: ±2%
Input Power Factor: >0.99
Efficiency (Online Mode): Up to 91%
Efficiency (ECO Mode): Up to 96%
Internal Automatic Bypass: Supported
Auto Restart: Supported
Auto Shutdown Function: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 15 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Automatic Battery Testing
Deep Discharge Protection: Supported
Battery Replacement: User Replaceable
Extended Battery Modules (EBM): Supported
Maximum External Battery Packs: Up to 4
Extended Runtime Capability: Supported

Input Specifications
Input Connection: Hardwired / Fixed Connection
Input Phase: Single Phase
Input Voltage: 220V / 230V / 240V AC
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated

Output Specifications
Output Connection: Hardwired
Output Phase: Single Phase
Output Voltage: 220V / 230V / 240V AC
Output Voltage Accuracy: ±2%
Output Distortion: Less Than 3% (Linear Load)
Critical Load Protection: Supported
Continuous Power Conditioning: Supported

Display & User Interface
Display Type: LCD Display
Real-Time Power Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Alarm Notifications: Supported
Event Logging: Supported
Status Monitoring: Supported

Management & Communication
USB Port (HID Compliant): Supported
RS232 Serial Port: Supported
Communication Expansion Slot: 1
Optional Network Management Card: Supported
Potential-Free Contacts: Supported
Remote Shutdown: Supported
Remote Monitoring: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported

Virtualization & Software Support
VMware Compatible
Microsoft Hyper-V Compatible
Citrix Xen Compatible
Red Hat Compatible
Virtual Machine Shutdown Automation Supported
Centralized UPS Monitoring Supported

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Surge Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Internal Automatic Bypass
Continuous Power Conditioning

Performance & Features
True online double-conversion technology continuously regulates voltage and frequency, providing clean and stable power for critical equipment. The wide input voltage range reduces battery usage during voltage fluctuations, helping extend battery life. Internal batteries simplify deployment while support for up to four external battery modules enables extended runtime for business-critical applications. The UPS is suitable for IT, industrial, telecommunications, and healthcare environments requiring high availability power protection.

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -25°C to 55°C
Relative Humidity: 0% to 95% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 55 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Cooling System: Intelligent Forced-Air Cooling
Industrial Deployment Ready: Supported

Physical Specifications
Dimensions (H × W × D): 708.5 × 262.4 × 612.9 mm
Weight: 68 kg
Installation Type: Floor Standing Tower

Package Contents
Eaton 9E6Ki UPS
USB Communication Cable
RS232 Serial Cable
User Manual
Documentation Package

Key Features
6000VA / 4800W Capacity
Online Double Conversion Technology
Pure Sine Wave Output
Internal Battery Configuration
LCD Status Display
Input Power Factor Greater Than 0.99
Up to 96% ECO Mode Efficiency
Automatic Internal Bypass
USB & RS232 Communication
Optional SNMP Network Management
Supports Up to 4 External Battery Modules
Single-Phase Input and Output
Industrial & Enterprise Grade Protection

Typical Use Cases
Enterprise Servers
Storage Systems
Network Infrastructure
Industrial Automation Equipment
Medical Devices
Telecommunications Equipment
Control Rooms
Security Systems
Data Centers
Manufacturing Facilities
Business-Critical Applications

Certifications & Compliance
CE Certified
TÜV Certified
IEC/EN 62040-1
IEC/EN 62040-2
EAC Certified
RoHS Compliant

UPC / GTIN
UPC: 743172067661
