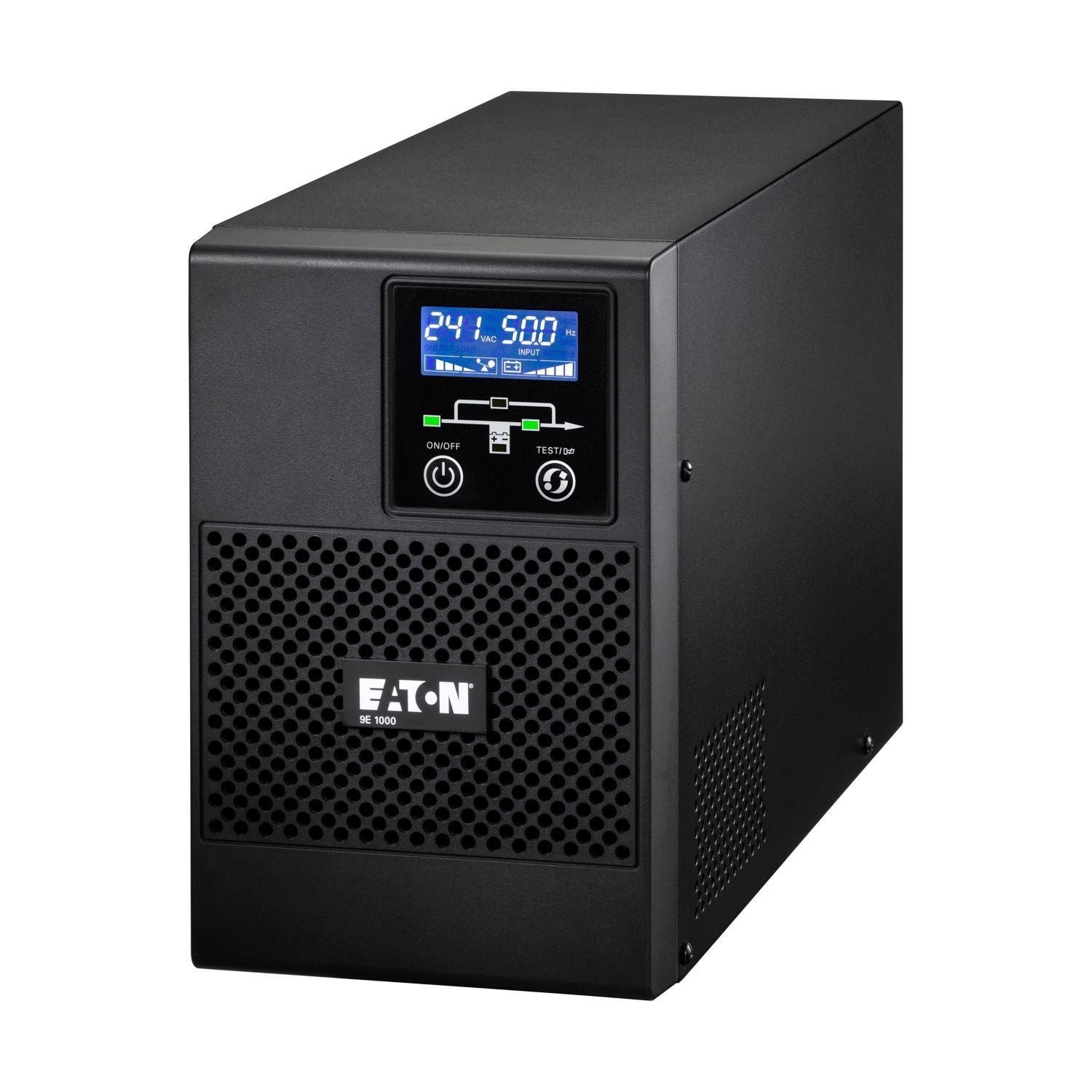

Eaton 9E1000i 1000VA Tower UPS with internal batteries 230V

Eaton 9E1000i 1000VA Tower UPS with internal batteries 230V (9103-53904) - 2 Years Local Warranty

Eaton 9E 1000VA Tower UPS – Reliable Power Protection

The Eaton 9E 1000VA Tower UPS offers a robust power protection solution for critical devices such as desktops, servers, and networking equipment. With a 1000VA power rating (or 700W), it ensures seamless battery backup and surge protection during unexpected power disruptions. Ideal for home offices, small businesses, and personal devices, this UPS helps avoid costly downtime by keeping your devices running and safeguarding them from electrical disturbances.

Compact Design with Advanced Power Management

Engineered for performance and space efficiency, the Eaton 9E 1000VA Tower UPS features a compact tower design that fits easily into small spaces. It incorporates advanced Automatic Voltage Regulation (AVR), which automatically corrects voltage fluctuations, ensuring your devices receive consistent and clean power. This feature minimizes the risk of damage due to power surges, sags, or spikes, offering peace of mind while protecting your critical devices.

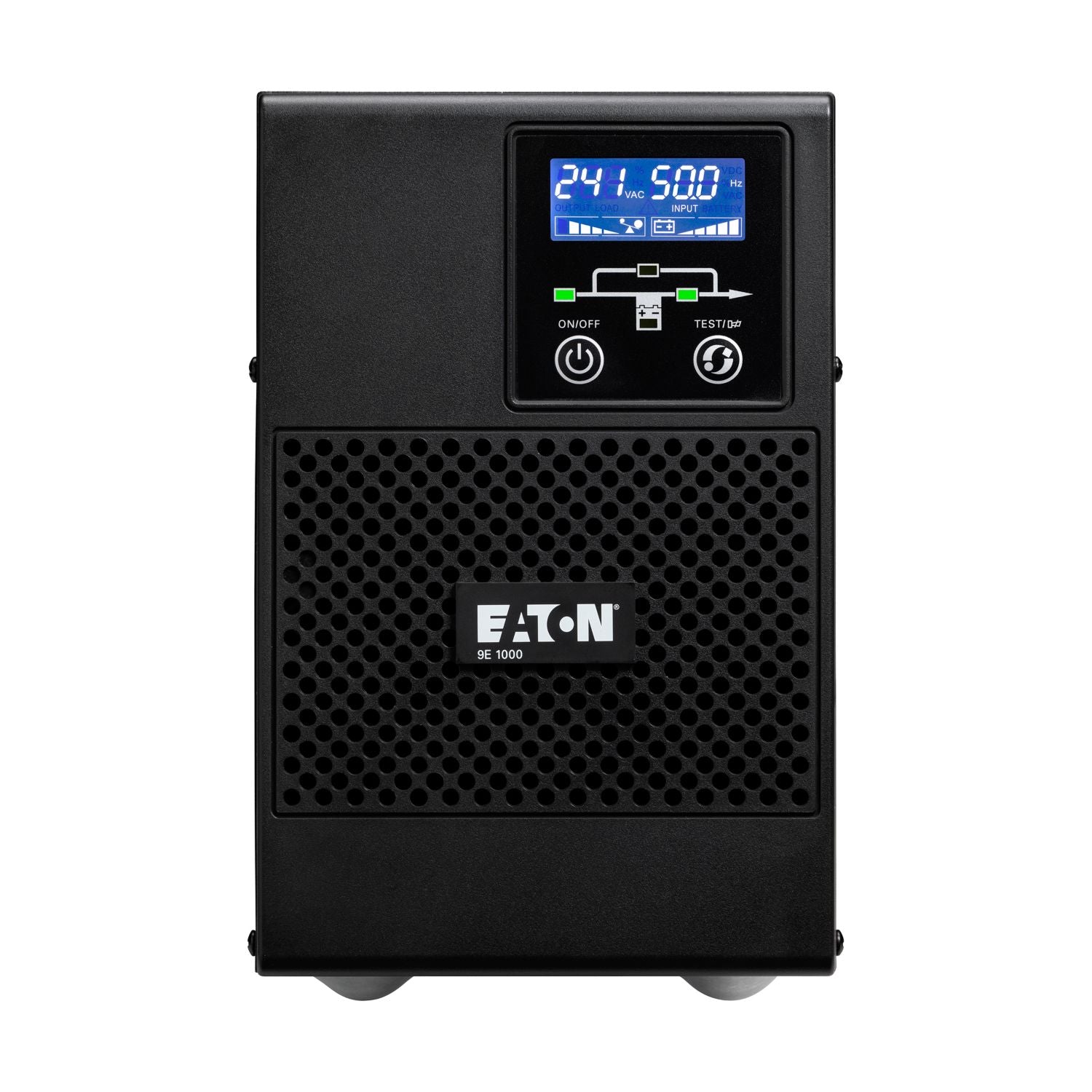

Real-Time Monitoring via LCD Display

With its easy-to-read LCD display, the Eaton 9E 1000VA Tower UPS provides real-time information about the UPS status, input and output voltage, load capacity, battery charge, and more. This display allows users to quickly assess the health of the UPS and make informed decisions to protect their devices. The user-friendly interface ensures efficient monitoring and simple troubleshooting when needed.

Integrated Surge Protection and Battery Backup

The Eaton 9E 1000VA Tower UPS comes equipped with integrated surge protection to shield your devices from damaging power surges, lightning strikes, and other electrical issues. It also offers reliable battery backup during power outages, providing enough runtime to save work and safely shut down equipment. This combination of surge protection and backup power ensures your devices remain operational and protected during critical moments.

Technical Specifications

General
Model: 9E1000i
Part Number: 9103-53904
Product Name: Eaton 9E1000i 1000VA Tower UPS with Internal Batteries 230V
Manufacturer: Eaton
Product Type: Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)
Form Factor: Tower
Power Capacity: 1000VA / 800W
Output Power Factor: 0.8
Input Voltage: 220V / 230V / 240V AC
Output Voltage: 220V / 230V / 240V AC
Battery Configuration: Internal Batteries Included
Application: Servers, Network Equipment, Storage Systems, Medical Devices, Industrial Automation, Telecommunications Infrastructure
Warranty: 2 Years Warranty

Power Specifications
Rated Capacity: 1000VA / 800W
UPS Topology: Online Double Conversion
Output Power Factor: 0.8
Output Waveform: Pure Sine Wave
Input Voltage Range: 176V – 300V AC (100V – 300V with Derating)
Nominal Input Voltage: 220V / 230V / 240V Configurable
Output Voltage Range: 220V / 230V / 240V ±2%
Input Frequency Range: 40Hz – 70Hz
Output Frequency: 50Hz / 60Hz Auto-Sensing
Input Power Factor: >0.99
Efficiency (Online Mode): Up to 89%
Efficiency (ECO Mode): Up to 97.5%
Internal Automatic Bypass: Supported
Cold Start Capability: Supported
Auto Restart: Supported
Frequency Converter Mode: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Automatic Battery Test
Deep Discharge Protection: Supported
Battery Replacement: User Replaceable
Battery Charging System: Intelligent Charging Technology
Extended Battery Module Support: No Internal EBM Connection for 1kVA Model

Runtime Specifications
Runtime at Full Load: Approximately 5 Minutes
Runtime at Half Load: Approximately 15 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported
Battery Backup for Safe Shutdown: Supported

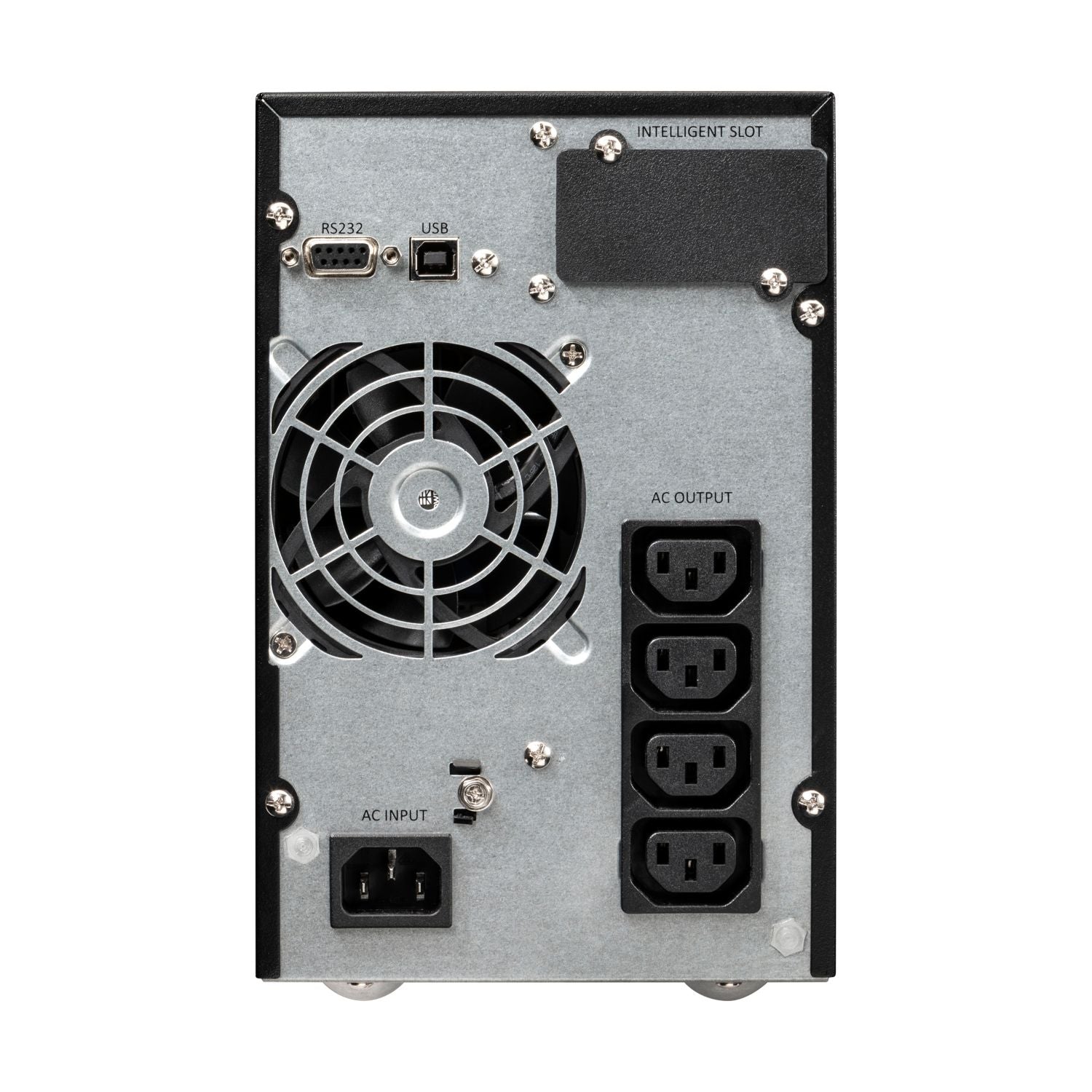

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated
Nominal Frequency: 50Hz / 60Hz Auto-Sensing

Output Specifications
Total Output Outlets: 4
IEC C13 Outlets: 4
Output Voltage: 220V / 230V / 240V Configurable
Output Frequency: 50Hz / 60Hz
Output Distortion: Less Than 2% THD (Linear Load)
Overload Capability: Supported
Pure Sine Wave Output: Supported
Critical Load Protection: Supported

Display & User Interface
Display Type: LCD Display
Real-Time Power Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Alarm Notifications: Supported
System Diagnostics: Supported
Status Monitoring: Supported

Management & Communication
USB HID Port: 1
RS232 Serial Port: 1
Communication Expansion Slot: 1
Optional Network-M2 Card: Supported
Optional ModBus-MS Card: Supported
Optional Relay-MS Card: Supported
Remote Monitoring: Supported
Remote Shutdown: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported

Virtualization & Software Support
VMware Compatible
Microsoft Hyper-V Compatible
Citrix Xen Compatible
Red Hat Compatible
Virtual Machine Shutdown Automation Supported
Centralized UPS Monitoring Supported

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Internal Automatic Bypass
Continuous Power Conditioning

Performance & Features
The Eaton 9E1000i delivers true online double-conversion protection that continuously conditions incoming power and isolates connected equipment from utility disturbances. Its compact tower design provides enterprise-grade protection for servers, networking devices, industrial equipment, and telecommunications systems while maintaining high efficiency through ECO mode operation. The integrated LCD display and optional network management capabilities allow easy monitoring and remote management of power infrastructure.

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -25°C to 55°C
Operating Humidity: 0% – 95% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 37 dB at 1 Meter
BTU Rating: 300 BTU/hr

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Cooling System: Intelligent Forced-Air Cooling
Industrial Deployment Ready: Supported
Compact Enterprise Design: Supported

Physical Specifications
Dimensions (W × H × D): 144 × 228 × 356 mm
Weight: 9.5 kg
Installation Type: Tower Floor Standing

Package Contents
Eaton 9E1000i UPS
USB Communication Cable
RS232 Serial Cable
Quick Start Guide
Safety Instructions
Power Management Software Support Documentation

Features
1000VA / 800W Capacity
Online Double Conversion Technology
Pure Sine Wave Output
LCD Status Display
Up to 97.5% ECO Mode Efficiency
Automatic Internal Bypass
USB & RS232 Communication
Optional Network Management Card
Frequency Converter Capability
Low Noise Operation (<37 dB)
Compact Tower Design
Virtualization Ready

Key Features
1000VA / 800W Capacity
Online Double Conversion UPS
Pure Sine Wave Output
LCD Monitoring Interface
4 × IEC C13 Outputs
Automatic Battery Testing
Up to 97.5% Efficiency in ECO Mode
Optional SNMP Management
VMware & Hyper-V Compatible
USB & RS232 Connectivity
Low Noise Design
Enterprise Power Protection

Typical Use Cases
Tower Servers
Network Switches
Firewalls & Security Appliances
NAS Storage Systems
Medical Equipment
Industrial Control Systems
Telecommunications Equipment
Branch Offices
Retail Infrastructure
Small Server Rooms
Edge Computing Deployments
Business-Critical Applications

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE Certified
TÜV Certified
EAC Certified
CB Report Certified
RoHS Compliant

UPC / GTIN
 UPC: 786689166564
