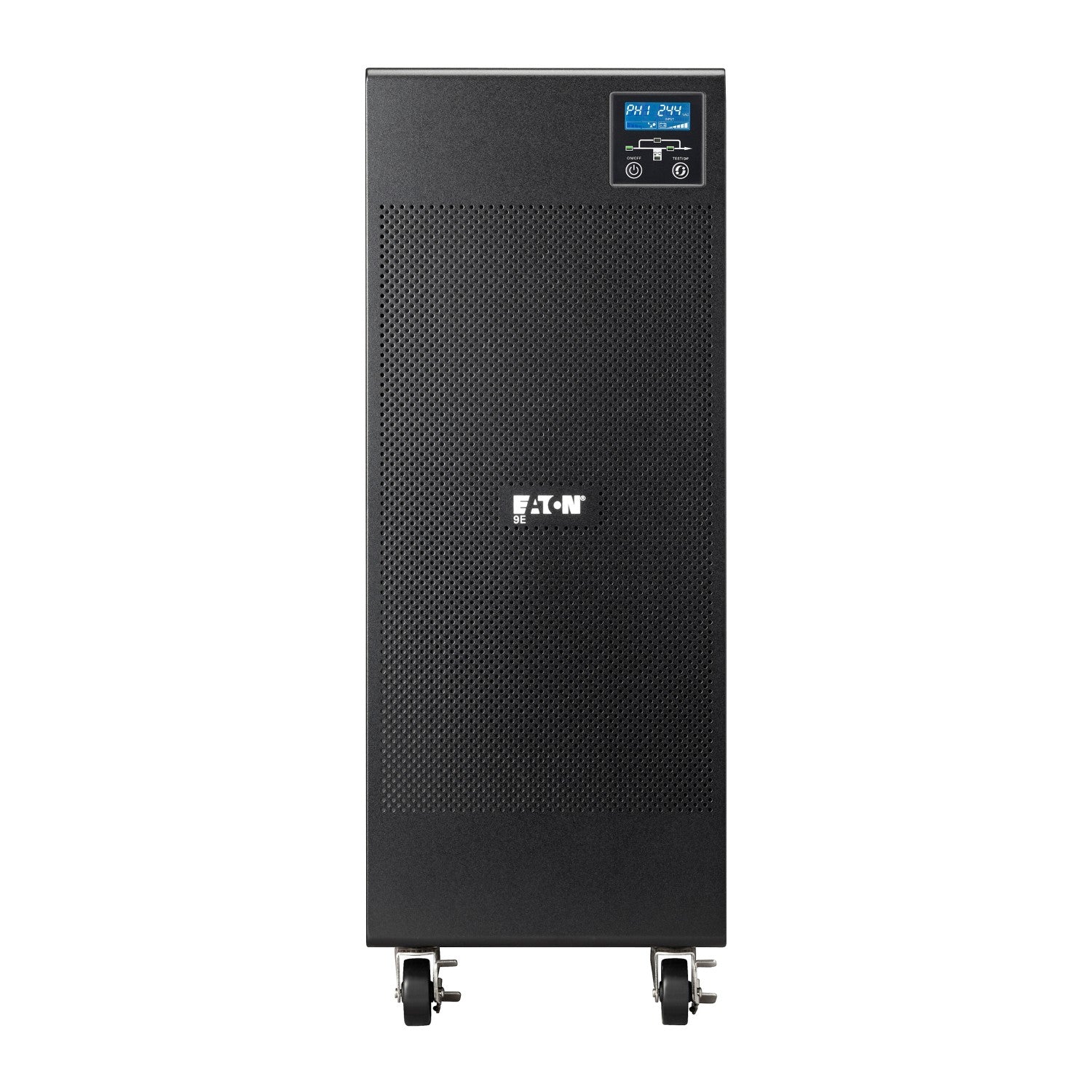

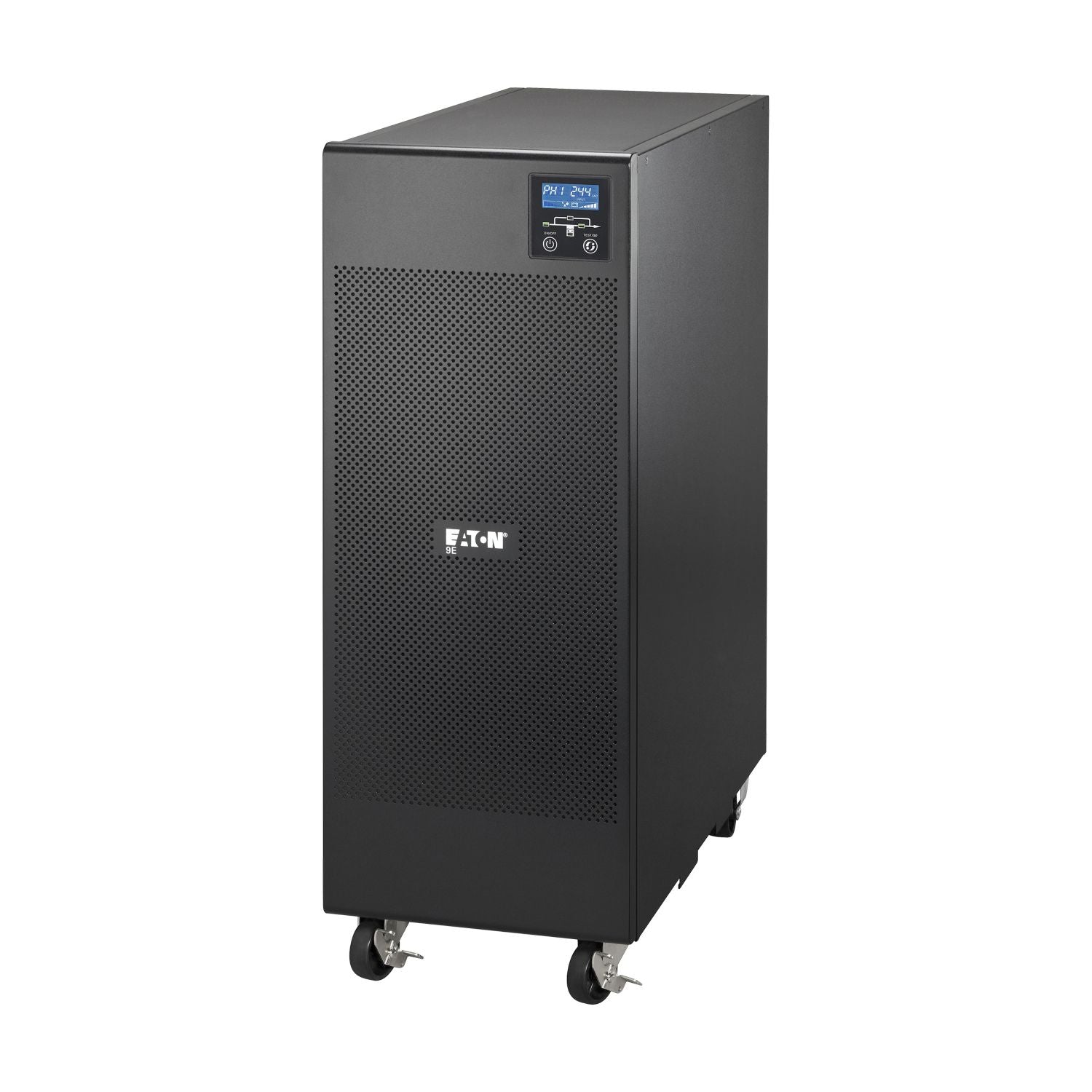

Eaton 9E XL 10kVA 8kW Online Tower UPS, No Internal Battery, Hardwired
PRODUCT DESCRIPTION
Eaton 9E XL 10000VA/8000W Online Tower UPS (9E10KIXL, 9105-32344) - 3 Years Local Warranty
True Online Double-Conversion Protection
The Eaton 9E is an online double-conversion UPS rated 10000 VA / 8000 W. It rebuilds a clean, regulated sine wave output continuously, so connected equipment is isolated from sags, surges, frequency drift and noise on the incoming supply, with zero transfer time to battery. This XL version ships without internal batteries and runs from Eaton 9E external battery modules, so runtime is sized to the site.
High Efficiency and Clean Input
Eaton specifies 92% efficiency at maximum load and an input power factor above 0.99, with an input window of 176–276 V (110–276 V with derating), so the 9E rides through poor mains and keeps the load on the building supply or generator clean.
Monitoring and Shutdown
An LCD display, USB (HID) and RS232 ports, a mini-terminal block and one slot for an optional network card integrate with Eaton Intelligent Power Manager and Intelligent Power Protector. An internal bypass keeps the load powered if the UPS needs attention.
Supplied Locally with GST Invoice
SourceIT supplies the Eaton 9E in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9E10KIXL Datasheet — Technical Specifications
General
| Product Name | Eaton 9E UPS |
| Catalogue Number | 9E10KIXL |
| Part Number (SKU) | 9105-32344 |
| Range | Eaton 9E |
| Topology | Online double-conversion |
| Form Factor | Tower (free standing) |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on the UPS (Eaton Singapore price list; XL model has no internal battery), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 10000 VA / 8000 W |
| Output Power Factor | 0.8 |
| Input Connection | Hardwired / fixed connection |
| Input Phase | 1 |
| Input Nominal Voltage | 400 V / 230 V (as listed by Eaton) |
| Input Voltage Range | 176–276 V (110–276 V with derating) |
| Input Frequency Range | 45–66 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (220/230/240 V) ±2% |
| Output Waveform | Sine wave (max. 3% distortion, linear load) |
| Output Phase | 1 |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 92% |
Battery
| Internal Battery | None (XL model — runs from external battery modules) |
| Battery Management | Automatic battery test, deep discharge protection |
| Extended Battery Capability | Yes (Eaton 9E EBM) |
Communications

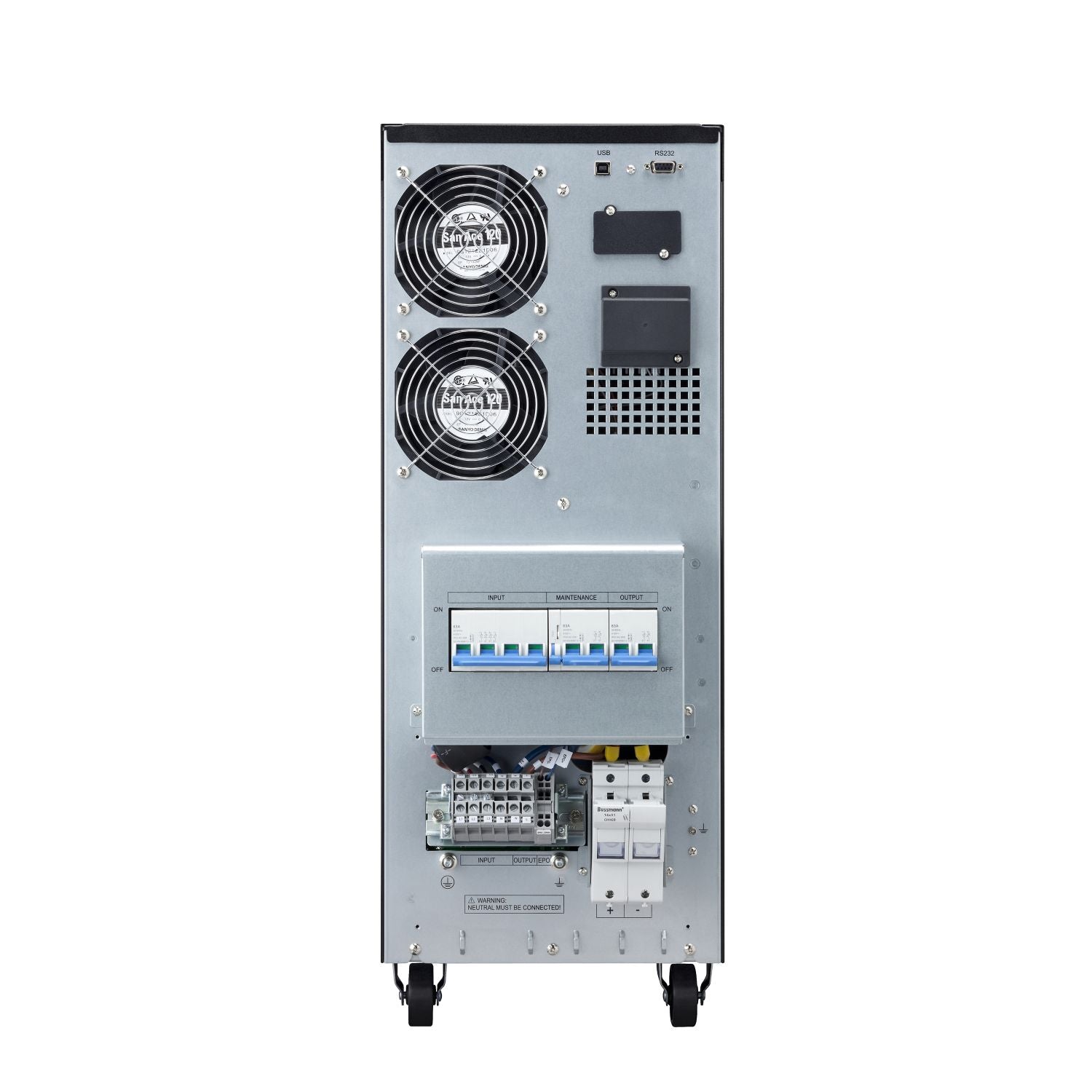

| Communication Ports | USB (HID compliant), Serial (RS232), mini-terminal block |
| Expansion Slot | One slot for optional communication card |
| Dry Contacts | Yes |
| User Interface | LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 262.4 / 708.5 / 612.9 mm |
| Weight | 28.86 kg |
| Noise Level | <55 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
Compatibility & Software Support
What It Is Suited To
A server room or comms room that needs longer runtime than internal batteries give. Size by watts (8000 W) rather than VA.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS natively. Eaton Intelligent Power Protector handles single-server shutdown; Eaton Intelligent Power Manager and an optional network card cover multiple servers and virtualised hosts.
Batteries and Installation
The XL model has no internal battery, so order it with Eaton 9E external battery modules. Eaton lists a hardwired input, so a licensed electrician should install it; we can quote EBMs and installation together.
Package Contents & 9E Ordering Information
In the Box
Eaton lists: UPS, USB cable, serial cable, user manual.
Eaton 9E Range — Ordering Information
| 9E1000i | 1000 VA / 800 W | Tower | 9103-53904 |
| 9E2000i | 2000 VA / 1600 W | Tower | 9103-73929 |
| 9E3000i | 3000 VA / 2400 W | Tower | 9103-83968 |
| 9E3000iXL | 3000 VA / 2400 W | Tower, no internal battery (XL) | 9103-83967 |
| 9E6Ki | 6000 VA / 4800 W | Tower | 9104-12759 |
| 9E10Ki | 10000 VA / 8000 W | Tower | 9105-32343 |
| 9E10KiXL (this listing) | 10000 VA / 8000 W | Tower, no internal battery (XL) | 9105-32344 |
| 9E15Ki | 15000 VA / 12000 W | Tower, 3-phase in / 1-phase out | 9105-52106 |
| 9E20Ki | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out | 9105-62201 |
| 9E20KiXL | 20000 VA / 16000 W | Tower, 3-phase in / 1-phase out, no internal battery (XL) | 9105-62202 |
| 9E1000iR | 1000 VA / 900 W | Rack 2U | 9103-53953 |
| 9E2000iR | 2000 VA / 1800 W | Rack 2U | 9103-73981 |
| 9E3000iR | 3000 VA / 2700 W | Rack 2U | 9103-83A23 |
| 9E6KiR | 6000 VA / 5400 W | Rack 3U | 9104-12959 |
| 9E11KiPMR | 11000 VA / 10000 W | Rack 3U power module (use with 9EEBM240R) | 9104-32744 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9E10KIXL specifications (eaton.com) |
| Eaton datasheet | Eaton 9E UPS datasheet (PDF) |
| Eaton user guide | Eaton 9E installation and user manual (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E10KIXL.
Frequently Asked Questions — Eaton 9E10KIXL
What does online double-conversion mean?
The load always runs from the UPS inverter, so there is no transfer time to battery and the output is regulated at all times. It is the right choice for servers, storage and sensitive equipment.
Does it work without an external battery module?
The XL model ships with no internal battery (Eaton lists battery quantity 0), so it needs Eaton 9E external battery modules to provide backup runtime.
How long will it run?
It depends on the load and the number of EBMs. Send us your load in watts and the runtime you need, and we will size the battery bank.
Does it need an electrician?
Yes. Eaton lists a hardwired (fixed) input connection, so a licensed electrician should install it.
What warranty do I get?
3 years on the UPS per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
